Name: Wireless 2 Way Audio Door Eye Hole Home 1080P FishEye Network Mini Peephole Wifi Door IP Camera P2P ICSEE TF Card Slot
Brand: Mini USB Camera Mini Camera IP Camera Camhi Camera Factory
SKU: 2255800246480242
Price: 33.00 USD
Availability: InStock

Description

PIR StyleTwo Way Audio 940nm IR Night Vision P2P On vif WIFI 4K 8MP 5MP 1080P Security Mini Wireless IP Camera SD Card CamhiUSD 36.98-106.25/piece

Wireless 2 Way Audio Door Eye Hole Home 1080P FishEye Network Mini Peephole Wifi Door IP Camera P2P ICSEE TF Card SlotUSD 39.00-52.80/piece

Geniuspy Home Security 1080P Wifi Door Eye Hole Mini Peephole IP P2P Motion Detection Video V380 Camera With Micro TF Card SlotUSD 42.50-43.18/piece

Tuya Door Eye Hole Security 1080P 1.78mm Lens Wide Angle FishEye CCTV Network Mini Peephole Camera WifI IP P2P TF Card OnvUSD 48.75-69.75/piece

1080P Wifi IP Peephole Camera HD 2MP Home Security Door Eye Motion Detection Mini Video Camera Build-In IR 940nm/Audio SupportedUSD 51.60-52.40/piece

Glod Sliver 1080P Cloud Storage TF Card IR Audio Door Eye Hole Fishehye IP Mini Peephole Wifi Wireless Door Camera P2P V380 ProUSD 51.60-75.60/piece

1080P Mini Peephole Wifi Door Eye Hole Camera Wireless IP P2P On vif Motion Detection Two Way Audio Tuya App Camera TF Card SlotUSD 43.75-44.45/piece

Wireless 2 Way Audio Door Eye Hole Home 1080P FishEye Network Mini Peephole Wifi Door IP Camera P2P ICSEE TF Card Slot

Note: with 2 Way audio/tf card slot ,support on vif P2P ,rtsp !

Two Way Audio

When surveillance videos can't satisfy you, we provide you real-time two-way audio. Camera is built with microphone and speaker. So you can talk to your kids via your smartphone remotely whenever you want.

This models is an Special Mini IP Camera With Unique IPC Board ,it is Custom Made for other client !

So the senor is Sony IMX307e +XM530 Dsp ,It is an ordinary Chip and Senor,1080p real HD sony starlight ,with 1920*1080P video record 25fps pal .ntsc 30fps

it iswidely used inHelmet&Police , Industrial equipment, medical instrument , Laboratory Instruments etc.

in addation ,the camera support P2P On vif compatible with NVR ,such as xiongmai . Dahua .Hikvision NVR etc

for more products infomation ,pls go to our store page !

if you have other requirement ,welcome contact with us free !

Built-in Microphone

Access the camera through the APP and observe the activities outside the house at any time.

Support iCSEE APP

Connect the camera via APP's WIFI and local mode

Please follow the steps below.

Customizable Motion Detection Events

You can createmultiple motion detection settings for camera, including Human Body Detection,Line Crossing Detection, Intrusion Detection and Specific Region Detection.

Motion Detection & Email Alert & Alarm Sound
When someone breaks into shooting area, the camera will make alarm sound and alarm messages will be pushed to your Phone APP.

Support Xmeye NVR

VMS:

Local Website:

Smartphone Setting

Downloaded On Phone(IOS&Android)

APP :XMEyeoriCSee

H.265 advantages

1. It is approximate 2 times as effective as H.264.

2. Reduces file size up to 50% with the same quality.

3. Supports resolution up to 7680 × 4320 (8K).

4. Reduces video noise and increases dynamic range.

5. Extend far greater video quality experience compared to H.264

Features:

1. H.265 2MP

2. H.265support dual-stream,AVI;0.1M~8Mpbs variable;1~30f/s variable;

3. Color 0.1Lux; B/W 0.01Lux;

4. 1 RJ45 Ethernet interface, 10/100M automatically adapting;

5. Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc network protocol;

6. Support ON VIF, and mobile monitoring;

7. Metal case.

Specification :

Specification
Model NO.	GS-S2AD21WTCMFE
System
Operating system	Embedded RTOS,dual-core 32bit DSP,pure hard compression ,watch dog
Video
Sensor/DSP	1/2.8" IMX307E CMOS StarLight image sensor
Max.image Resolution	1920*1080P 2.1Megapixel
Frame Rate	PAL 25fps @ 1080P ,NTSC 30fps @ 1080P
Main Stream	1920x1080P
Sub Stream	D1 CIF 704 × 576; 352 × 288
Compression	H.265x

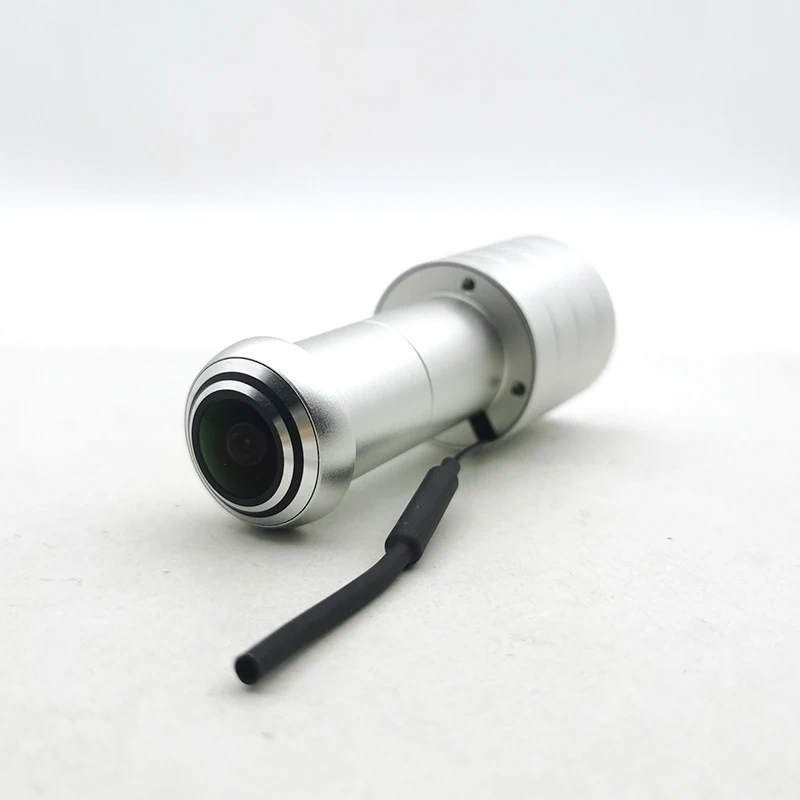

Door Lens	1.66mm Lens 160Degree
Min. Illumination	Color 0.001Lux; B/W 0.01Lux;
Noise reduction	Support 2D/3D
Night Vision	N/A/lens with 650nm IR filter
Storage	Via PC/Mobile Phone/NVR With HDD/TF Card slot
Electronic Shutter	1/20~1/30000s
Wide dynamic	Support digital
APP	XMEYE/ICSEE
Adudio
Audio Input	with audio ,microphone build outside(2 way audio)
Network

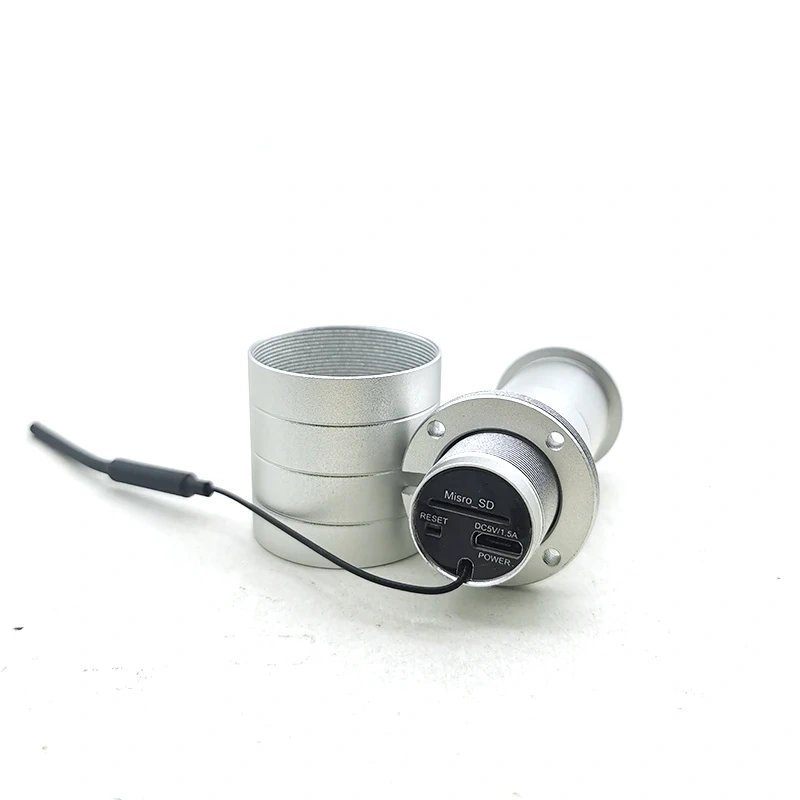

Interface	DC5V Port+reset button +tf card slot
Protocol	support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc
Compliance	ON VIF Profile S
PC Client and Browser	IE6.0 and above,, Mozilla Firefox, Mac Safari
Mobile device	iPhone, iPad, Android Phone, Tablets
WIFI	yes, IEEE 802.11 b/g/n
PoE	Optional
Reliability	Comprehensive lightning protection, in line with national and international standards; 7 * 24 hours 65’C high temperature stable and reliable testing (including mounted machine testing)
ELECTRICAL
Power Consumption	1.8W
Adapter Requirement	DC 5V 2A
General
Ingress Protection	IP54
TF Card Storage	max support 128gb
Working Temps	–20°c~70°c
Working Humidity	20%~85% (non condensation)
Reset Button	support
Camera Size	/
Net weight	0.35Kg
Gross weight	0.55Kg
Software Download	http: //www.xiongmaitech.com/en/index.php/service/down/83
SDK Download	http: //open.xmeye.net/en/en
Notice:	For More Models pls search''geniuspy''in alibaba Site

Q & A

1, IP camera default IP address:192.168.1.XXX

User name:admin,password:empty(null)

If there is a problem with "Can not find the Device", it is the default ip address is not in the same network segment as your router.

Please click "Edit Device" to change the camera's ip address,

For example, if your router's ip address is 192.168.0.1, then you need to change the camera's ip address to 192.168.0.XX.

"DeviceManage" It can find and change the IP address, upgrade the firmware.

2, P2P website: "www.xmeye.net" ,please use IE and install ActiveX,only IE supports Multi Language.Chrome,Safari just support Chinese .

then please input your P2P ID,user name and password to login and preview.

Access to the IPC through the web, only one screen can be displayed.

There are multiple IPC, please use client software to manage(such as: CMS VMS SNVR)

3,The camera's port information.

ON VIF 2.0 Port 8899 ;RTSP Port 554 ;HTTP Port 80;Media Port 34567;E-mail default port 25; SLL protocol Port 465.

4,Does the cameras can be compatible with other manufacturers NVR?

Please confirm whether other manufacturers NVR support on vif protocol.

Our camera's on vif protocol is on vif Profile S, does not support HTTPS protocol;

Auto focus camera, other manufacturers NVR can only zoom, can not focus.

5, The camera all supports Motion Detect,FTP,Email alarm, RTSP.

A,How to set up motion detection?

Access to IPC via IE (or CMS software), device configuration - alarm function - motion detection - on and save.

B, About FTP

FTP upload video and pictures, pictures will always upload, video files larger, after the alarm, the video file will be completed to upload.

We suggest the Sever-U and FileZilla FTP Server to upload the video or image.

C,For the Email alarm,please use Email server which supports SMTP ( Hotmail ,Yahoo not support SMTP ,it not supports Gmail temperately since the server problem ) .

D, RTSP URL for VLC media Player :

RTSP port: 554

rtsp: // (IP): (PORT) / user = (USER) & password = (PWD) & channel = (Channel) & stream = (Stream) .sdp? Real_stream

Example:

rtsp: //10.6.10.25: 554 / user = admin & password = & channel = 1 & stream = 0.sdp? Real_stream (stream = 0 primary stream 1 auxiliary stream)

If it is through the public network need to RTSP port open (default is 554), the port in the network service-RTSP can be set

6, About DDNS

Mapped media TCP port: 34567 and HTTP port: 80 (Note: mapping need to be changed to non-80)

Note: The two ports in the network settings can be viewed, can be modified

What domain names are supported?

- CN99 / DynDns / Oray / NO-IP / MYQ-SEE

Q:When I finish the steps to add the camera to the CMS list,why it notify “ Can’t find the Device “ even I can see the default ip address 192.168.1.10 in the menu .

F: It is the IP Address conflict ,the default ip address is not in the same network segment as your router.

Please click “Edit Device “ to change the camera’s ip address to make them in the same network segment !

For example ,if your router’s ip address is 192.168.0.1 ,then you need to change the camera’s ip address to 192.168.0.XX .

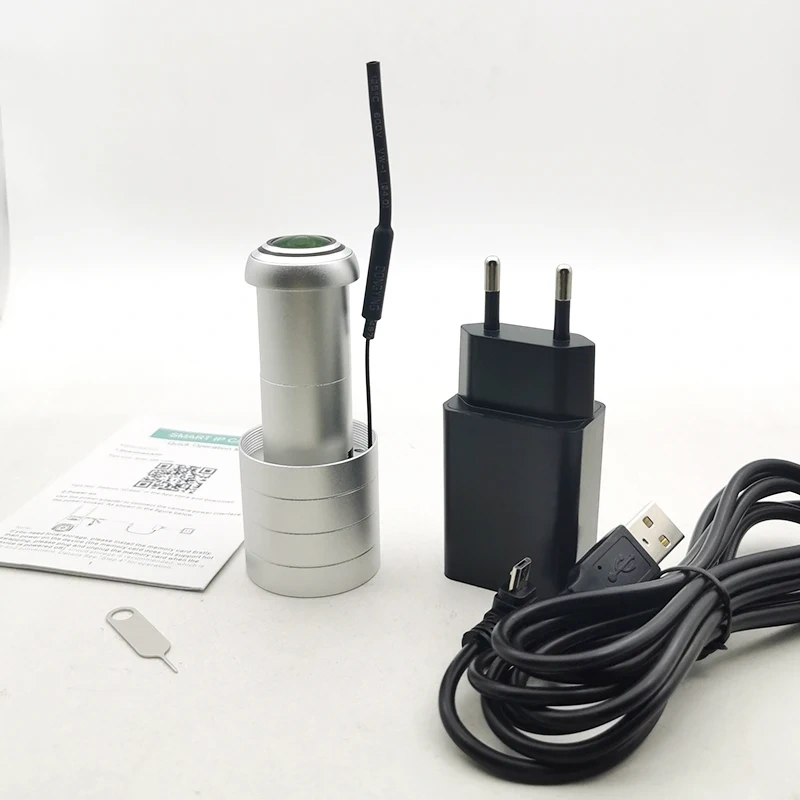

Package contents:

1 x Camera 1x Adapter 1 x English User Manual

Notice :Dear,all customer ,because cd disk is easy damaged by rude transport and Most

of the Customer ‘s Computer Without CD CD-ROM disk drive,it is hard to copy the files

from the CD Disk! In addation ,the CD Disk Polluting the environment after used !

Software will be sent to your emails or leave message when you paid!pls contact with our SALES team if you need !
