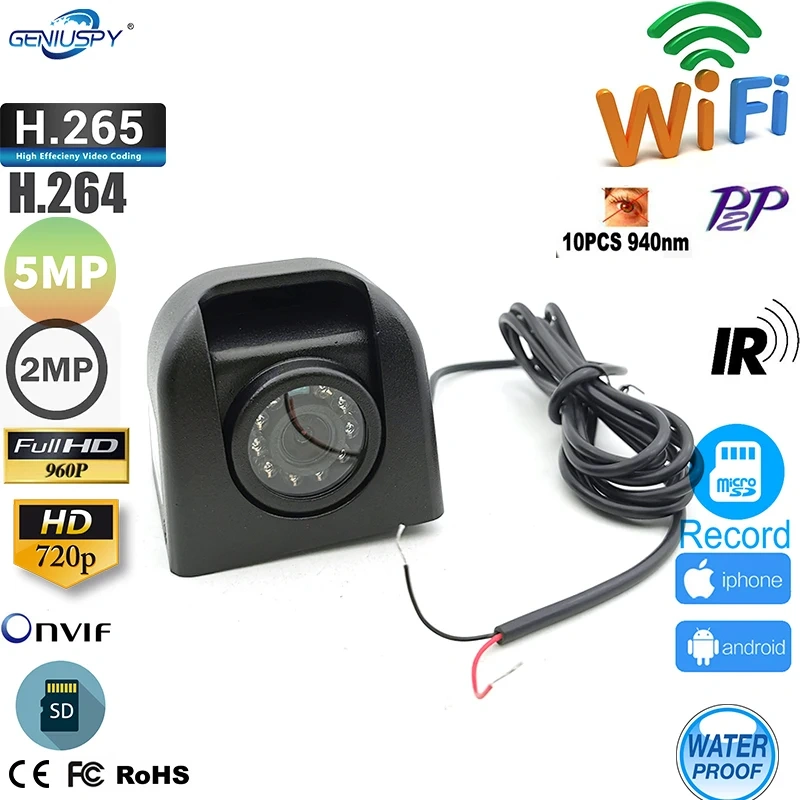

Side View Bus Truck Camera 2MP 1MP 1.3MP 5MP Mini Wireless Wifi Ip Network Camera CCTV On vif P2P RTSP 940nm IR Night Vision
Resolution:1280 x 720P
Image Sensor: OV9732
Sensor Size: 1/4 inch
Support 128GB TF card Max
Specification: 960P
Resolution:1280 x 960P
Image Sensor: SC1135
Sensor Size: 1/3 inch
Support 128GB TF card Max
Specification: 1080MP
Resolution:1920x1080
Image Sensor:
Sensor Size: 1/2.8 inch
Support 128GB TF card Max
Specification: 5.0MP
Resolution:2560x1920 or 2560x1440
Sensor Size: 1/2.8 inch
Image Sensor: T31x
Support 128GB TF card Max
The camera supports wifi hotspots, which can be accessed via the mobile APP without the need to connect the network cable
Features:
H.264 for 1.0mp 1.3mp 2.0mp , H.265 for 3mp 5mp Megapixels HD resolution
Support both WiFi connection and wired cable connection
Support Acess Point (AP WiFi) connection, you can connect camera by AP mode and live view / playback/ control pan tilt zoom even without internet
Camera built in memory card slot, Support TF card / micro SD card up to 128G
Support Motion detection Recording and email alarm.
Support send alarm pictures to the e-mail address,
Support upload alarm pictures and videos to the FTP server,
Support record alarm pictures and videos to Micro SD card,
Support alarm mobile phone message push
Support remote view and remote control pan tilt zoom from phone app /PC client at any time and any place
Support playback memory card records from phone app
Built in IR-CUT, Support both day and night vision,
Provide android & ios APP and multi-channel CMS PC client software.
Elegant outline and easy installation.
Phone app :CamHi camhipro
Support QR code login.
Support Plug n Play P2P
Support On vif 2.0, camera can work with On vif NVR recorder!
Q1: Is it wifi camera?
Re: Yes, it is wireless ip camera with wifi antenna.
Q2: Does it support sd card?
Re: YES, it bulits a sd card slot,you can install a micro SD card to save records.
Q3 Can i watch the camera video from another place remotely? What is the app for phone?
Re: Yes, you can. The phone app named" CamHi". (User ID: admin; Password: admin)
Q4: Can i record the video into SD card or my computer hard disk or i have to use this camera with a recorder NVR?
Re: Yes, you can record video to your Micro sd card / PC hard disk, and you can also use it with a recorder NVR and record it into NVR hard disk. Both are OK!
Q5: Does it support ON VIF?
Re: Yes.
Specifications:
Model | GS- CYHXT2W/GS- CYHXT2WCH/GS- CYHXT2WCM/GS- CYHXT2WC5M | |||||
Video | Sensor |
:1.0megapixel.1/4" gc1034Low Lux
: :1.3megapixel. 1/3" H65Low Lux
:2.0megapixel. HI3518E+1/2.8 Low Lux CMOS
:5.0megapixel. HI3516EV300+I1/2.8 Low Lux CMOS | ||||
Video resolution |
:Main stream: 1280x720@20fps Sub stream: 640x480/640x352@25fps, 320x240/320x176@25fps
:Main stream: 1280x960@20fps, 1280x720@25fps Sub stream: 640x480/640x352@25fps, 320x240/320x176@25fps
:Main stream: 1920*1080P@20fps, 1280x720@25fps Sub stream: 640x480/640x352@25fps, 320x240/320x176@25fps
Main stream: 2560x1920@15fps, 2560x1440@15fps | |||||
Video compression | H.264 for 2MP/1.3MP 1mp Models. 3MP 5MP h.265 | |||||
Lens | 3.6MM Lens default , 2.8mm or 4mm or 6mm or 2.5mm optional | |||||
View angle | 92degree for 3.6mm | |||||
Night vision | 10pcs infrared LEDs, night vision distance 10-15m, 940nm ir leds default ,850nm optional | |||||
Alarm | Motion detecting alarm | Can set 4 independent detection region (1-100 sensitivity can be set) | ||||
Alarm linkage | Alarmsend pictures to the mailbox, | |||||
Alarm recording | Support Micro SD card and PC client linkage alarm recording | |||||
Network | Wireless | IEEE 802.11 b/g/n | ||||
Ethernet | N/A | |||||
On vif protocol | Support ON VIF 2.4(backward compatible) | |||||
Storage | Micro SD card | Support up to 128G micro SD card | ||||
Recording mode | Alarm record, timing record, | |||||
Video playback | Support APP, IE browser, remote client play and download the video | |||||
PTZ | Audio | / | ||||
Horizontal speed | / | |||||
Vertical speed | / | |||||
Preset | / | |||||
General specification | Power | DC12V 1A | ||||
Operating environment | Environment -20℃~+60℃(-4℉~+140℉), | |||||
Shell material | metal shell | |||||
Waterproof level | ip66 waterproof ,for indoor outdoor use | |||||
Product size | / | |||||
Product weight | 0.35kg | |||||
Package size | / | |||||
Package weight | 0.5kg | |||||

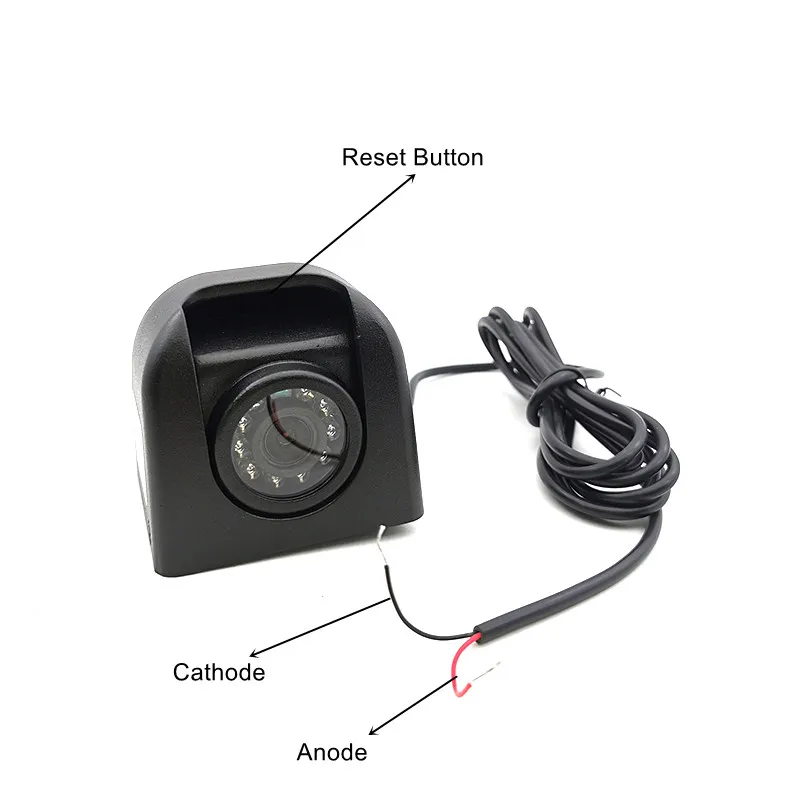

Reset button | Support | |||||
If the buyer want other sizelens please 'Leave Message to Seller' to notify us when bidding.
Thanks for your attention to our products.if you have any question ,pls fell free to contact with us !
we will replyed you within 24hours!!!
Below Lens,some of them can be replaced for different angle view &distance requirement ! pls talk with us whetherit is available for the camera !
