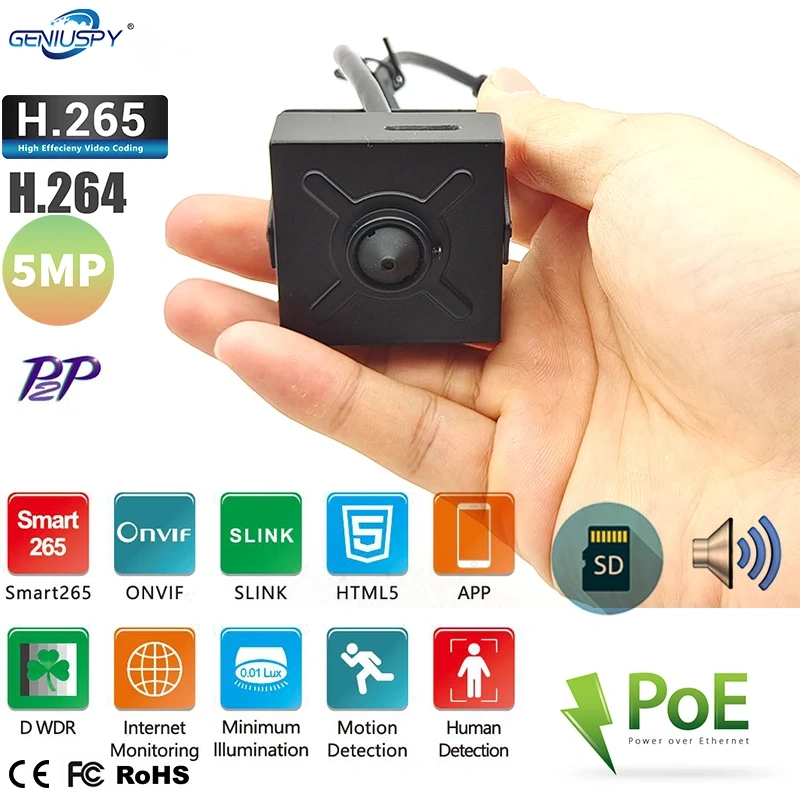

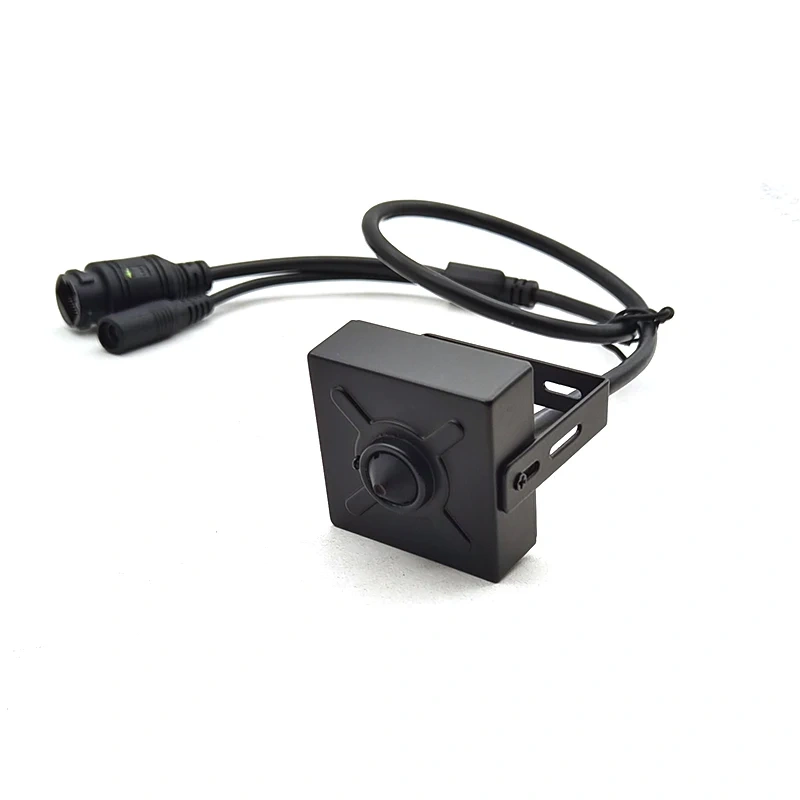

RTMP 5MP POE Audio Pinhole Mini IP Camera H.265 Slink HTML5 Micro CCTV IP Camera SD Card Slot Max 256G Home Industry Security Surveillance

Description

RTMP 5MP POE Audio Mini IP Cam H.265 Slink HTML5 Micro CCTV IP Camera SD Card Slot Max 256G Home Industry Security Surveillance

Notice: support audio /tf card slot max 256g

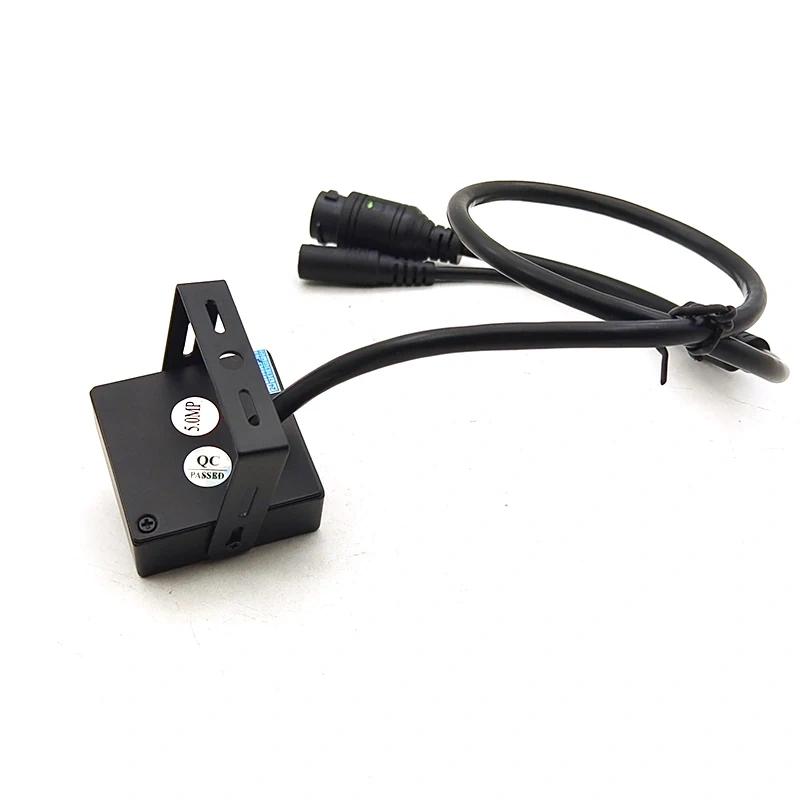

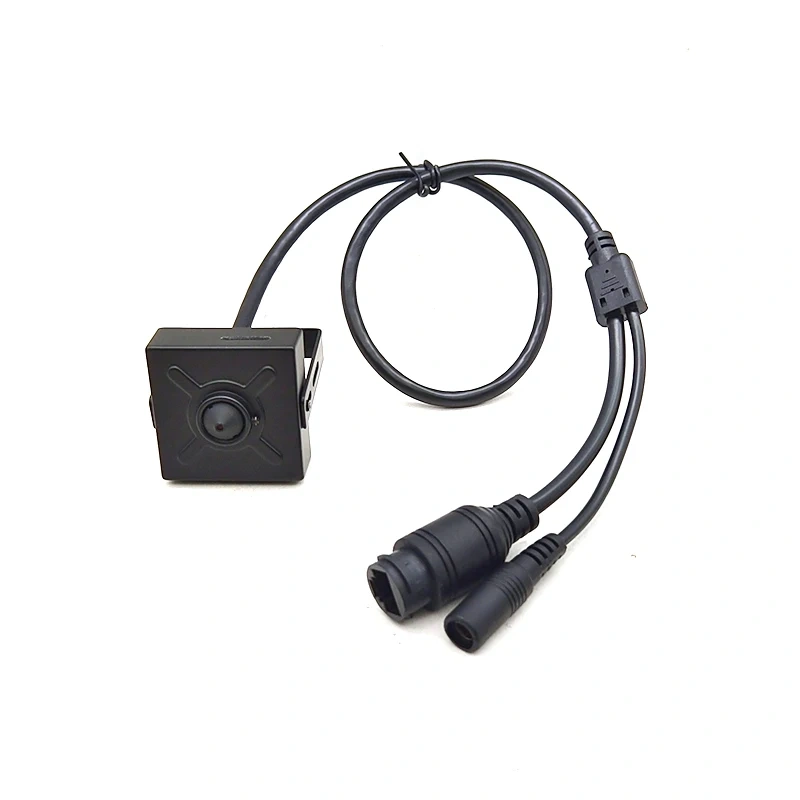

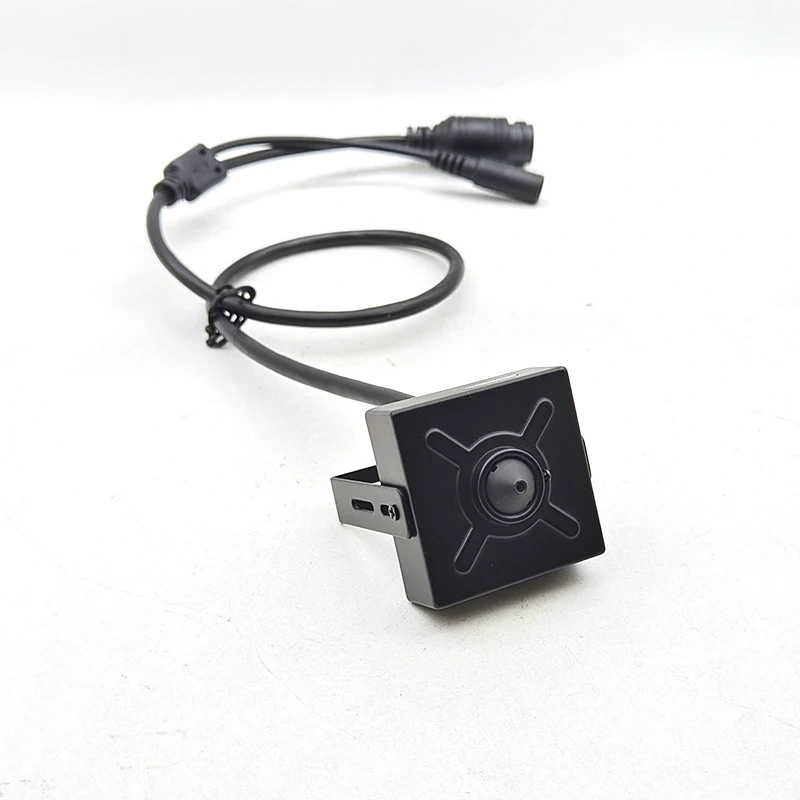

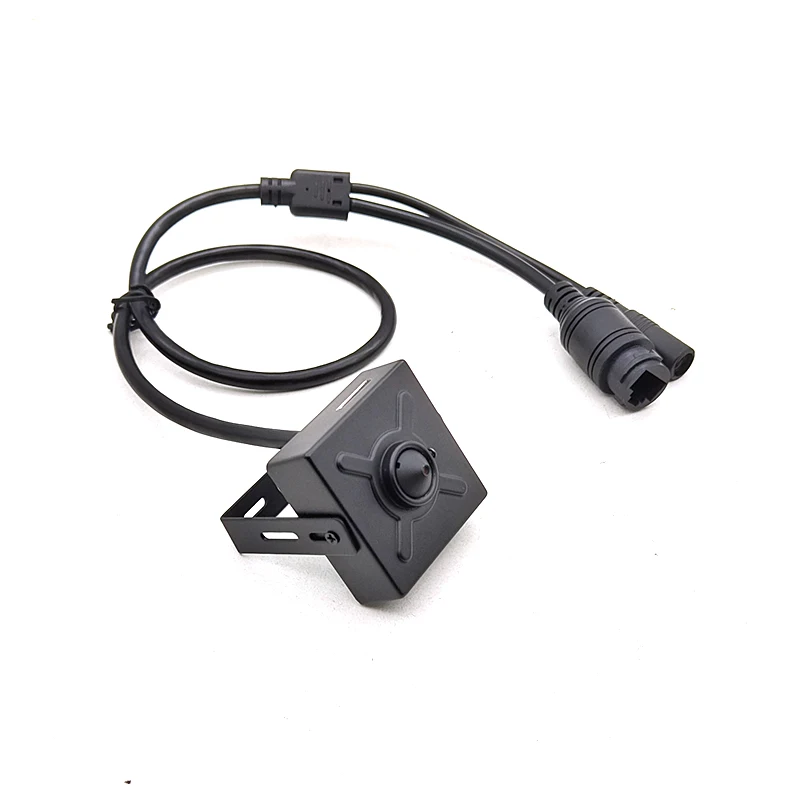

IP camera with 12v DC and Ethernet ports

-SD card local recording (16-256GB)

-human detection based recording

-ONVIF protocol

-HIK protocol

-5mp hd

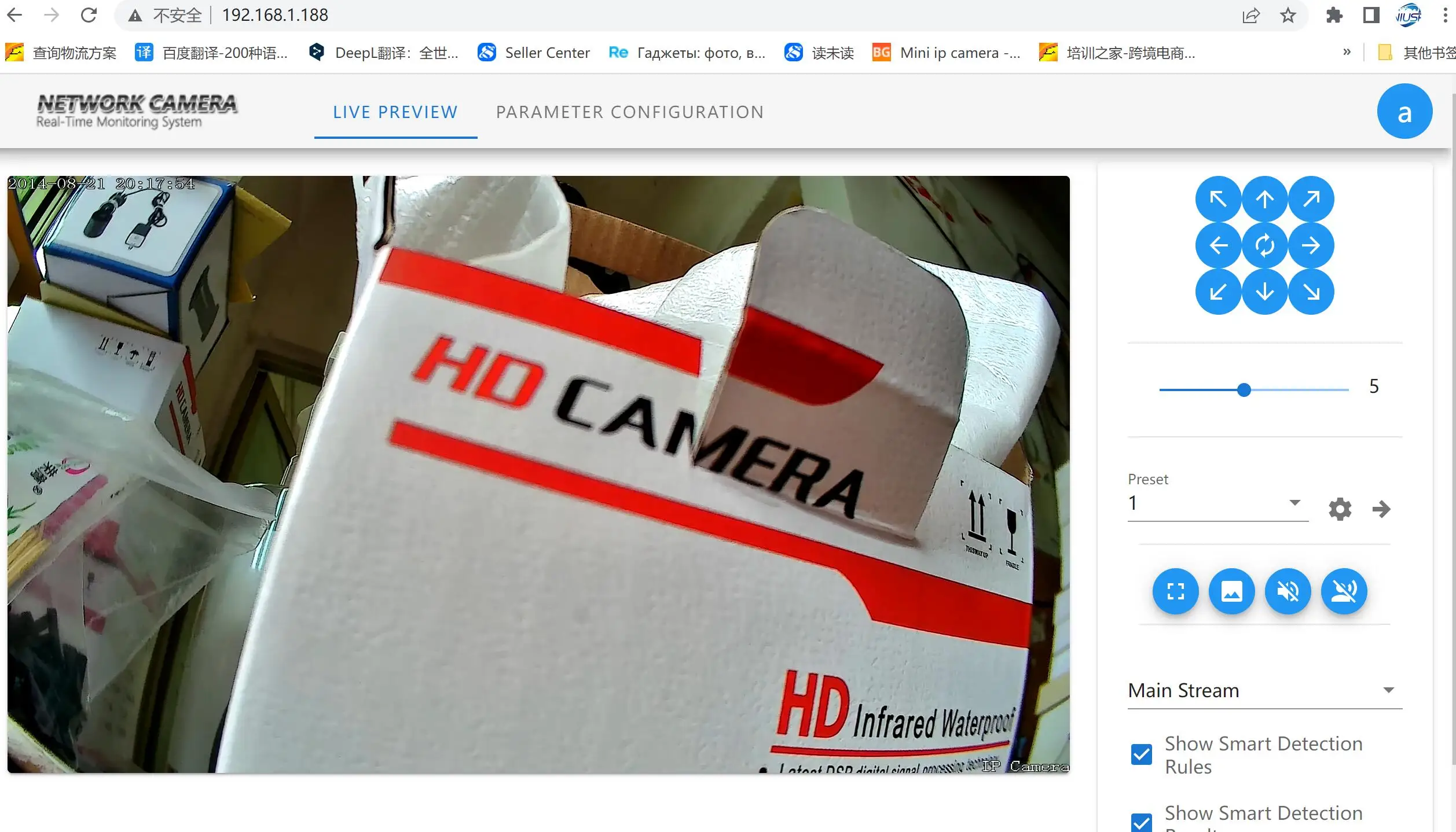

-remote playback on app SeeEasy and in browser ( IE, chrome, or edge, etc.)

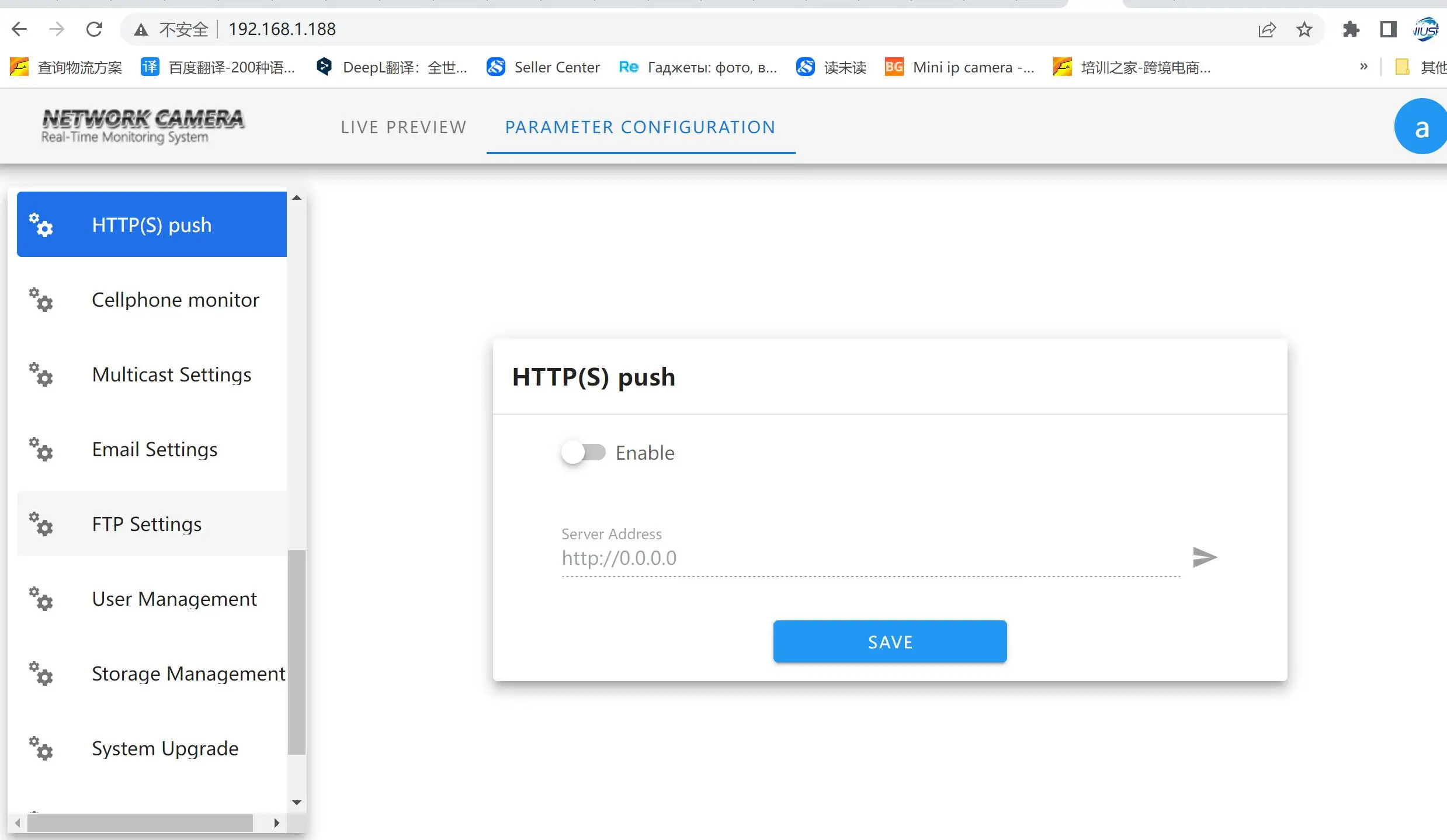

-HTTP, RTSP, ONVIF, Platform access, protocols

-h264-h265+ compression -pinhole lense (optional)

-motorized focus (optional)

-motorized zoom (optional)

Features:

1. Support 5MP(2592X1904@20fps), 4MP(2560X1440@25fps), 3MP(2304X1296@25fps), 2MP(1920X1080@25fps) resolution
2. Built-in human detection algorithm, detection frame rate 5 fps/second, detect 5 people at the same time
3. S265/H.265 efficient compression, saving bandwidth and storage space
4. Low consumption, low bit rate and low latency
5. Support infrared/full color/dual light source video mode optional
6. Support automatic electronic shutter function to adapt to different monitoring environments
7. Support ONVIF, SLINK protocol

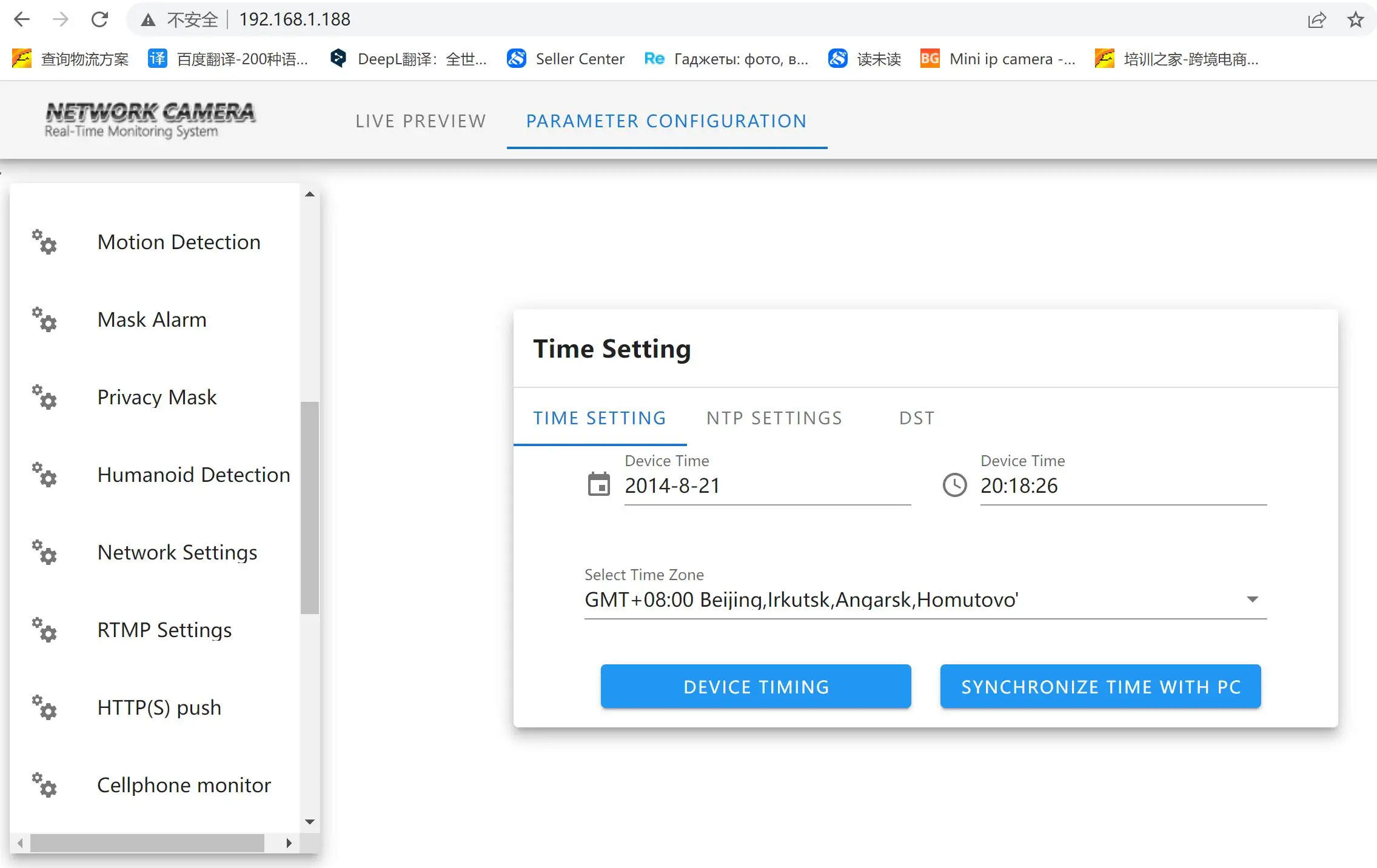

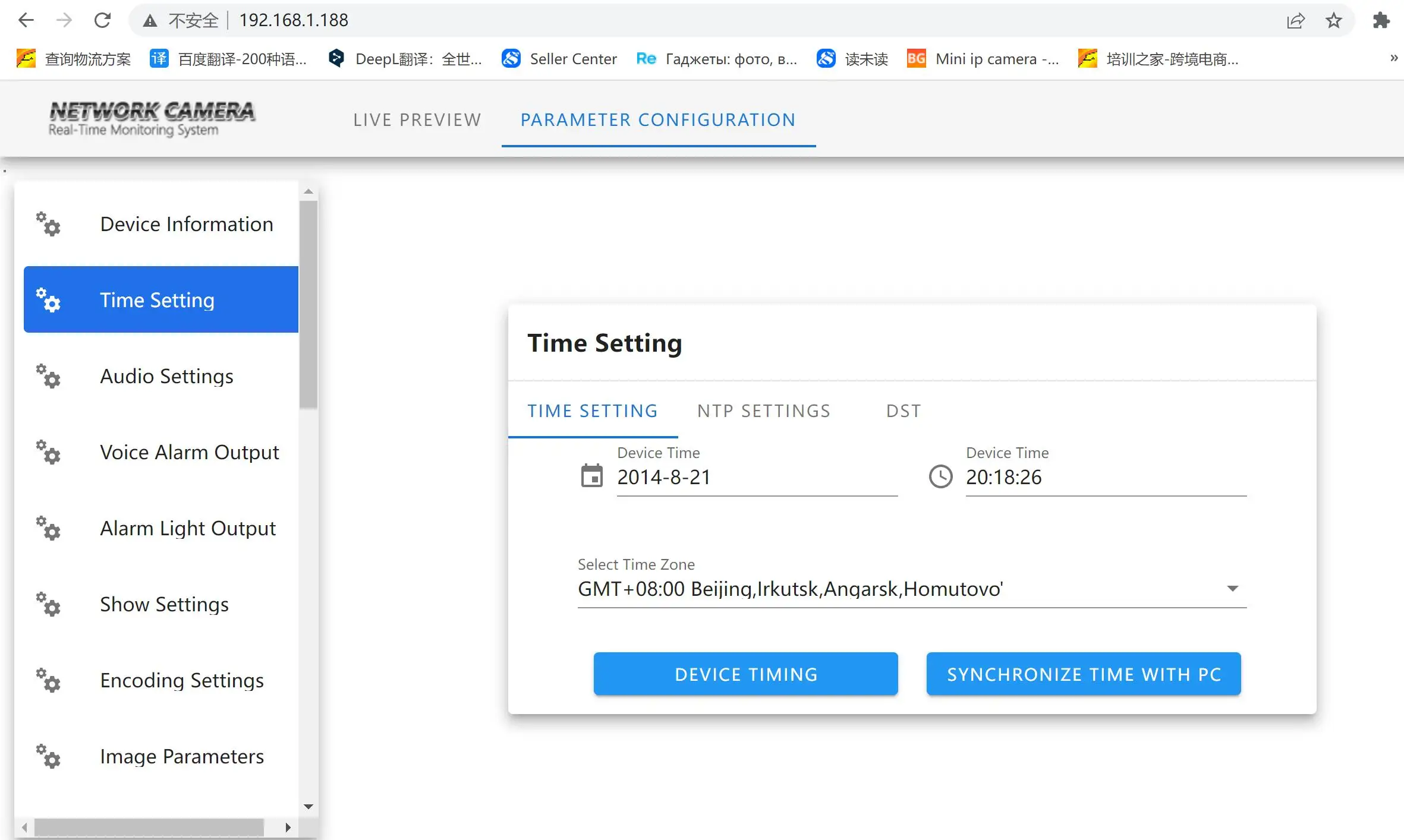

8. Support NTP service
9. Support two-way intercom
10. Support HTTPS encrypted transmission
11. Built-in amplifier, built-in TF card slot, P2P (SeeEasy APP)

Specifications:

Basic parameter
Model		GS-NQT440C5MA/GS-NQT440C5MA-POE
Smart function		Human detection
Main chipset		T31X
Image sensor		1/2.7", 4MP progressive scan ultra-low illumination CMOS GC4653
Lens		Support fixed lens and manual varifocal lens
WDR		D-WDR (off/low/middle/high)
D&N		ICR switch, auto/color/B&W/external trigger
Lamp board control		Auto/manual/off
Noise reduction		Off/low/middle/high/higher
Mirror		Off/horizontal mirroring/vertical mirroring/180 ° rotation
Image setting		Brightness/contrast/sharpness/saturation/chroma
Human detection
Detection qty		≤ 5 person at the same time
Detect human pixel		Human pixel ≥ 40X40
Human detection rate		≥99% (meet above requirement)
Responding speed		≤1s
Maximum detection Frame Rate		5fps/s
False detection rate		≤2%
Detection part		People in any pose, including half body, head
People tracking		Support
Detection mode		Support static human detection, support dynamic humanoid detection
Detection method		Support visible light image detection, support near-infrared image detection
Detection area		Support specified area, default full screen
Upload method		Private protocol upload
Trigger method		Video trigger
Video and audio coding
Encoding format		S265/H.265/H.264
Coding characteristics		Main stream: 5MP(2592X1904@20fps), 4MP(2560X1440@25fps), 3MP(2304X1296@25fps), 2MP(1920X1080@25fps) Sub stream: D1(720X576), VGA(640X480), Q720P(640X360)
Video bit rate		CBR/VBR
Video type		Composite stream/video stream
Audio coding standard		G.711A/G.711U
Network function
Network protocol		TCP/IP, UDP, HTTP, HTTPS, DHCP, RTSP, DDNS, NTP, PPPOE
Interface protocol		ONVIF, SLINK

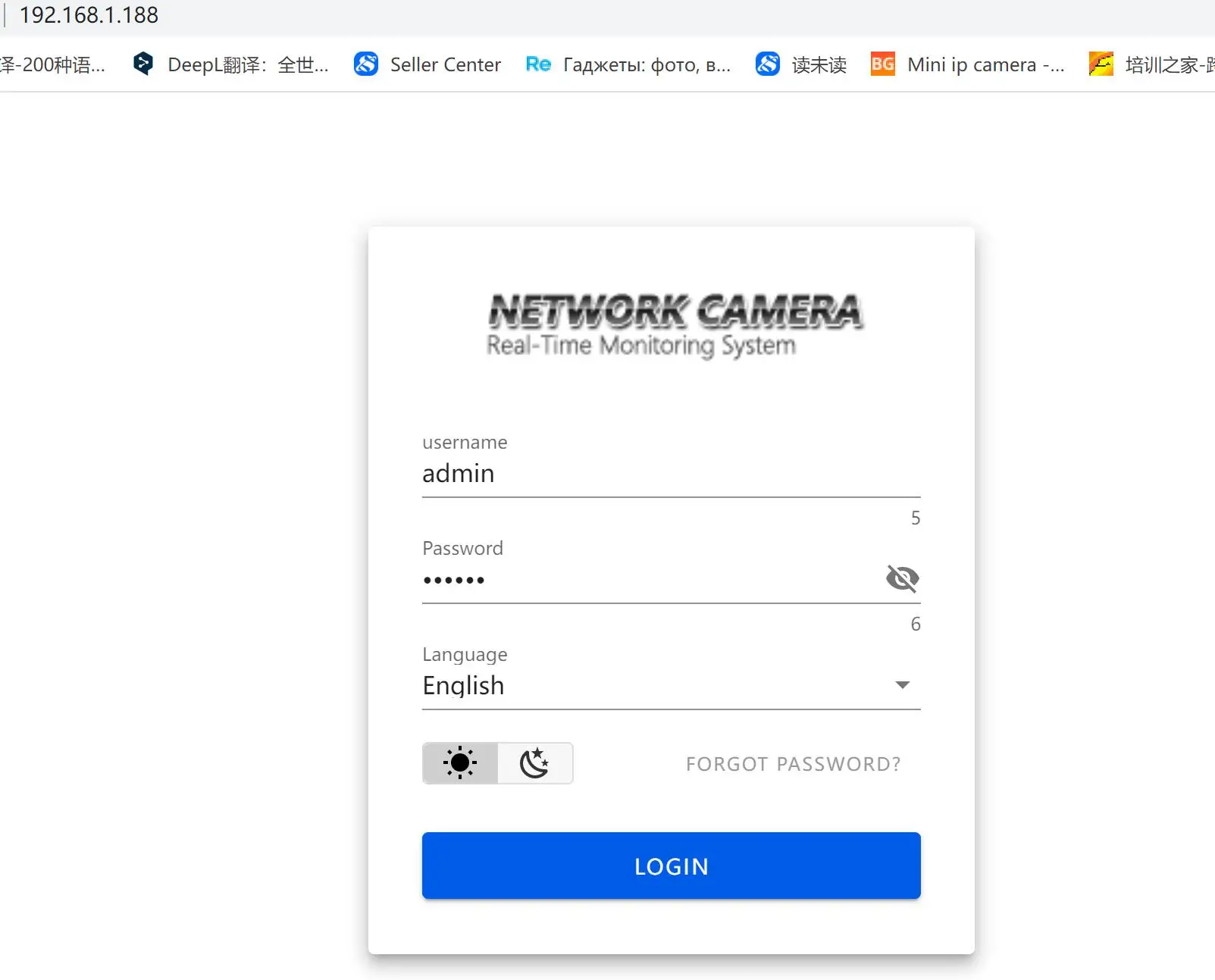

Safe mode		Authorized username and password, HTTPS encryption, AES connection encryption, RTSP authentication
Motion detection		Set detection area, multi-level sensitivity can be set
Video tampering		Support 1 area setting
Privacy zones		Support 4 area privacy mask
Port
Network port		RJ45 10M/100M network self-adjustable
Audio		Mic in/out
General
Operation T/H		- 10°C ~ 50°C/0 -90
Power supply		DC12V/PoE optional

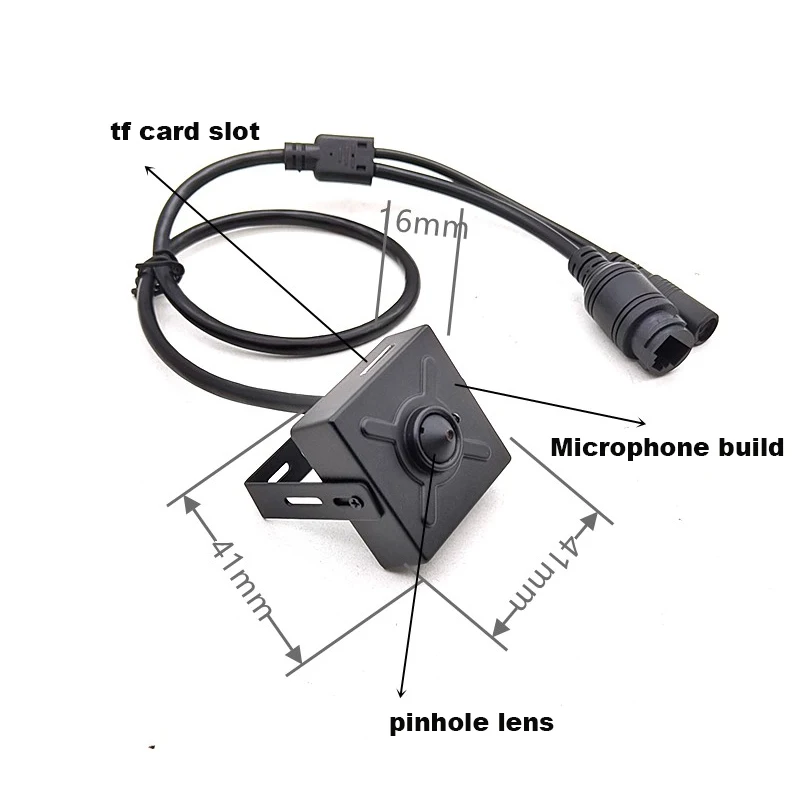

Dimension (mm)		414116mm

Package contents:

1 x Camera, 1 x Screw, 1 x English User Manual

(Does not include Power Adapter)

Note: "DC 12V" Please use DC12 V 1A power supply, packaging does not include the power supply.

We recommend using our h.265 NVR, other manufacturers of NVR may not be able to run h.265 perfectly, it will run with h.264.

Package contents:

1 x Camera,, 1 x Screw, 1 x English User Manual
