High sensitivity, high signal-to-noise CMOS image sensor
Using the SSC338G processing chip+OV12D40
The highest pixel is up to 12MP, and the highest resolution is up to 12MP (3840*3104)
Support 12MP/11.5MP/10MP 15fps, 8MP 20fps,6MP/5MP/4MP/3MP/2MP/1MP 30fps
H.265 compression algorithm, effectively reducing network bandwidth, supporting dual stream, supporting mobile phone monitoring
support fog function, support WDR, HDR. Support strong light suppression function.
Support humanoid recognition and humanoid alarm
Support multiple network protocols: TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP, RTMP,etc.
Support ONV IF protocol, Hik vision protocol
Support for manufacturer dynamic domain name and third-party dynamic domain name resolution
Support alarm picture sending E-Mail
Support alarm picture upload FTP server
Support alarm sound outputs
Support timing capture pictures to FTP server
Support static IP, also support dynamic IP (DHCP)
Support P2P plug and play
Support IE, Google, Firefox browser
Supports up to 6 users to browse at the same time (3 users per stream)
Provide motion detection (area, sensitivity can be set) alarm function
Support UPNP automatic port mapping
* This is a professional camera, please use a computer or NVR connection to use it. Of course, it also supports mobile APP connection, but the mobile APP can only realize some simple functions. We provide SDK secondary development kit, you can develop software for yourself.
Support time-lapse photography function :
Function Introduction: The time-lapse photography function refers to the recording of time in miniature. For example, recording a 30 minute video on a camera only takes up 1 minute of recording time or storage space. When playing a 30 minute video file, the video file is fast forwarded and played within 1 minute.

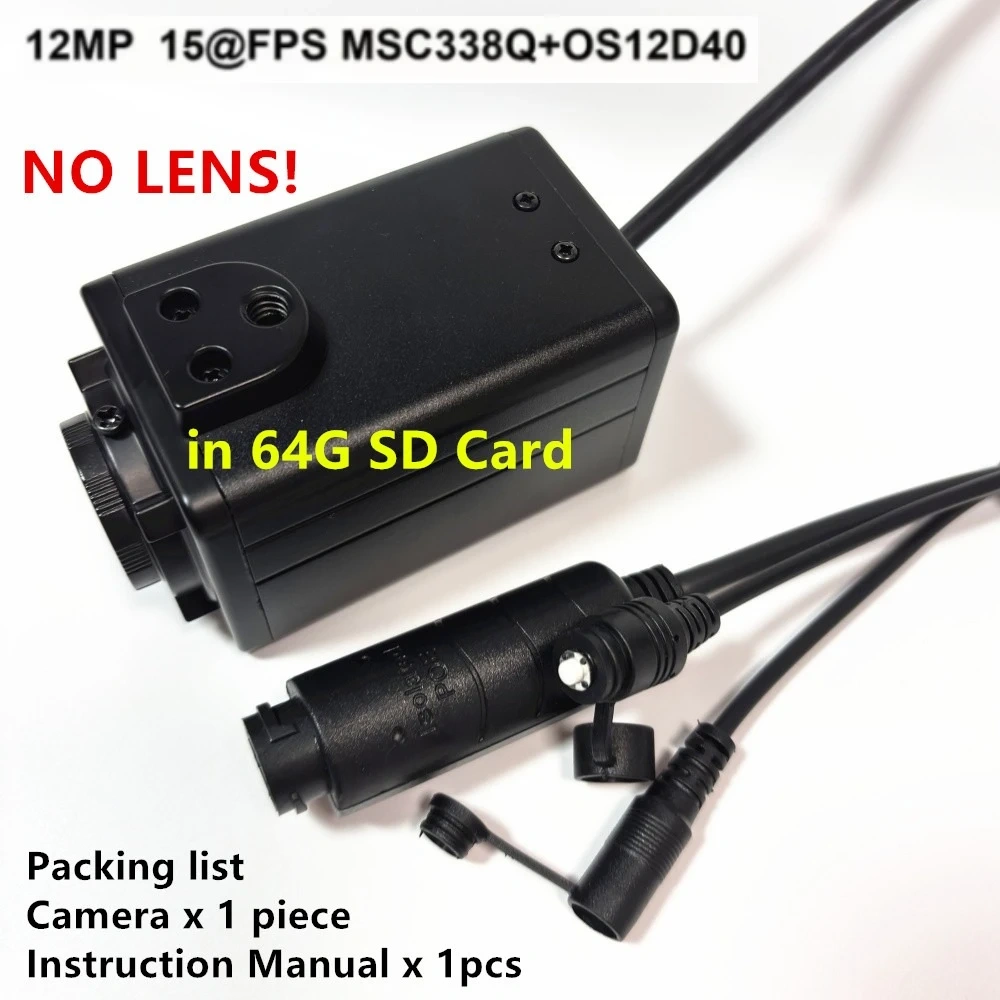

6K 12MP Parameters: |
Operating system | embedded LINUX |
Main processor | MSTAR SSC338G |
Image Sensor | OV12D40 1/2.49" Ultra Low Illumination CMOS Sensor |
Day and night mode | Support |
Compression standard |
Compression standard | Video compression algorithm supports H.265, H.264 High Profile, H.264 Main Profile and H.264 Baseline |
Audio compression algorithm | G.726/G.711/AAC |
Compressed transport stream | 512Kbps-12288bps, can be customized, |
Images |
Maximum image size | 12MP (3840*3104) |
Main stream Special function Second stream 3th stream | First stream:12MP(3840*3140),11.5MP(3840*3000),10MP(3840*2512),8MP(3840*2160),5.3MP(3072*1728),5MP(2592*1944),4MP(2560*1440),3MP(2304*1296),2MP(1920*1080) support fog function, support WDR, HDR. Support strong light suppression function. |
Second stream:720*480,VGA,640*360,480*360,CIF 3th Stream:1080P,720P |
Video frame rate | 12MP/11.5MP/10MP 15fps, 8MP 20fps,6MP/5MP/4MP/3MP/2MP/1MP 30fpss |
Character overlay | Support OSD name,time and date information overlay |
Image settings | Brightness, contrast, saturation, exposure, up and down reverse, left and right mirroring adjustable |
Network Function |
Storage function | NA |
Motion detection | Four independent detection areas can be set (sensitivity 1-100 can be set) |
Alarm linkage | alarm sends the picture to the specified mailbox; the alarm uploads the picture and the video is uploaded to the FTP server; |
Network Protocol | Supports TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP,RTMP. |
Access Protocol | Supports ON VIF 2.4 Protocol |
Interface |
Audio input | support External MIC |
Audio output | External speaker |
LAN interface | RJ45 10Base-T/100Base-TX, |
|
IR night distance | NA |
LEN |
|
waterproof level | indoor |
WIFI | NA |
Working temperature | -40 to +85 Celsius |

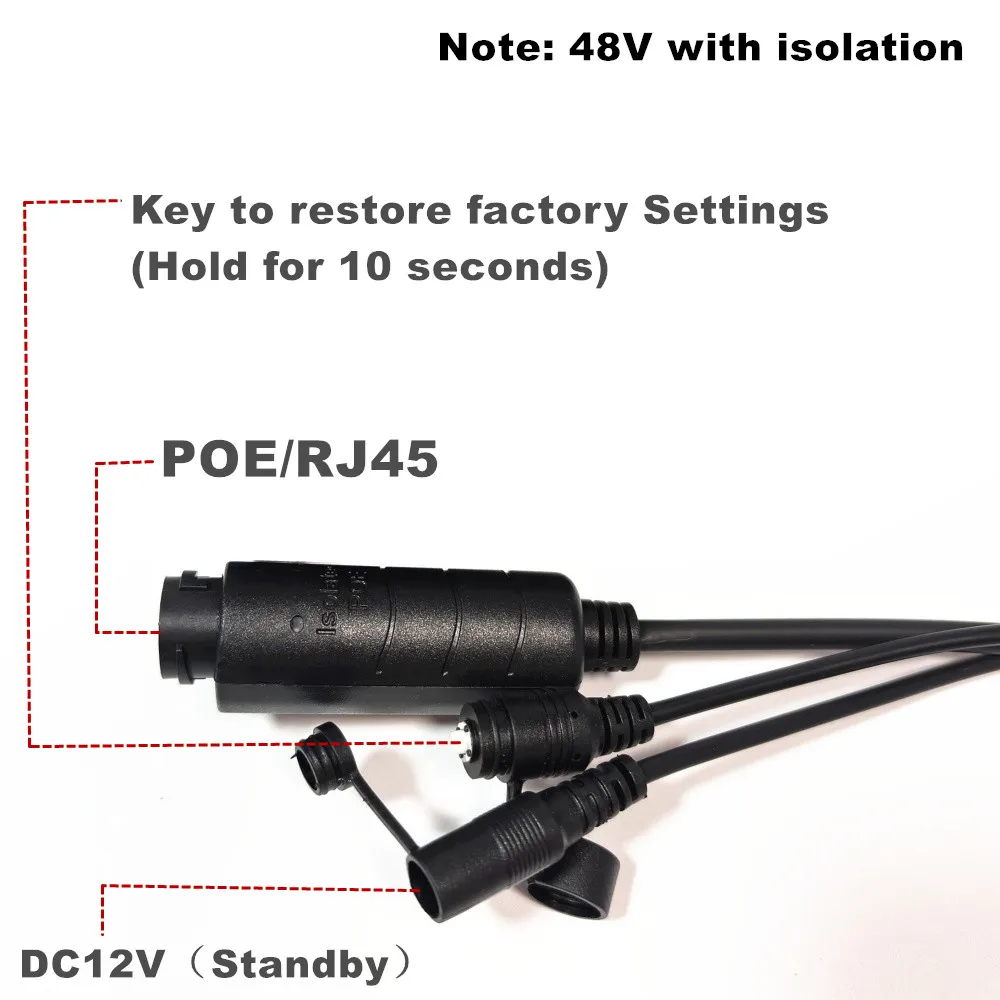

power | DC12V 2A/POE |
Working Humidity | -10-95% |
......................................................................................................................................................................................................................................................................................................................................................................................................................................

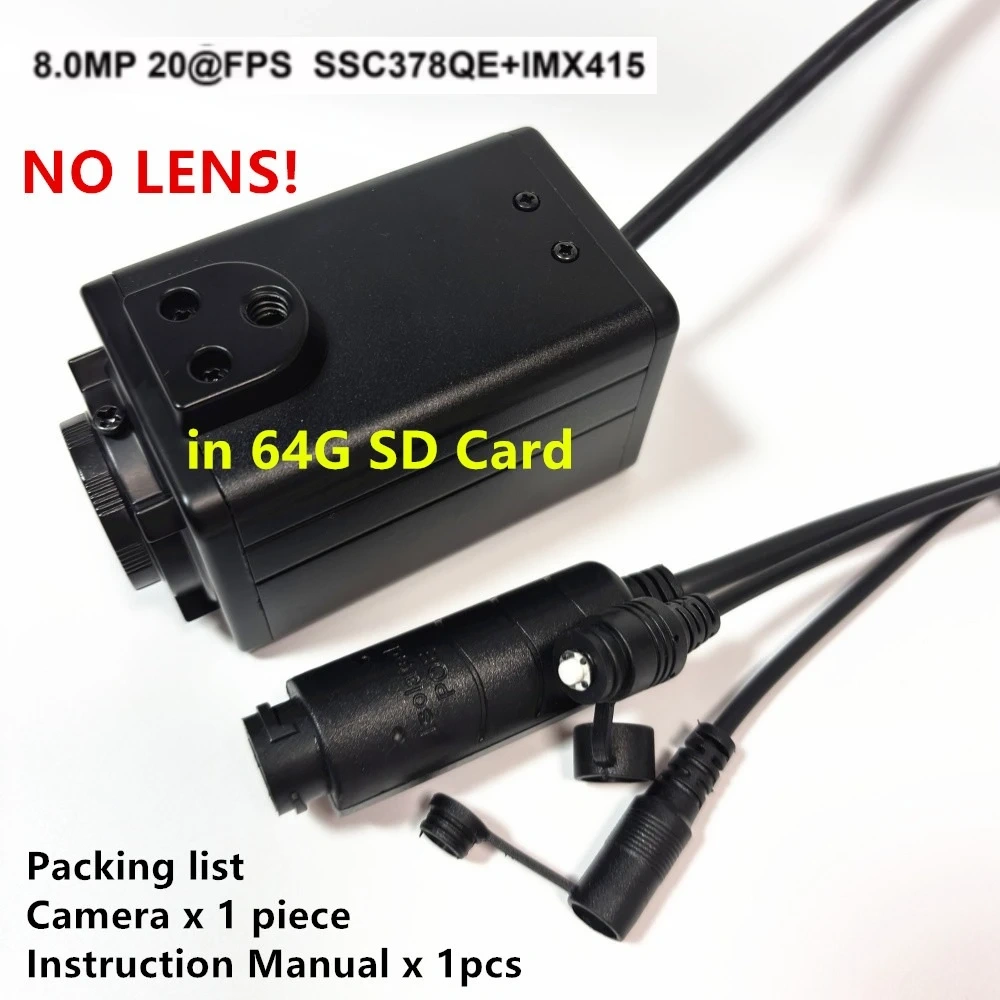

4K 8MP Parameters(20fps): |
Operating system | embedded LINUX |
Main processor | SSC378DE |
Image Sensor | SC830AI 1/2.7" Ultra Low Illumination CMOS Sensor |
Day and night mode | Support |
Compression standard |
Compression standard | Video compression algorithm supports H.265, H.264 High Profile, H.264 Main Profile and H.264 Baseline |
Audio compression algorithm | G.726/G.711/AAC |
Compressed transport stream | 512Kbps-12288bps, can be customized, |
Images |
Maximum image size | 8MP (3840*2160) 20fps |
Sharpness Special function | First stream:4K 8MP (3840*2160),3072*1728,2592*1944,2560*1440,2304*1296,1080P,720P support fog function, support WDR, HDR. Support strong light suppression function. |
Second stream:720*480,VGA,640*360,480*360,CIF |
Video frame rate | 8mp 20fps,3072*1728,2592*1944,2560*1440,2304*1296,1080P,720P 30fps |
Character overlay | Support OSD name,time and date information overlay |
Image settings | Brightness, contrast, saturation, exposure, up and down reverse, left and right mirroring adjustable |
Network Function |
Storage function | NA |
Motion detection | Four independent detection areas can be set (sensitivity 1-100 can be set) |
Alarm linkage | alarm sends the picture to the specified mailbox; the alarm uploads the picture and the video is uploaded to the FTP server; |
Network Protocol | Supports TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP,RTMP. |
Access Protocol | Supports O NVIF 2.4 Protocol |
Interface |
Audio input | support External MIC |
Audio output | External speaker |
LAN interface | RJ45 10Base-T/100Base-TX, |
|
IR night distance | NA |
LEN |
|
waterproof level | indoor |
WIFI | NA |
Working temperature | -40 to +85 Celsius |
power | DC12V 1A /POE |
Working Humidity | -10-95% |
.............................................................................................................................................................................................................................................................................................................................................................................

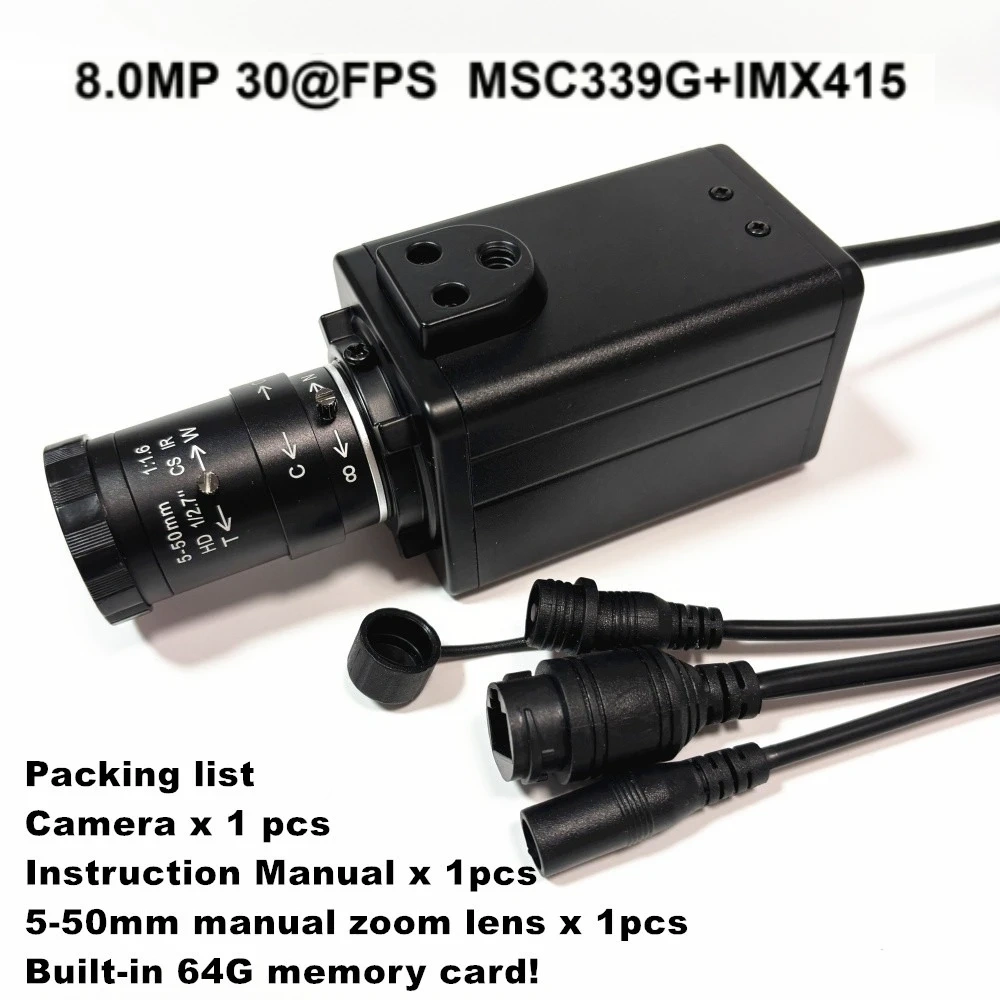

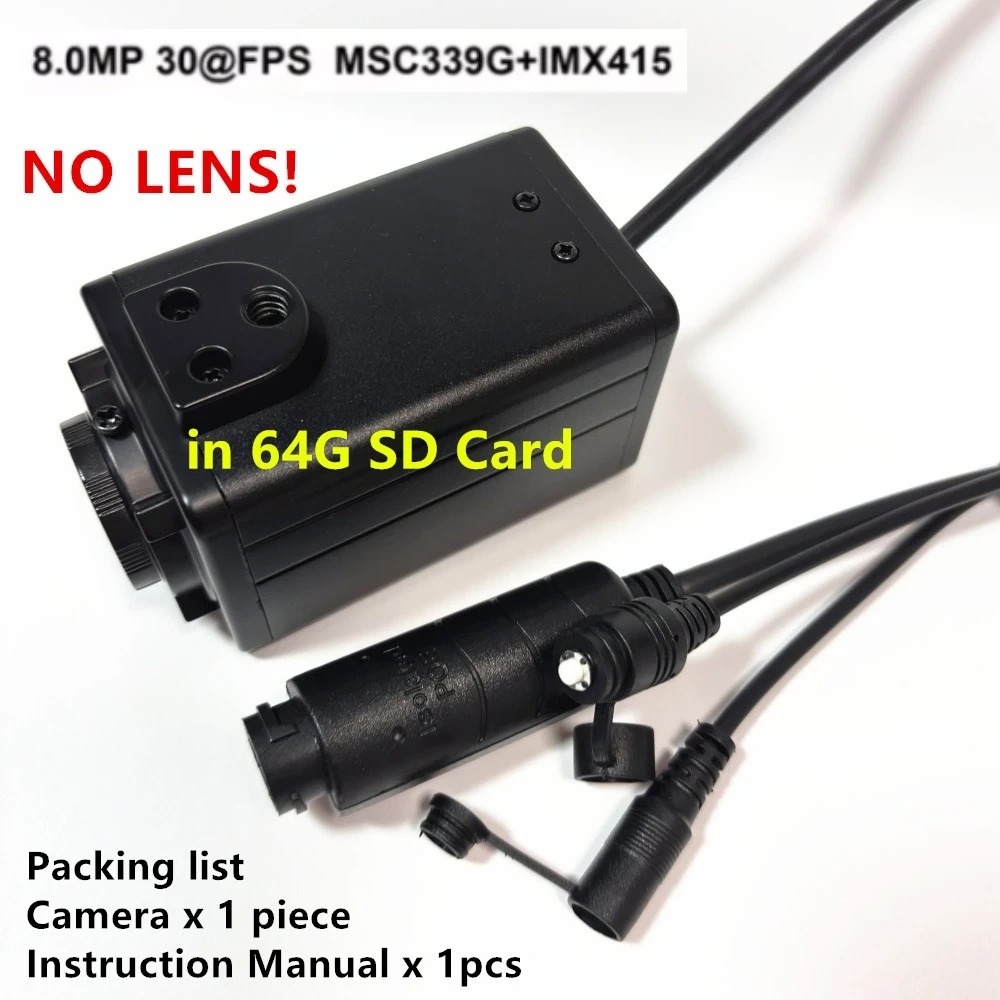

4K 8MP Parameters(30fps): |
Operating system | embedded LINUX |
Main processor | MSTAR339 for 4K 30fps |
Image Sensor | SONY IMX415 1/2.8" Ultra Low Illumination CMOS Sensor |
Day and night mode | Support |
Compression standard |
Compression standard | Video compression algorithm supports H.265+H.265, H.264 High Profile, H.264 Main Profile and H.264 Baseline |
Audio compression algorithm | G.726/G.711/ACC |
Compressed transport stream | 512Kbps-12288bps, can be customized, |
Images |
Maximum image size | 8MP (3840*2160) |
Sharpness Special function | First stream:4K(3840*2160),3072*1728, 2592*1944,2560*1440,2304*1296,1080P,720P support fog function, support WDR, HDR. Support strong light suppression function. |
Second stream:1080P ,720P 720*480,VGA,640*360,480*360,CIF |
Video frame rate | 8mp 30fps;3072*1728,2592*1944,2560*1440,2304*1296 30fps;1080P,720P 60fps |
Character overlay | Support OSD name,time and date information overlay |
Image settings | Brightness, contrast, saturation, exposure, up and down reverse, left and right mirroring adjustable |
Network Function |
Storage function | NA |
Motion detection | Four independent detection areas can be set (sensitivity 1-100 can be set) |
Alarm linkage | alarm sends the picture to the specified mailbox; the alarm uploads the picture and the video is uploaded to the FTP server; |
Network Protocol | Supports TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP,RTMP. |
Access Protocol | Supports O NVIF 2.4 Protocol |
Interface |
Audio input | support External MIC |
Audio output | External speaker |
LAN interface | RJ45 10Base-T/100Base-TX, |
|
IR night distance | NA |
LEN | NA |
waterproof level | indoor |
Onv if | Onv if Profile-S,Profile-T(Absolute Move) |
Working temperature | -40 to +85 Celsius |
power | POE (Excluding power supply)/ DC12V |
Working Humidity | -10-95% |

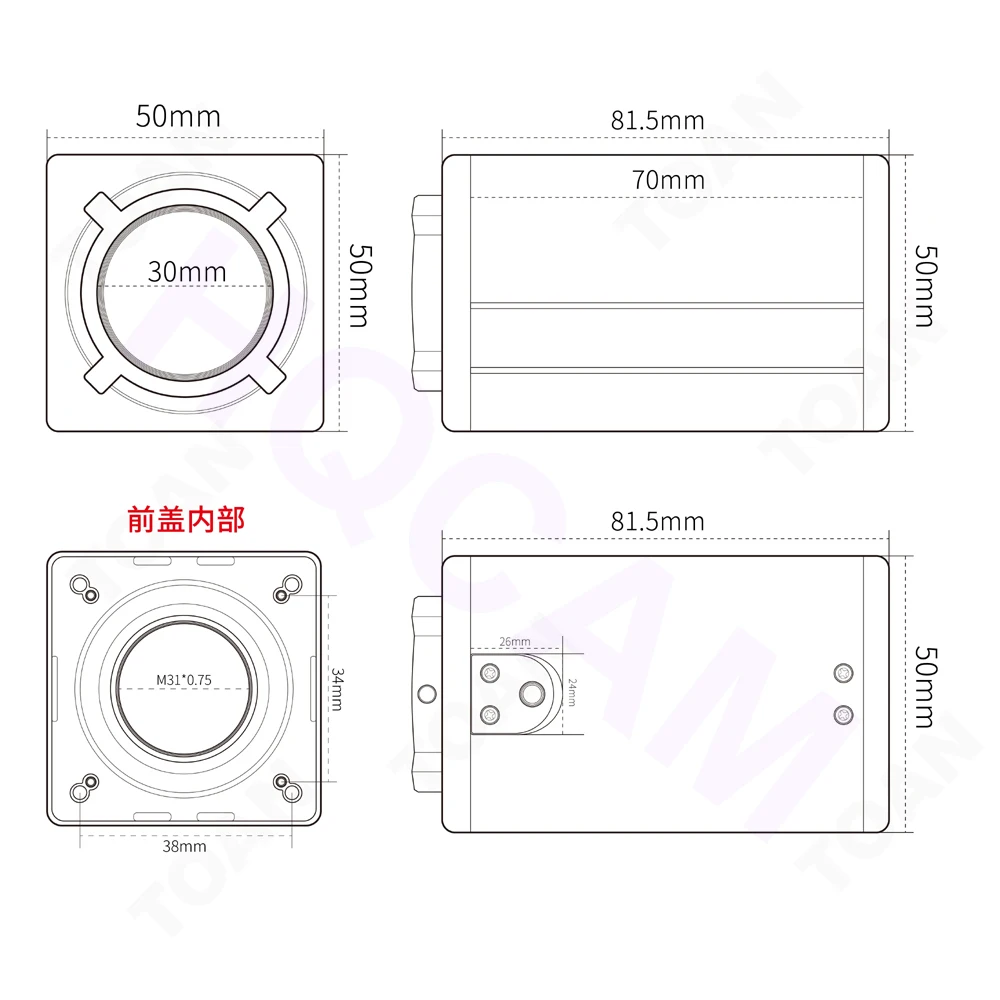

size:

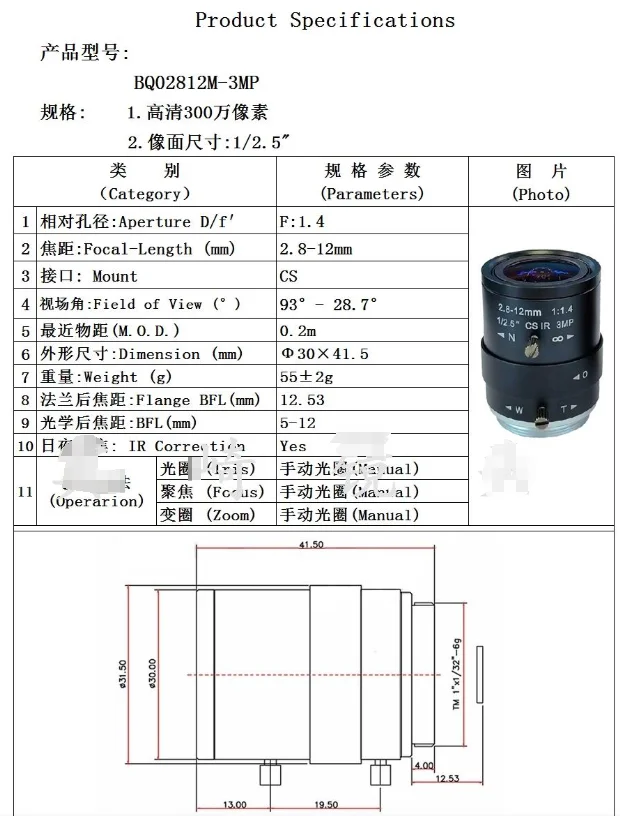

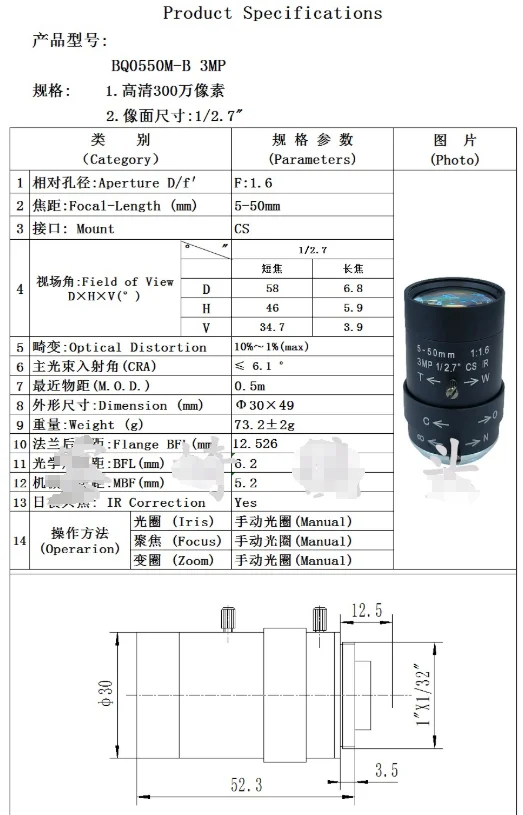

LENS:


About RTSP:
The RTSP URL format for cameras is as follows (assuming the Camera IP is 192.168.0.123):
Main stream: rtsp://admin:123456@192.168.0.123/stream0
Substream: rtsp://admin:123456@192.168.0.123/stream1
For the RTSP URL above, if audio is enabled, the stream will contain both video and audio.
If you only need video or audio data, use the following URL:
Main stream pure video: rtsp://admin:123456@192.168.0.123/video1
Substream pure video: rtsp://admin:123456@192.168.0.123/video2
Audio only: rtsp://admin:123456@192.168.0.123/audio

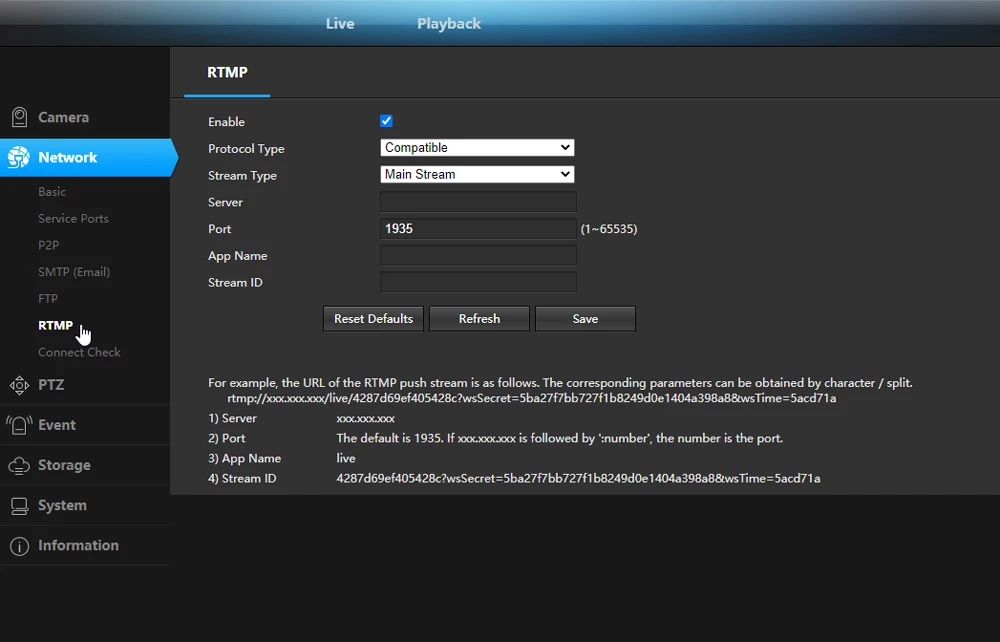

RTMP
APP :Open the "Videolink" APP icon, click the "Register account" item, select the country or region used by the app, enter the registration information and click Register.as shown in the figure:
