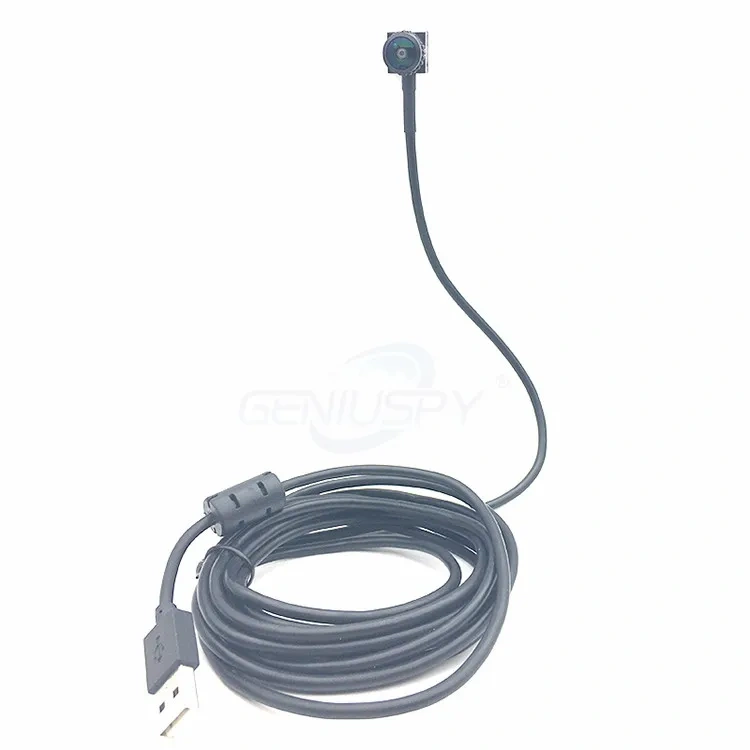

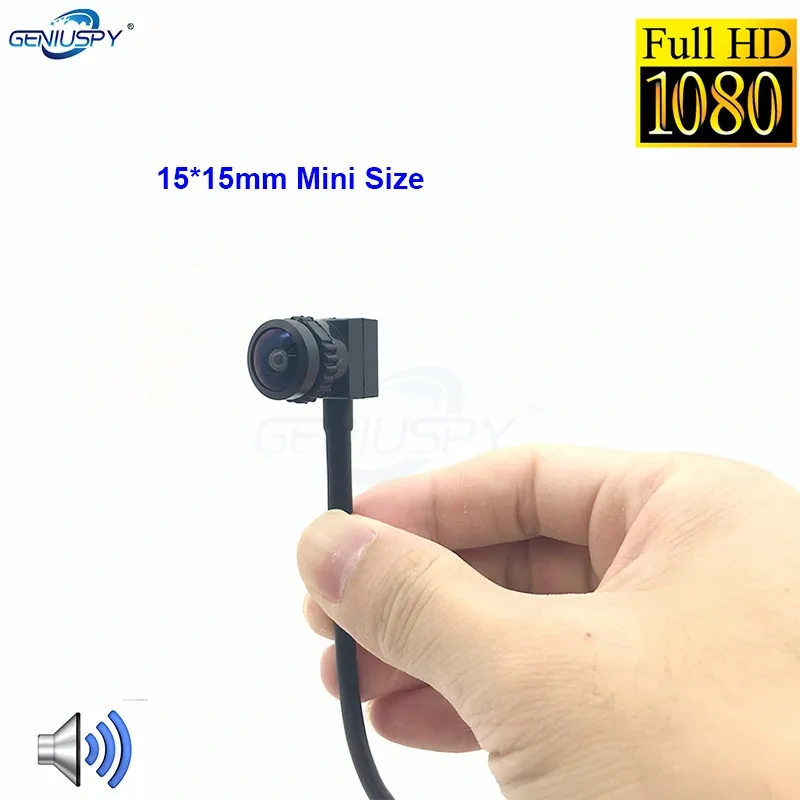

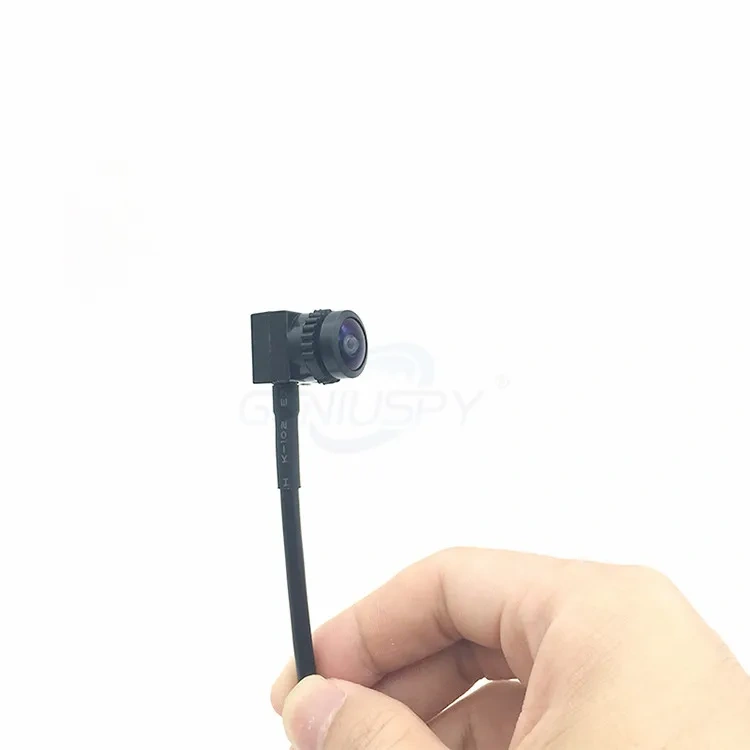

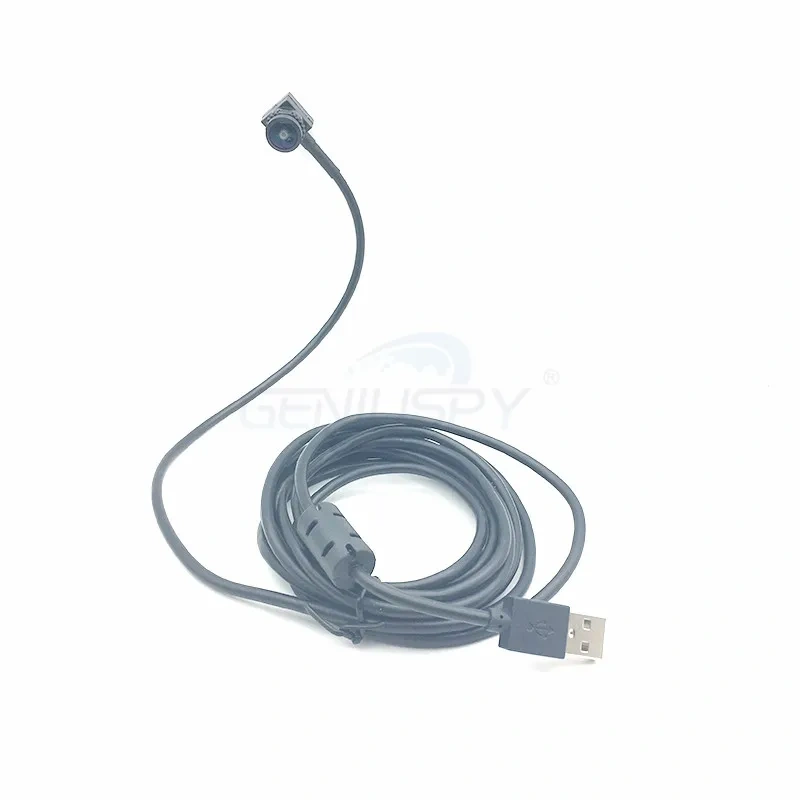

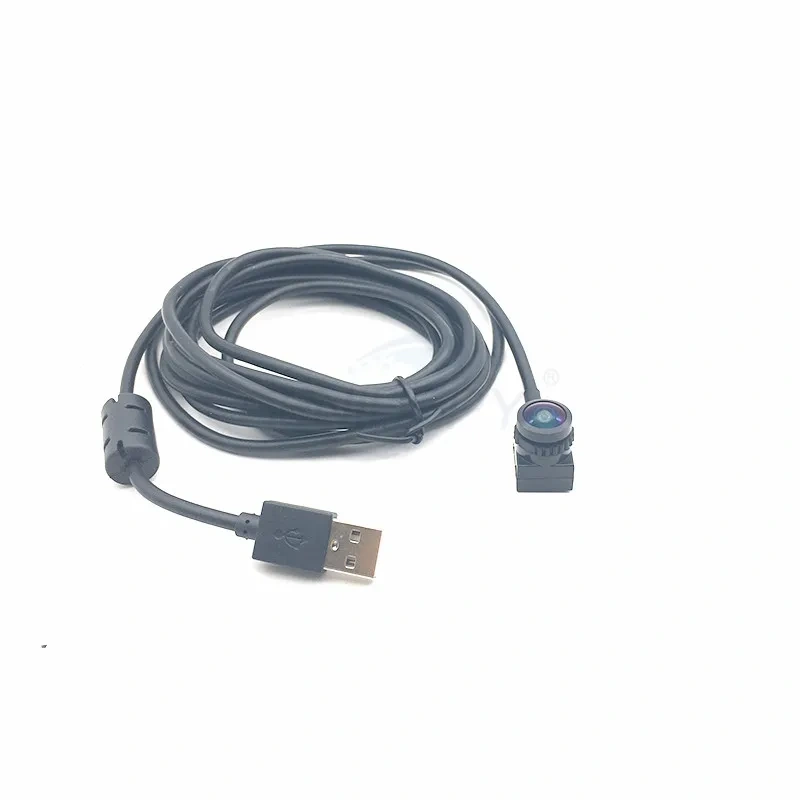

Miniature Size 1.5mm Fisheye Lens 180Degree Fisheye HD 1080P 5MP 720P USB Mini Android CCTV External Camera For ATM Tablet Kiosk
Note: 5mp 1080P with audio/ 720P without audio ,Default 3meters USB Cable
if you need other connector ,pls kindly contact with us for custom made !
Features:
Small size, Hands free filming
2MP high clearance lens
1080P FULL HD
Free drive
Suitable for multi system equipment
High clearance image
Where to use
1. Inspecting industrial equipments
2. Assisting medical treatment
3. CCTV
4. Video teaching
5. Vehicle video applications
Detailed Specifications Of The Parameters
Model | GS-A15WDCM-1.5MM |
Sensor | OV2710 |
Resolution | 1920X1080 |
Lens size | 1/2.7 inch |
Pixel | 1080P |
Line length | 1M |
Formats | MJPG |
Array size | MJPG:1080P 30fps |
Lens Construction | 5G2P |
F/No | F2.1 |
Lens EFL | 1.5mm 180degree |
Minimum illumination | 0.1LUX |
S/N Ratio | ≥52dB |
Gammar | 0.45 |
Shutter | 30f/s |
White balance | Auto |
Working temperature | -10~+50℃ |
Power | 5V |
AUDIO | N/A |
Power consumption | 150mA |
Size | 15*15mm |
Interface | usb 2.0 interface |
System | WINXP/WIN7/WIN8/Linux/Android |
720P Models Specification:
Super mini size
Super light
Different angle lens optional
720P high resolution, image quality is brighter and clearer
No need drive and support Win xp/Win7/Win8/Win10/Android
Where to use
1. Inspecting industrial equipments
2. Assisting medical treatment
3. CCTV
4. Video teaching
5. Vehicle video applications
Popular used for ATM Machine, Industrial equipment, medical instrument , Laboratory Instruments ,Policeman equipment etc.
Features:
USB Mini colour camera
Color CMOS CCD sensor
USB Format
Support Windows ,Linux ,MAC OS operation system &OTG Android Phone etc
Detailed Specifications Of The Parameters
Models GS-A15WDC-1.5MM
Image sensor | 1/4" Color CMOS H62 | |
Effective Pixels | 1280*720p,1024*600,864*480p ,848*600P,800*600P ,800*448P, 752*416P,640*360P ,544*288P,433*240p,640*480P 352*288P ,320*240P resolutions (MJPej 25FPS ,YUY2 10fps) | |
Synchronizing system | Internal | |
Scanning system | Progressive Scan | |
Video output | 1280*720p,1024*600,864*480p ,848*600P,800*600P ,800*448P, 752*416P,640*360P ,544*288P,433*240p,640*480P 352*288P ,320*240P | |
S/N ratio | More then 48 dB (AGC Off) | |
Min. Illumination | 0.01 Lux @ F1.2 | |
Exposure | Auto / Manual(Shutter Speed & AGC Control) | |
White Balance | Auto / Fixed / Indoor / Initial / Outdoor | |
Gamma Characteristic | Auto r=0.45 | |
Picture | Brightness / Contrast / Gamma / Saturation | |
Miscellaneous | BW Image / Mirror / Flip / Back Light / Flickerless | |
Power source | 5V DC / 400mA | |
Operating current | 125mA / regulated 5.7VC in | |
Lens | Standard | 50mm M8 lens |
Operating Temperature | 0°C∼ 40°C (Humidity : 0% RH∼ 80% RH) | |
Interface Type | USB format(Complies with USB 2.0) | |
Measurement (mm) | 15*15mm | |
Weight (Approx. G) | 50g | |
Package contents:
1 x Camera 1 x English User Manual
