Audio POE 940nm Invisible 960P 720P 1080P 3MP 5MP PIR IP Camera SD Card 2.0 MP Night Vision Mini 18 LED IR-Cut IR Security ON VIF
Attenation:
Regard TF Card support PIR POE Pin hole ip camera
this models have:1xRJ 45 interface+poe module ,1x dc connector ,1x micro sd card slot,1x small microphone build!support POE function!
camera come with 940nm ir leds default , if you need 850nm ir leds ,pls say freely !
NOTICE:
Order Models:
Models:GS-PRTF67CAR5MP-POE 5.0MP H.265
Models:GS-PRTF67CAR3MP-POE 3.0MP H.265
Models:GS-PRTF67CMAR-POE 1080p 2.0MP H.264
Models:GS-PRTF67CHAR-POE 960P 1.3MP H.264
Models:GS-PRTF67CAR-POE 720P 1.0MP H.264
Specification: 1.0MP
Resolution:1280*720P
Image Sensor: GC1034
Sensor Size: 1/2.8 inch
Support 128GB TF Card Max
Specification: 1.3MP
Resolution:1280*960P
Image Sensor: H65
Sensor Size: 1/2.8 inch
Support 128GB TF Card Max
Specification: 2.0MP
Resolution:1920x1080
Image Sensor: GC2053
Sensor Size: 1/2.8 inch
Support 128GB TF Card Max
Specification: 3.0MP
Resolution:2304x1296
Image Sensor: SC3235
Sensor Size: 1/2.7 inch
Support 128GB TF Card Max
Specification: 5.0MP
Resolution:2560x1920 or 2560x1440
Sensor Size: 1/2.8 inch
Image Sensor: SONY IMX335
Support 128GB TF card Max
support POE& audio general Small microphone default&940nm IR Night vision& tf card slot
Features
High sensitivity, high signal-to-noise CMOS image sensor
H.264 /h.265 Compression,three streaming, mobile surveillance; compatible with various smart Phone operating system
Support multiple network protocol TCP/IP,HTTP,TCP,ICMP,UDP,ARP, IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP and so on
Support :ON VIF 2.0
Support :DDNS and three DDNS
Support :sending email, attaching picture
Support :Alarm picture and record Uploaded to FTP server
Support :Timing captured picture to FTP server
Support :Static IP and DHCP
Support :P2P
Support :privacy mask
Support up to 12 users browsing at the same time(Each stream supports four users
Support remote alarm linkage
Only 1 network port is used for IE Browsing,stream transmiting and command access, convenient for router setting
Features
5.0 megapixel HD IP camera, maximum resolution2560x1920P
3.0 megapixel HD IP camera, maximum resolution 2304x1296
2.0 megapixel HD IP camera, maximum resolution 1920*1080;
1.3 megapixel HD IP camera, maximum resolution 1280*960P;
1.0 megapixel HD IP camera, maximum resolution 1280*720P;
Support POE
Support up to 128G TF card storage;
Optional 2.8/3.7(default)/6mm lens;
Support P2P, view & anywhere & anytime;
Elegant outline and easy installation;
Provide android & ios APP and professional CMS PC client software;
The camera supports wifi hotspots, which can be accessed via the mobile APP without the need to connect the network cable
2. Specifications
Model | GS-PRTF67CAR5MP-POE /GS-PRTF67CAR3MP-POE | ||
Video | Sensor | GS-PRTF67CAR5MP-POE :5.0megapixel. HI3516EV300+IMX335 Low Lux CMOS. GS-PRTF67CAR3MP-POE :3.0megapixel. HI3516E+SC3235 Low Lux CMOS GS-PRTF67CMAR-POE :2.0 megapixel 1/2.7" CMOS GC2053 GS-PRTF67CHAR-POE :1.3 megapixel 1/3" CMOS h65 GS-PRTF67CAR-POE :1 megapixel 1/4" CMOS GC1034 | |
Video resolution | GS-PRTF67CAR5MP-POE : Main stream: 2560x1920@15fps, 2560x1440@15fps GS-PRTF67CAR3MP-POE : Main stream: 2560x1440@15fps GS-PRTF67CMAR-POE :Main stream: 1920x1080@20fps, Sub stream: 640x352@25fps, 320x176@25fps GS-PRTF67CHAR-POE :Main stream:, 1280x960@25fps 1280*720P@25FPS Sub stream: 640x352@25fps, 320x176@25fps GS-PRTF67CAR-POE :Main stream:, 1280x720@20fps Sub stream: 640x352@25fps, 320x176@25fps | ||
Video compression | H.264 OR H.265 for 3mp 5mp, 1mp 1.3mp 2mp H.264 | ||
Lens | 3.7MM Lens default Optional 2.8/3.6(default)/6mm lens | ||
View angle | based on lens | ||
Audio | Audio compression | G.726/G.711 | |
Audio code rate | Rate adaptive | ||
Audio input | With MIC, support voice monitor | ||
Alarm | Motion detecting alarm | Can set 4 independent detection region (1-100 sensitivity can be set) | |
Alarm linkage | Alarm send pictures to the mailbox, | ||
Alarm recording | Support Micro SD card and PC client linkage alarm recording | ||
Network | POE |
| |
Ethernet | RJ45 Ethernet | ||
On vif protocol | Support ON VIF 2.4(backward compatible) | ||
Storage | Micro SD card | Support up to 128G micro SD card max | |
Recording mode | Alarm record, timing record, | ||
Video playback | Support APP, IE browser, remote client play and download the video | ||
General specification | Power | DC12V 1A/2a | |
Operating environment | Environment -20℃~+60℃(-4℉~+140℉), | ||

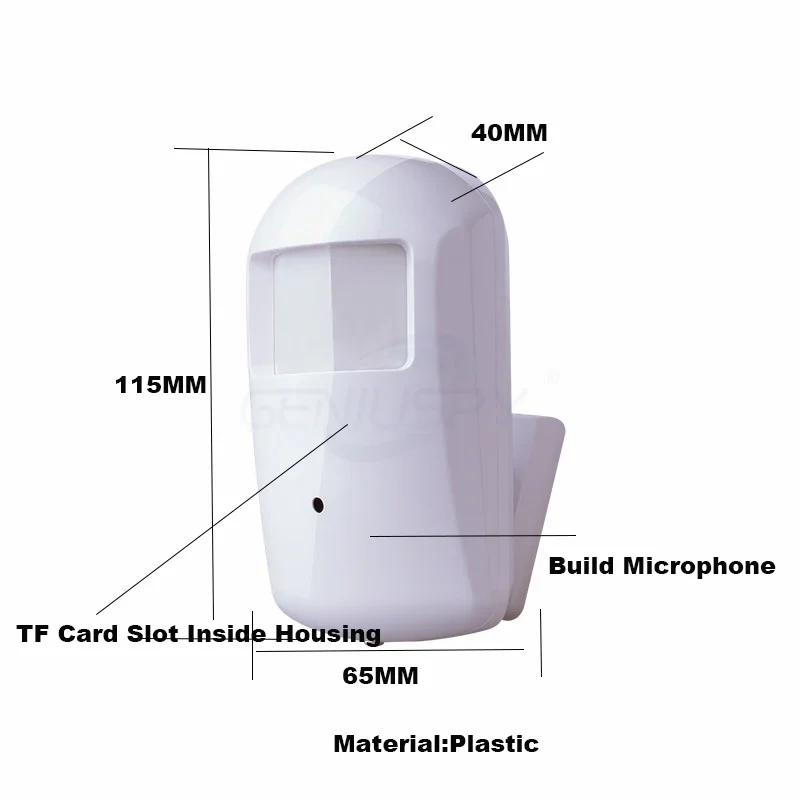

Product size | mm(L×W×H) | ||
Product weight | 0.35kg | ||
IR Night vision | 18pcs 940nm ir leds default ,850nm ir leds optional | ||
Package weight | 0.5kg | ||
Brand | Geniuspy | ||
If the buyer want other size lens please 'Leave Message to Seller' to notify us when bidding.
Thanks for your attention to our products.if you have any question ,pls fell free to contact with us !
we will replyed you within 24hours!!!
Below Lens,some of them can be replaced for different angle view &distance requirement ! pls talk with us whether it is available for the camera !
