Support Max 128GB TF Card&Aud
|
Please read carefully before ordering |
|
Important Warning:
You MUST check your SIM card frequency range MUST be in below listed range if you want to use this 3G 4G IP Camera, we will not agree any dispute for your own reason for your wrong order.
our camera default is EU Version !

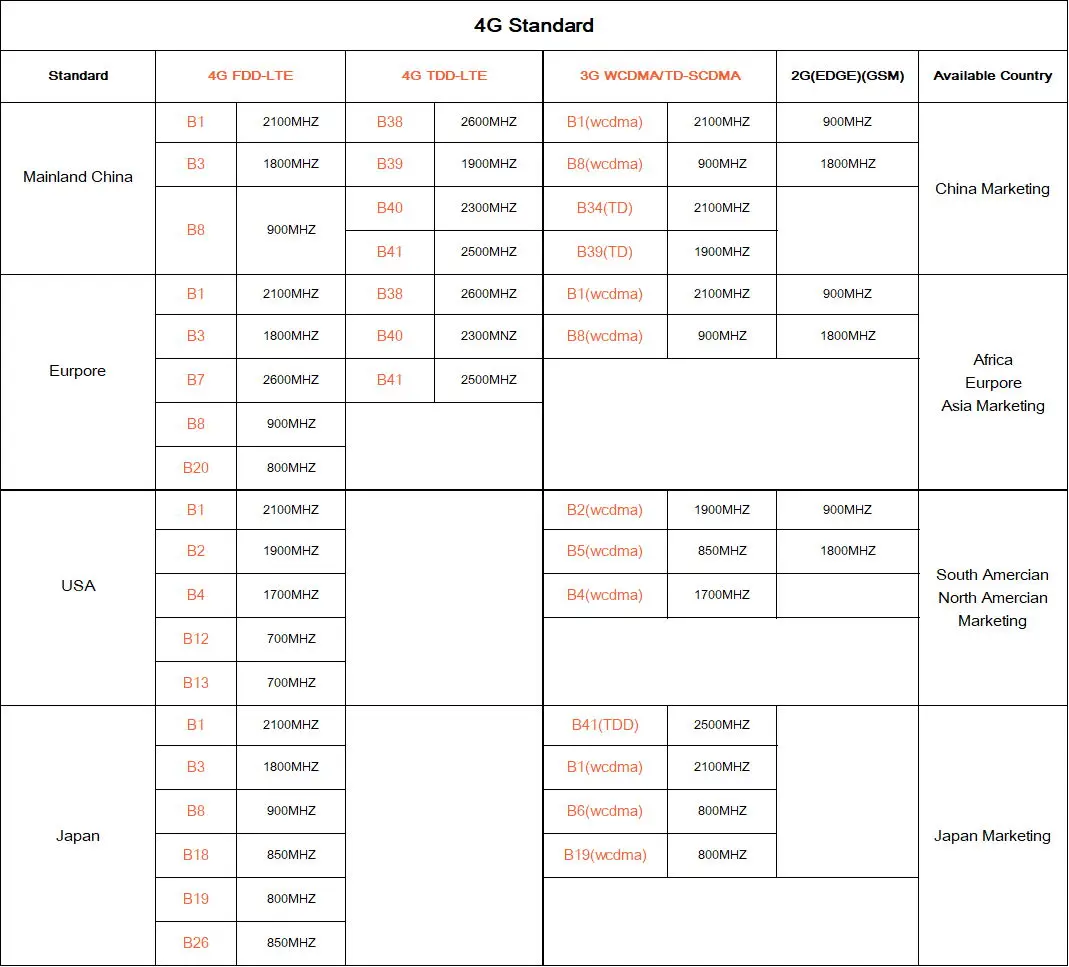

3G standard: WCDMA
Frequency range: B1(2100MHz), B8(900MHz)
4G standard: FDD-LTE
Frequency range: B1(2100MHz), B3(1800MHz), B7(2600MHz), B8(900MHz), B20(800MHz)
This 3G 4G ip camera mostly used for those environment place not have internet but have SIM mobile signal, you have to put a SIM card into camera and connect internet by your SIM card. The camera does not support router internet connection !
This 3G 4G ip camera Connection Way: Insert your SIM card into camera, then power on, connect SIM Card internet.
No need to connect network LAN cable ! No need to setup wifi !
The 3G 4G ip camera does not support local PC clients . It supports mobile phone app (CamHi) and a remote clients CMS.
The 3G 4G ip camera does not support Cloud FTP storage !
Features:
2.0 megapixel HD IP camera, maximum resolution 1920*1080P ;
5.0megapixel HD IP camera, maximum resolution 2560x1920P ;
Support 3G/4G, support AP mode;
Support TF card storage, maximum support 128G Micro SD card; (SD card is NOT include)
Default 3.7mm lens;2.8mm/2.5mm/6mm lens optional
Support P2P, view & anywhere & anytime;
Elegant outline and easy installation;
Provide Android & IOS APP and professional CMS PC client software;
Specificaitons:
| Camera | Operating system | Embedded Linux OS |
| Processor | T31N FOR 5MP /T21N For 2mp | |
| Sensor |
1080P : 1/2.8" SC2335 CMOS 5MP : 1/2.7" SC5238 CMOS |
|
| Lens interface type | M12 lens | |
| Lens | 3.7mm lens default ( 2.8mm/6mm/2.5mm optional) | |
| View angle | 92degree for 3.7mm lens | |
| Min.illumination | 0.05lux/0lux (IR on) | |
| Day&Night mode | N/A | |
| Night vision distance | N/A | |
| Video | Video compression | H.264 h.265 |
| Video streaming | Three streaming | |
| Video resolution |
5MP 5mp 2880X1620P 20fps |
|
| 1080P First stream:1080P(1920x1080), 720P(1280x720), Q720P(640x352) | ||
| Second stream:Q720P(640x352), QQ720P(320x176) | ||
| Third stream:QQ720P(320x176) | ||
| Video code rate | 32~6144Kbps. supports constant bitrate/variable bitrate | |
| Video frame rate | 2MP:20fps,5MP 15FPS | |
| Image settings | Brightness,saturation,contrast,Sharpness,Exposure,flip,mirror | |
| Image enhancement |
Backlight compensation,Automatic white balance, Digital WDR, 3D digital noise reduction |
|
| Function | Motion detecting | Can set 4 independent detection region (1-100 sensitivity can be set) |
| Alarm linkage |
alarm upload pictures and videos to the FTP server, alarm write pictures and videos to Micro SD card, alarm mobile phone message push |
|
| Privacy mask | maximum support 4 users to simultaneously browse | |
| OSD | support camera name, date and time information superimposed | |
| User management | Supports user and rights management | |
| Simultaneous viewers | Maximum support 4 users to simultaneously browse | |
| Network protocol |
TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP etc |
|
| Connection protocol | N/A | |
| 4G | 4G standard | FDD-LTE |
| Frequency range | B1(2100MHz), B3(1800MHz), B7(2600MHz), B8(900MHz), B20(800MHz) | |
| Transmission rate | Upload max:50Mbps, download max: 150Mbps | |
| Security | WEP, WPA/WPA2, WPA-PSK/WPA2-PSK | |
| 3G | 3G standard | WCDMA |
| Frequency range | B1(2100MHz), B8(900MHz) | |
| Transmission rate | Upload max:5.76Mbps, download max: 21Mbps | |
| Security | WEP, WPA/WPA2, WPA-PSK/WPA2-PSK | |
| Interface | Power interface | 5.5mm power interface |
| Ethernet | N/A | |
| TF card Slot |
maximum support 128G TF card, can set the automatic capture and timer recording |
|
| Reset | Support | |
| General specification | Power supply | D C 12V 1A |
| power | Day:3W, Night:8W | |
| Operating temperature | -20 to +60 degree | |
| Operating humidity | 10% to 95%(non-condensing) | |
| Waterproof level | IP55 indoor use | |
| Material | ABS+metal | |
| Installation | Rack mounting | |
| Product size(W×D×H)(mm) | / | |
| Product weight(kg) | 0.38 | |
| Accessories | 1*Camera 1*Bag*s,, 1*Manual | |
| Package Size(W×D×H)(mm) | 200*130*95mm | |
| Package Weight(kg) | 0.55 |
Packing List:
1*4G WIFI Camera
1*Manual
1*s Bag
Packaging & Shipping
In Color Box or Netural Packaging , Do As Customer 's Requirement
1.EXPRESS: around 3-7 working days to arrive
2.INTERNATIONAL AIR MAIL: around 2-4 weeks to arrive according different country
3.BY air &BY sea
