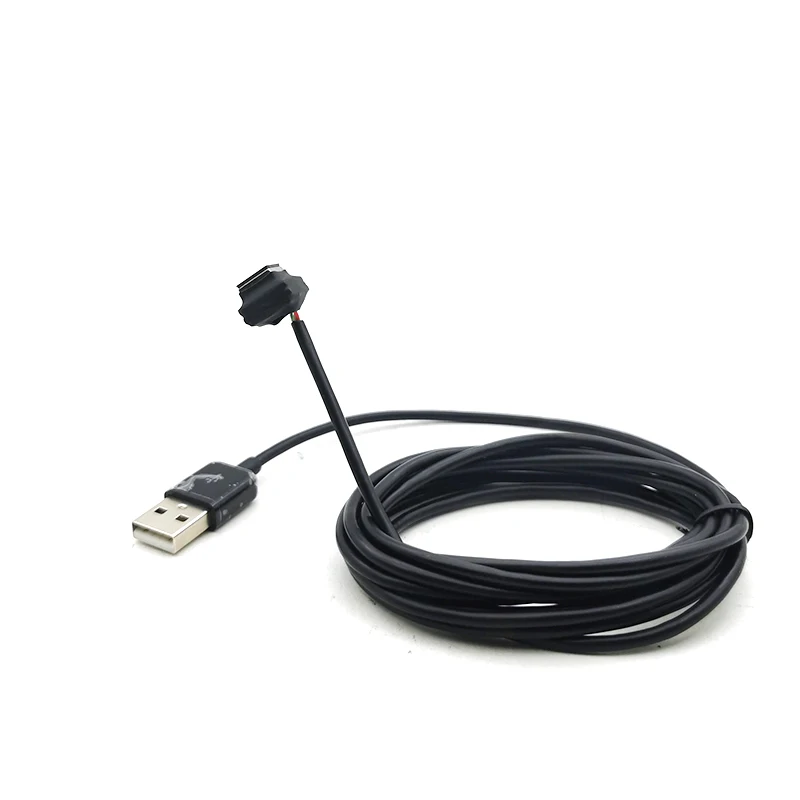

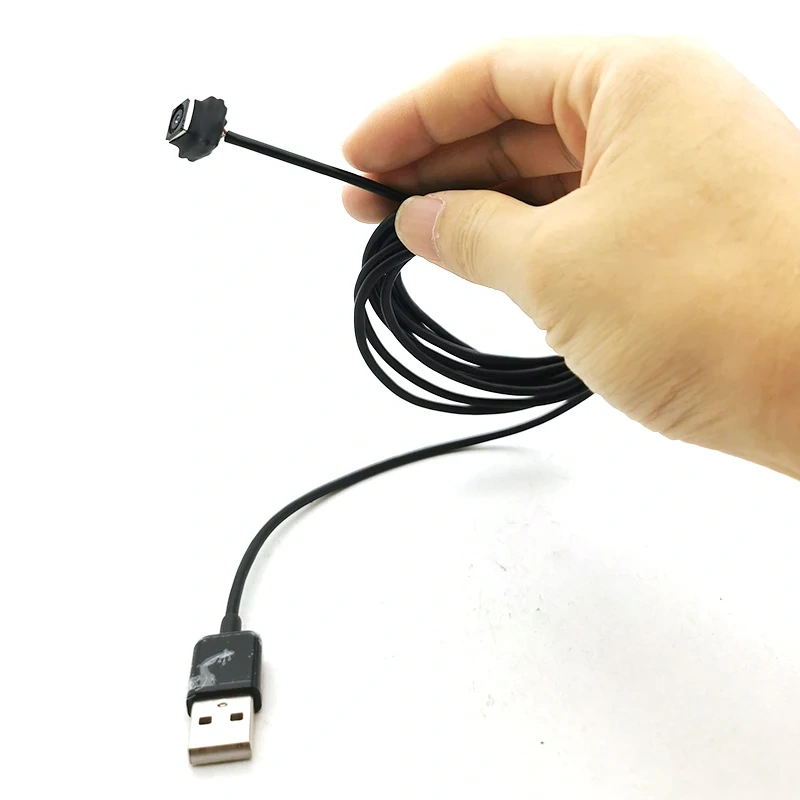

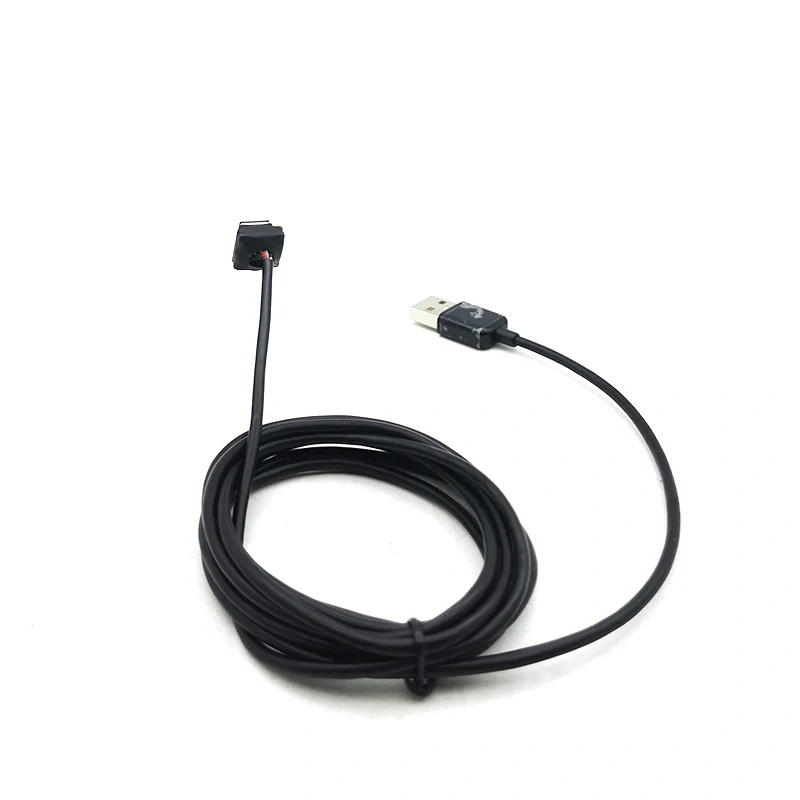

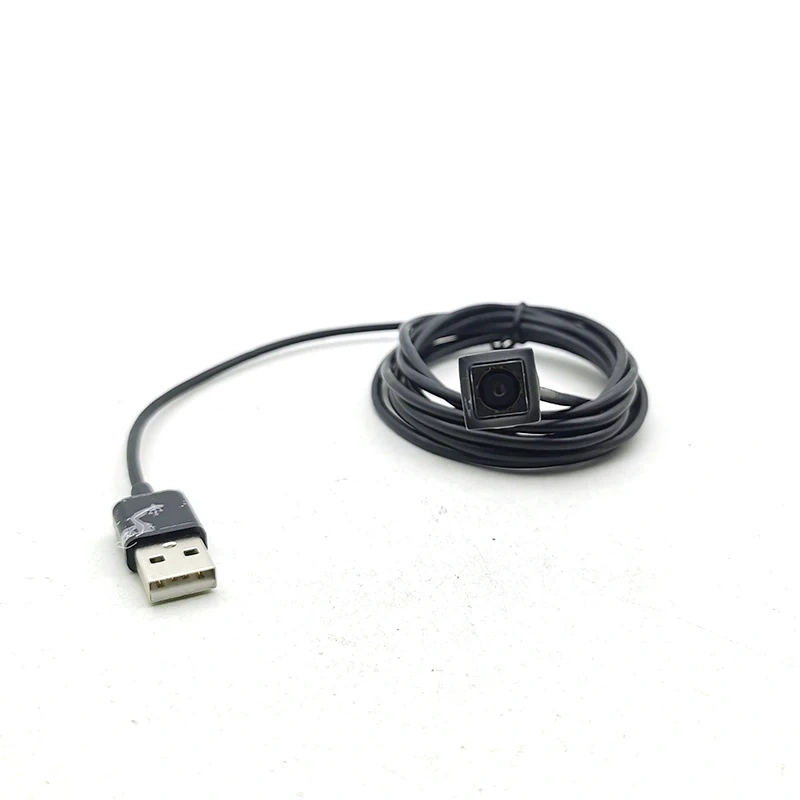

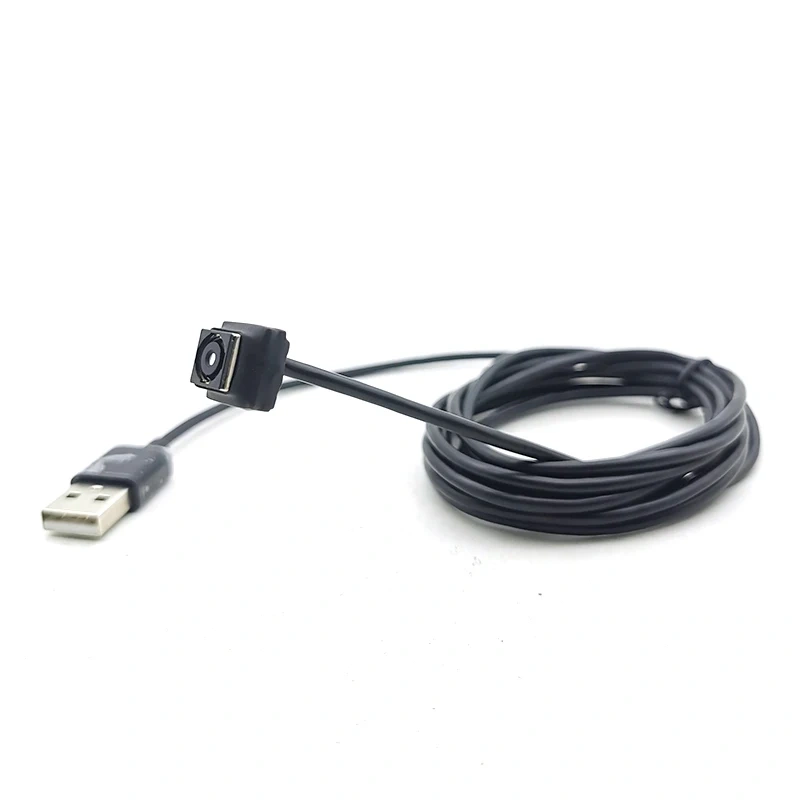

Micro CCTV Security Type-C OTG Android AF AutoFocus Webcam Super HD 30FPS UVC OTG Audio Video 2592x1944P 5MP USB Camera Module

Micro CCTV Security Type-C OTG Android AF AutoFocus Webcam Super HD 30FPS UVC OTG Audio Video 2592x1944P 5MP USB Camera Module

(Notice: Cam Module-Without Housing ),pls check

NOTE: Before purchasing this camera, please confirm whether your phone supports OTG function to avoid unnecessary losses

(For those who require OTG Micro USB interface, please contact customer service or note in your order,Thank you !)

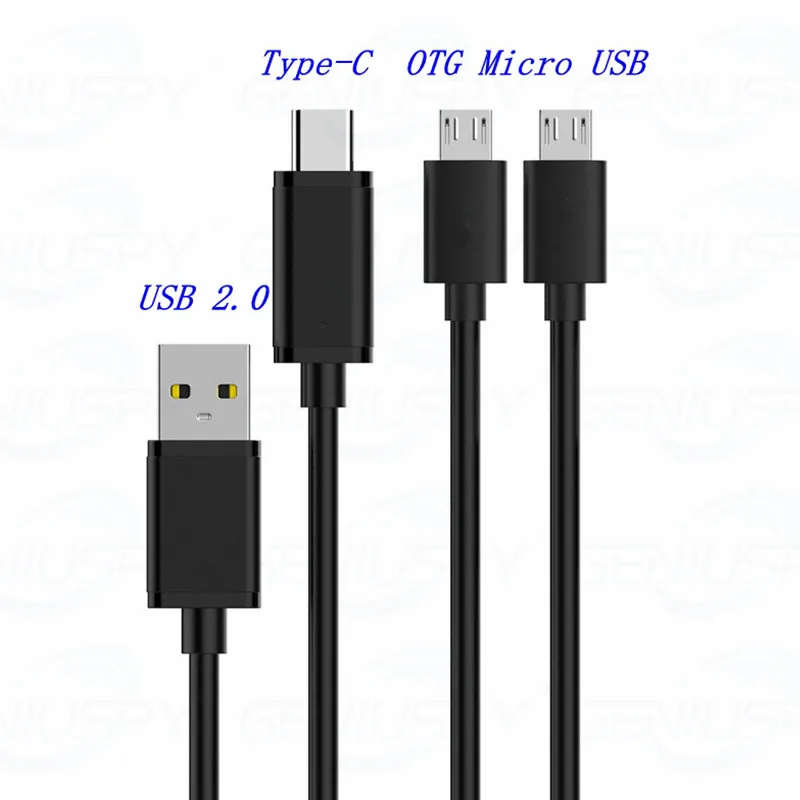

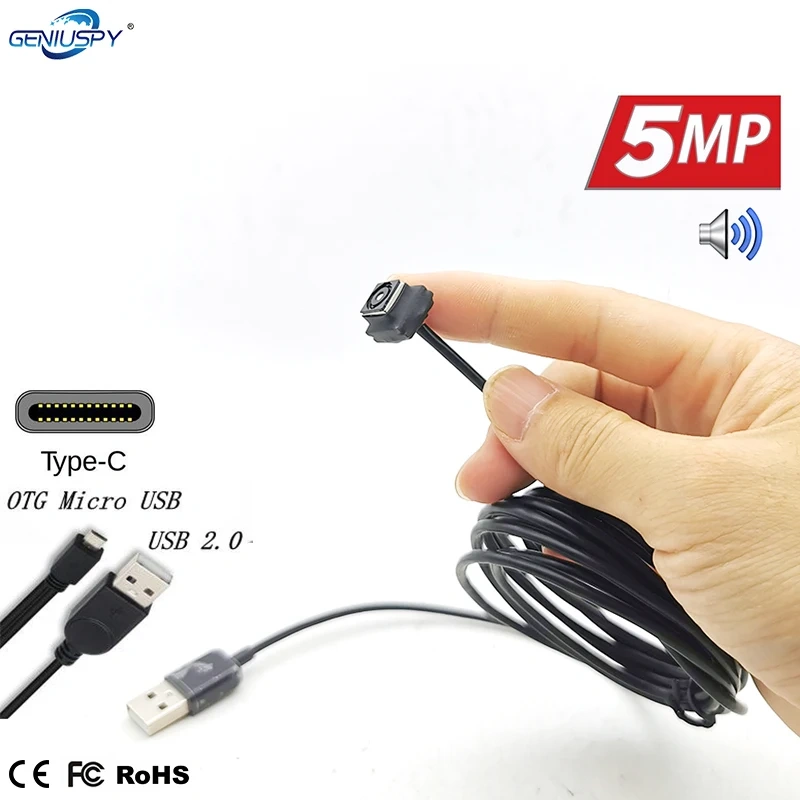

These interfaces are optional, please place orders which one you need:

Surveillance Camera Full HD 1080P UVC OTG AF AutoFocus 500W USB Camera Module 2592*1944 30FPS High Speed 2MP CCTV Webcam

Our company has been persisting in the tenet of credibility based, customers supreme, and quality guaranteed, to provide the best services to you through our utmost efforts!

We promise: the same to you the quality our price is optimal, same price our quality is the most guarantee!

Factory direct sales of goods are definitely value for money!

Feature:

HD 1080P  5MP USB camera module

Synchronization technology

High speed USB 2.0 interface

High quality image

Low power consumption

Small outline for embedded application

UVC compliance for use in OS Windows,Linux,Android,Mac

Typical application

1: ATM,Kiosk,POS,TV box2: advertising cameras3: one camera4: Smart TV built-in camera

5: Construction Equipment6: Banking equipment7: body switch8: Scanner

9: a mobile terminal device10: Medical diagnostic image acquisition11: fingerprints, palm prints image acquisition

12:video door phone13:HD surveillance

Remarks:

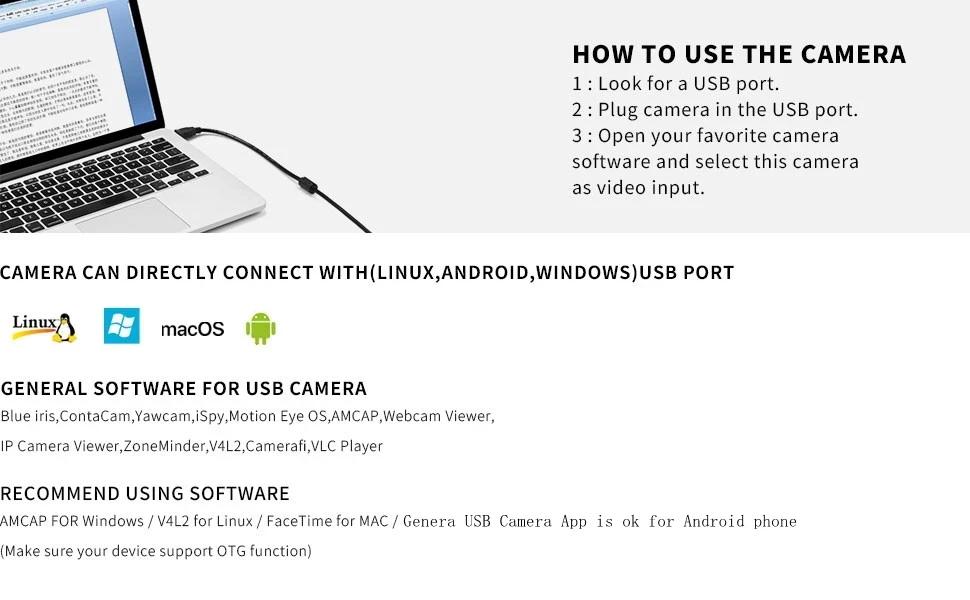

1: Use the USB cable wire into the computer, notebooks and other USB interface will be able to use!

2: inserted as computers, laptops can not be used, indicating that there is no drive in accordance with the camera.

3: This product is equipped with a USB cable.

Typical application

1: ATM,Kiosk,POS,TV box          2: advertising cameras        3: one camera         4: Smart TV built-in camera

5: Construction Equipment         6: Banking equipment          7: body switch          8: Scanner

9: a mobile terminal device        10: Medical diagnostic image acquisition            11: fingerprints, palm prints image acquisition

12:video door phone                  13:HD surveillance

This camera is a 5.0 megapixel size 2592*1944 pixel 1080P HD USB-2.0-free drive camera module, frame rate up to 15/30 frames. It can be used for one computer, advertising equipment, video doorbell, can meet the high demands of customers!

HD 5MP 1080P USB camera module

Synchronization technology

High speed USB 2.0 interface

High quality image

Low power consumption

Small outline for embedded application

UVC compliance for use in OS Windows,Linux,Android,Mac

1: ATM,Kiosk,POS,TV box         2: advertising cameras       3: one camera        4: Smart TV built-in camera

5: Construction Equipment        6: Banking equipment         7: body switch         8: Scanner

9: a mobile terminal device       10: Medical diagnostic image acquisition           11: fingerprints, palm prints image acquisition

12:video door phone                 13:HD surveillance

1: Use the USB cable wire into the computer, notebooks and other USB interface will be able to use!

2: inserted as computers, laptops can not be used, indicating that there is no drive in accordance with the camera.

3: This product is equipped with a USB cable.

Size:1/4 inch

pixel size:1.4 µm x 1.4 µm

Maximum effective pixels: 2592(H)*1944(V)/1920 (H) *1080 (V)

Output image format: YUV2 (YUYV) / MJPEG

Frame rate:

2592*1944-MJPEG-30FPS YUY2-2FPS

2048*1536-MJPEG-30FPS YUY2-3FPS

1920*1080-MJPEG-30FPS YUY2-5FPS

1280*720-  MJPEG-30FPS           YUY2-10FPS

950*540-    MJPEG-30FPS            YUY2-

640*480-    MJPEG-30FPS            YUY2-30FPS

320*240-    MJPEG-30FPS            YUY2-

320*180-    MJPEG-30FPS            YUY2-30FPS

Signal to noise ratio: 36dB

Dynamic range: 72dB

image area:3673.6 µm x 2738.4 µm

Sensitivity: 690 mV/lux-sec

Minimum illumination: 0.01LUX

Shutter type: Electronic rolling Frame shutter/ exposure

Interface type: USB2.0 High Speed

Support free flooding protocol: USB Video Class (UVC)

Support OTG protocol: USB2.0 OTG

Automatic exposure control AEC: support

Automatic white balance AEB: support

Automatic gain control AGC: support

Adjustable parameters: brightness contrast color saturation hue resolution

The gamma exposure contrast gain white balance backlighting

Power supply: USB BUS 4P-2.0mm POWER socket

Working voltage: DC5V

Working current: 140mA~220mA

Working temperature: 0 ~ 60

Storage temperature: -20 ~ 70 C

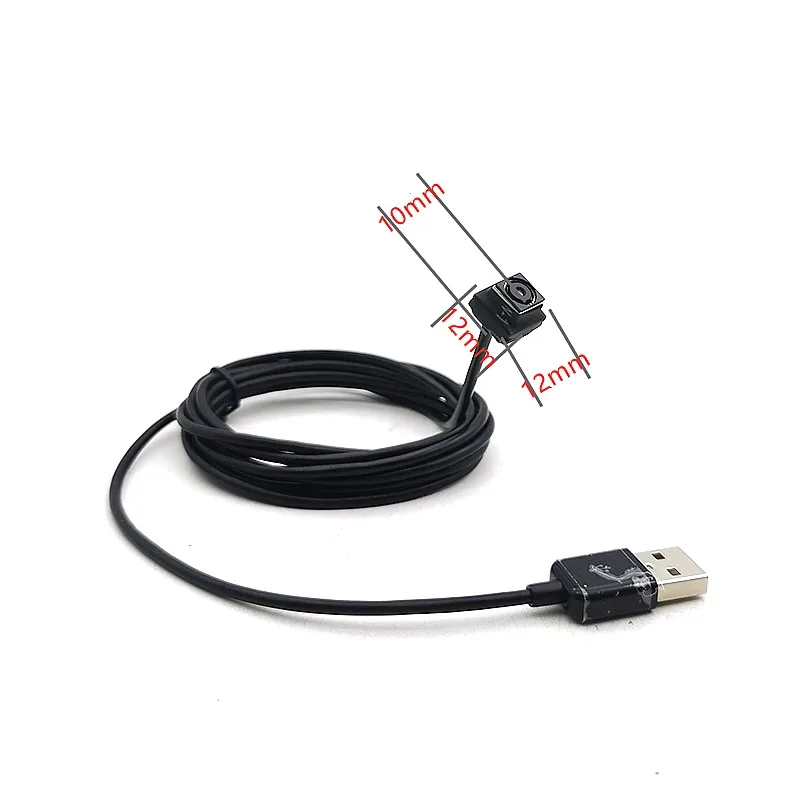

Board size: 12*12*10mm

Machine weight: 50g

Supported system: WinXP/Vista/Win7/Win8/ Linux with UVC (above linux-2.6.26)/ MAC-OS X 10.4.8 or later

/Wince with UVC/Android 4 or with above UVC
Interface:USB Interface

Lens: 3.6mm

Angle（FOV): 75°

Line length:1M

Real case:
