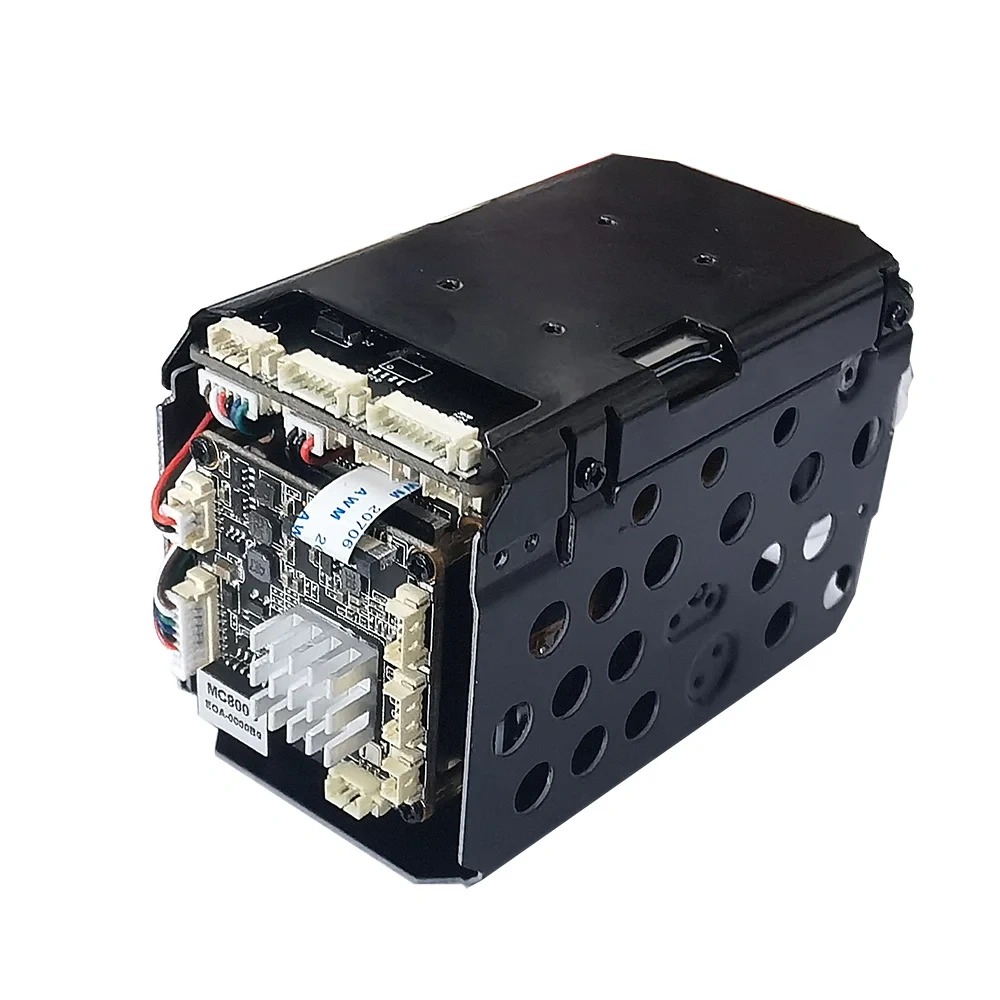

Name: IMX415 4K 8MP 360X Optical Zoom PTZ IP Camera Board With Bracket auto IRIS Hikvision Protocol RTMP IVM4200 P2P ONVIF SD Slot
Brand: Mini USB Camera Mini Camera IP Camera Camhi Camera Factory
SKU: 3256805866441346
Price: 160.30 USD
Availability: InStock
Rating: 5 (1 reviews)

Description

[xlmodel]-[custom]-[8888]

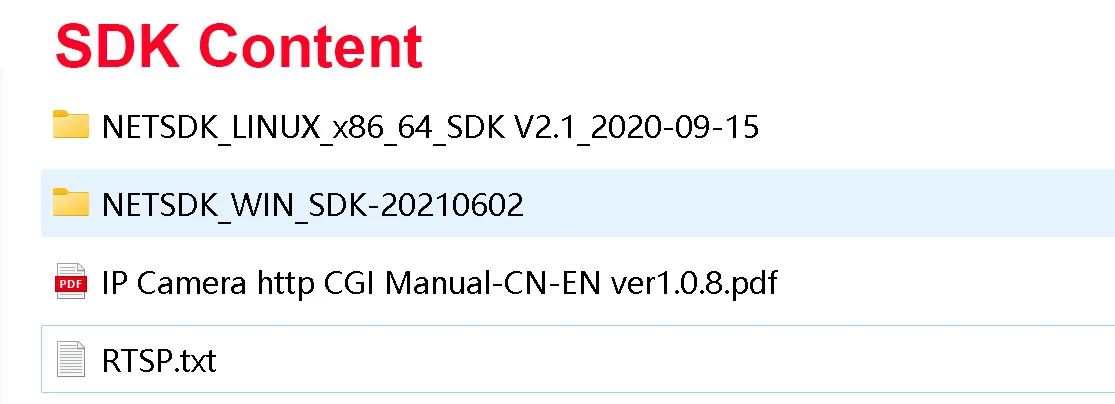

We provide SDK for buyers with development ability, if you need it, please contact us to get it.(only support English and Chinese)

4K 8MP IP Camera adopts highly integrated MSTAR338Q+IMX415 processor, extremely low power consumption and strong stability; supports H.265 compression algorithm to ensure image quality while effectively reducing network bandwidth occupation; powerful network function, support standard Support Hikvision protocol, and compatible with iVMS-4200, support RTSP, RTMP and other protocols, support alarm picture upload FTP server, alarm picture to E-Mail, support mobile phone remote monitoring;

High sensitivity, high signal-to-noise CMOS image sensor

Using the MSTAR338Q processing chip+SONY IMX415 CMOS

The highest pixel is up to 8MP, and the highest resolution is up to 8MP (3840*2160)

H.265 compression algorithm, effectively reducing network bandwidth, supporting dual stream, supporting mobile phone monitoring

Support humanoid recognition to trigger SD card recording, SD card capture, voice alarm, message push, email alarm and other functions.

support fog function, support WDR, HDR. Support strong light suppression function.

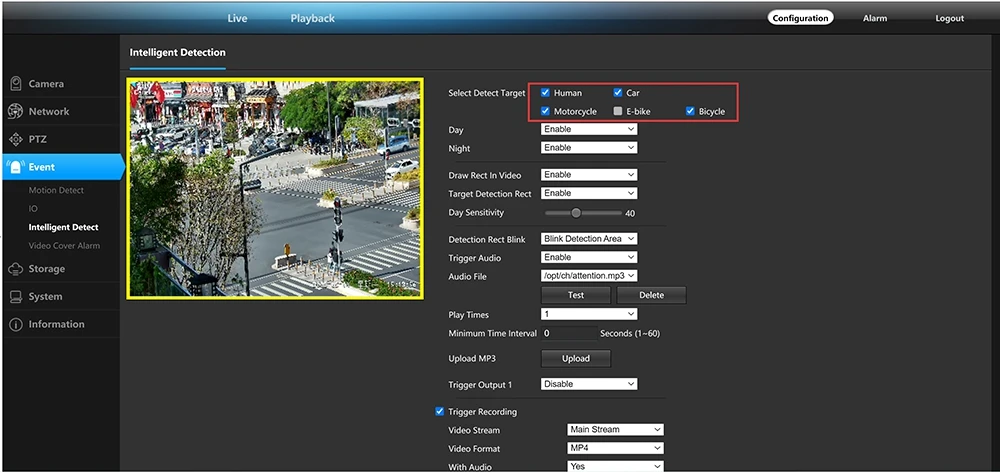

Support humanoid recognition and humanoid alarm

Support multiple network protocols: TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP, RTMP,etc.

Supports ONVIF absolute MOVE protocol (only ZOOM is supported)

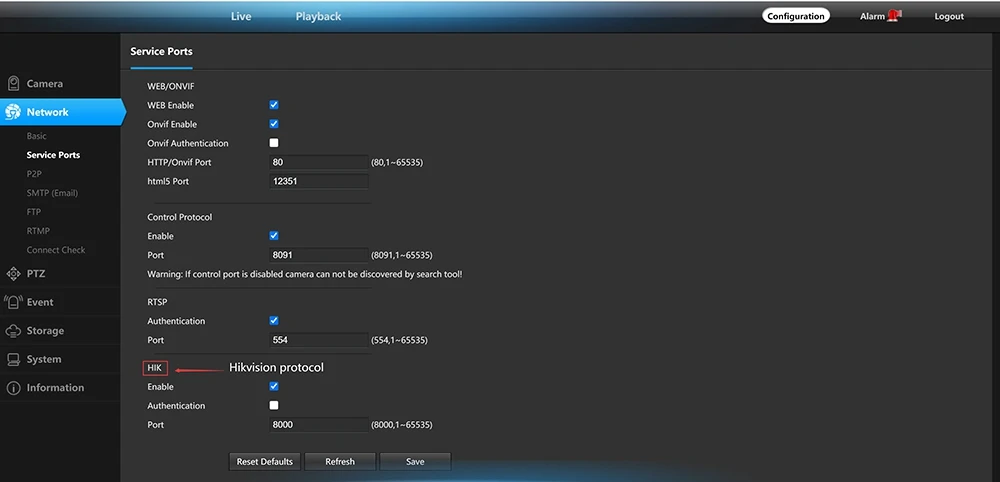

Support ONVIF protocol,Hikvision protocol

Support for manufacturer dynamic domain name and third-party dynamic domain name resolution

Support alarm picture sending E-Mail

Support alarm picture upload FTP server

Support alarm sound outputs

Support timing capture pictures to FTP server

Support static IP, also support dynamic IP (DHCP)

Support P2P plug and play

Support IE, Google, Firefox browser

Supports up to 6 users to browse at the same time (3 users per stream)

Provide motion detection (area, sensitivity can be set) alarm function

Support UPNP automatic port mapping

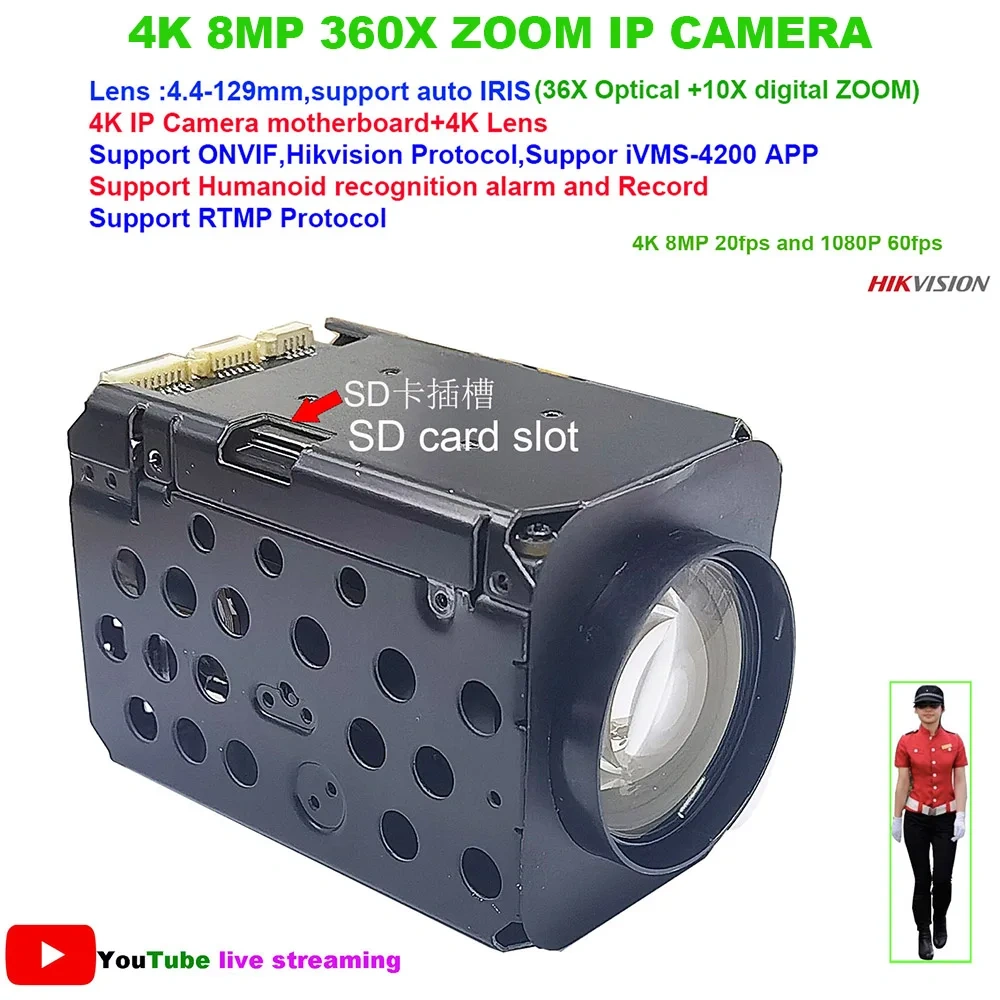

Support Micro SD card function, support up to 256GB Micro SD card

Support PC client to download SD card video

Support mobile phone download and playback SD card recording

* This is a professional camera, please use a computer or NVR connection to use it. Of course, it also supports mobile APP connection, but the mobile APP can only realize some simple functions. We provide SDK secondary development kit, you can develop software for yourself.

*Caution:This camera is a DIY semi-finished product.Without a casing, all components and wiring are exposed, and it is easy to cause the camera to malfunction due to improper operation.Buying a DIY semi-finished camera requires the buyer to have a certain hands-on ability and basic knowledge of electronic circuits.If you don't know anything, please don't buy it.We provide buyers with a full range of technical support.Of course buyers don't need to worry, If a component fails, we will provide you with a replacement service.And provide long-term technical support.

Model:JM800S-30
Operating system	embedded LINUX
Main processor	MSTAR338Q
Image Sensor	SONY IMX415 1/2.8" Ultra Low Illumination CMOS Sensor
Day and night mode	Support
Compression standard
Compression standard	Video compression algorithm supports H.265, H.264 High Profile, H.264 Main Profile and H.264 Baseline
Audio compression algorithm	G.726/G.711
Compressed transport stream	512Kbps-12288bps, can be customized,
Images
Maximum image size	8MP (3840*2160)

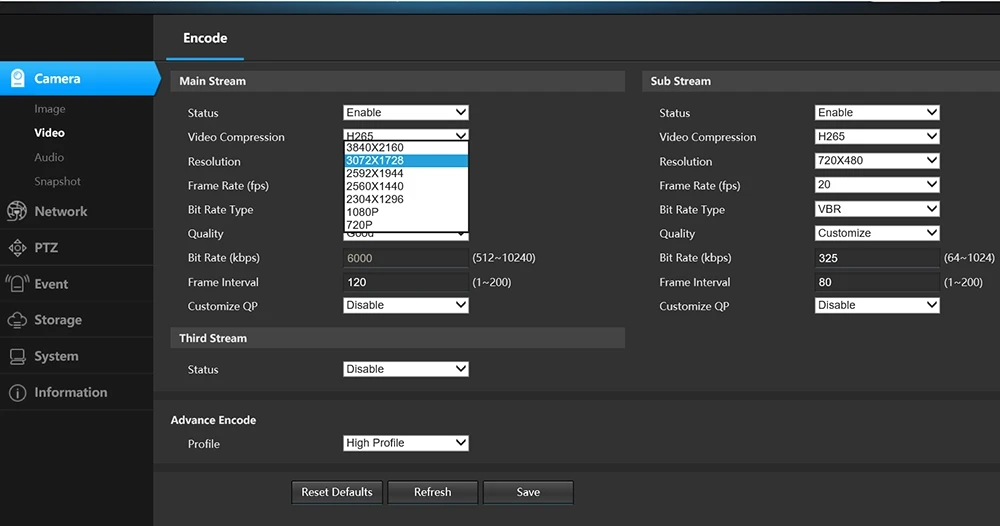

Sharpness Special function	First stream:4K 8MP (38402160),3072172825921944256014402304*12961080P,720P support fog function, support WDR, HDR. Support strong light suppression function.
Sharpness Special function	Second stream720480VGA,640360,480*360,CIF
Video frame rate	8mp 20fps,307217282592194425601440230412961080P,720P 30fps
Character overlay	Support OSD name,time and date information overlay
Image settings	Brightness, contrast, saturation, exposure, up and down reverse, left and right mirroring adjustable
Network Function
Storage function	Supports up to 256G Micro SD card storage and supports scheduled video storage
Motion detection	Four independent detection areas can be set (sensitivity 1-100 can be set)
Alarm linkage	alarm sends the picture to the specified mailbox; the alarm uploads the picture and the video is uploaded to the FTP server;
Network Protocol	Supports TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSPRTMP.
Access Protocol	Supports ONVIF 2.4 Protocol
Interface
Audio input	support External MIC
Audio output	External speaker
LAN interface	RJ45 10Base-T/100Base-TX,

IR night distance	support

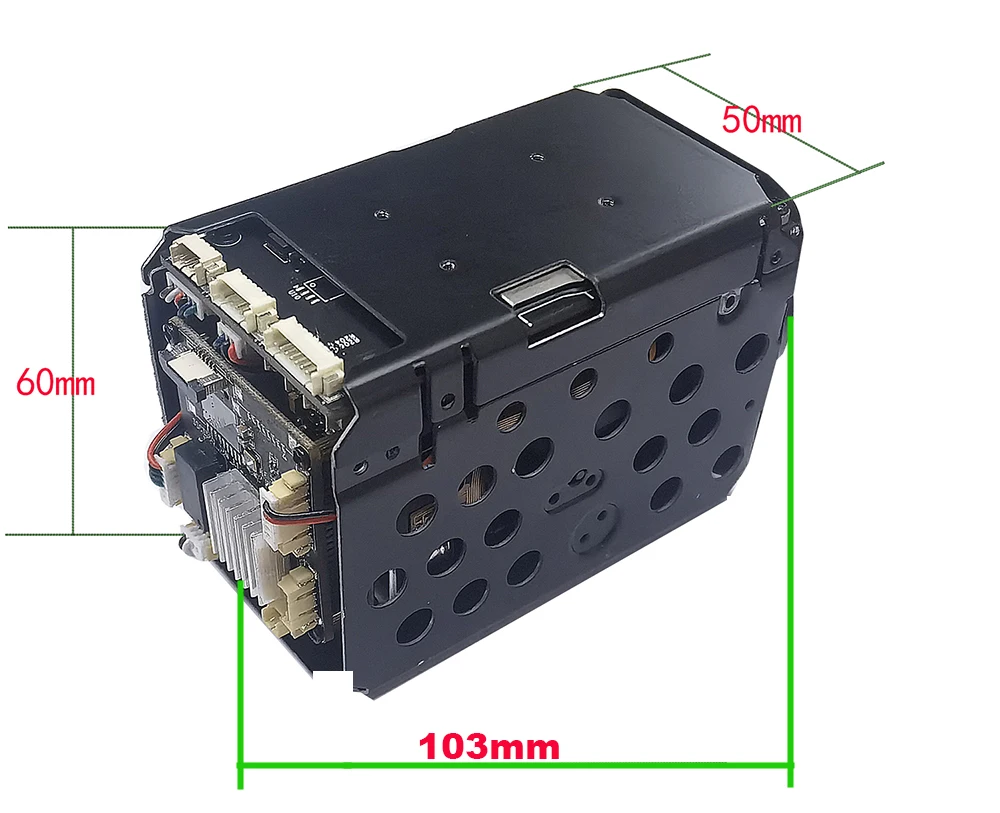

LEN	36x zoom,4.4-129mm
waterproof level	indoor
WIFI	not support
Working temperature	-40 to +85 Celsius
power	DC12V 1A
Working Humidity	-10-95%

About RTSP:

The RTSP URL format for YUCHENG series cameras is as follows (assuming the Camera IP is 192.168.0.123):

Main stream: rtsp://admin:123456@192.168.0.123/stream0

Substream: rtsp://admin:123456@192.168.0.123/stream1

For the RTSP URL above, if audio is enabled, the stream will contain both video and audio.

If you only need video or audio data, use the following URL:

Main stream pure video: rtsp://admin:123456@192.168.0.123/video1

Substream pure video: rtsp://admin:123456@192.168.0.123/video2

Audio only: rtsp://admin:123456@192.168.0.123/audio

About the protocol specification of the camera sent to the external MCU to control the lighting

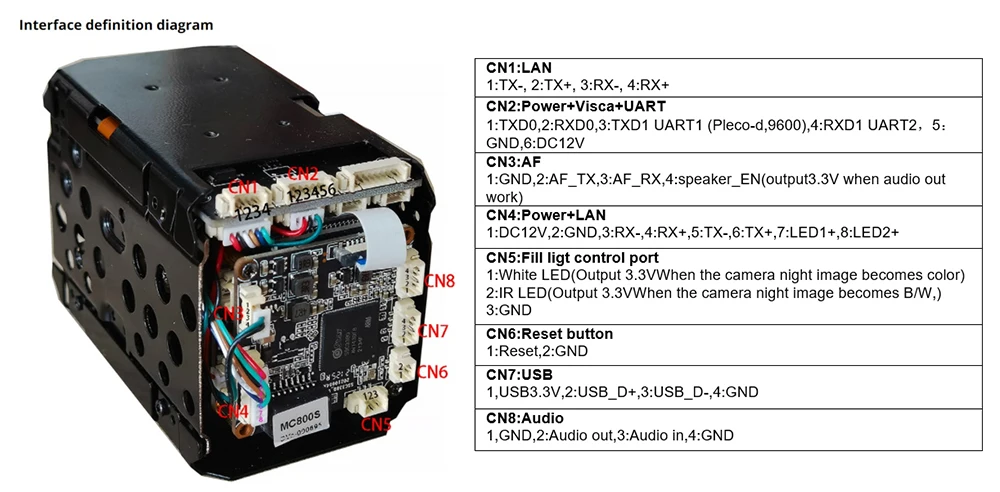

Data is sent through CN2: TXD1 UART1 (Pleco-d, 9600)

IRCUT status0: color, 1:B/W

IRCUT model0Automatic control mode (day and night determined by SENSOR)

1Day and night mode, control according to the time period

2External control mode (this mode is the traditional camera control mode, the MCU sends the VISCA command to control the camera IRCUT mode, in this mode, the camera
will not send the command to the MCU)

3Manual control mode

Light control PWM:

IR LED PWM: Infrared LED power 0-100 decimal, 0: close infrared LED, 100 maximum infrared LED brightness

White LED PWM: White LED power 0-100, decimal, 0 closes white LED, 100 maximum white LED brightness

For example:

IRCUT Auto Mode (Daytime):FF 01 83 01 00 00 11 00 96

IRCUT Auto Mode (Night - Pure Infrared) :FF 01 83 01 01 00 C6 00 4C

IRCUT automatic mode (pure white light at night):FF 01 83 01 00 00 E5 00 6A

IRCUT Auto Mode (Dual Light Night Infrared) :FF 01 83 01 01 00 ED 00 73

IRCUT automatic mode (dual light night white light) :FF 01 83 01 00 00 19 00 9E

Manual mode (daytime) :FF 01 83 01 00 03 07 00 8F

Manual mode (pure infrared at night):FF 01 83 01 01 03 EC 00 75

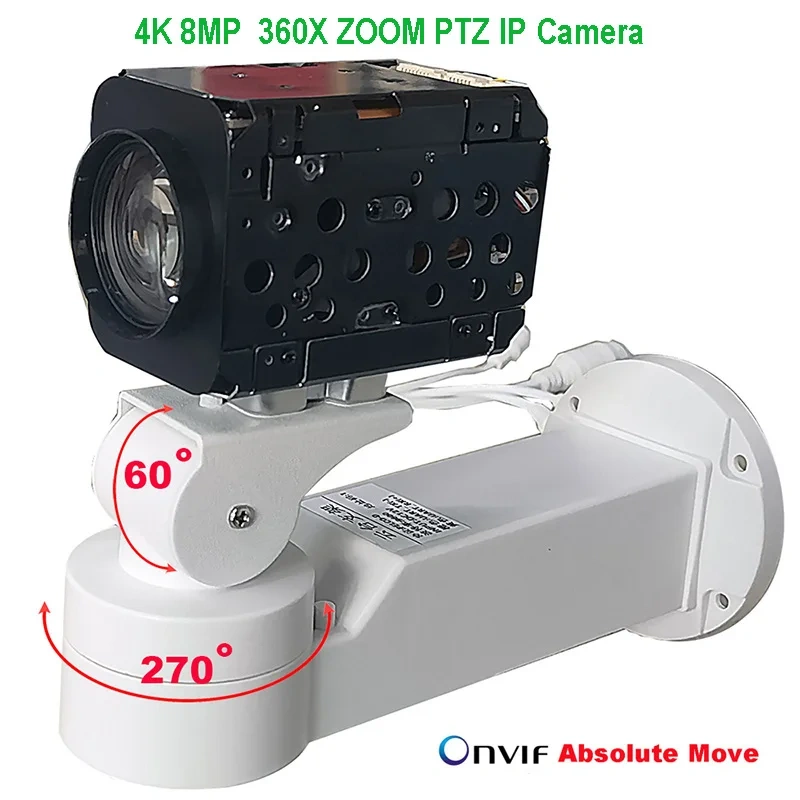

About P/T bracket

How to Programming Return Home position:

76+set+1+call for Turn on Return Home position

76+set+2+call for Turn off Return Home position

When this function is turned on, after waiting for 5 minutes, the PT bracket will automatically return to the Home position

74+set+1+call :The bracket turns on the self-check function when the power is connected or after the power is turned off and restarted

74+set+2+call : The bracket turns off the self-check function when the power is connected or after the power is turned off and restarted

94+call : restart bracket

82+call :Reset P/T bracket

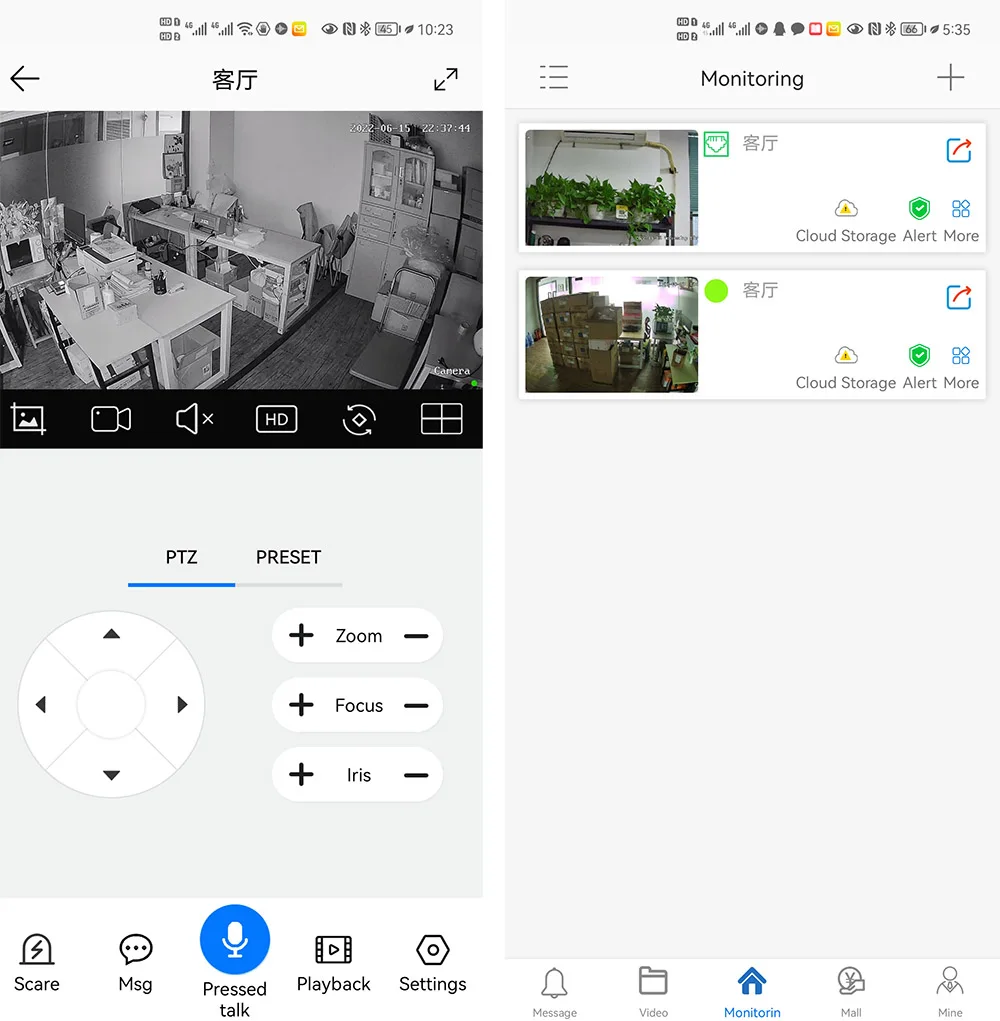

Mobile APP Name:AC18PRO

Record video playback supports 16X fast forward

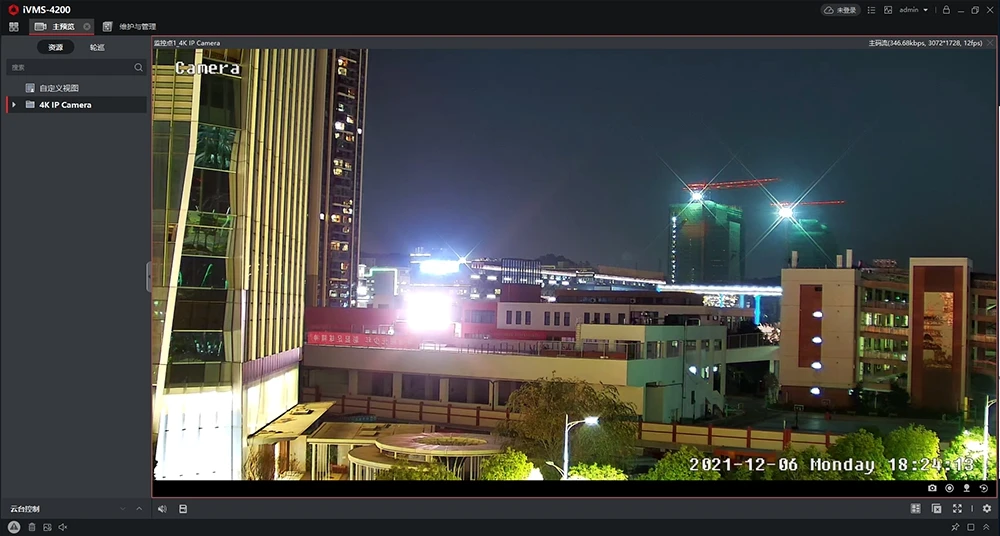

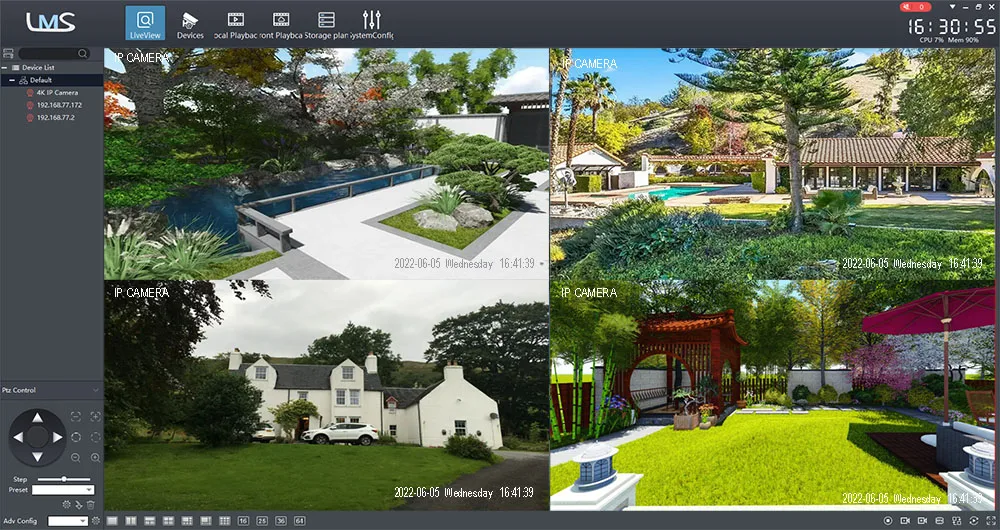

PC Software:

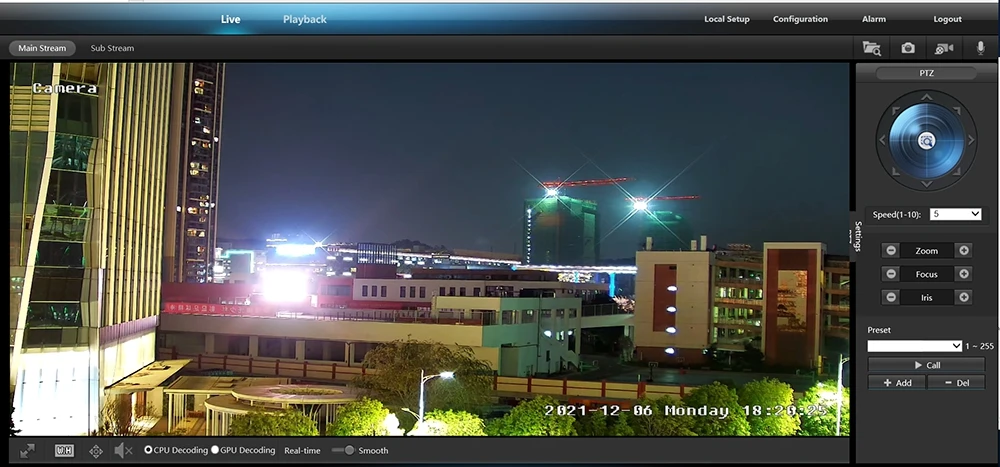

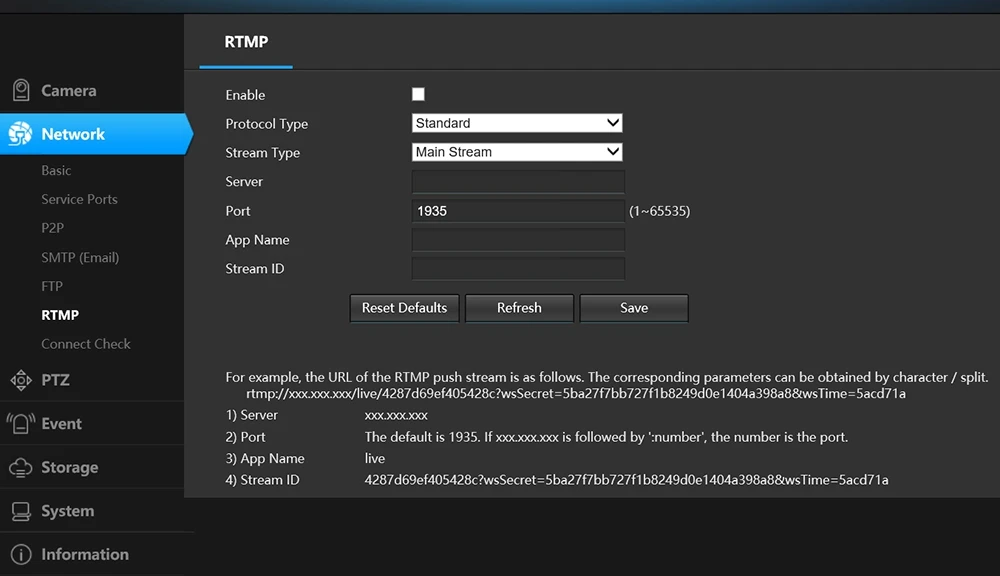

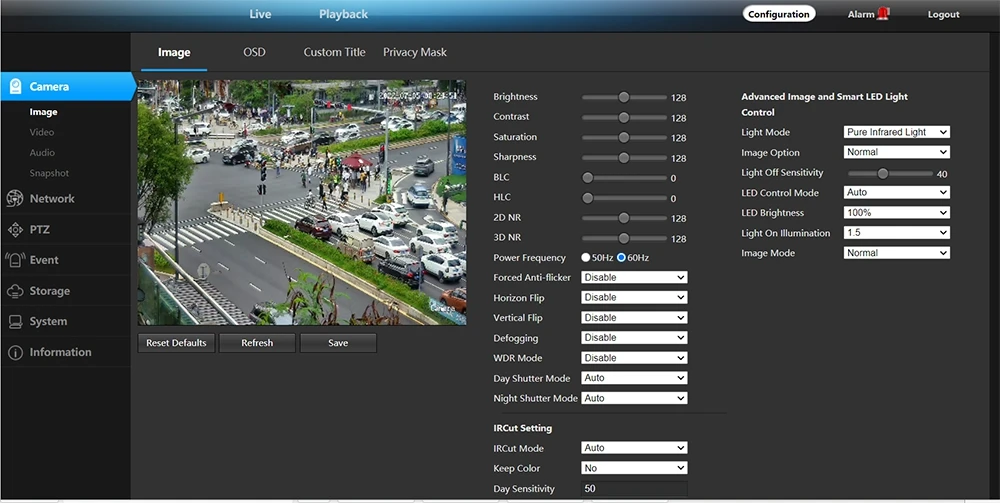

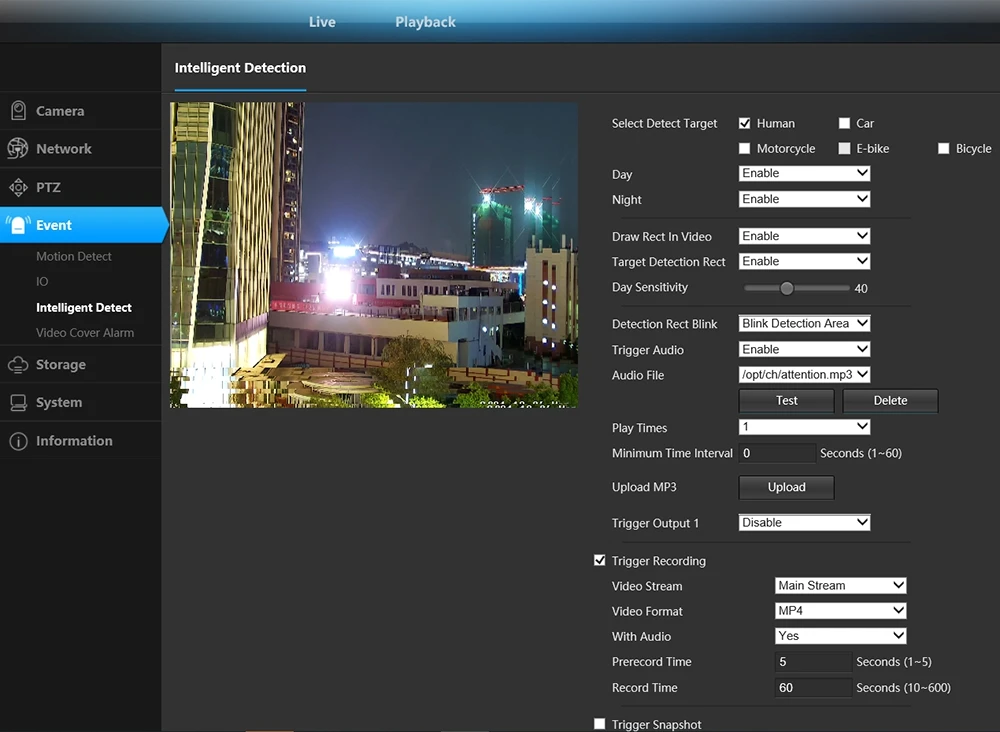

Browser interface:

Camera CD download

If you need a waterproof case, please click the link below to buy it.

Package list

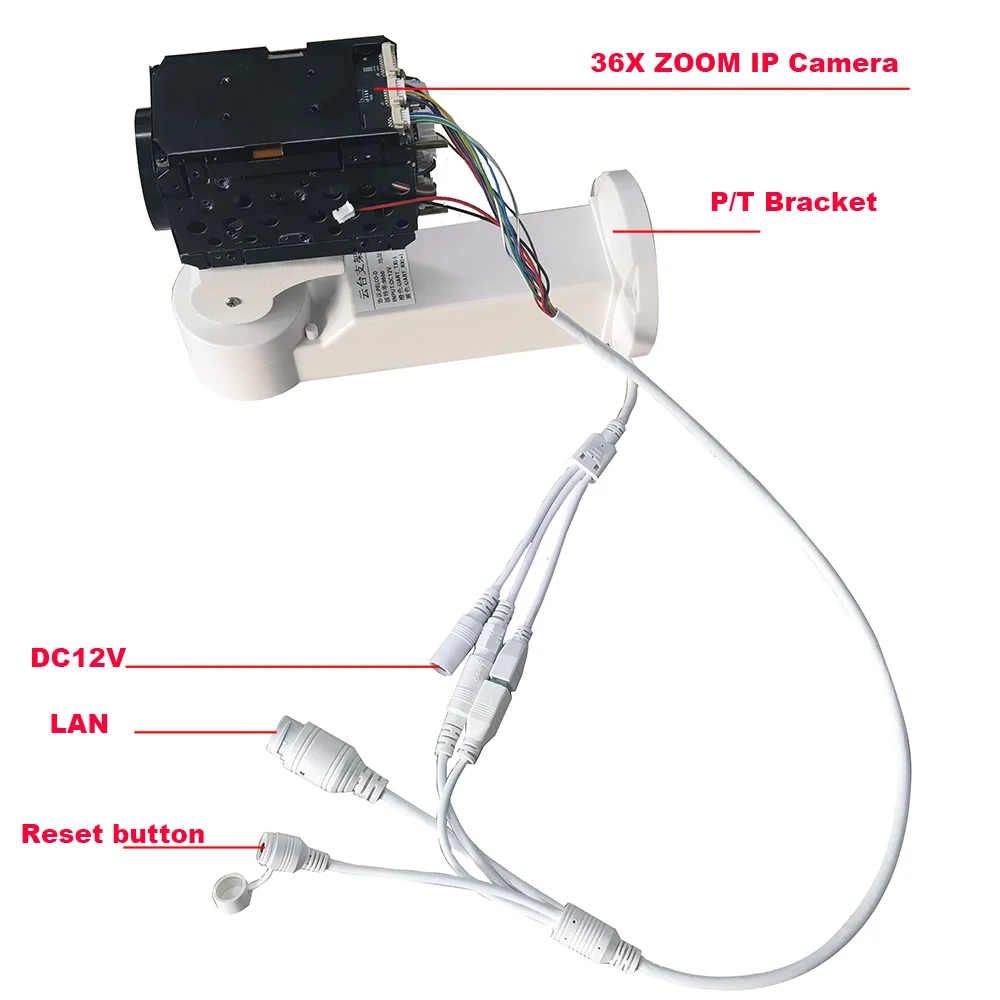

1x 36x zoom 4K PTZ IP Camera

1x PT Bracket

1x 12V power adapter

1x connection cable
