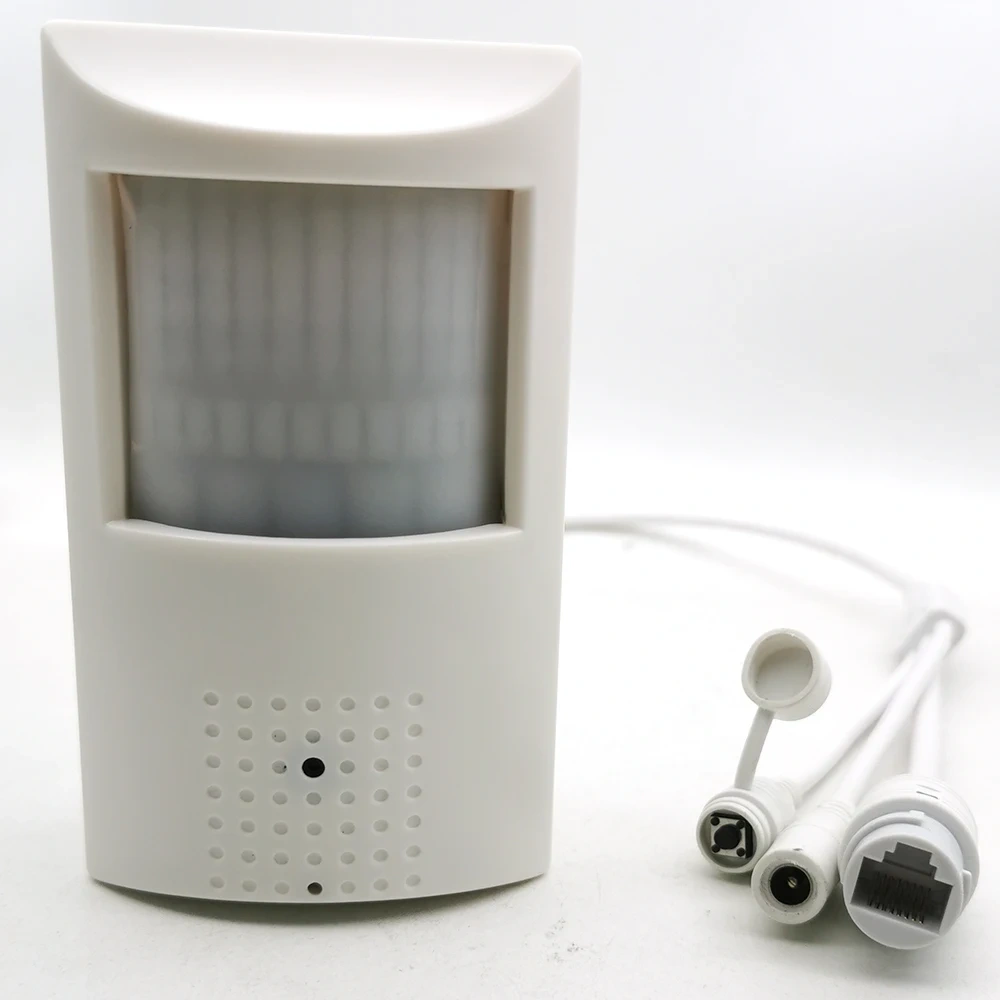

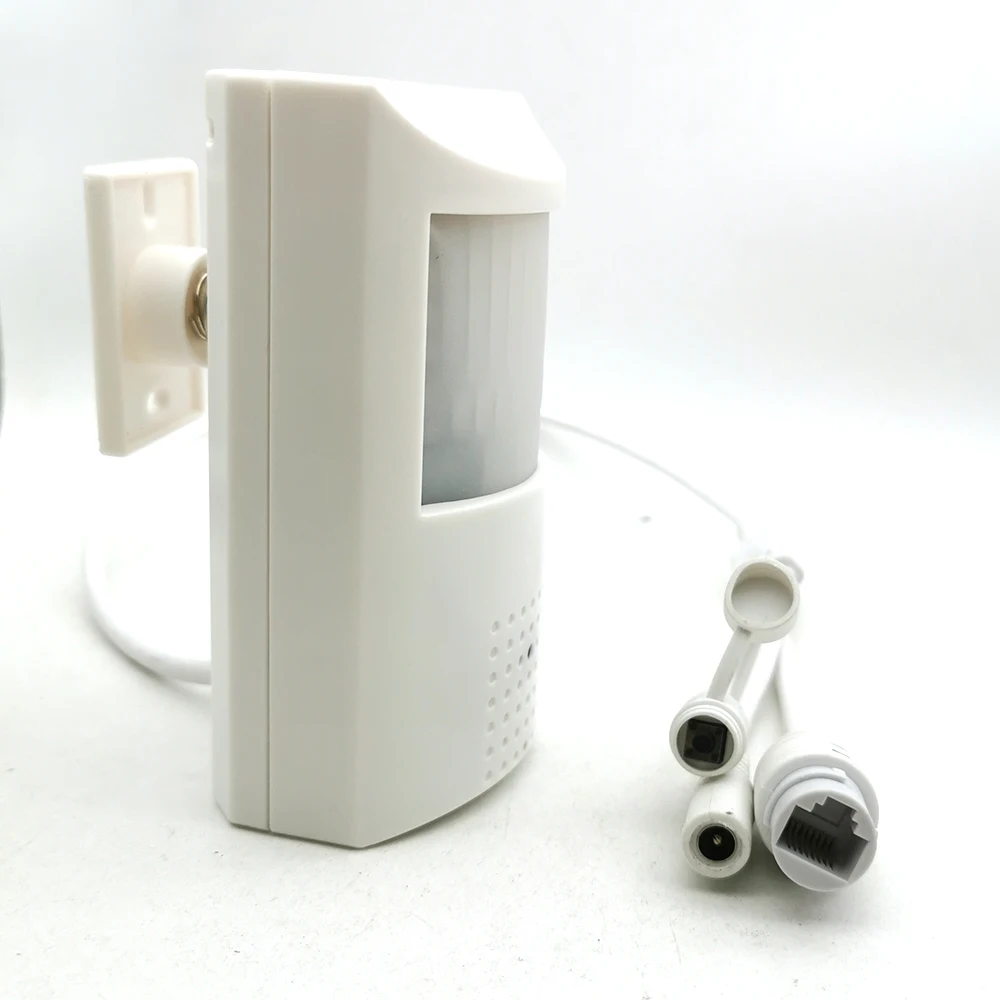

Name: ICSEE XMEYE Security 2MP 1080P 5MP HD Wifi Wireless Motion Pir IR IP Cam Covert Audio Night Vision PIR IP Camera TF Card Slot
Brand: Mini USB Camera Mini Camera IP Camera Camhi Camera Factory
SKU: 3256803903912249
Price: 35.70 USD
Availability: InStock
Rating: 5 (1 reviews)

Description

ICSEE XMEYE Security 2MP 1080P 5MP HD Wifi Wireless Motion Pir IR IP Cam Covert Audio Night Vision PIR IP Camera TF Card Slot

NOTICE:

Our IP Camera DO NOT Included The Power Adapter,
If You Need It, Please Kindly Click The Photo As Below, Add It In Your Order List, Thanks !

if you have other requirement ,welcome contact with us free !

Features:

HD 1080P 5MP Mini IR WIFI IP Network Camera with audio support
Equiped 3.7mm pinhole Megapixel lens
High resolution, presenting vivid and clear pictures.
Support automatic color change/IR-CUT,realising day&night non-stop monitoring.
Support various information superimposed (such as: ID, IP DDNS and so on) convenient to operate
Introduce advanced H.264 H.265 HP video compression, achieving ultra-low bit-rate, superb high-definition picture quality.
Support dual-stream
support various mobile long-distance monitoring iPhone,Windows Mobile, BlackBerry,Symbian, Android
Support IE
support auto electronic shutter, adapt to different monitoring environment
web and CMS supporting central management software,providing SDK development
support HVR/NVR connection conform to on vif

Main Features:

H.264 H.265 Main Profile level

1920*1080P . 5MP HD 1920P Resolution Can be optional

Dual H.264 Stream, resolution, frame rate, bit rate adjustable

on vif Compliant compatible with brand NVR such as Hikvision, dahua,xiongmai

Support plug in & play,

indoor Use for hide camera

Feature

5.0M 2.0MP resolution, low illumination clear and fine images;
Support for wired and wireless connections
Support 2D/3D noise reduction,digital wide dynamic;
Advanced H.265X video compression,Super low rate,high definition quality of image;
Professional anti-lightning,conform to GB/T17626.5 and IEC61000-4-5.
Support mobile phone monitoring(iOS, Android);
Provide web,CMS,provide SDK development
Support cloud technology,easy to achieve network penetration,fro in-line and alarm information pushed

Technical Specifications

Specifications	GS-PR120CMWAR	GS-PR120C5MWAR
System Structure	Embedded RTOS,dual-core 32bit DSP,pure hard compression,watchdog
sensor	1/2.9" SC307E CMOS sensor+xm530	1/2.7"SC5335P CMOS sensor+XM550AI
Min illumination	Color 0.001Lux F1.2; B/W 0.001 Lux F1.2;	Color 0.001Lux F1.2; B/W 0.001 Lux F1.2;
Video Processing	H.264 h.265X,support dual-stream,AVI; 0.1M~6Mpbs variable; 1~30f/s variable;
Image output	Main stream:19201080P Sub-stream:640360;	Main stream:25921944; Sub-stream:640360;
Audio interface	1ch intput,level 2Vp-p, impedance 1kΩ, support sound pick-up input;1ch output,level 16Ω,30mw,support earphones or amplifier;
Audio Processing	G.711, support bidrectional talk,audio&video synchronization;
Network interface	1*RJ45,10/100M;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc.;
photo resistance	A photo resistance interface, support photo resistance input signal and image,IR-CUT, infrared light linkage;
support	support Wifi Wireless &940nm IR Leds Night vision default& general Small microphone
Intelligent analysis	Standard intelligent video analysis functions
Service functions	Support WEB,OSD,live video transmission,support motion detection and IO alarm center reminders as well as screen pop-up linkage; JPEG capture;unified client remote monitoring software,MYEYE;perfect SDK;
on vif	Support
Mobile monitoring	Support mobile monitoring(iPhone,Android)
Power	DC12V power input interface

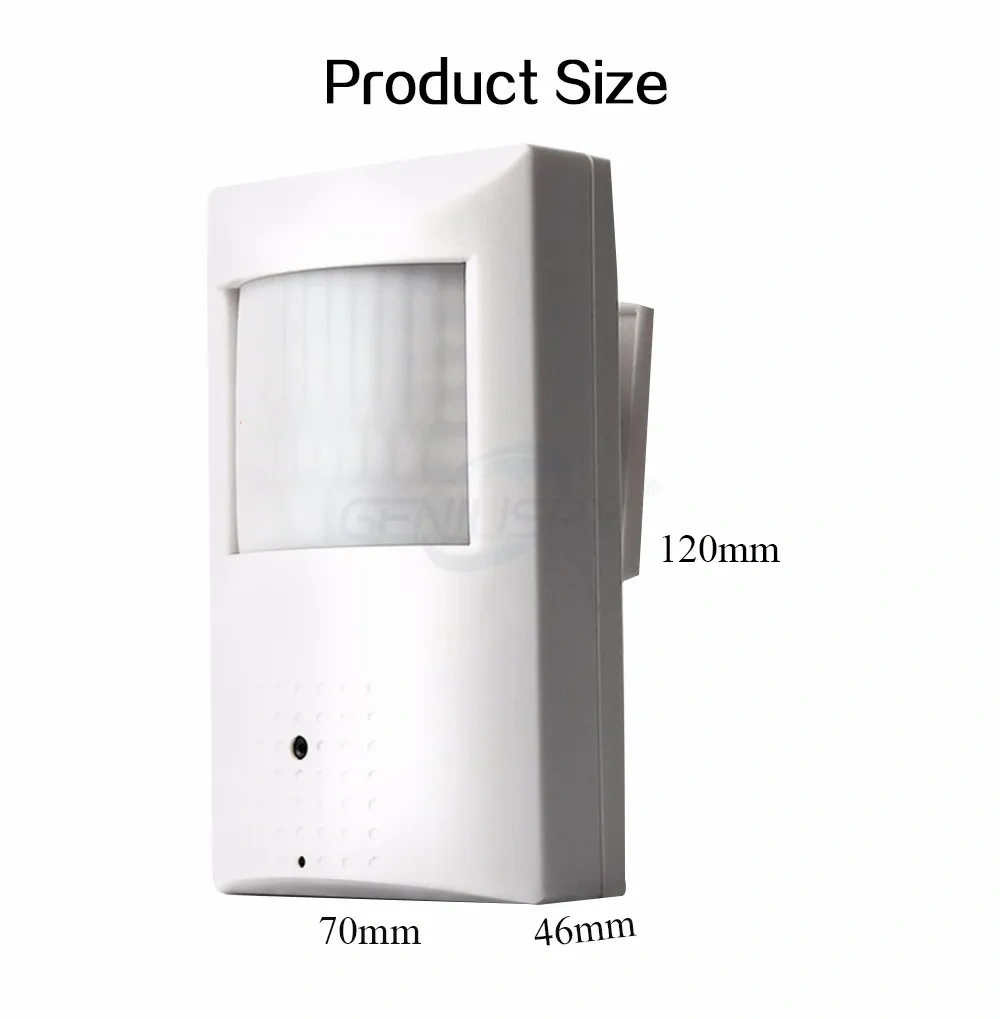

size	120*69.5mm
tf card slot	max 128gb tf card

Wifi Moudle 's Specification: Standards	IEEE802.11b/g & 802.11n (1T1R mode)
Operating Frequency	USA (FCC): 2.412GHz ~ 2.462GHz (channel 1 – 11) ISM band
Operating Frequency	Europe (CE): 2.412GHz ~ 2.472GHz (channel 1 – 13) ISM band
Protocols	802.11b: CCK, QPSK, BPSK, 802.11g/n: OFDM
Antenna	External Antenna via an I-PEX receptacle
Security	WPA/WP2, 64/128/152-bit WEP, WPS
Transmit Output Power (Typical)	11b: 21±1.0dBm / 11Mbps; 11g: 18±1dBm /54Mbps
Transmit Output Power (Typical)	802.11n: (HT20), 18+/-1dBm, 8 02.11n: (HT40), 18+/-1dBm,

Receive Sensitivity (Typical)	11b: -90dBm / 11Mbps; 11g: -73dBm / 54Mpbs.
Receive Sensitivity (Typical)	802.11n: (HT20), -71dBm/MSC7, (HT40),-67dBm/MSC7
Operating Voltage	5.0VDC ± 5% (or3.3VDV± 5% upon special requirement)
Operating Current	<110mA at 5.0V DC input.
Bus Interface	USB 2.0/USB1.1
USB Interface	4-pin, 2.0mm pitch male jumper , or 4-pin 2.54mm pitch connector
Antenna Impedance	50 ohm

Related Products:

Note:

Software will be sent to your emails or leave message in aliexpress when you paid!pls contact with our SALES team if you need !

If the buyer want other sizelens please 'Leave Message to Seller' to notify us when bidding.

To Customers :

Thanks for your attention to our products.if you have any question ,pls fell free to contact with us !

we will replyed you within 24hours!!!

Below Lens,some of them can be replaced for different angle view &distance requirement ! pls talk with us whetherit is available for the camera !

Simple instruation:

(Does not include Power Adapter)

Note: "DC 12V" Please use DC12 V 1A power supply, packaging does not include the power supply.

We recommend using our h.265 NVR, other manufacturers of NVR may not be able to run h.265 perfectly, it will run with h.264.

Q & A

1, IP camera default IP address:192.168.1.10

User name:admin,password:empty(null)

If there is a problem with "Can not find the Device", it is the default ip address is not in the same network segment as your router.

Please click "Edit Device" to change the camera's ip address,

For example, if your router's ip address is 192.168.0.1, then you need to change the camera's ip address to 192.168.0.XX.

"DeviceManage" It can find and change the IP address, upgrade the firmware.

2, P2P website: "www.xmeye.net" ,please use IE and install ActiveX,only IE supports Multi Language.Chrome,Safari just support Chinese .

then please input your P2P ID,user name and password to login and preview.

Access to the IPC through the web, only one screen can be displayed.

There are multiple IPC, please use client software to manage(such as: CMS VMS SNVR)

3,The camera's port information.

ON VIF 2.0 Port 8899 ;RTSP Port 554 ;HTTP Port 80;Media Port 34567;E-mail default port 25; SLL protocol Port 465.

4,Does the cameras can be compatible with other manufacturers NVR?

Please confirm whether other manufacturers NVR support on vif protocol.

Our camera's on vif protocol is on vif Profile S, does not support HTTPS protocol;

Auto focus camera, other manufacturers NVR can only zoom, can not focus.

5, The camera all supports Motion Detect,FTP,Email alarm, RTSP.

A,How to set up motion detection?

Access to IPC via IE (or CMS software), device configuration - alarm function - motion detection - on and save.

B, About FTP

FTP upload video and pictures, pictures will always upload, video files larger, after the alarm, the video file will be completed to upload.

We suggest the Sever-U and FileZilla FTP Server to upload the video or image.

C,For the Email alarm,please use Email server which supports SMTP ( Hotmail ,Yahoo not support SMTP ,it not supports Gmail temperately since the server problem ) .

D, RTSP URL for VLC media Player :

RTSP port: 554

rtsp: // (IP): (PORT) / user = (USER) & password = (PWD) & channel = (Channel) & stream = (Stream) .sdp? Real_stream

Example:

rtsp: //10.6.10.25: 554 / user = admin & password = & channel = 1 & stream = 0.sdp? Real_stream (stream = 0 primary stream 1 auxiliary stream)

If it is through the public network need to RTSP port open (default is 554), the port in the network service-RTSP can be set

6, About DDNS

Mapped media TCP port: 34567 and HTTP port: 80 (Note: mapping need to be changed to non-80)

Note: The two ports in the network settings can be viewed, can be modified

What domain names are supported?

- CN99 / DynDns / Oray / NO-IP / MYQ-SEE

Q:When I finish the steps to add the camera to the CMS list,why it notify “ Can’t find the Device “ even I can see the default ip address 192.168.1.10 in the menu .

F: It is the IP Address conflict ,the default ip address is not in the same network segment as your router.

Please click “Edit Device “ to change the camera’s ip address to make them in the same network segment !

For example ,if your router’s ip address is 192.168.0.1 ,then you need to change the camera’s ip address to 192.168.0.XX .

Package contents:

1 x Camera with bracket, , 1 x Screw, 1 x English User Manual
