iCSEE Door Eye Hole Security 1080P 1.66mm Lens Wide Angle FishEye CCTV Network Mini Peephole Door Wifi Camera 5v RTSP Xmeye VMS
Why choose our cameras. What are the advantages of my camera advantage.
1.suport H.265,H.265 formate
Compression ratio comparison: H.265 has higher compression ratio and half of the traffic
Compared with H.264, the biggest advantage of H.265 is that it has a higher compression rate. This can be seen from the name of H.265. H.265 is also known as HEVC (High Efficiency Video Coding, high efficiency video coding), and its main purpose is to further reduce the traffic required for the video, in order to reduce storage and cost of transmission. Taking H.265 as an example of the most important 3 of the 27 proposals, H.265 requires that in the best coding profile (profile), it can save 1080P videos compressed by H.264 under the premise of maintaining the same PSNR36 % of the data, and can further increase the savings to 50% when the image quality is similar. Therefore, in order to achieve this goal, H.265 adopts a more advanced and flexible coding unit than H.264.
The left picture is the traditional H.264 standard, and the size of each macroblock is fixed; the right picture is the H.265 standard, and the size of the coding unit is determined according to the amount of regional information
2.Our camera support, in the case of WIFI interruption, continue to keep recording, will not lose video files.
3.My camera supports hotspot mode, in the environment without a WiFi router, the mobile phone can be connected to the camera hotspot for close-up viewing
4.Our camera supports direct recording mode, and automatically saves it in the TF memory card in an environment without network.

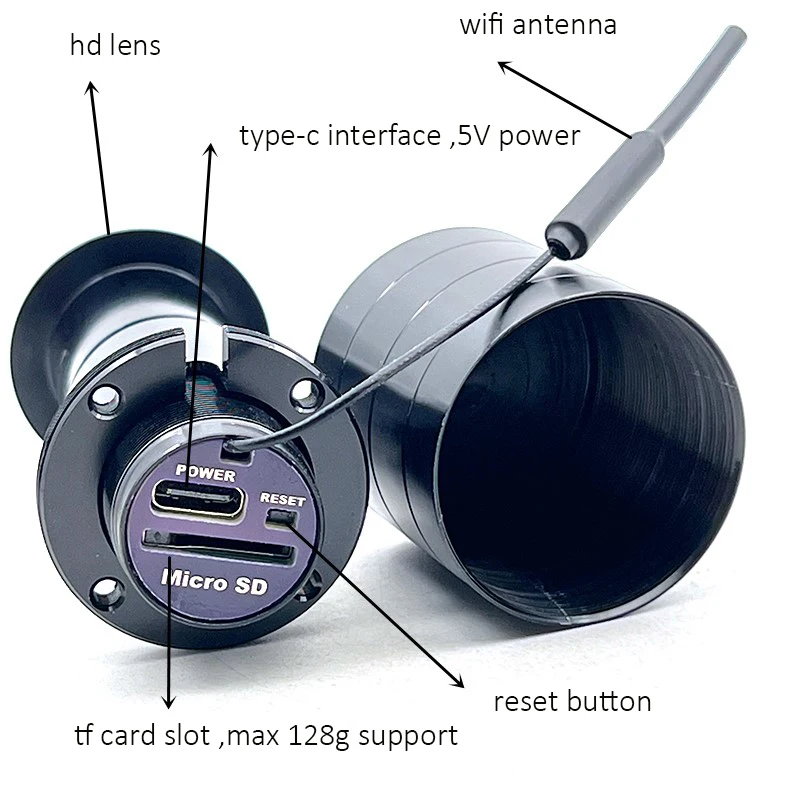

5.Lastest version upgrade new camera board - most stable and with type-c interface for power
6.support RTSP .ONVIF work with nvr ,motion detection alarm record and push to phone via app
7,support 2 way audio , build with microphone in the front of the door and with speaker !
8,xmeye icsee platforme
9.our strengths Quality products and low-end products
Our camera adopts external memory card, high quality technology, with good heat dissipation performance. It can extend the life of camera memory.Camera appearance beautiful atmosphere, good workmanship.
10,support PC and Phone remote view in anywhere
WiFi door camera mobile phone APP to watch
Specification:
*Starlight DSP
* 1.66MM Fisheye Lens/ lens optional
* Support Phone/PC /Web Browser Remote View Anywhere
* H.265 Formate 1M~8Mpbs variable;1~30f/s variable;
* Color 0.001Lux; B/W 0.01Lux;
* Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc network protocol;
* Support ONVIF, and mobile monitoring;
* Metal case For Door USE
*TF Card Slot Max128G
Specification :
Specification | ||||
Model NO. | GS-B2AD166WTCMFE | |||
System | ||||
Operating system | Embedded RTOS,dual-core 32bit DSP,pure hard compression ,watch dog | |||
Video | ||||
Sensor/DSP | 1/2.9" CMOS StarLight image sensor | |||
Max.image Resolution | 1920*1080P 2.1Megapixel | |||
Frame Rate | PAL 25fps @ 1080P ,NTSC 30fps @ 1080P | |||
Main Stream | 1920x1080P | |||
Sub Stream | D1 CIF 704 × 576; 352 × 288 | |||
Compression | H.265x | |||
Door Lens | 1.66mm Lens 160Degree | |||
Min. Illumination | Color 0.001Lux; B/W 0.01Lux; | |||
Noise reduction | Support 2D/3D | |||
Night Vision | not have ir function ,no night vision | |||
Storage | Via PC/Mobile Phone/NVR With HDD/TF Card slot | |||
Electronic Shutter | 1/20~1/30000s | |||
Wide dynamic | Support digital | |||
APP | XMEYE/ICSEE | |||
Adudio | ||||
Audio Input | with audio ,microphone build outside(2 way audio ) | |||
Network | ||||
Interface | DC5V Port+reset button +tf card slot | |||
Protocol | support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc | |||
Compliance | ONVIF Profile S | |||
PC Client and Browser | IE6.0 and above,, Mozilla Firefox, Mac Safari | |||
Mobile device | iPhone, iPad, Android Phone, Tablets | |||
WIFI | yes, IEEE 802.11 b/g/n | |||
PoE | Optional | |||
Reliability | Comprehensive lightning protection, in line with national and international standards; 7 * 24 hours 65’C high temperature stable and reliable testing (including mounted machine testing) | |||
ELECTRICAL | ||||
Power Consumption | 1.8W | |||
Adapter Requirement | DC 5V 2A | |||
General | ||||
Ingress Protection | IP54 | |||
TF Card Storage | max support 128gb | |||
Working Temps | –20°c~70°c | |||
Working Humidity | 20%~85% (non condensation) | |||
Reset Button | support | |||
Camera Size | / | |||
Net weight | 0.35Kg | |||
Gross weight | 0.55Kg | |||
Software Download | ||||
SDK Download | ||||
Notice: | For More Models pls search''geniuspy''in alibaba Site | |||
Q & A
Q:When I finish the steps to add the camera to the CMS list,why it notify “ Can’t find the Device “ even I can see the default ip address 192.168.1.10 in the menu .
F: It is the IP Address conflict ,the default ip address is not in the same network segment as your router.
Please click “Edit Device “ to change the camera’s ip address to make them in the same network segment !
For example ,if your router’s ip address is 192.168.0.1 ,then you need to change the camera’s ip address to 192.168.0.XX .
Questions and answers
1Question: How do we choose TF card?
Answer: 32G can store 15 days, 64G can store 1 month, 128G can store 2 months.
2Question: Does the camera support RTSP
Answer: Support
3Question: Does the camera support dynamic recording
Answer: Support
4 Question: Does the camera have a built-in battery
Answer: Not supported
5Question: How long is the camera power USB cable M?
Answer: Standard 2M
how to power it ? default come with dc5v 2a power adapter connect with electric power or connect with external power bank to power it
