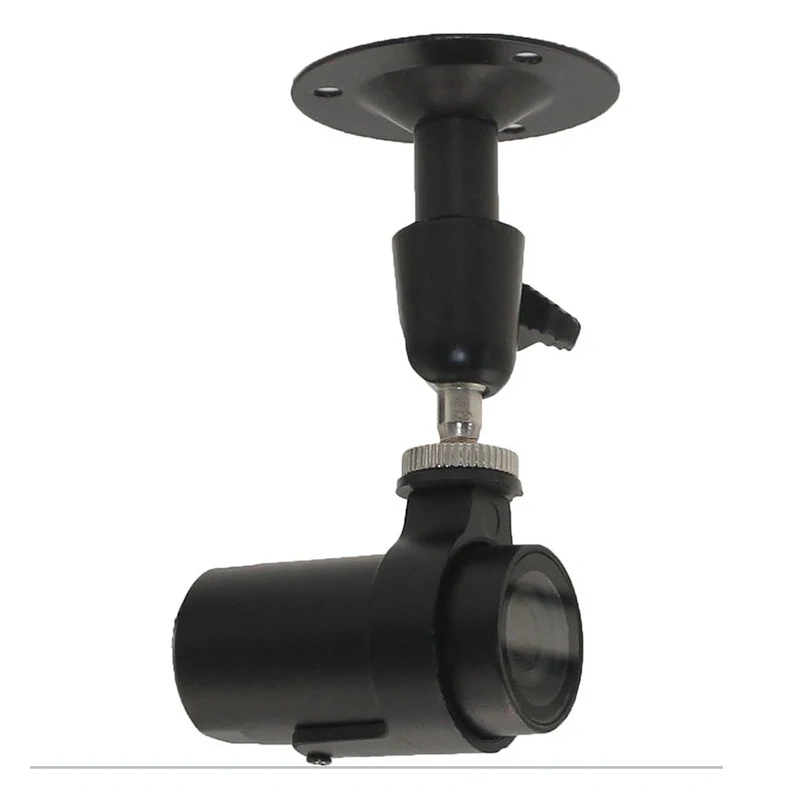

H.265 IMX335 Starlight On Vif 4MP HD Mini Bullet POE Mini IP Camera Wifi Wireless RS485 Alarm Audio Input&Output for Project

SPECIFICATION

Model NO.

GS-B5MPWA

Camera

Image Sensor

1/2.8" SONY Starvis Back-illuminated CMOS Sensor

Resolution

4MP

Effective Pixels

2616 (H)*1964 (V)

Compression

H.264/H.264+/H.265/H.265+/JPEG/AVI/MJPEG

Audio Compression

G.711A/U, AAC

TV System

PAL/NTSC

Electronic Shutter Time

Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec

Minimun Illumination

Color: 0.003 lux F1.6,AGC ON; B/W :0 lux with IR

S/N Ratio

≥52dB

Scanning System

Progressive

Video Output

Network

Reset Button

Support

LENS Type

Focus Length

2.8mm /106°(F1.6)

Focus Control

Fixed

Lens Type

Fixed

Pixels

2MP

Night Vision

Infrared LED

N/A

Infrared Distance

N/A

IR Status

N/A

IR Power On

N/A

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP

ONVIF

Support ONVIF 2.4(Profile S)

P2P

YES, Support QR Code

POE

Internal, Support IEEE 802.3af

Video Delay

0.3S (Within the Lan)

Main Stream 1

2560*1440 30fp

Main Stream 2

1920*1080 30fps

Main Stream 3

1280*720 30fps

Sub Stream 1

720*480 30fps

Sub Stream 2

352*288 30fps

Sub Stream 3

N/A

Tri Stream

1280*720 30fps
720*480 30fps
352*288 30fps

IE Brower

IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53), Mac Safari(lower than version 12)

Smart Phone

iPhone, Android

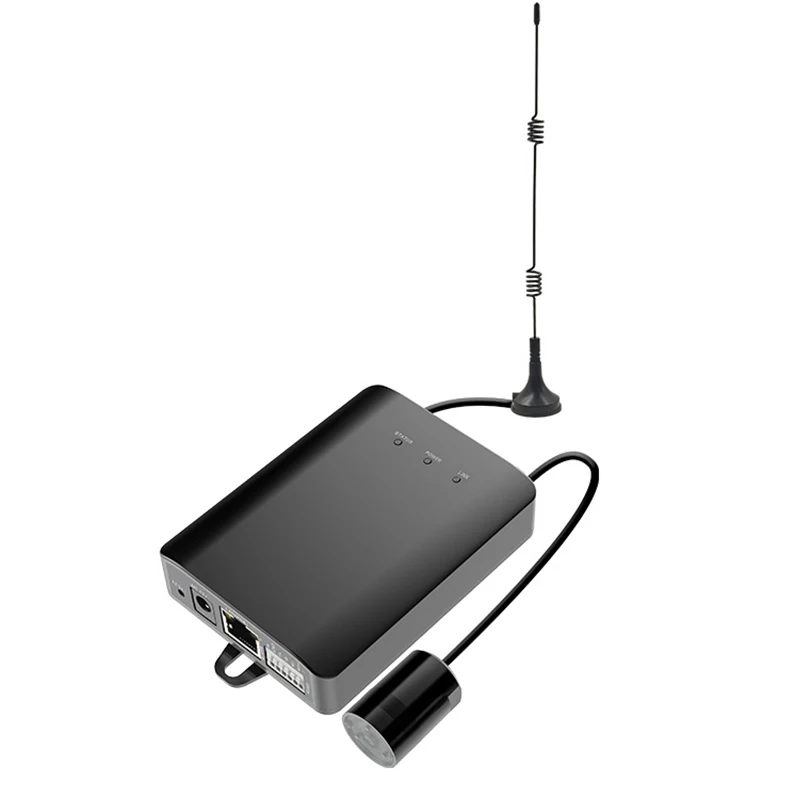

Wireless

Antena

7dbi

Hotspot

N/A

Wi-Fi

Wi-Fi(IEEE802.11b/g/n),2.4Ghz

WIFI Range

No obstacles 300m Max.

AI Function

Intelligent Analysis

N/A

Camera

Day/Night

Color

Image Config

Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control), Video Tampering, HLC

Corridor Pattern

Support

ROI

Support

Defog  Mode

Support

BLC

Support

WDR

HDR: 120dB

Motion Detection

Support

Privacy  Masking

3 Rectangular Zone

Recording Mode

NVR/VMS/Web/SD Card

Language

Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Arabic, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian,Nederlands,Czech, Vietnamese

Interface

Audio

Audio IN/OUT(3.5mm audio interface)

Alarm

1ch Alarm In/1ch Alarm Out

SD Card Slot

Support  512G Micro SD Card Slot

RS485

N/A

General

Housing

Metal

Anti-cut Bracket

NO

IR Cut Filter

NO

Operation Temperature

-20℃ ~ +60℃ RH95% Max

Storage Temperature

-20℃ ~ +60℃ RH95% Max

Power Source

DC12V±10%, 350mA

Dimension

104(L) x 78(W) x25.8(H)mm

Weight

810g
