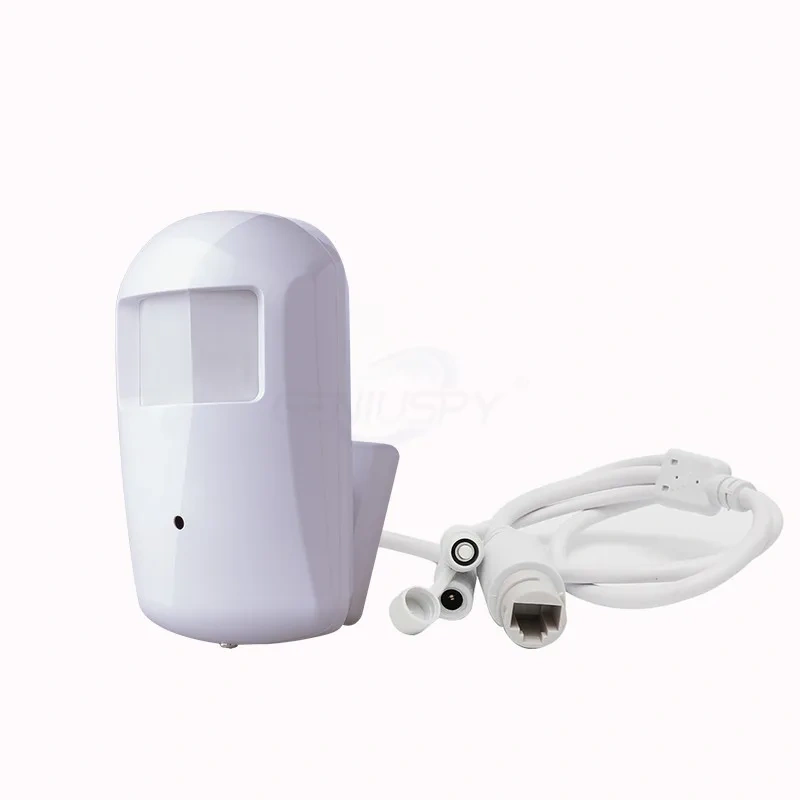

H.265 2MP 5MP PIR Style Wifi Mini IP Camera Wireless FTP RTSP Motion Detect Security 940nm IR Invisible Night Vision TF Card Mic
Attenation:
Regard TF Card support PIR wifi ir Pinhole ip camera

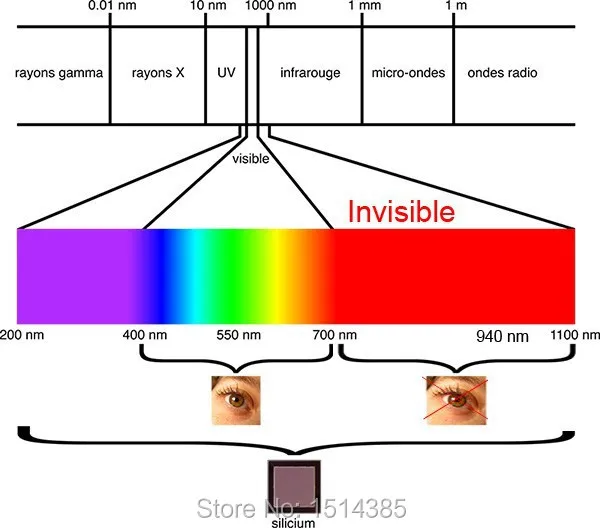

camera come with 940nm ir leds default ，invisible ir leds
NOTICE:Our IP Camera DO NOT Included The Power Adapter,
Order Models:
Models:GS-PRTF67CWAR5MP 5.0MP H.265
Models:GS-PRTF67CWAR3MP 3.0MP H.265
Models:GS-PRTF67CMWAR 1080p 2.0MP H.264
Specification: 2.0MP
Resolution:1920x1080
Image Sensor: GC2053
Sensor Size: 1/2.8 inch
Support 128GB TF Card Max
Specification: 3.0MP
Resolution:2304x1296
Image Sensor: SC3235
Sensor Size: 1/2.7 inch
Support 128GB TF Card Max
Specification: 5.0MP
Resolution:2560x1920 or 2560x1440
Sensor Size: 1/2.8 inch
Image Sensor: SONY IMX335
Support 128GB TF card Max
support WIFI& audio general Small microphone default&940nm IR Night vision& tf card slot
Features
High sensitivity, high signal-to-noise CMOS image sensor
H.264 /h.265 Compression,three streaming, mobile surveillance; compatible with various smart Phone operating system
Support multiple network protocol TCP/IP,HTTP,TCP,ICMP,UDP,ARP, IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP and so on
Support :ON VIF 2.0
Support :DDNS and three DDNS
Support :sending email, attaching picture
Support :Alarm picture and record Uploaded to FTP server
Support :Timing captured picture to FTP server
Support :Static IP and DHCP
Support :P2P
Support :privacy mask
Support up to 12 users browsing at the same time(Each stream supports four users
Support remote alarm linkage
Only 1 network port is used for IE Browsing,stream transmiting and command access, convenient for router setting
Features
5.0 megapixel HD IP camera, maximum resolution2560x1920P
3.0 megapixel HD IP camera, maximum resolution2304x1296
2.0 megapixel HD IP camera, maximum resolution 1920*1080;
Support POE
Support up to 128G TF card storage;
Optional 2.8/3.7(default)/6mm lens;
Support P2P, view & anywhere & anytime;
Elegant outline and easy installation;

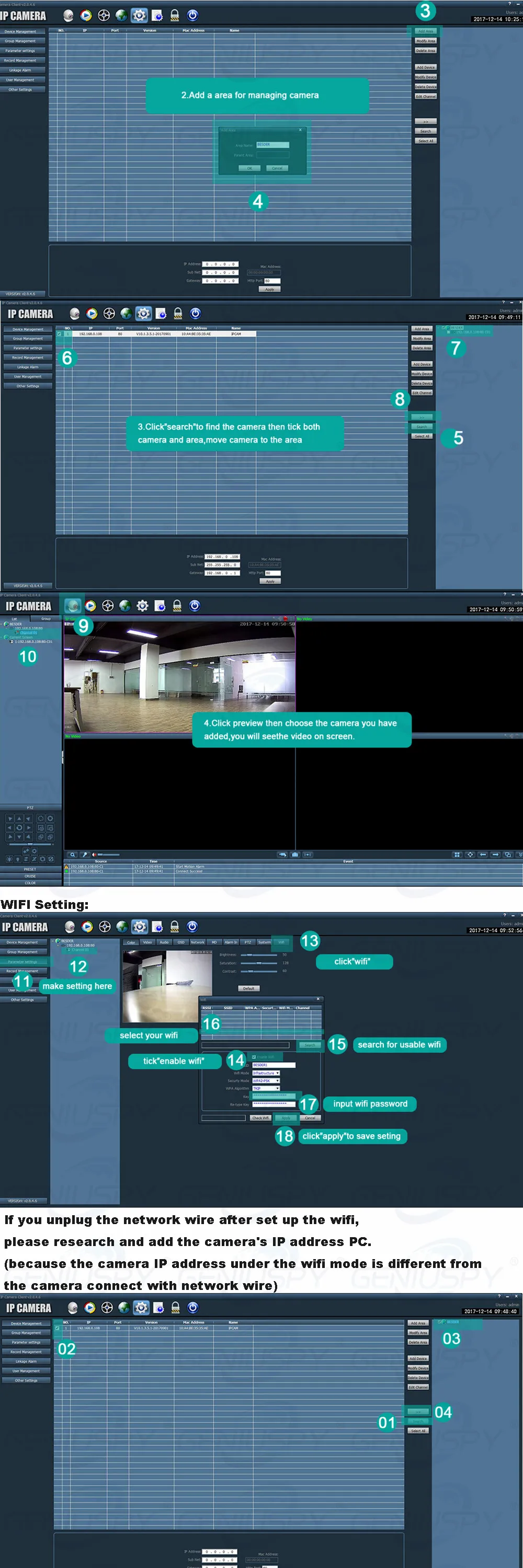

Provide android & ios APP and professional CMS PC client software;

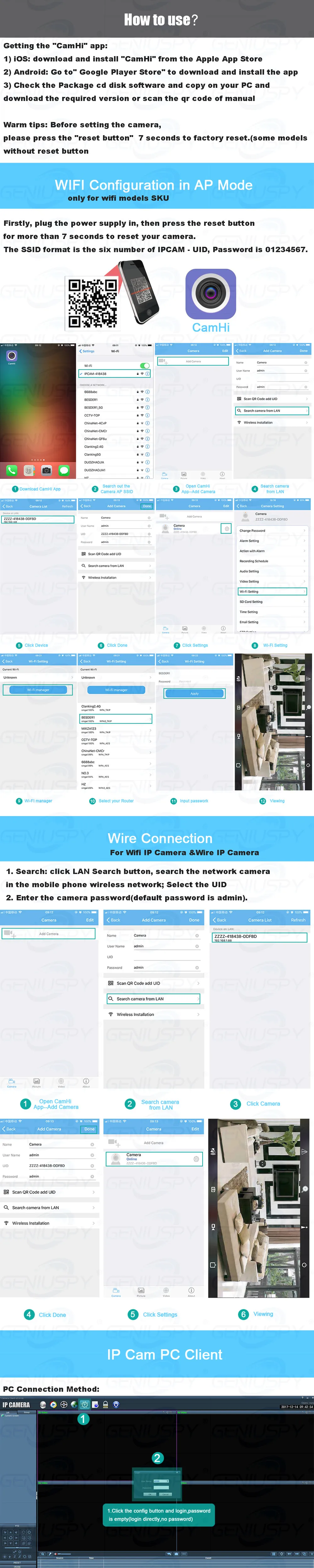

The camera supports wifi hotspots, which can be accessed via the mobile APP without the need to connect the network cable
2. Specifications
|
Model |
GS-PRTF67CWAR5MP
/GS-PRTF67CWAR3MP |
||
|
Video |
Sensor |
GS-PRTF67CWAR5MP
:5.0megapixel. Low Lux CMOS. GS-PRTF67CWAR3MP
:3.0megapixel. Low Lux CMOS GS-PRTF67CMWAR :2.0 megapixel 1/2.7" CMOS GC2053 |
|
|
Video resolution |
GS-PRTF67CWAR5MP
: Main stream: 2560x1920@15fps, 2560x1440@15fps GS-PRTF67CWAR3MP
: Main stream: 2560x1440@15fps GS-PRTF67CMWAR :Main stream: 1920x1080@20fps, Sub stream: 640x352@25fps, 320x176@25fps |
||
|
Video compression |
H.264 H.265 |
||
|
Lens |
3.7MM Lens default Optional 2.8/3.6(default)/6mm lens |
||
|
View angle |
based on lens |
||
|
Audio |
Audio compression |
G.726/G.711 |
|
|
Audio code rate |
Rate adaptive |
||
|
Audio input |
With MIC, support voice monitor |
||
|
Alarm |
Motion detecting alarm |
Can set 4 independent detection region (1-100 sensitivity can be set) |
|
|
Alarm linkage |
Alarm send pictures to the mailbox, |
||
|
Alarm recording |
Support Micro SD card and PC client linkage alarm recording |
||
|
Network |
WIFI WIRELESS |
|
|
|
Ethernet |
RJ45 Ethernet |
||
|
On vif protocol |
Support ON VIF 2.4(backward compatible) |
||
|
Storage |
Micro SD card |
Support up to 128G micro SD card max |
|
|
Recording mode |
Alarm record, timing record, |
||
|
Video playback |
Support APP, IE browser, remote client play and download the video |
||
|
General specification |
Power |
DC12V 1A/2a |
|
|
Operating environment |
Environment -20℃~+60℃(-4℉~+140℉), |
||
|

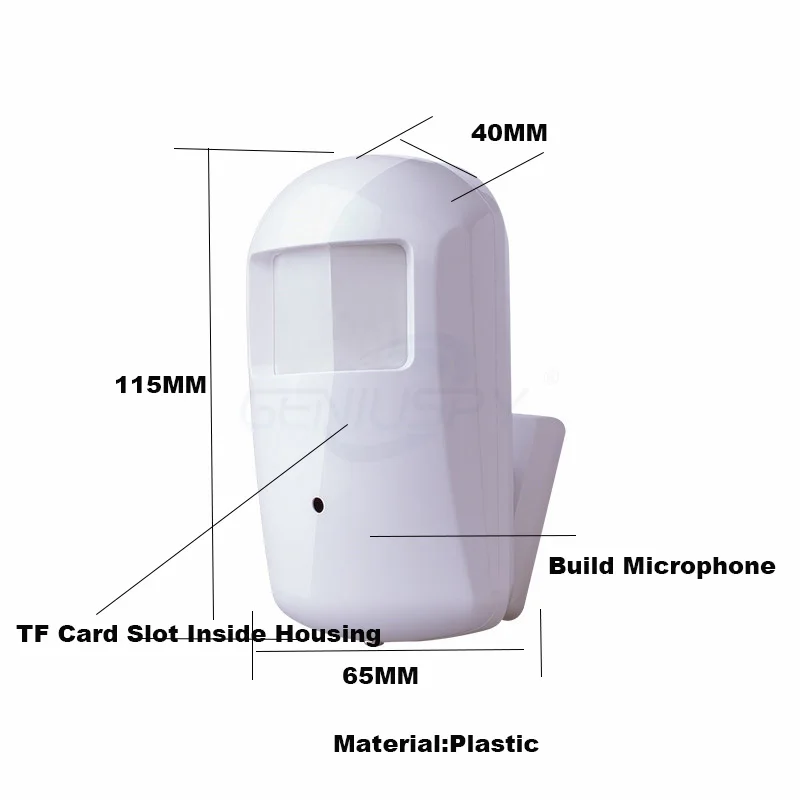

Product size |
mm(L×W×H) |
||
|
Product weight |
0.35kg |
||
|
IR Night vision |

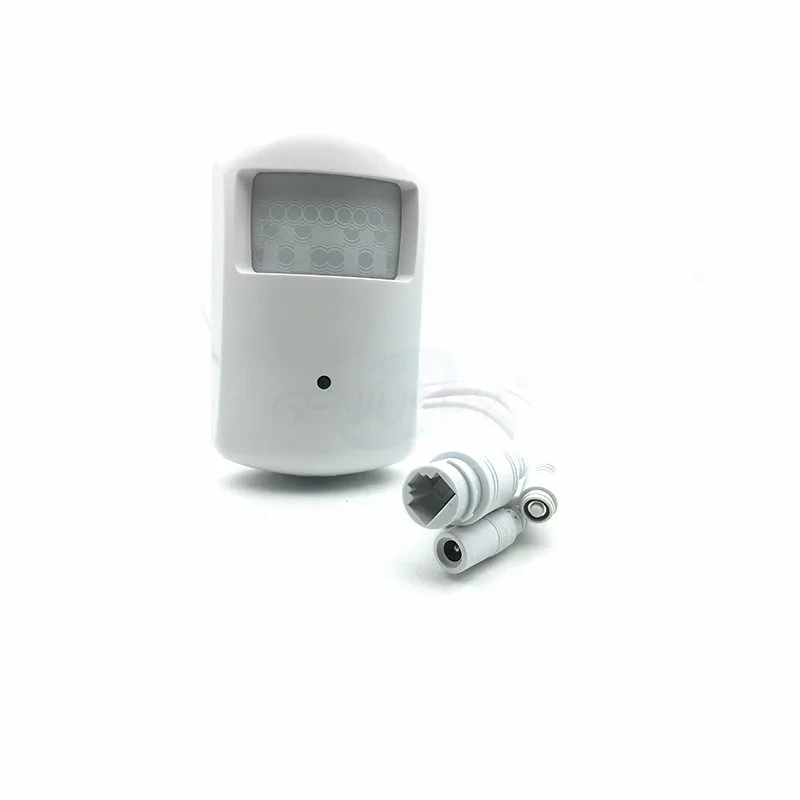

18pcs 940nm ir leds default ,850nm ir leds optional |
||
|
Package weight |
0.5kg |
||
|
Reset button |
Yes |
||
If the buyer want other sizelens please 'Leave Message to Seller' to notify us when bidding.
