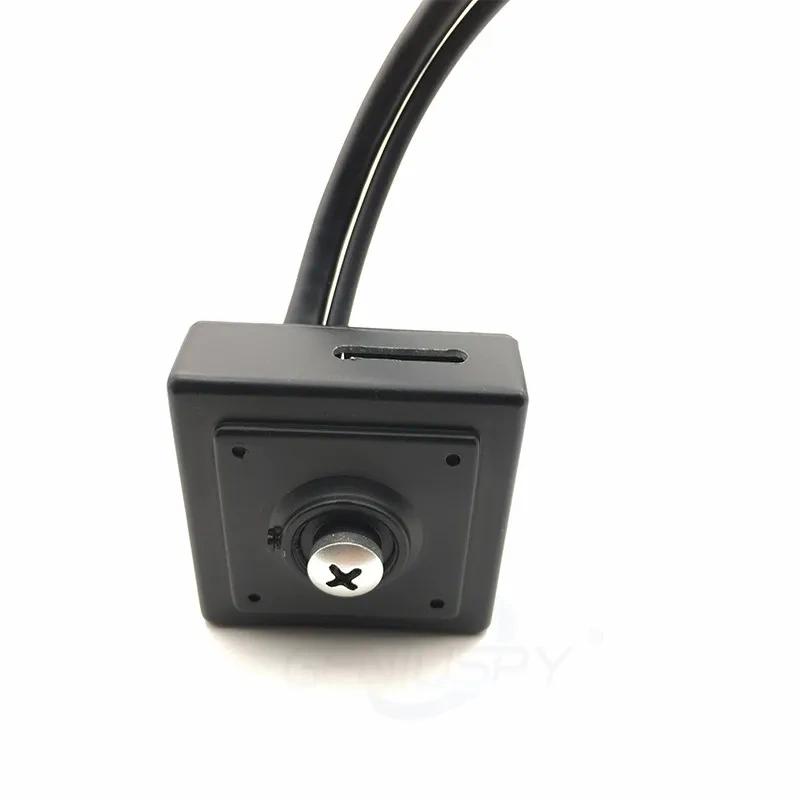

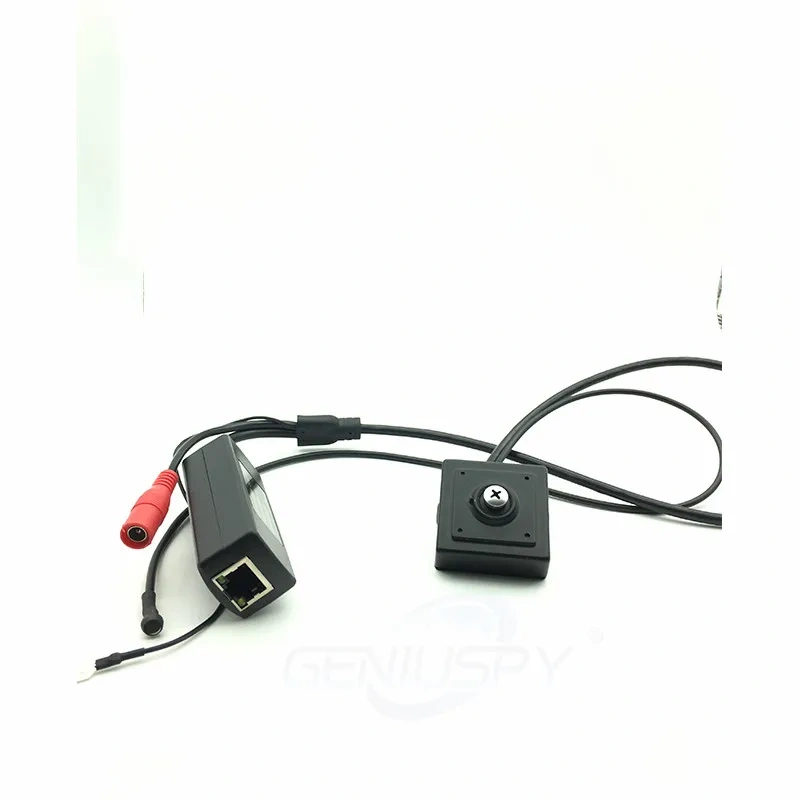

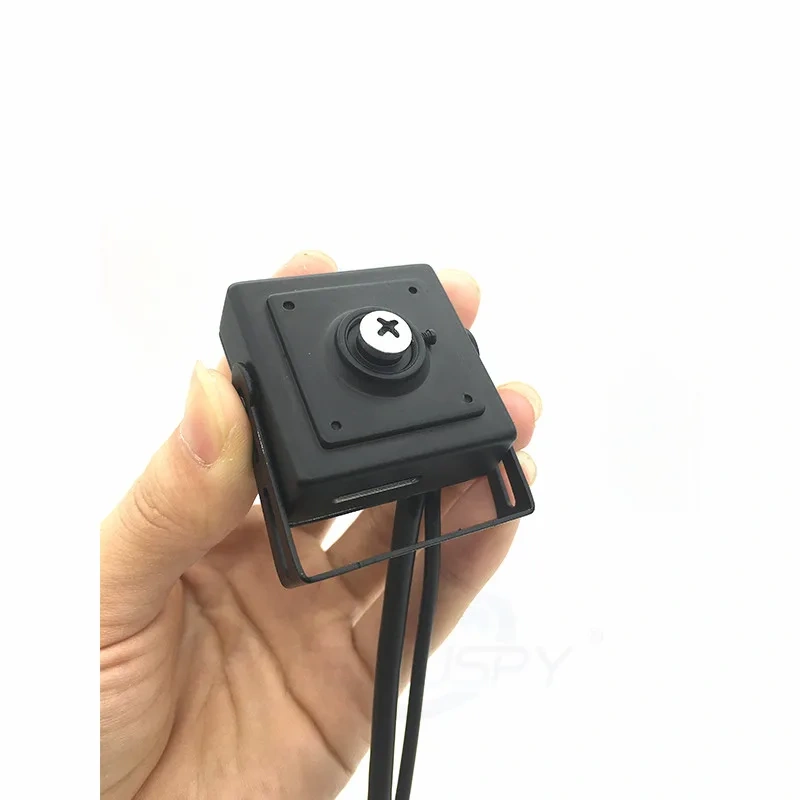

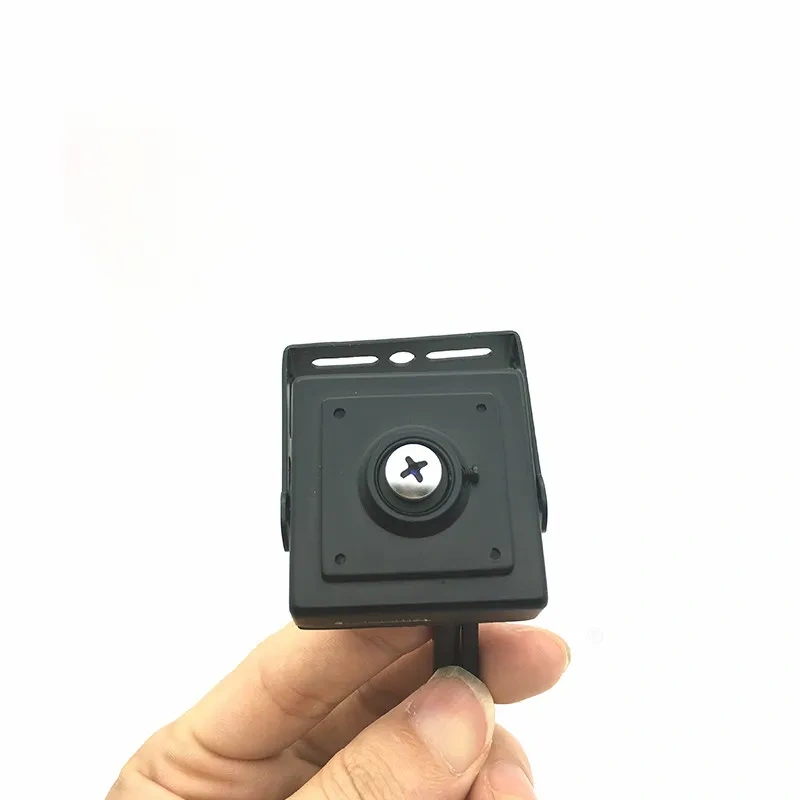

Geniuspy 720P 960P 1080P 3MP 5MP SD Card Slot Covert POE Mini IP Camera Video Audio On vif Security CCTV Indoor Conceal Cam Camhi
NOTICE:
Order Models:
Models:GS-TF240PA5MP-SC-335 5.0MP 1/2.8" SONY IMX335 CMOS GK7205V300 H.265/h.264
Models:GS-TF240PA5MP-SC 5.0MP 1/2.7" GC5603 +T41NQ H.265/h.264
Models:GS-TF240PA4MP-SC 4mp 1/3" GC4653 CMOS +T31X H.265/H.264
Models:GS-TF240CMP-A-SC SC2336P+GK7201V200 1080p 2.0MP H.264/H.265
Models:GS-TF240CMPA- B-SC 1/2.8" SONY IMX307 CMOS +GK7205V200 1080p 2.0MP H.264/H.265

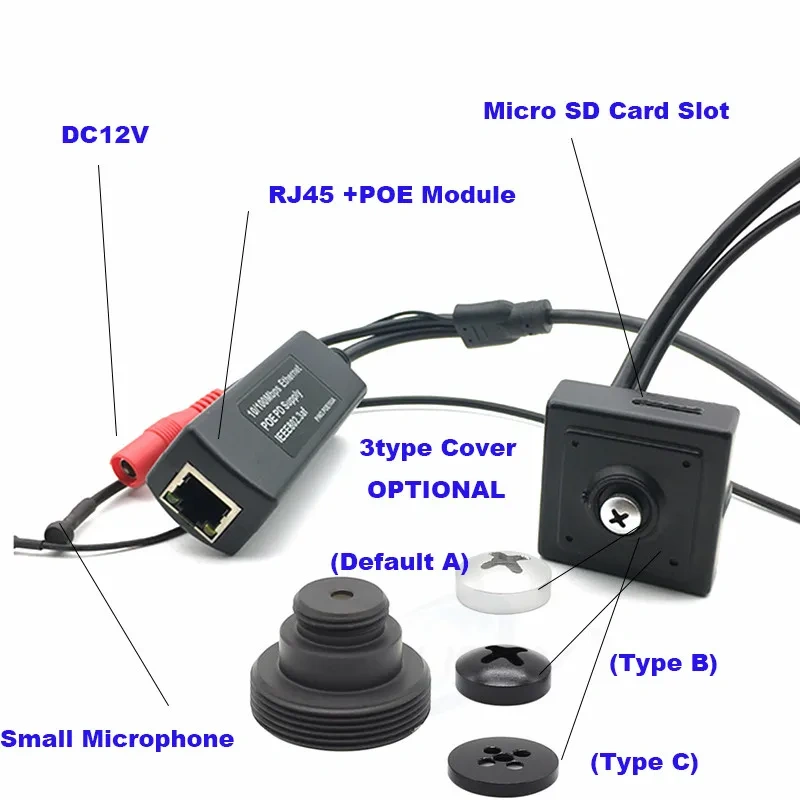

White SCrew Default ,if you need other type ,pls contact with us for extra cost balance payment!
support tf card slot&POE&audio
Features
High sensitivity, high signal-to-noise CMOS image sensor
H.264 /h.265 Compression,three streaming, mobile surveillance; compatible with various smart Phone operating system
Support multiple network protocol TCP/IP,HTTP,TCP,ICMP,UDP,ARP, IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP and so on
Support :ON VIF 2.0
Support :DDNS and three DDNS
Support :sending email, attaching picture
Support :Alarm picture and record Uploaded to FTP server
Support :Timing captured picture to FTP server
Support :Static IP and DHCP
Support :P2P
Support :privacy mask
Support up to 12 users browsing at the same time(Each stream supports four users
Support remote alarm linkage
Only 1 network port is used for IE Browsing,stream transmiting and command access, convenient for router setting
Support POE
Support up to 128G TF card storage;
Optional 2.8/3.7(default)/6mm lens;
Support P2P, view & anywhere & anytime;
Elegant outline and easy installation;
Provide android & ios APP and professional CMS PC client software;
2. Specifications
|
Model |
/GS-TF240CMPA-A-SC |
|
|
Video |
Sensor |
Models:GS-TF240PA5MP-SC-335 5.0MP 1/2.8" SONY IMX335 CMOS GK7205V300 H.265/h.264 |
|
Video resolution |
GS-TF240PA5MP-SC
: Main stream: 2560x1920@20fps, GS-TF240PA4MP-SC
: Main stream: 2560x1440@25fps GS-TF240CMPA-A-SC 20fps
/GS-TF240CMPA-B-SC 30fps :Main stream: 1920x1080@20fps, 1280x720@25fps Sub stream: 640x352@25fps, 320x176@25fps |
|
|
Video compression |
H.264 OR H.265 |
|
|
Lens |
3.7MM Lens default Optional 2.8/3.6(default)/6mm lens |
|
|
View angle |
based on lens |
|
|
Audio |
Audio compression |
G.726/G.711 |
|
Audio code rate |
Rate adaptive |
|
|
Audio input |
support audio |
|
|
Alarm |
Motion detecting alarm |
Can set 4 independent detection region (1-100 sensitivity can be set) |
|
Alarm linkage |
Alarm send pictures to the mailbox, |
|
|
Alarm recording |
Support Micro SD card and PC client linkage alarm recording |
|
|
Network |
POE |
yes |
|
Ethernet |
RJ45 Ethernet |
|
|
On vif protocol |
Support ON VIF 2.4(backward compatible) |
|
|
Storage |
Micro SD card |
Support up to 128G micro SD card max |
|
Recording mode |
Alarm record, timing record, |
|
|
Video playback |
Support APP, IE browser, remote client play and download the video |
|
|
General specification |
Power |
DC12V 1A/2a |
|
Operating environment |
Environment -20℃~+60℃(-4℉~+140℉), |
|
|
Product size |
40*40*15mm(L×W×H) |
|
|
Product weight |
0.35kg |
|
|
IR Night vision |
n/a |
|
|
Package weight |
0.5kg |
|
|
Reset button |
n/a |
|
If the buyer want other sizelens please 'Leave Message to Seller' to notify us when bidding.
Thanks for your attention to our products.if you have any question ,pls fell free to contact with us !
we will replyed you within 24hours!!!
Below Lens,some of them can be replaced for different angle view &distance requirement ! pls talk with us whetherit is available for the camera !
