M12 Board Lens Indoor H.265 CCTV Video Audio Surveillance Kamera IMX415 Industrial Equipment POE Mini Box 8MP 4K IP Camera
4K 8MP is clearer
Immersive 2MP/5MP Super HD
An Incredible 8MP 4K Super HD IP Camera
With a high resolution of 8megapixels (3840 x 2160), this 8MP HD IP surveillance camera is able to capture videos in 3840p HD quality. It is a huge advancement compared to 720p HD or 1080p Full HD. you never miss a single detail of your loved ones. which enables you to see all objects very clearly.
Key features:
1.1/2.8" 800W SONY 415 sensor,
2. Support H.265/H.264;
3. Support three code stream, the main code stream:
4 k (3840 * 2160) / 4 m (2560 * 1440) (2304 * 1296) / 2/3 m m (1920 * 1080);
Auxiliary code stream 1:720P(1280*720)/448P(800*448)/704*576/640*360/352*288; Auxiliary stream two:
360/352 * 640 * 288;
4. Support digital wide dynamic, 3D noise reduction, backlight compensation, automatic white balance, suitable for different monitoring environment;
5. Support ONVIF protocol, access to third-party NVR;
6.ICR filter switching function, 24 hours monitoring;
7. Supports screen blocking, 4 blocks of blocking area can be set;
8. Support audio input to realize perfect monitoring of video recording;
9. Support movement detection, the alarm of movement detection will automatically send email reminder;
10. Support OSD location setting and network timing;
11. Support mobile phone monitoring (IOS, Android), Web terminal,
12. Support automatic maintenance function;
13. Support POE power supply (optional);
14. Support FTP function;
15 support the infinite infrared light, the infinite white light
Specification:
Models | GS-NQP440CBA4K | |
4K Ultra low-illumination HD Network Camera Module | ||
Image Sensor | 1/2.8" 8.0MP CMOS Sony IMX415 Sensor HI3516 | |
Min. Illumination | Color:0.01Lux | |
S/N Ratio | ≥72dB | |
Wide Dynamic Range | Digital WDR | |
Digital noise Reduction | DNR,3DNR | |
Exposure Mode | Auto/Manual/shutter mode(shutter range variable) | |
White Balance | Auto/Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp | |
Day & Night | Day / Night / External control(IR Cut Filter) | |
Video Compression | H.265/H.264 Main Profile | |
Audio Compression | G.711/G.711.A | |
Max. Image Resolution | 3840*2160 @ 20fps | |
Image Resolution | Main stream | 3840*2160@1-20fps,3072*2048/2592*1944/2560*1440/2304*1296/2048*1536/1080P/960P/720P@1-30fps |
Sub-stream | 720*480/D1/VGA/640*360/CIF@1-30fps | |
Streams | Dual streams | |
Bitrate | CBR/VBR bitrate:50Kbps~12Mbps variable | |
Simultaneous Live View | Main stream Up to 5,Sub-stream Up to 5 | |
OSD | Support OSD setting, support free transfer position | |
Motion detect | Support | |
IO | Unsupport | |
P2P | Android,IOS | |
Protocols | IPv4、IPv6、HTTPS、TCP、UDP、DHCP、RTP、RTSP、DNS、DDNS、NTP/Onvif | |
Onvif | Onvif 2.4standardHikvision Agreement | |
Network | 10/100M Base-TX Ethernet, RJ45 Connector | |
Store | NVR or PC store video | |
Protection Level | TVS 6,000V lightning protection | |
Power Supply | 12VDC at1A | |
Dimensions | / | |
Working Temperature | -30°C ~65°C, Humidity≤90%RH(Unsupport-condensing) | |

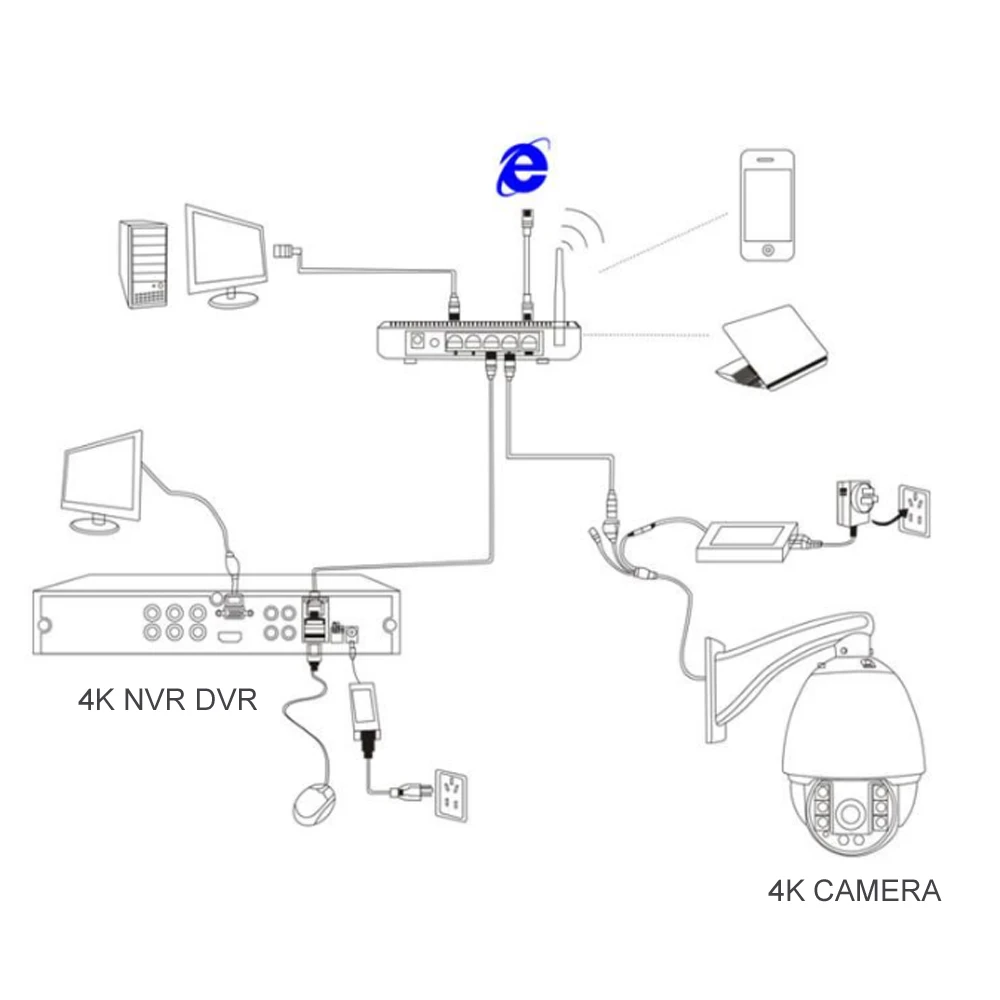

4K NVR
Please Use 4K NVR Get 4K HD
If You DVR is 5MP/4MP/1080P, You Only Get 5MP/4MP/1080P. so You need to confirm your NVR!
If there are any problems during use,Please contact us, we will be within 8 hours, quick reply, to provide you with quality after-sales Service!
