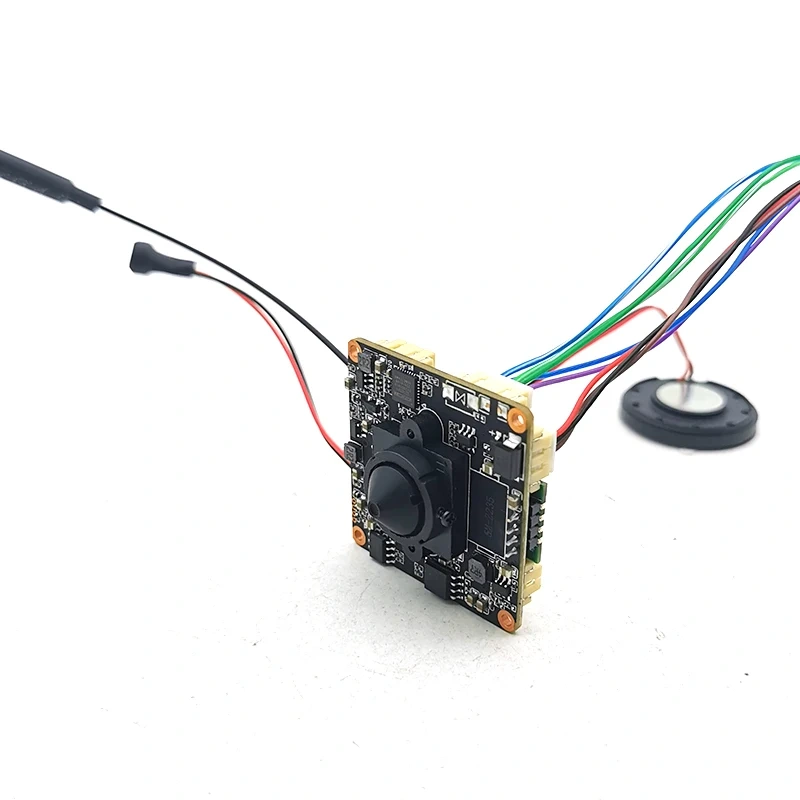

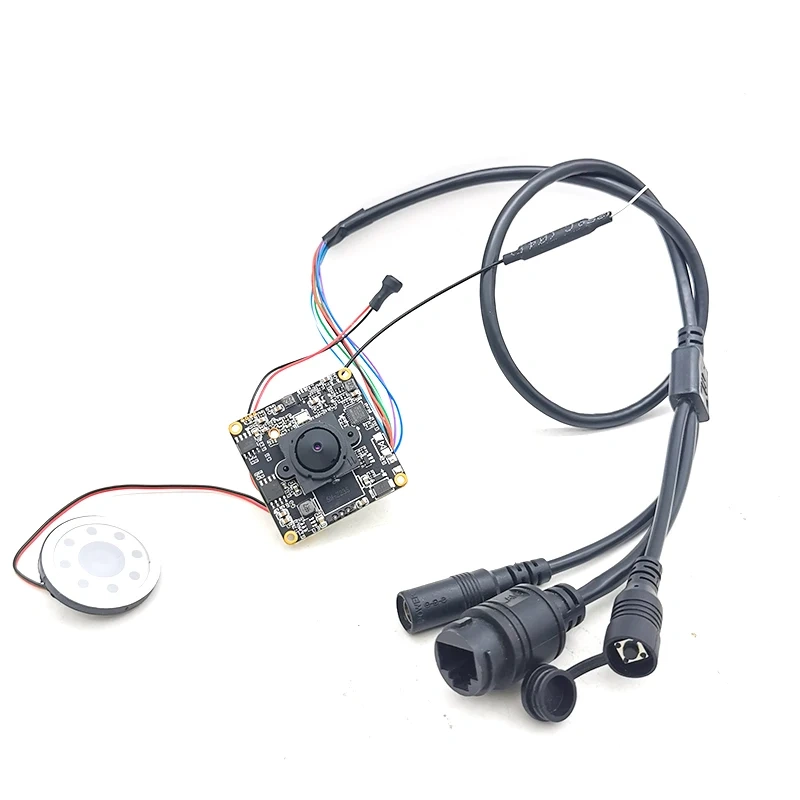

FTP RTSP 1080P 2MP 5MP 1920P Hd Mini P2P Size 38*38mm Diy Two Way Audio Wifi IP Camera Module Wireless TF Card Slot Camhipro
NOTICE:
Features:

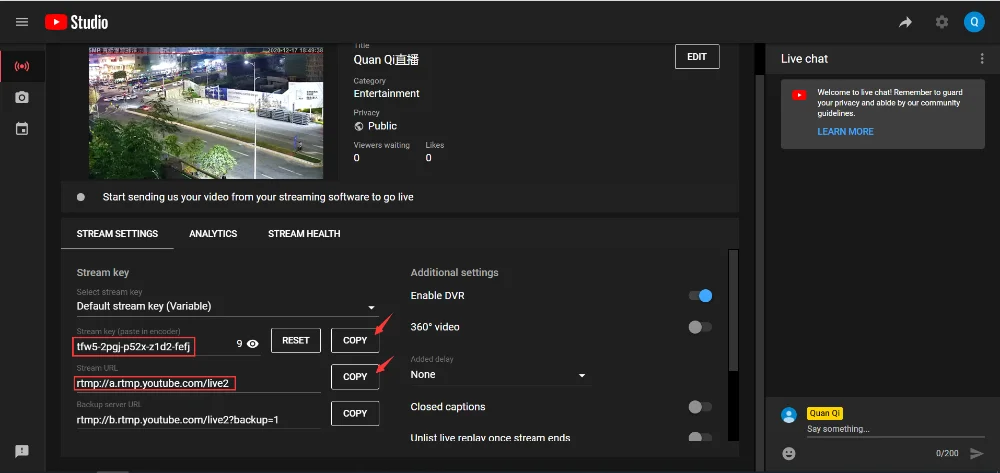

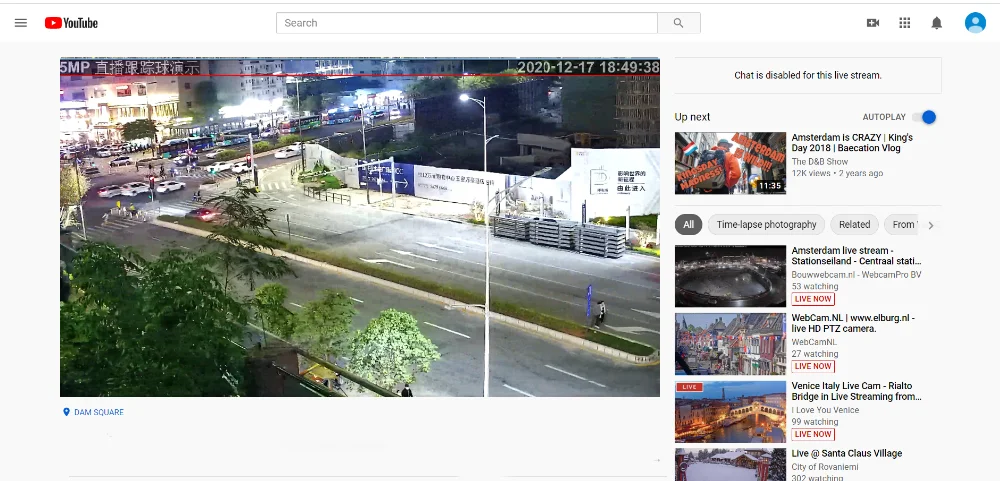

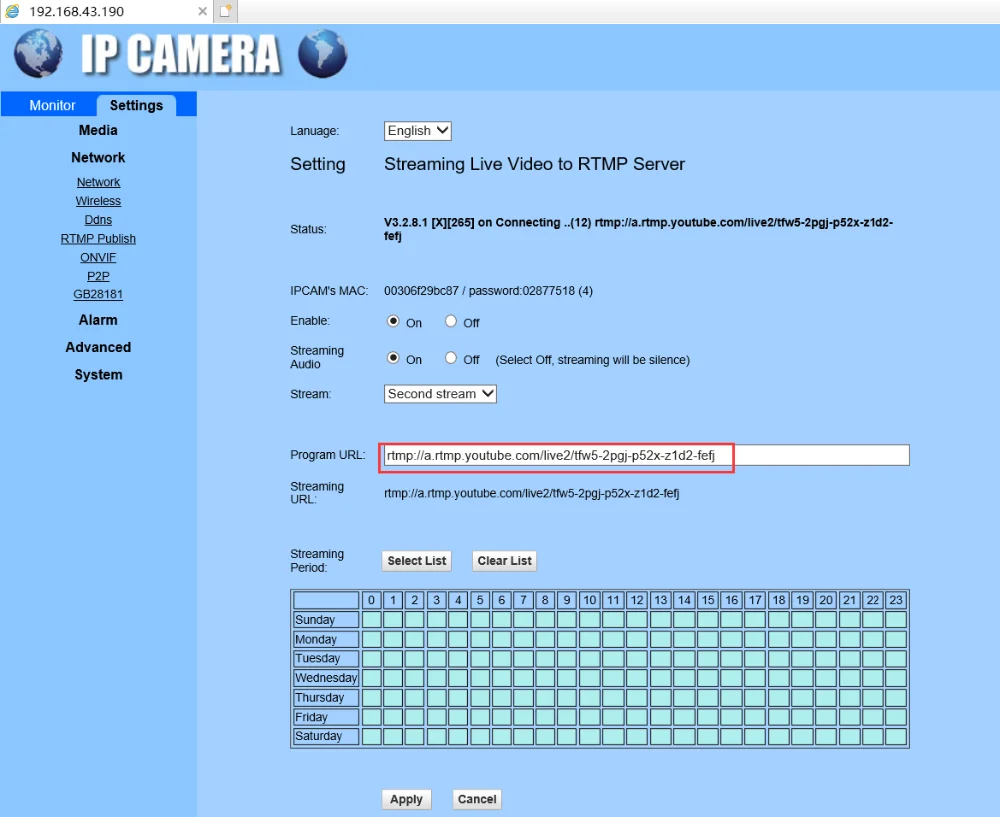

This camera supports RTMP push streaming function. If you have an RTMP streaming server, it is a good idea to use this camera as an online live . It is worth mentioning that you can use YouTube to get the RTMP video stream of the camera. Realize the online live of YouTube. The specific settings are as follows:

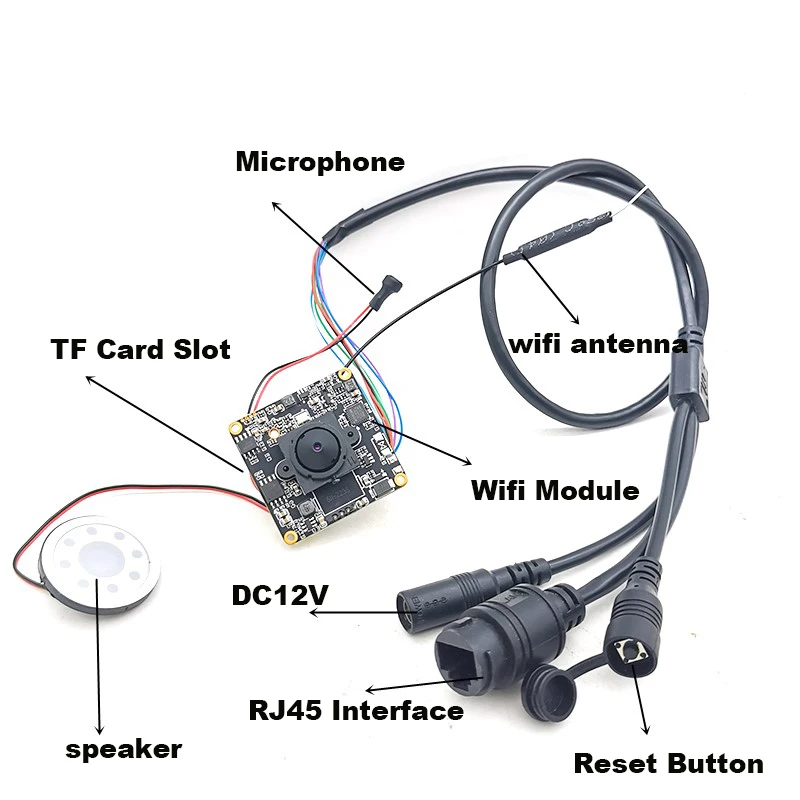

support WIFI& tf card slot& 2way audio
Features
High sensitivity, high signal-to-noise CMOS image sensor
H.264 /h.265 Compression,three streaming, mobile surveillance; compatible with various smart Phone operating system
Support multiple network protocol TCP/IP,HTTP,TCP,ICMP,UDP,ARP, IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP and so on
Support :ON VIF 2.0
Support :DDNS and three DDNS
Support :sending email, attaching picture
Support :Alarm picture and record Uploaded to FTP server
Support :Timing captured picture to FTP server
Support :Static IP and DHCP
Support :P2P
Support :privacy mask
Support up to 12 users browsing at the same time(Each stream supports four users
Support remote alarm linkage
Only 1 network port is used for IE Browsing,stream transmiting and command access, convenient for router setting
Features
5.0 megapixel HD IP camera, maximum resolution 2560x1920P
3.0 megapixel HD IP camera, maximum resolution 2304x1296
2.0 megapixel HD IP camera, maximum resolution 1920*1080;
1.3 megapixel HD IP camera, maximum resolution 1280*960P;
1.0 megapixel HD IP camera, maximum resolution 1280*720P;
Support WIFI, support AP mode; 2 way audio
Support up to 128G TF card storage;
Optional 2.8/3.7(default)/6mm lens;
Support P2P, view & anywhere & anytime;
Elegant outline and easy installation;
Provide android & ios APP and professional CMS PC client software;
The camera supports wifi hotspots, which can be accessed via the mobile APP without the need to connect the network cable
2. Specifications
Model | GS-PBTFWCM2A/GS-PBTFWC5M2A | |
Video | Sensor | GS-PBTFWC5M2A :5.0megapixel. T31X+SC5238 Low Lux CMOS. GS-PBTFWCM2A :2.0 megapixel 1/2.7" CMOS sc2235+t31l |
Video resolution | GS-PBTFWC5M2A: Main stream: 2560x1920@15fps, 2560x1440@15fps GS-PBTFWCM2A :Main stream: 1920x1080@20fps, 1280x720@25fps Sub stream: 640x352@25fps, 320x176@25fps | |
Video compression | H.264 OR H.265 2mp 5mp | |
Lens | 3.7MM Lens default Optional 2.8/3.6(default)/6mm lens | |
View angle | based on lens | |
Audio | Audio compression | G.726/G.711 |
Audio code rate | Rate adaptive | |
Audio input | support 2WAY audio | |
Alarm | Motion detecting alarm | Can set 4 independent detection region (1-100 sensitivity can be set) |
Alarm linkage | Alarm send pictures to the mailbox, | |
Alarm recording | Support Micro SD card and PC client linkage alarm recording | |
Network | Wireless | IEEE 802.11 b/g/n |
Ethernet | RJ45 Ethernet | |
On vif protocol | Support ON VIF 2.4(backward compatible) | |
Storage | Micro SD card | Support up to 128G micro SD card max |
Recording mode | Alarm record, timing record, | |
Video playback | Support APP, IE browser, remote client play and download the video | |
General specification | Power | DC12V 1A/2a |
Operating environment | Environment -20℃~+60℃(-4℉~+140℉), | |
Product size | 38*38MM | |
Product weight | 0.15kg | |
IR Night vision | n/a | |
Package weight | 0.3kg | |
Reset button | Support | |
If the buyer want other sizelens please 'Leave Message to Seller' to notify us when bidding.
Thanks for your attention to our products.if you have any question ,pls fell free to contact with us !
we will replyed you within 24hours!!!
Below Lens,some of them can be replaced for different angle view &distance requirement ! pls talk with us whetherit is available for the camera !
