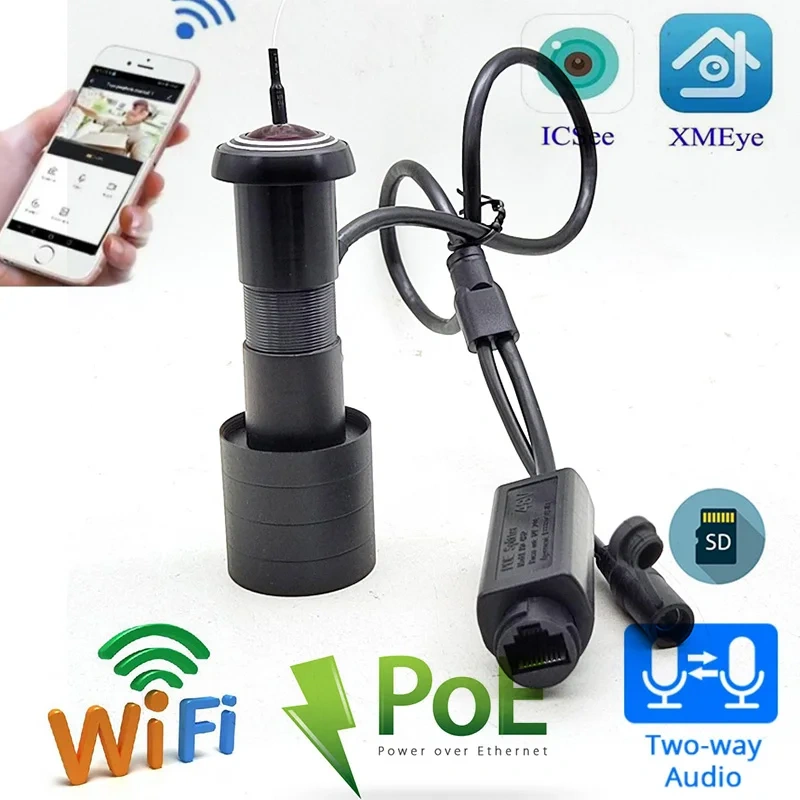

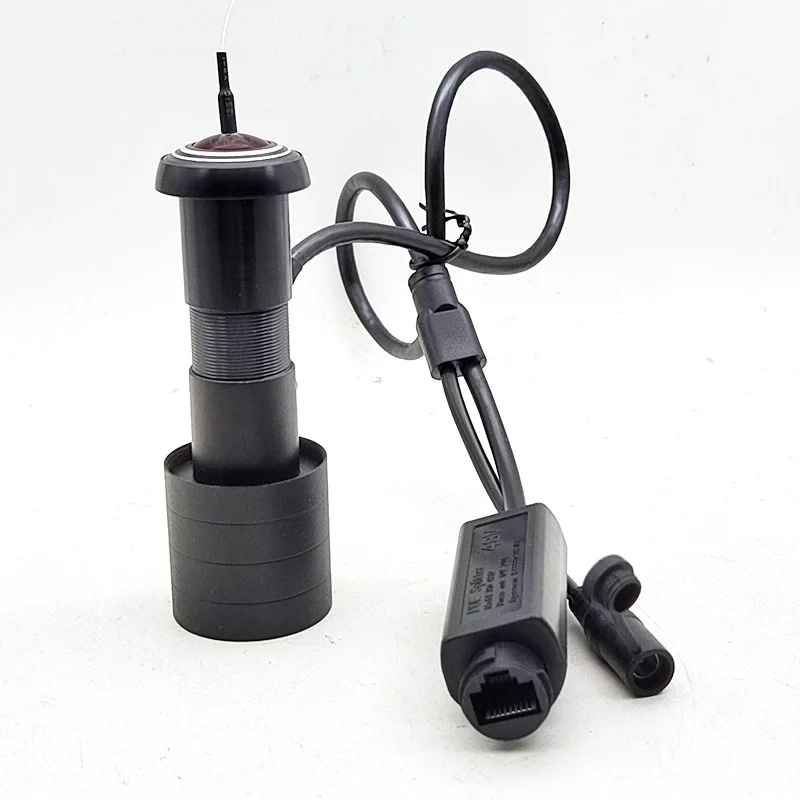

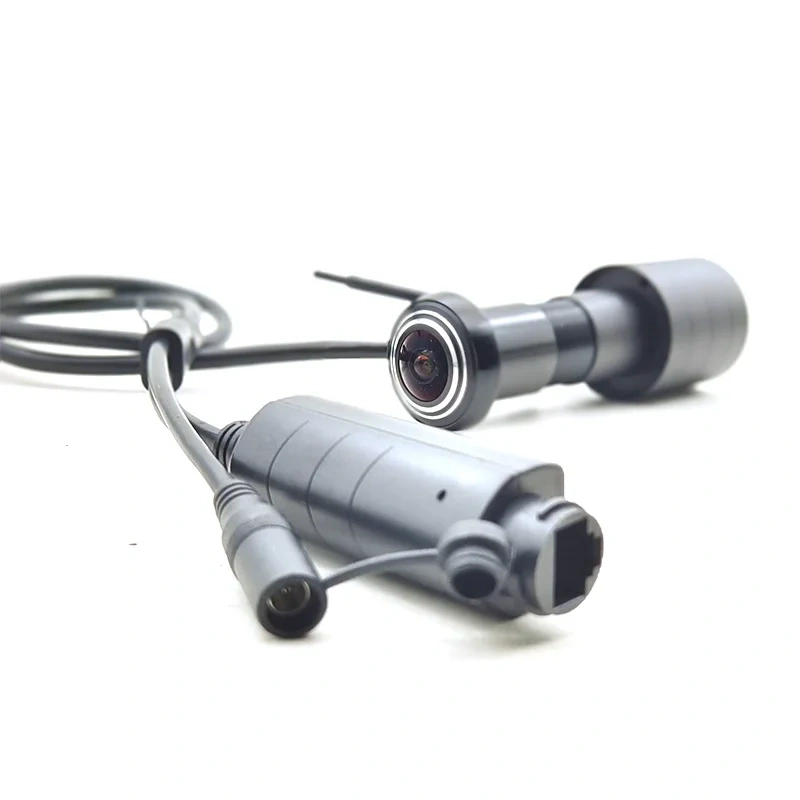

Name: Fisheye ICSEE 2mp WIFI POE 2MP Door Covert Mini IP Camera Two Way Audio Support Motion Alarm Email Human Detection TF Card Slot
Brand: Mini USB Camera Mini Camera IP Camera Camhi Camera Factory
SKU: 3256806893339257
Price: 43.24 USD
Availability: InStock

Description

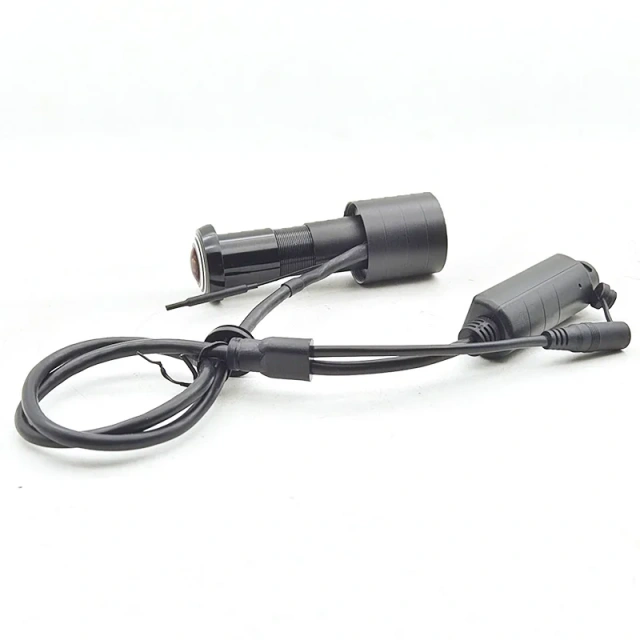

Fisheye ICSEE 2mp WIFI POE 2MP Door Covert Mini IP Camera Two Way Audio Support Motion Alarm Email Human Detection TF Card Slot

1.66mm fishey lens= 1.6mm

NOTICE:

Our IP Camera DO NOT Included The Power Adapter,
If You Need It, Please Kindly Click The Photo As Below, Add It In Your Order List, Thanks !

This camera system is from xmeye, you can contact the customer service to get the SDK file (the buyer needs to have SDK development technology to proceed)

Built-in Microphone and Speaker

Access the camera through the APP and observe the activities outside the house at any time.

Camera detail description

support motion detection alarm notice Support Cloud storage & TF Card recording . cloud storage need extra cost !

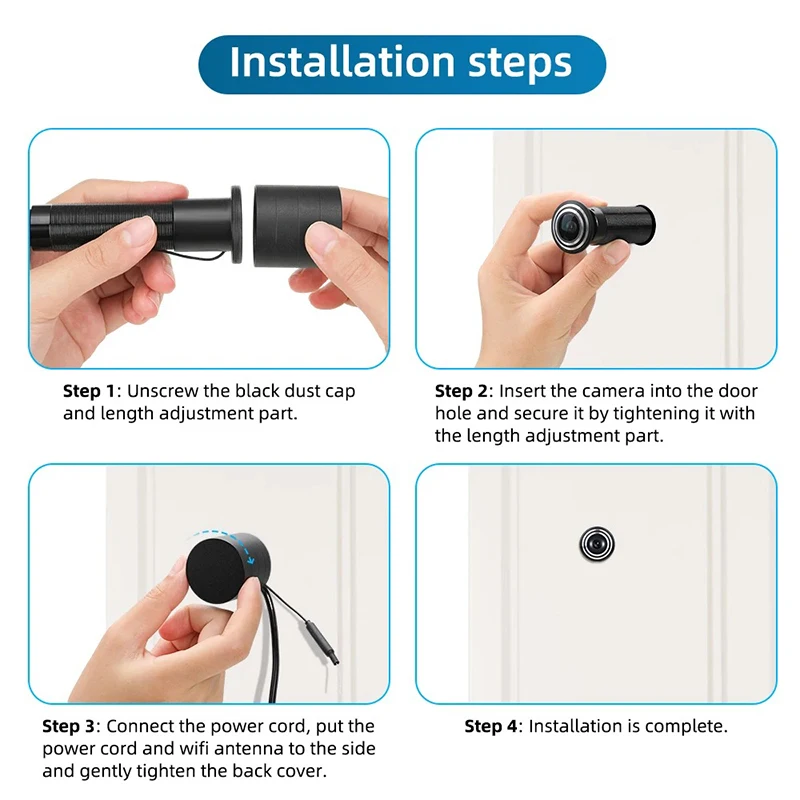

How to install it :

Support ONVIF&RTSP protocol, compatible with DVR/NVR

RTSP URL:

tsp://192.168.1.10:554/user=admin&password=&channel=1&stream=0.sdp?192.168.1.10:CameralP:554 this :Port of RTSP

user=admin:Camera Account

password=:Password

channel=1:channel Numberstream=0.sdp?:0is MainStream,1 is Extend Stream

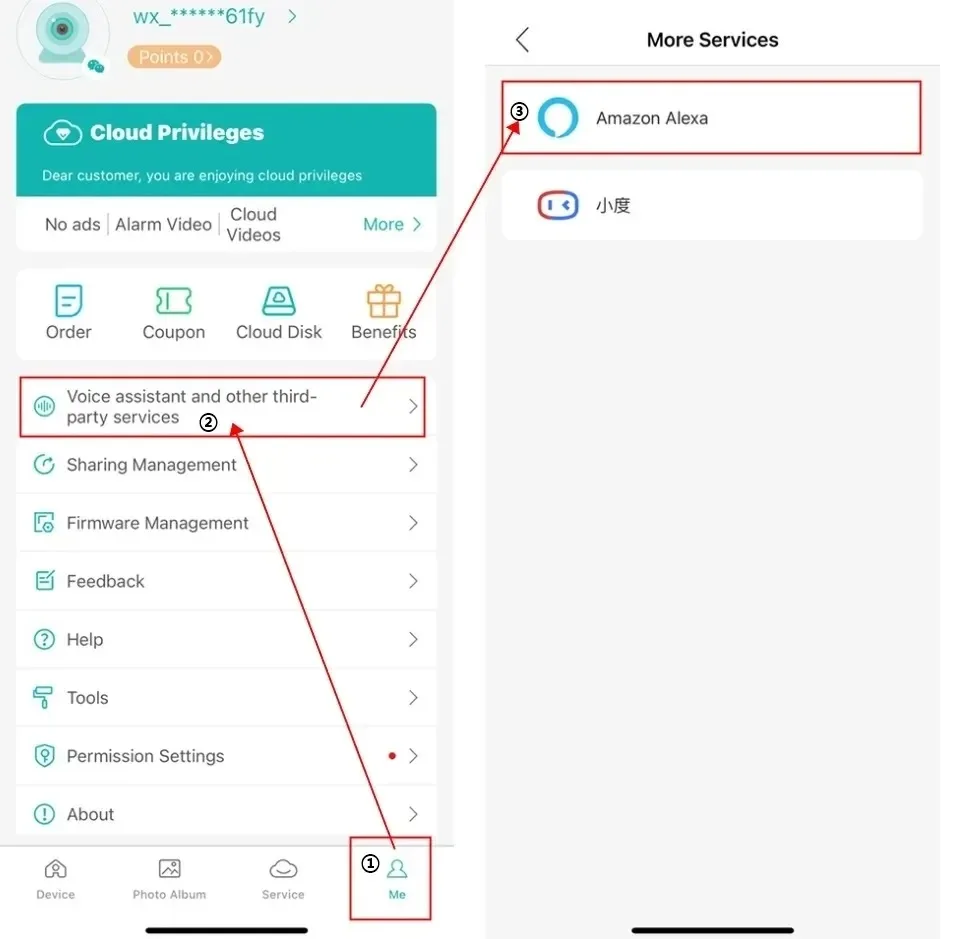

alexa and Google support (you need to open it yourself in the icsee APP, you may have to pay)

Models		GS-B2AD166WTCMF-POE
Came	Chip/Sensor	XM530 SC3335P
	Effective Pixels	1920x1080
	Video Compression	H.265
		Compatible With H.264
	Min. illumination	Color: 0.01, 0.001 Lux / B/W: 0 Lux (IR ON)
	Day/Night	Soft Photosensitive
	Electronic Shutter	1/1 ~ 1/30000s
	S/N Ratio	>50dB
	Focal Length	1.66mm (Optional)
	Angle of View	170
	Working Distance	Daytime 100M
	Noise reduction	Support 2D/3D
	Wide dynamic	Support digital Wide dynamic
	Audio	Built-in Aduio
	Speaker	Built-in Speaker

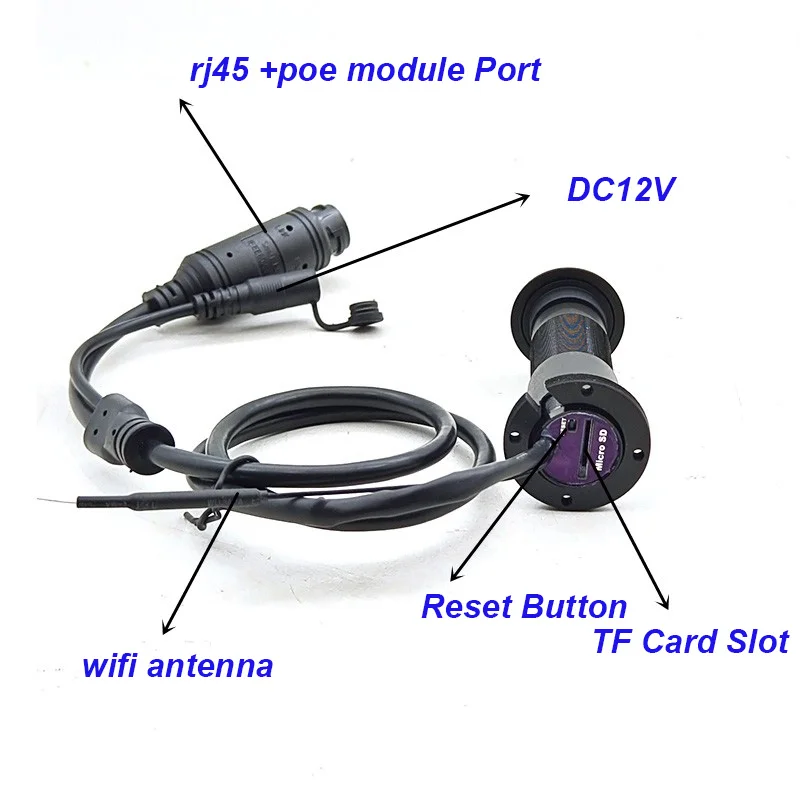

	Adapter	12V Wifi Camera not include adapter support 48v poe or dc12v power
	APP 1	Xmeye Pro (Wired)
	APP 2	iCSEE
	PC Soft	VMS
	Remote Website	www.xmeye.net

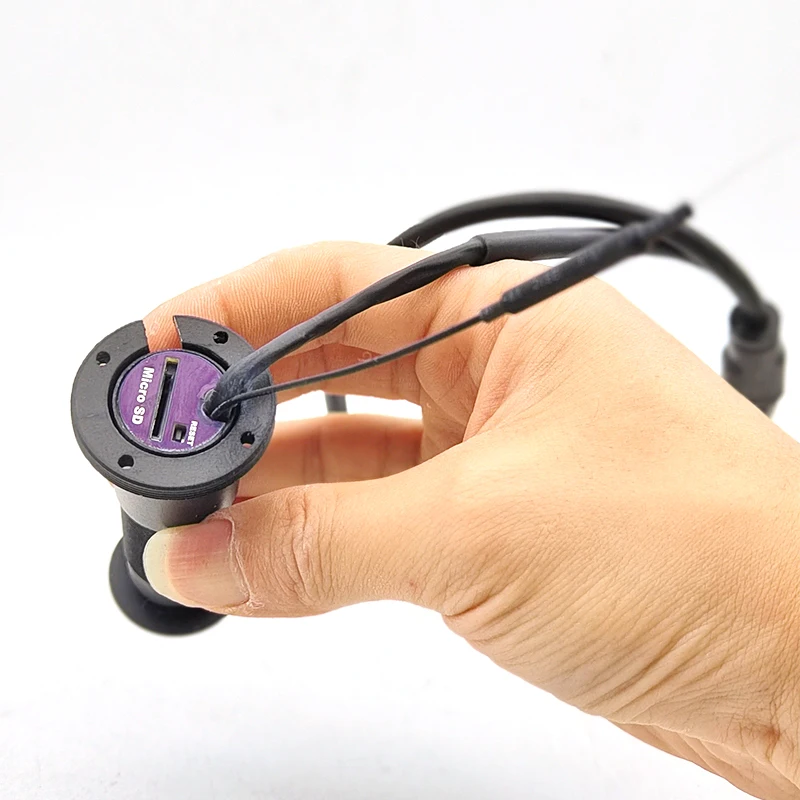

	TF Card	Built-in TF Card Slot (TF Card is optional Max128GB) This link all support TF Card
Network	Ethernet	RJ45 Connector
	Transmission	Through clouds
	Browser	IE8+
	Smart Phone	IPhone, iPad, Android, Android Pad
General	Working Humidity	≤95% Non Condensing
	Waterproof	NO
	Temperature	-20°C ~ +60°C
	Meterial	Metal

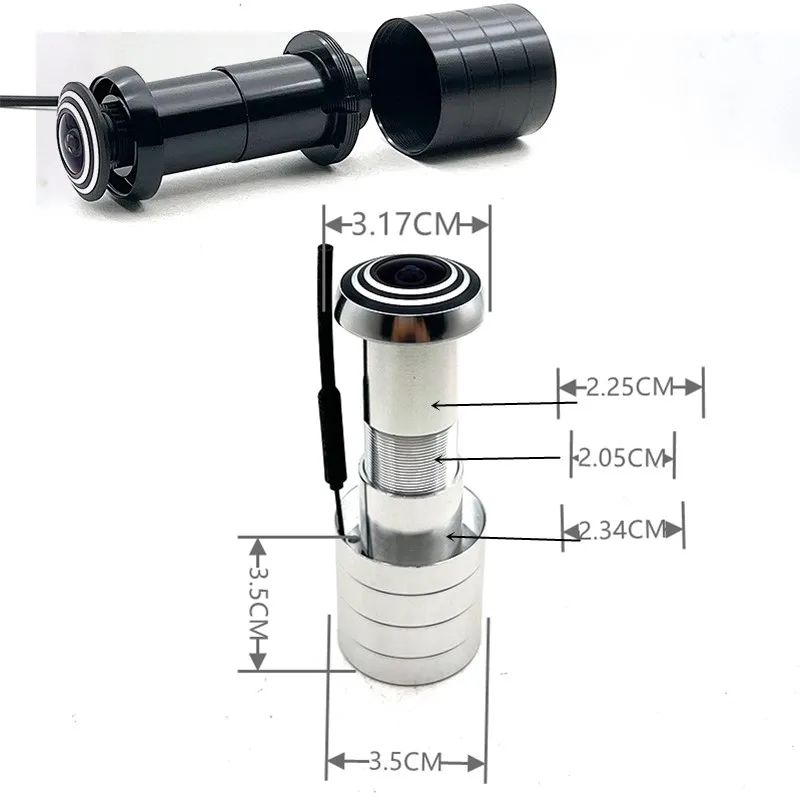

	Size(W×D×H)(mm)	903535 mm
	Weight(kg)	0.25KG

(Does not include Power Adapter)

Note: "DC 12V" Please use DC12 V 1A power supply, packaging does not include the power supply.

Q & A

1, IP camera default IP address:192.168.1.10

User name:admin,password:empty(null)

If there is a problem with "Can not find the Device", it is the default ip address is not in the same network segment as your router.

Please click "Edit Device" to change the camera's ip address,

For example, if your router's ip address is 192.168.0.1, then you need to change the camera's ip address to 192.168.0.XX.

"DeviceManage" It can find and change the IP address, upgrade the firmware.

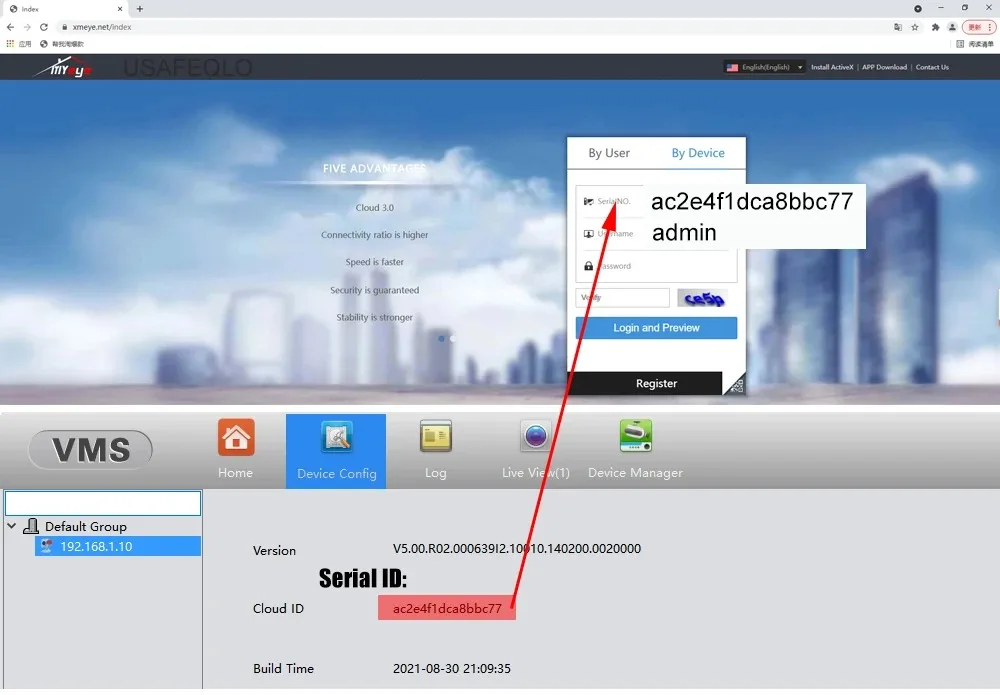

2, P2P website: "www.xmeye.net" ,please use IE and install ActiveX,only IE supports Multi Language.Chrome,Safari just support Chinese .

then please input your P2P ID,user name and password to login and preview.

Access to the IPC through the web, only one screen can be displayed.

There are multiple IPC, please use client software to manage(such as: CMS VMS SNVR)

3,The camera's port information.

ON VIF 2.0 Port 8899 ;RTSP Port 554 ;HTTP Port 80;Media Port 34567;E-mail default port 25; SLL protocol Port 465.

4,Does the cameras can be compatible with other manufacturers NVR?

Please confirm whether other manufacturers NVR support on vif protocol.

Our camera's on vif protocol is on vif Profile S, does not support HTTPS protocol;

Auto focus camera, other manufacturers NVR can only zoom, can not focus.

5, The camera all supports Motion Detect,FTP,Email alarm, RTSP.

A,How to set up motion detection?

Access to IPC via IE (or CMS software), device configuration - alarm function - motion detection - on and save.

B, About FTP

FTP upload video and pictures, pictures will always upload, video files larger, after the alarm, the video file will be completed to upload.

We suggest the Sever-U and FileZilla FTP Server to upload the video or image.

C,For the Email alarm,please use Email server which supports SMTP ( Hotmail ,Yahoo not support SMTP ,it not supports Gmail temperately since the server problem ) .

D, RTSP URL for VLC media Player :

RTSP port: 554

rtsp: // (IP): (PORT) / user = (USER) & password = (PWD) & channel = (Channel) & stream = (Stream) .sdp? Real_stream

Example:

rtsp: //10.6.10.25: 554 / user = admin & password = & channel = 1 & stream = 0.sdp? Real_stream (stream = 0 primary stream 1 auxiliary stream)

If it is through the public network need to RTSP port open (default is 554), the port in the network service-RTSP can be set

6, About DDNS

Mapped media TCP port: 34567 and HTTP port: 80 (Note: mapping need to be changed to non-80)

Note: The two ports in the network settings can be viewed, can be modified

What domain names are supported?

- CN99 / DynDns / Oray / NO-IP / MYQ-SEE

Q:When I finish the steps to add the camera to the CMS list,why it notify “ Can’t find the Device “ even I can see the default ip address 192.168.1.10 in the menu .

F: It is the IP Address conflict ,the default ip address is not in the same network segment as your router.

Please click “Edit Device “ to change the camera’s ip address to make them in the same network segment !

For example ,if your router’s ip address is 192.168.0.1 ,then you need to change the camera’s ip address to 192.168.0.XX .

Package contents:

1 x Camera , 1 x English User Manual

Notice ：Dear,all customer ,because cd disk is easy damaged by rude transport and Most

of the Customer ‘s Computer Without CD CD-ROM disk drive,it is hard to copy the files

from the CD Disk! In addation ,the CD Disk Polluting the environment after used !

Software will be sent to your emails or leave message in aliexpress when you paid!pls contact with our SALES team if you need !

To Customers :

Thanks for your attention to our products.if you have any question ,pls fell free to contact with us !

we will replyed you within 24hours!!!

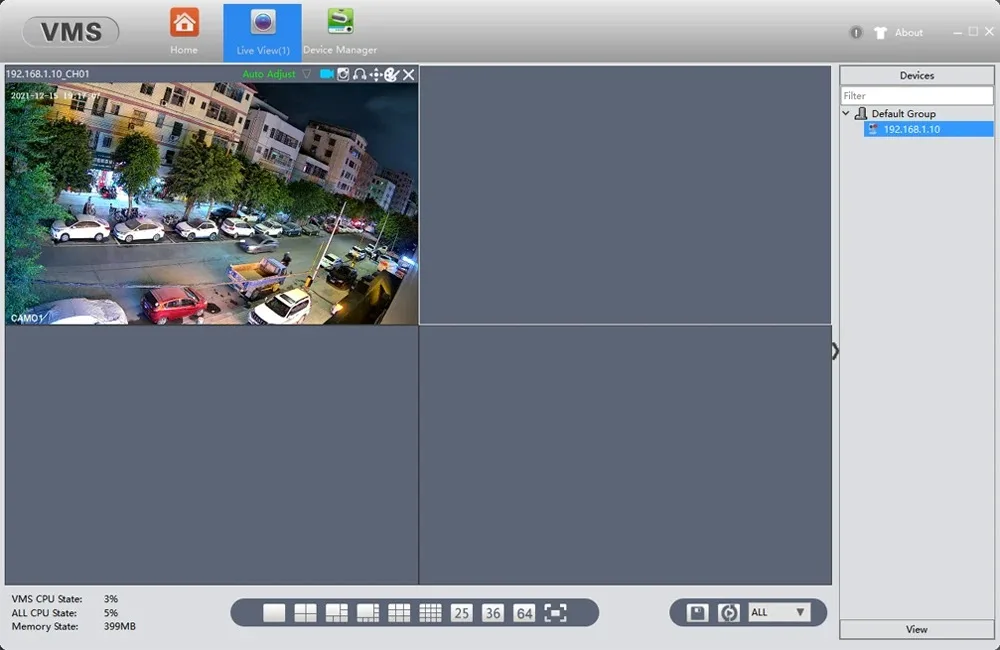

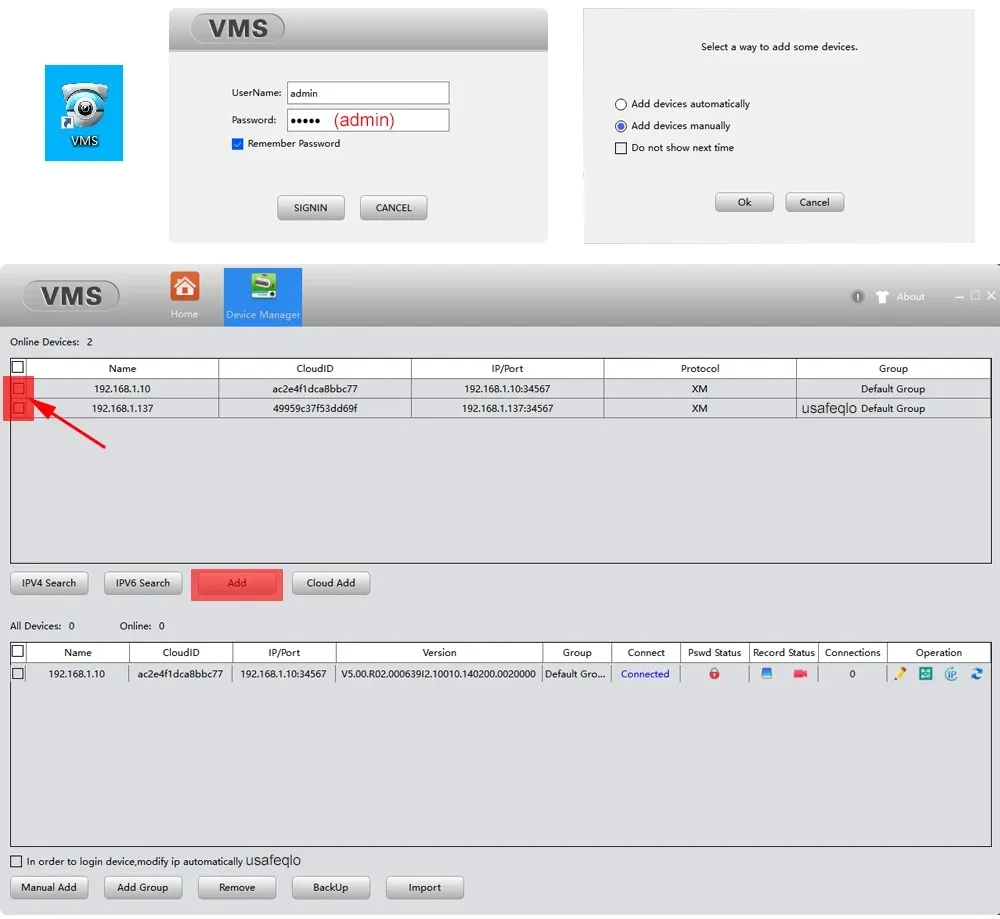

PC client operate way

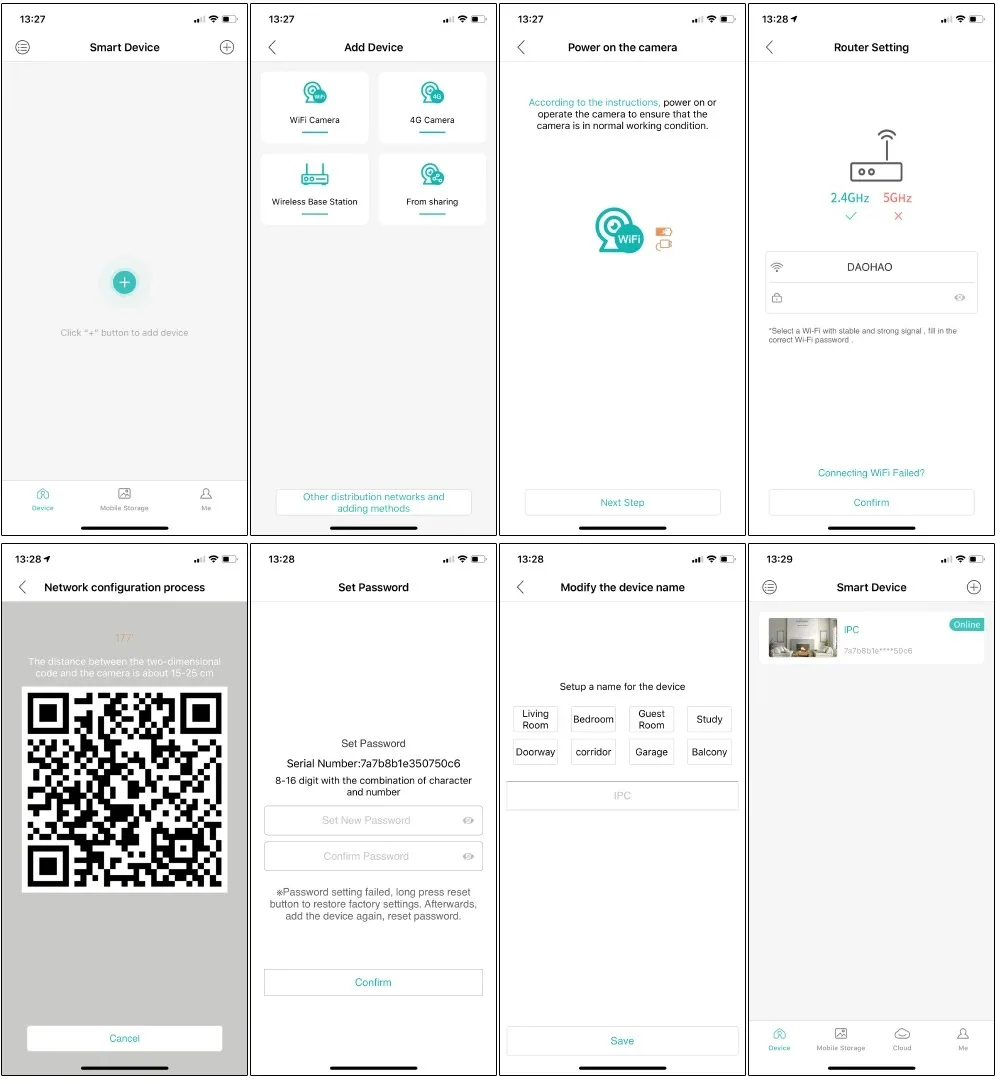

Phone APP view:
