Pictures in Description just show Product Color, Product Shape, and Product Exterior, Some Accessories and Parts by default are Not demonstrated in the picture.
This is an industrial-grade HD camera. It is compatible with most of the monitoring system. Very easy to use. Even if you have any questions, you can get a reply within 24 hours.
If you need to buy more. But no suitable mode of transport for you to choose. Or transportation costs are too high. Please contact us. We will find a suitable way for you.
After you receive the goods. If there are any problems. Please contact us. We will help you solve the problem. If you are satisfied with our products. Please give us 5 star feedback.
Note: our product is support Wifi/3G/4G Wireless connect, not support wired connect(RJ45 port not work), but we support customized product, if you want RJ45 port, you can leave message for us.
Intelligent charging pile
3C product
Industrial router
Acquisition equipment
Handheld law enforcement terminal
Citroen connect
Smart Home
Intelligent Industry Control
Public bicycle
Intelligent express cabinet
Self-help terminal equipment
Security industry (video surveillance)
Application field:
Can support 8 users accessing WIFI hotspots
4G wireless transmission rate up to 150Mbps
Support 4G/3G/2G+Wi-Fi wireless access
Industrial 4G module
if you have other requirement ,welcome contact with us free !
Wireless WIF couplet
LAN port couplet
USB couplet (need drive support)
Connection mode:
5. Chip burn, no warranty
4.12V power interface, positive and negative pole should not connect in a wrong way
3. The USB interface is similar to the NIC interface, so please follow the illustration,so as not to burn down the settings
2. Please wiring in order
1. Wear anti-static bracelet or gloves before work
Matters needing attention:
Password:1234567890
AP hot name:MIFI_XXXX
Password:admin
User name:admin
How to quickly set up 3G/4G
First of all , Download APP "CamHi" from the iPhone App Store or Google Play Store. Or scan the QR code
If you choose the camera has 3G/4G. Then when the camera leaves the factory. The default connection to the 3G/4G module (signal MIFI-XX) has been set.
Note:If you use the reset button. Then you need to re-bind the camera to MIFI-xx
You only need a few simple steps.

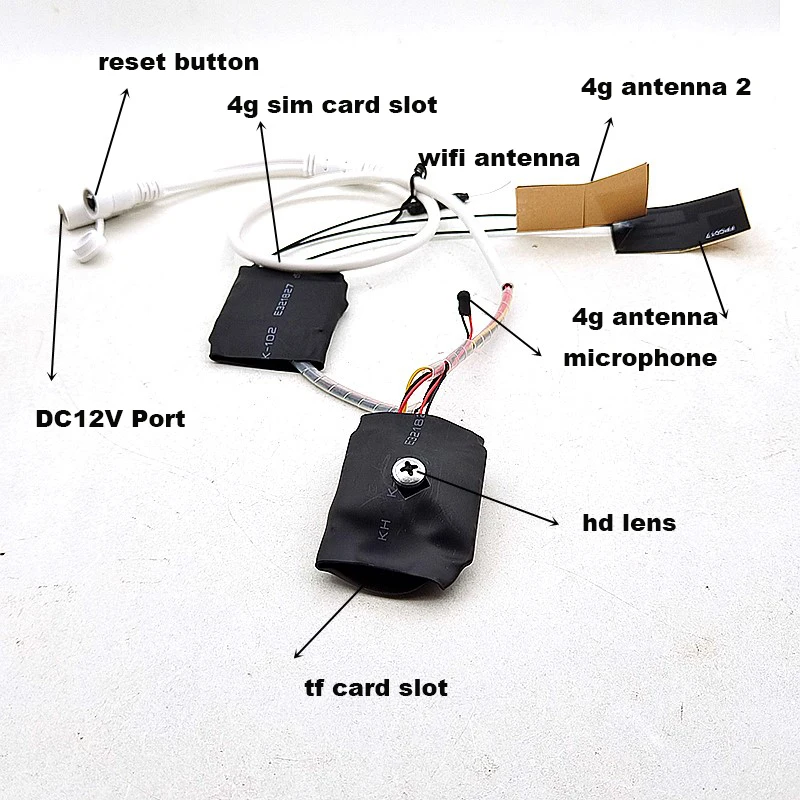

Insert the SIM card into the camera. Connect the power adapter , wait 10-20s, camera will be ready.
Then open your phone WLAN setting , you will find "MIFI-XXX" and select to connect, the default password is 1234567890
When your phone is connected to MIFI-XX. Then open the app "camhi". Select "Add Camera."
Because your phone is connected to MIFI-XX. So you can choose "Search Camera from LAN". Or directly scan the QR code of the camera.
Then you can see your camera online. You can control the camera and watch videos from your phone.
NOTE:
If view the 3G/4G camera is offline, please check the SIM card”.
Use the mobile phone or PC to connect the WIFI “MIFI_3F41”,the WIFI password is “1234567890”, you can find the WIFI when the
camera starts working. Access “192.168.100.1” through the browser, the page password
is “admin”, you can check the SIM card information on this page.
If your camera display is offline, please note the following:
1.Damaged card or wrong installation direction when prompted "
No SIM Card or SIM Card invalid! ", as shown below:
2.Frequency not supported or SIM card arrears when prompted "No Service" or "Limited Service", as shown below 1):
3.Make sure 3G/4G signal strength is enough, as shown below 2):
1. Features
5.0 megapixel HD 3G/4G IP camera, maximum resolution 2560x1920;
Support 4G, support AP mode;
Support up to 128G TF card storage;
Built-in MIC and speakers
Support P2P, view & anywhere & anytime;
Elegant outline and easy installation;
Provide android & ios APP and professional CMS PC client software;
2. Specifications
Model
GS-AHX4GCA5M-SQB/GS-AHX4GCMA-SQB
Video
Sensor
5.0 megapixel1/2.8" SONY335 / SC5238low lux CMOS
2.0megapixel. 1/2.8 Low Lux CMOS SC2235/imx307
Video resolution
5mp
Main stream: 2560x1920@20fps, 2560x1440@15fps
Sub stream: 800x600/800x448@25fps, 640x480/640x352@25fps
2mp
Main stream: 1920*1080P@20fps, 1280x720@25fps
Sub stream: 640x480/640x352@25fps, 320x240/320x176@25fps
Videocompression
H.264/H.265
Lens
3.6mm button lens
View angle
92degree
Night vision
not support
Audio
Audio compression
G.726/G.711
Audio code rate
8Kbps, 16bit
Audio input
Built-in MIC and speakers, support one way
Audio
Audio compression
G.726/G.711
Audio code rate
Rate adaptive
Audio input
Support
Audiooutput
optional
Alarm
Motion detectingalarm
Can set4independentdetection region(1-100 sensitivitycan be set)
Alarm linkage
Alarmsend picturesto the mailbox, Alarmupload pictures and videos to theFTPserver, Alarm recordpictures and videos toMicro SD card, Alarm mobile phone message push
Alarm recording
Support Micro SD cardand PC client linkage alarm recording
