NOTICE: Note: Before purchasing, please know that 4G version supports 4G network in Europe 5MP 4G Versio - 4G support! also support lan cable connection with router 2MP 4G Versio - 4G support! also support lan cable connection with router Note: Note: LTE Cat 4,This module supports 4G networks in the following countries. Some customers have already used it
|
Main Features:
5MP is clearer
Immersive 2MP/5MP Super HD
Usage scenarios
It can be installed inside clothes. The temperature of this module is very high, so please pay attention to prevent scald
SIZE

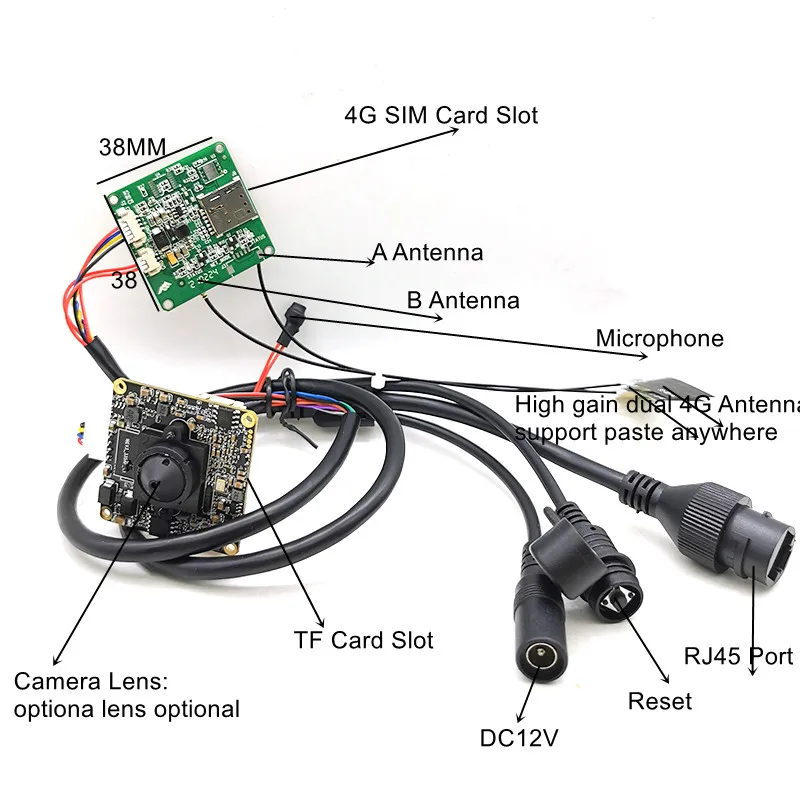

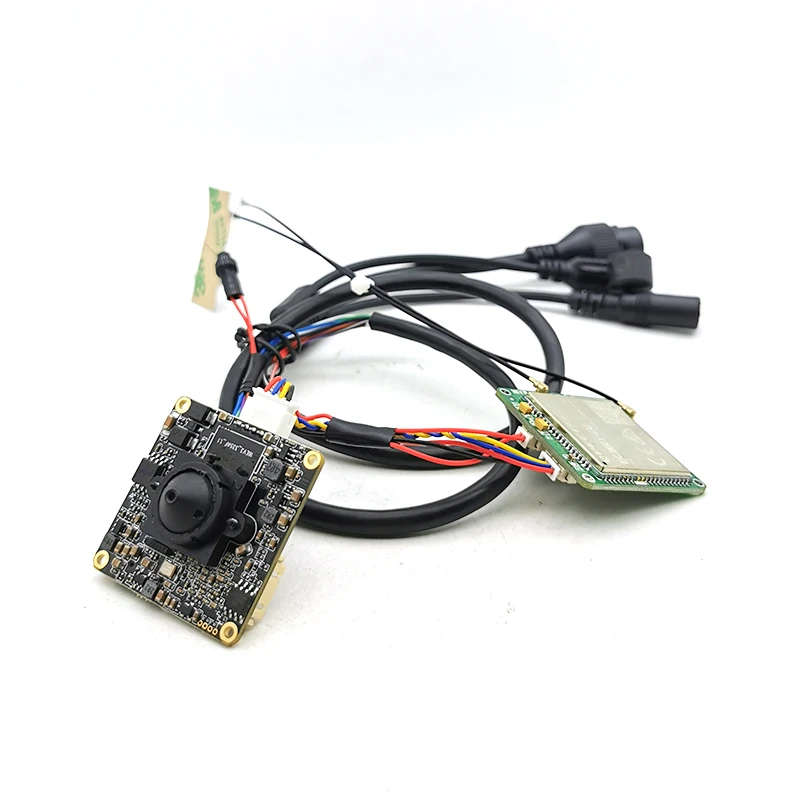

Remove the black heat-shrinkable tube, the size of the camera module is 38x38mm, and the size of the 4G module is 38x38mm
Different angle lens available
You can choose other lenses in this module, please look at the photo, if you need a lens of type ABCDEFG in the photo, please write to me, if not, I will send a lens of type B to you.
ABCDEFGH lens selection, if you need ,welcome to contact with our team custom made for your requirement !--You MUST check your SIM card frequency range must be in below listed range.
Features:
Support 3G/4G, support RJ45 Lan cable connection mode;
Support TF card storage, maximum support 128G Micro SD card; (SD card is NOT include)
Support P2P, view & anywhere & anytime;
Elegant outline and easy installation;
Provide Android & IOS APP and professional CMS PC client software;
Specificaitons: Models: GS-HX4GCA5M-tk/GS-HX4GCMA-tk
Camera | Operating system | Embedded Linux OS |
Processor | HI3516EV200 | |
Sensor | ||
1920P 5MP 2MP: 1080p | ||
Lens interface type | M12 | |
Lens | 3.6mm or 3.7mm Lens default ,other lens optional | |
View angle | 90degree | |
Min.illumination | 0.001lux/0lux (IR on) | |
Day&Night mode | / | |
Night vision distance | / | |
Video | Video compression | H.265 H.264 |
Video streaming | 5MP HD three stream | |
Video resolution | ||
5MP Main stream: 2560x1920@15fps, 2560x1440@15fps 3MPMain stream: 2560x1440@15fps Sub stream: 2MP:Main stream: 1920*1080P@20fps, 1280x720@25fps Sub stream: 640x480/640x352@25fps, 320x240/320x176@25fps | ||
Video code rate | 32~6144Kbps. supports constant bitrate/variable bitrate | |
Video frame rate | 1MP&1.3MP:25fps,2MP:20fps | |
Image settings | Brightness,saturation,contrast,Sharpness,Exposure,flip,mirror | |
Image enhancement | Backlight compensation,Automatic white balance, Digital WDR, 3D digital noise reduction | |
Function | Motion detecting | Can set 4 independent detection region (1-100 sensitivity can be set) |
Alarm linkage | alarm upload pictures and videos to the FTP server, alarm write pictures and videos to Micro SD card, alarm mobile phone message push | |
Privacy mask | maximum support 4 users to simultaneously browse | |
OSD | support camera name, date and time information superimposed | |
User management | Supports user and rights management | |
Simultaneous viewers | Maximum support 4 users to simultaneously browse | |
Network protocol | TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP etc | |
Connection protocol | N/A | |
4G | 4G standard | FDD-LTE |
Frequency range | B1(2100MHz), B3(1800MHz), B7(2600MHz), B8(900MHz), B20(800MHz) | |
Transmission rate | Upload max:50Mbps, download max: 150Mbps | |
Security | WEP, WPA/WPA2, WPA-PSK/WPA2-PSK | |
3G | 3G standard | WCDMA |
Frequency range | B1(2100MHz), B8(900MHz) | |
Transmission rate | Upload max:5.76Mbps, download max: 21Mbps | |
Security | WEP, WPA/WPA2, WPA-PSK/WPA2-PSK | |
Interface | Power interface | 5.5mm power interface |
Ethernet | RJ45 & Antenna 10M/100M Adaptive Ethernet Interface | |
TF card Slot | maximum support 128G TF card, can set the automatic capture and timer recording | |
Reset button | Support | |
General specification | Power supply | DC 12V 1A |
power | Day:3W, Night:8W | |
Operating temperature | -20 to +60 degree | |
Operating humidity | 10% to 95%(non-condensing) | |
Waterproof level | IP55 | |
Material | / | |
Installation | / | |
Product size(W×D×H)(mm) | / | |
Product weight(kg) | 0.38 | |
Accessories | 1*camera 1*Bag*Screws,, 1*Manual | |
Package Size(W×D×H)(mm) | 200*130*95mm | |
Package Weight(kg) | 0.65 |
If the buyer want other sizelens please 'Leave Message to Seller' to notify us when bidding.
Thanks for your attention to our products.if you have any question ,pls fell free to contact with us !
we will replyed you within 24hours!!!
Below Lens,some of them can be replaced for different angle view &distance requirement ! pls talk with us whetherit is available for the camera !
