P0E WIFI SD Card Slot 5MP 1080P 8MP IMX415 PIR Style Indoor On vif Mini Wireless IP Camera Invisible 940nm IR Audio Camhi
8MP IMX415 5MP IMX335 2MP IMX307
NOTICE:
Specification: 2.0MP
Resolution:1920x1080
Sensor Size: 1/2.8 IMX307
Support 128GB TF Card Max
Specification: 5.0MP
Resolution:2560x1920 or 2560x1440
Sensor Size: 1/2.8 inch
Image Sensor: IMX335
Support 128GB TF card Max
8.0 megapixel HD IP camera,
Sensor Size: 1/2.8 inch
Image Sensor: IMX415
maximum resolution:3840x2160P
Support 128GB TF card Max
support WIFI& audio general Small microphone default&940nm IR Night vision& tf card slot&POE
Features
High sensitivity, high signal-to-noise CMOS image sensor
H.264 H.265 Compression,three streaming, mobile surveillance; compatible with various smart Phone operating system
Support multiple network protocol TCP/IP,HTTP,TCP,ICMP,UDP,ARP, IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP and so on
Support :ONVIF 2.0
Support :DDNS and three DDNS
Support :sending email, attaching picture
Support :Alarm picture and record Uploaded to FTP server
Support :Timing captured picture to FTP server
Support :Static IP and DHCP
Support :P2P
Support :privacy mask
Support up to 12 users browsing at the same time(Each stream supports four users
Support remote alarm linkage
Only 1 network port is used for IE Browsing,stream transmiting and command access, convenient for router setting
Features
8.0 megapixel HD IP camera, maximum resolution3840x2160P
5.0 megapixel HD IP camera, maximum resolution2560x1920P
3.0 megapixel HD IP camera, maximum resolution2304x1296
2.0 megapixel HD IP camera, maximum resolution 1920*1080;
1.3 megapixel HD IP camera, maximum resolution 1280*960P;
1.0 megapixel HD IP camera, maximum resolution 1280*720P;
Support WIFI, support AP mode; &POE
Support up to 128G TF card storage;
Optional 2.8/3.7(default)/6mm lens;
Support P2P, view & anywhere & anytime;
Elegant outline and easy installation;
Provide android & ios APP and professional CMS PC client software;
The camera supports wifi hotspots, which can be accessed via the mobile APP without the need to connect the network cable
2. Specifications
Model | GS-PRTF120WAR5M-POE /GS-PRTF120WAR8M-POE /GS-PRTF120CMWAR-POE | |
Video | Sensor | GS-PRTF120WAR5M-POE:5.0megapixel. Low Lux IMX335 CMOS. GS-PRTF120WAR8M-POE:8.0megapixel. 8mp Low Lux CMOS imx415 GS-PRTF120CMWAR-POE :2.0 megapixel 1/2.8" CMOS imx307 |
Video resolution | GS-PRTF120WAR5M-POE: Main stream: 2560x1920@15fps, 2560x1440@15fps GS-PRTF120WAR8M-POE: Main stream: 3840x2160P@10fps GS-PRTF120CMWARE-POE :Main stream: 1920x1080@20fps, Sub stream: 640x352@25fps, 320x176@25fps | |
Video compression | H.264 ,H.265 FOR 2MP AND 5MP&8MP | |
Lens | 3.7MM Lens default Optional 2.8/3.6(default)/6mm lens | |
View angle | based on lens | |
Audio | Audio compression | G.726/G.711 |
Audio code rate | Rate adaptive | |
Audio input | With MIC, support voice monitor | |
Alarm | Motion detecting alarm | Can set 4 independent detection region (1-100 sensitivity can be set) |
Alarm linkage | Alarm send pictures to the mailbox, | |
Alarm recording | Support Micro SD card and PC client linkage alarm recording | |
Network | Wireless | IEEE 802.11 b/g/n |

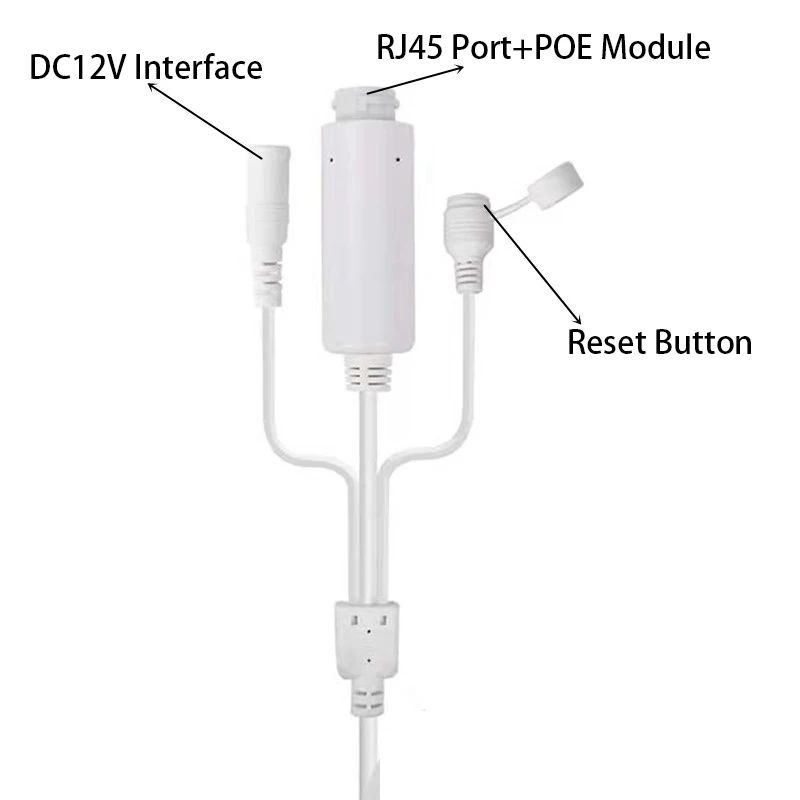

Ethernet | RJ45 Ethernet+POE port 48V stanard IEEE802.3AF | |
Onvif protocol | Support ONVIF 2.4(backward compatible) | |

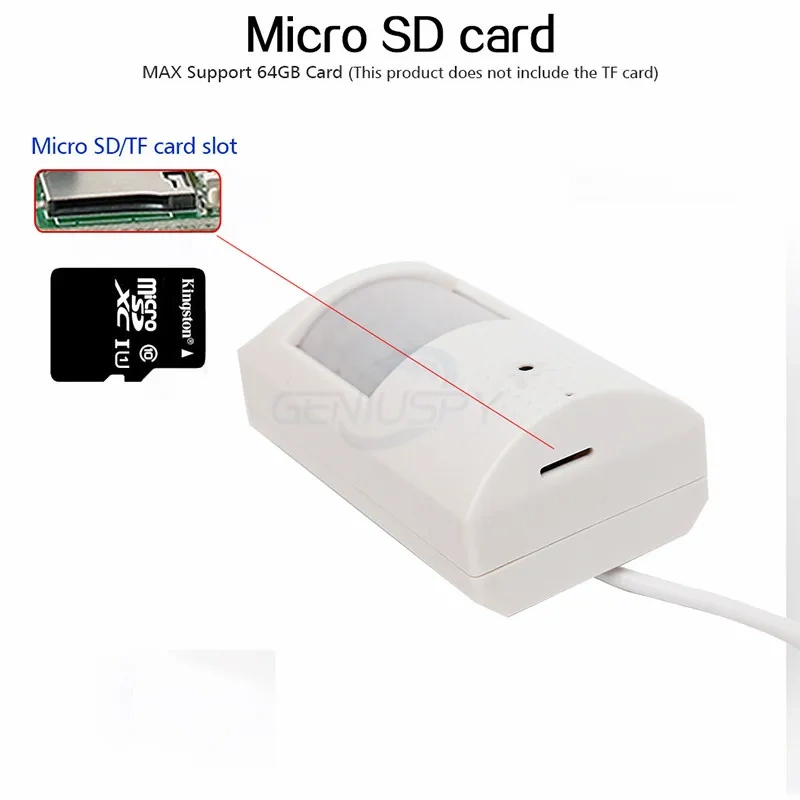

Storage | Micro SD card | Support up to 128G micro SD card max |
Recording mode | Alarm record, timing record, | |
Video playback | Support APP, IE browser, remote client play and download the video | |
General specification | Power | DC12V 1A/2a |
Operating environment | Environment -20℃~+60℃(-4℉~+140℉), | |

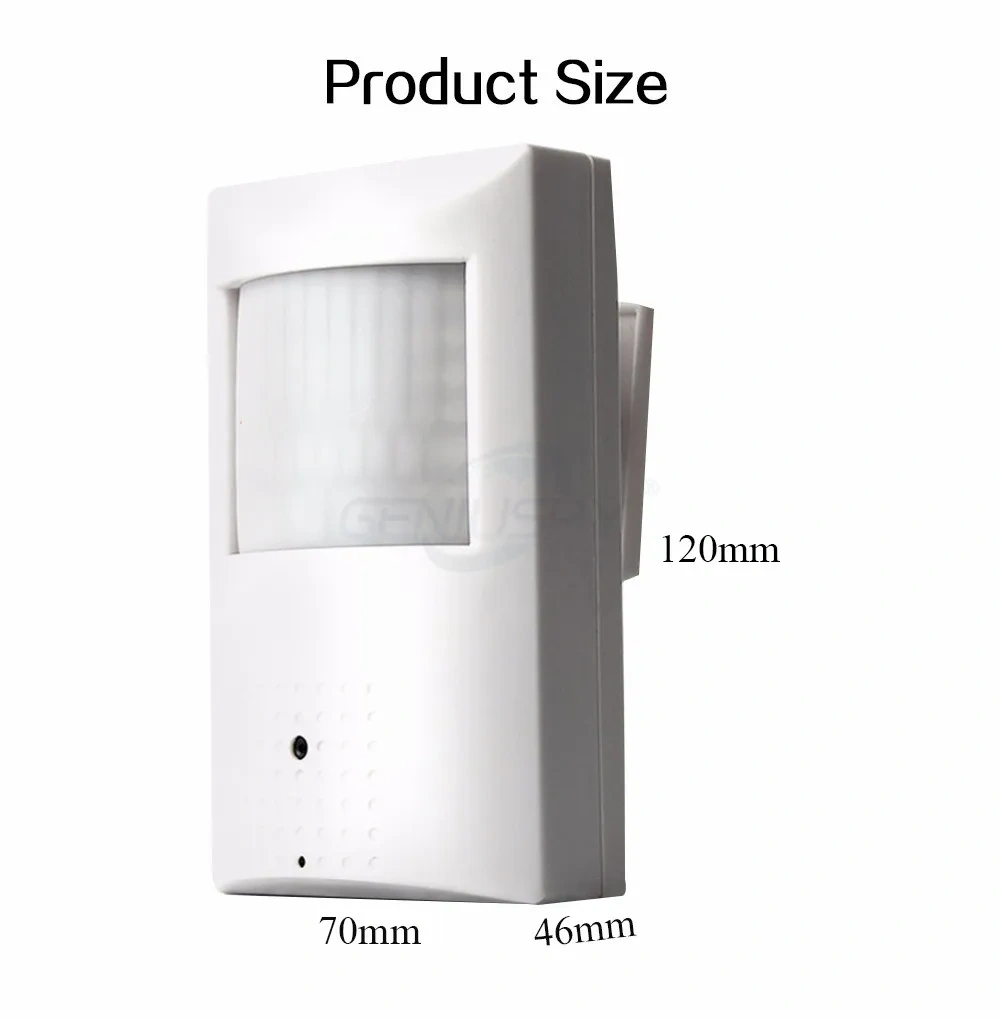

Product size | 120*69.5mm(L×W×H) | |
Product weight | 0.35kg | |
IR Night vision | 48pcs 940nm ir leds default ,850nm ir leds optional | |
Package weight | 0.5kg | |
Reset button | Support | |
If the buyer want other sizelens please 'Leave Message to Seller' to notify us when bidding.
Thanks for your attention to our products.if you have any question ,pls fell free to contact with us !
we will replyed you within 24hours!!!
Below Lens,some of them can be replaced for different angle view &distance requirement ! pls talk with us whetherit is available for the camera !
