4G Cctv Camera
5MP 2MP Live Streaming 4G Lte Cellular Mini Wireless 940nm IR Pir IP Cameras P2P 4G Sim Card Audio 4g IP Cam 4G Cctv Camera
Features:
Geniuspy 2mp models: 1/3" SC2336P +GK7201V200 h.264 H.265 1920*1080p 20FPSGeniuspy 5mp models:1/2.7" GC5603 +T41NQ h.264 H.265 5mp 2880X1620P 20fps
Important Warning:

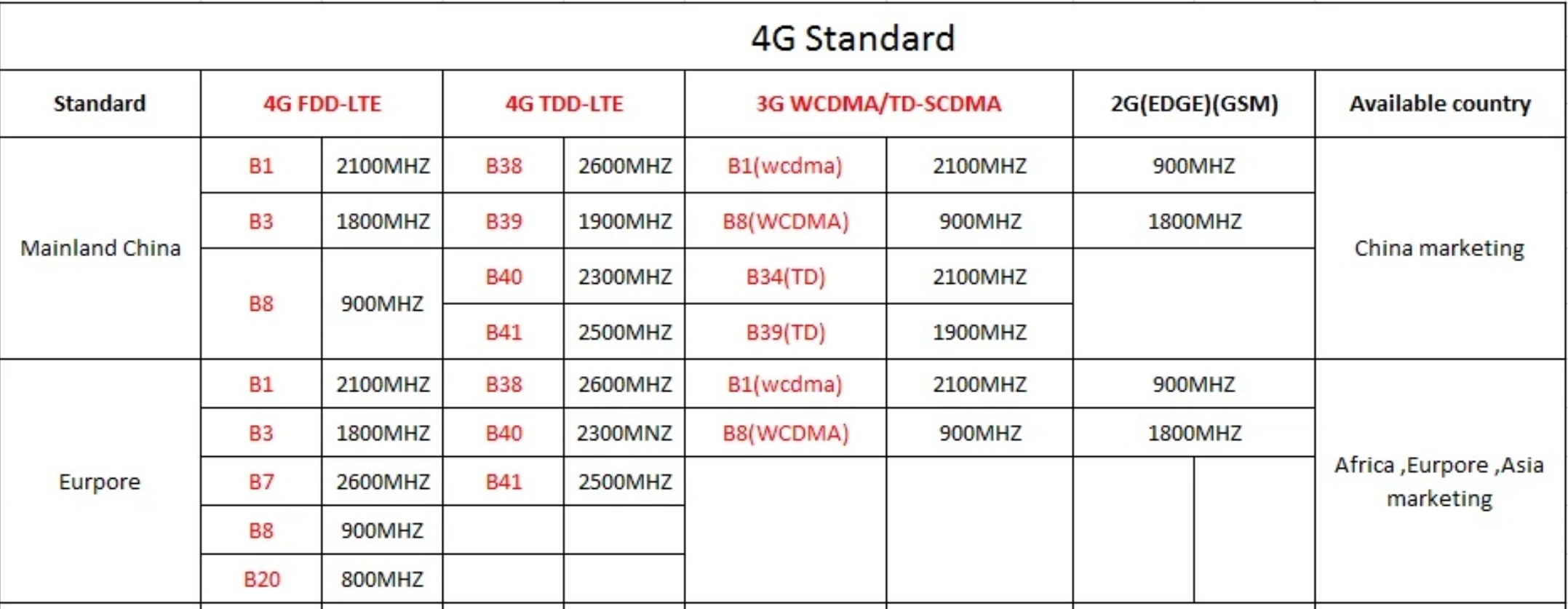

You MUST check your SIM card frequency range MUST be in below listed range if you want to use this 3G 4G IP Camera, we will not agree any dispute for your own reason for your wrong order.
3G standard: WCDMA
Frequency range: B1(2100MHz), B8(900MHz)
4G standard: FDD-LTE
Frequency range: B1(2100MHz), B3(1800MHz), B7(2600MHz), B8(900MHz), B20(800MHz)

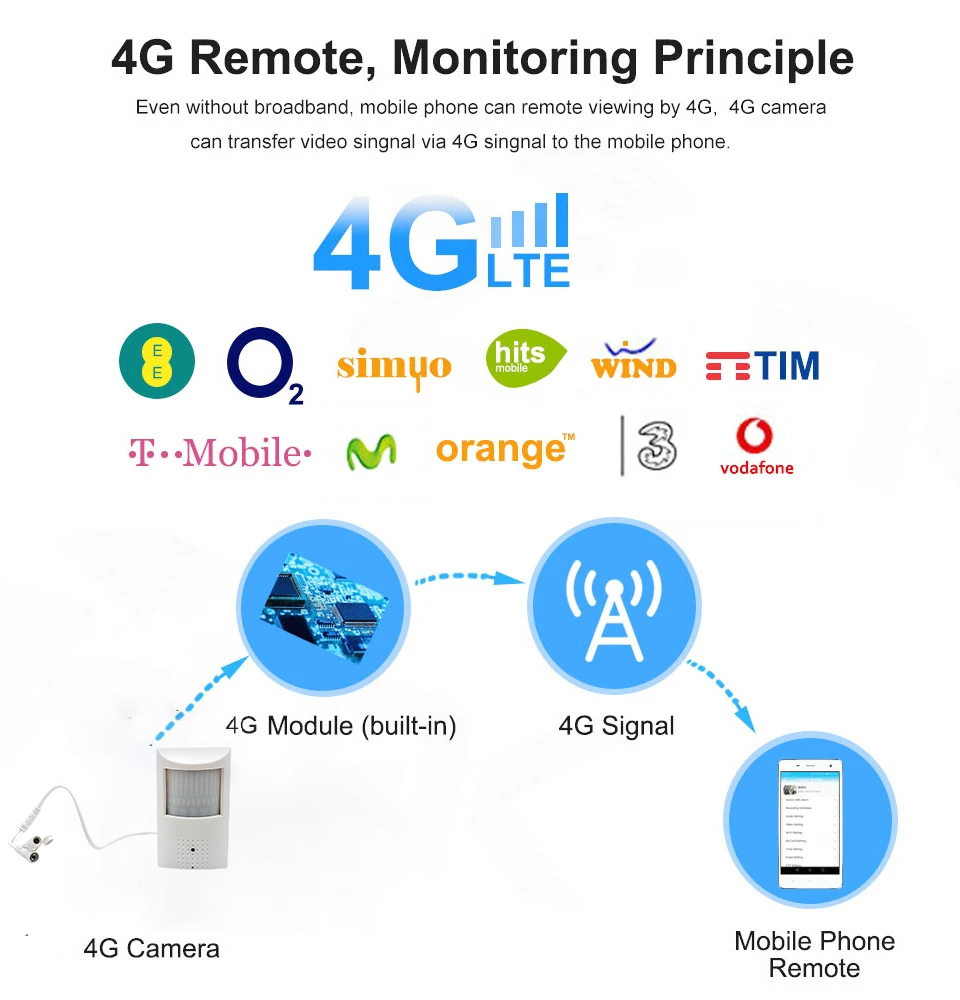

This 3G 4G ip camera mostly used for those environment place not have internet but have SIM mobile signal, you have to put a SIM card into camera and connect internet by your SIM card. The camera does not support router internet connection !
This 3G 4G ip camera Connection Way: Insert your SIM card into camera, then power on, connect SIM Card internet.
No need to connect network LAN cable ! No need to setup wifi !
The 3G 4G ip camera does not support local PC clients . It supports mobile phone app (CamHi) and a remote clients CMS.
The 3G 4G ip camera does not support Cloud FTP storage !
Features:
Support 3G/4G, support AP mode;
Support TF card storage, maximum support 128G Micro SD card; (SD card is NOT include)
Default 3.7mm lens;

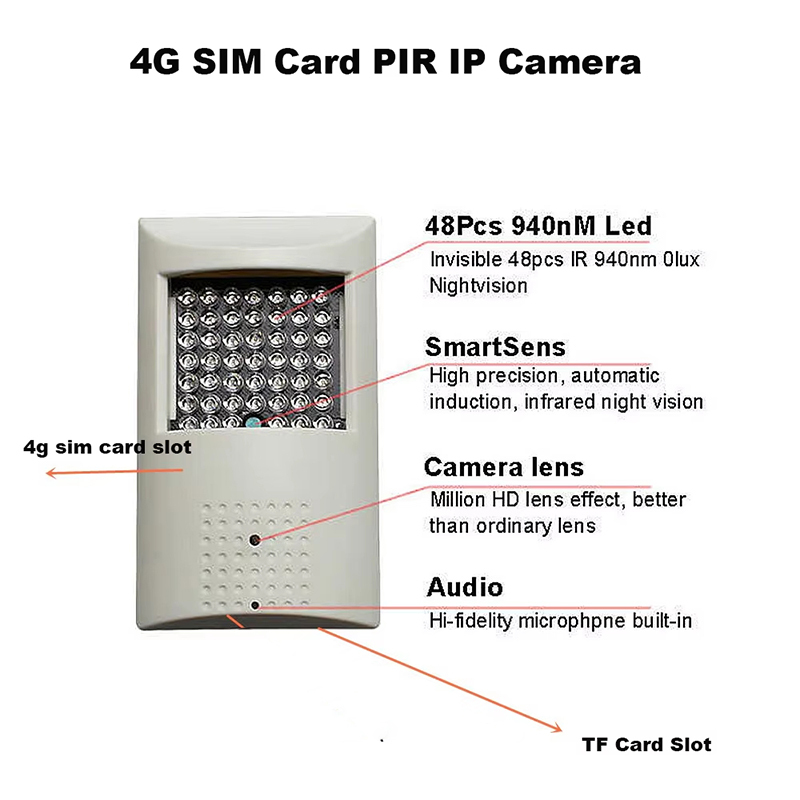

48pcs 940NM IR infrared LEDs, 10-15m Night Vision;
Support P2P, view & anywhere & anytime;
Elegant outline and easy installation;
Provide Android & IOS APP and professional CMS PC client software;
Specificaitons:
| Camera | Operating system | Embedded Linux OS |
| Processor | GK7201V200 2mp /T41NQ 5mp | |
| Sensor |
1/3" SC2336P +GK7201V200 h.264 H.265 1920*1080p 20FPS 1/2.7" GC5603 +T41NQ h.264 H.265 5mp 2880X1620P 20fps
|
|
| Lens interface type | M12 | |
| Lens | 3.7mm lens | |
| View angle | 75.7 degree for 720P models, 90degree for 1.3mp &2mp &3mp 5mpmodels | |
| Min.illumination | 0.05lux/0lux (IR on) | |
| Day&Night mode | Auto IR-CUT | |
| Night vision distance | 48pcs IR LEDs. IR radiation distance 10-15m | |
| Video | Video compression | H.264 H.265 |
| Video streaming | Three streaming | |
| Video resolution | ||
|
1080P First stream:1080P(1920x1080) 5MP First stream: : Main stream: 5mp 2880X1620P 20fps
|
||
| Second stream:Q720P(640x352), QQ720P(320x176) | ||
| Third stream:QQ720P(320x176) | ||
| Video code rate | 32~6144Kbps. supports constant bitrate/variable bitrate | |
| Video frame rate | 20fps | |
| Image settings | Brightness,saturation,contrast,Sharpness,Exposure,flip,mirror | |
| Image enhancement |
Backlight compensation,Automatic white balance, Digital WDR, 3D digital noise reduction |
|
| Function | Motion detecting | Can set 4 independent detection region (1-100 sensitivity can be set) |
| Alarm linkage |
alarm upload pictures and videos to the FTP server, alarm write pictures and videos to Micro SD card, alarm mobile phone message push |
|
| Privacy mask | maximum support 4 users to simultaneously browse | |
| OSD | support camera name, date and time information superimposed | |
| User management | Supports user and rights management | |
| Simultaneous viewers | Maximum support 4 users to simultaneously browse | |
| Network protocol |
TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP etc |
|
| Connection protocol | N/A | |
| 4G | 4G standard | FDD-LTE |
| Frequency range | B1(2100MHz), B3(1800MHz), B7(2600MHz), B8(900MHz), B20(800MHz) | |
| Transmission rate | Upload max:50Mbps, download max: 150Mbps | |
| Security | WEP, WPA/WPA2, WPA-PSK/WPA2-PSK | |
| 3G | 3G standard | WCDMA |
| Frequency range | B1(2100MHz), B8(900MHz) | |
| Transmission rate | Upload max:5.76Mbps, download max: 21Mbps | |
| Security | WEP, WPA/WPA2, WPA-PSK/WPA2-PSK | |
| Interface | Power interface | 5.5mm power interface |
| Ethernet | RJ45 & Antenna 10M/100M Adaptive Ethernet Interface | |
| TF card Slot |
maximum support 128G TF card, can set the automatic capture and timer recording |
|
| Reset | Support | |
| General specification | Power supply | D C 12V 1A |
| power | Day:3W, Night:8W | |
| Operating temperature | -20 to +60 degree | |
| Operating humidity | 10% to 95%(non-condensing) | |
| Waterproof level | IP55 | |
| Material | abs | |
| Installation | Rack mounting | |
| Product size(W×D×H)(mm) | 65*75*45mm | |
| Product weight(kg) | 0.38 | |
| Accessories | 1*Bag*s,, 1*Manual | |
| Package Size(W×D×H)(mm) | 200*130*95mm | |
| Package Weight(kg) | 0.65 |
Packing List:
1*4G WIFI Camera
1*Manual
1*s screwBag
