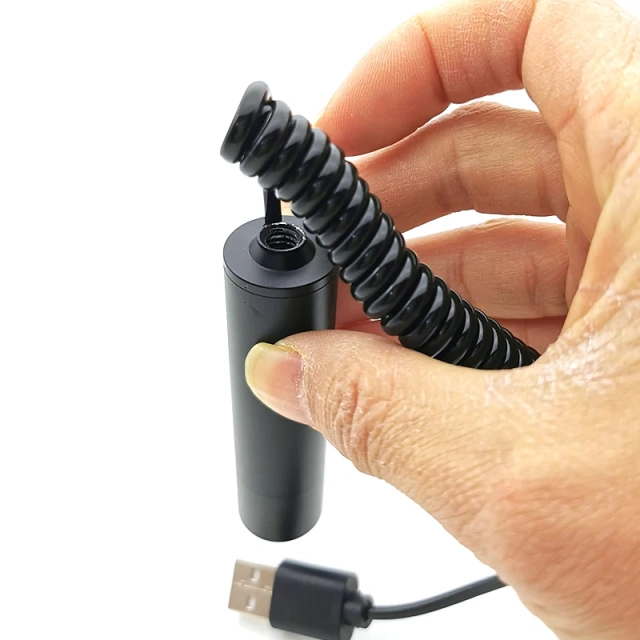

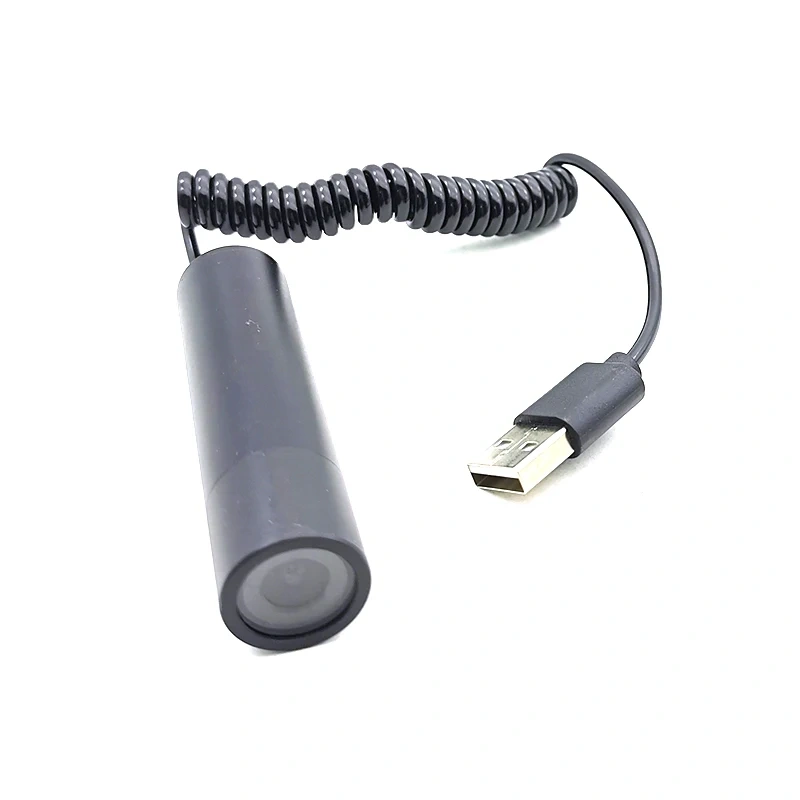

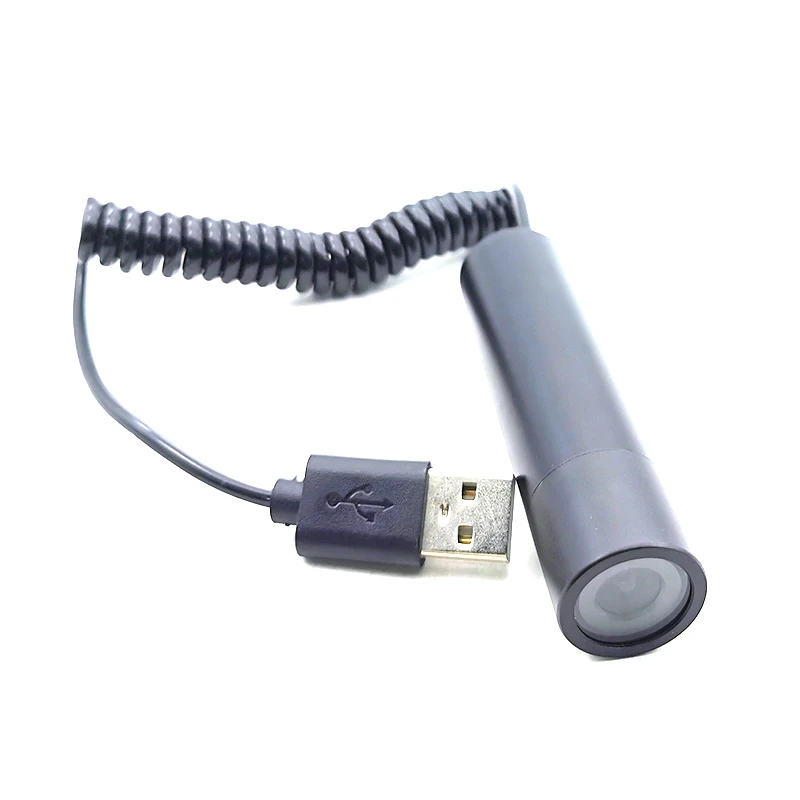

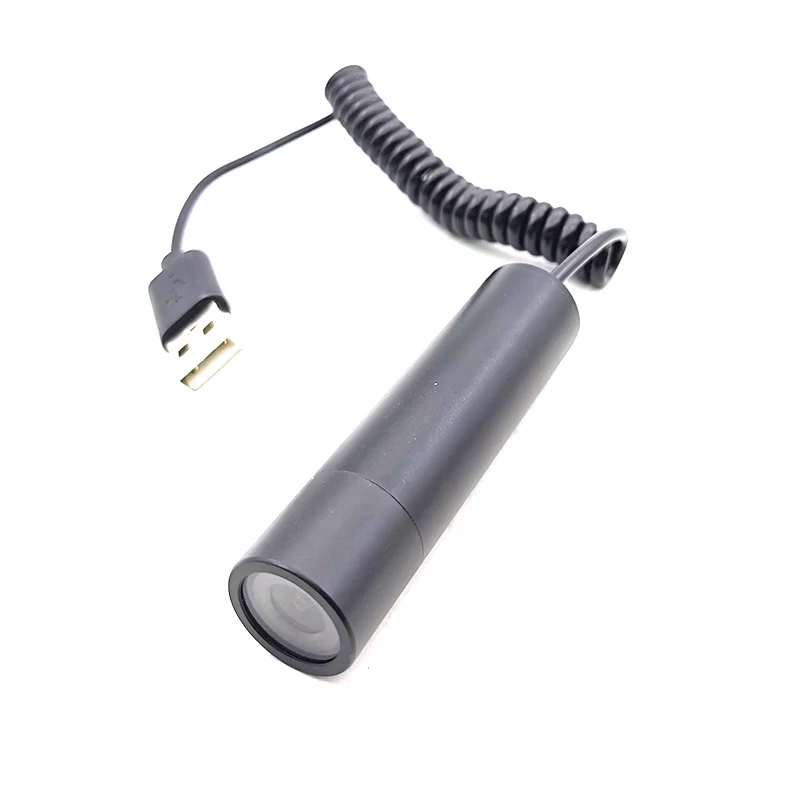

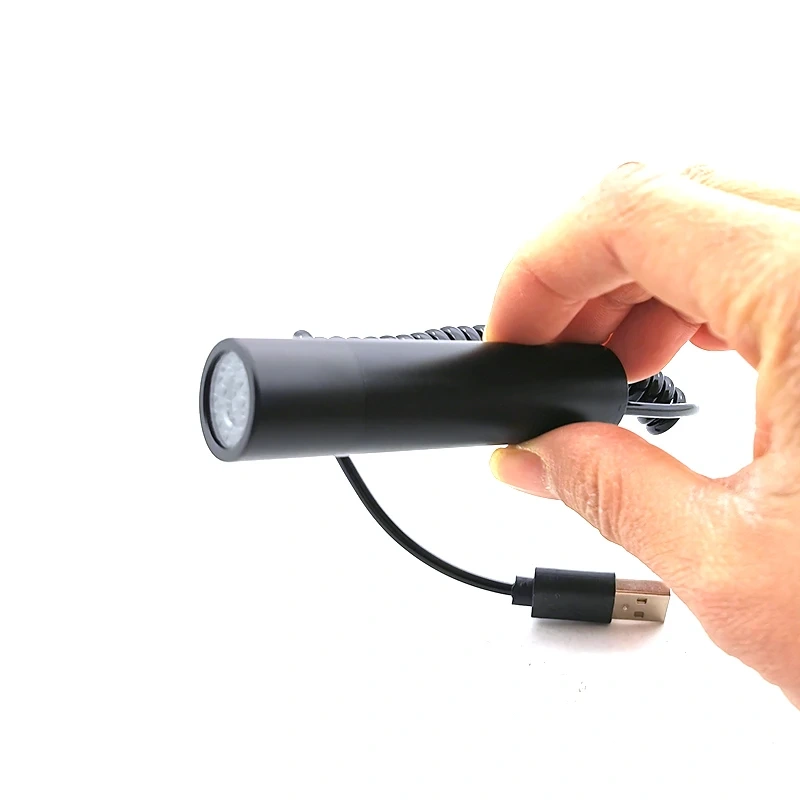

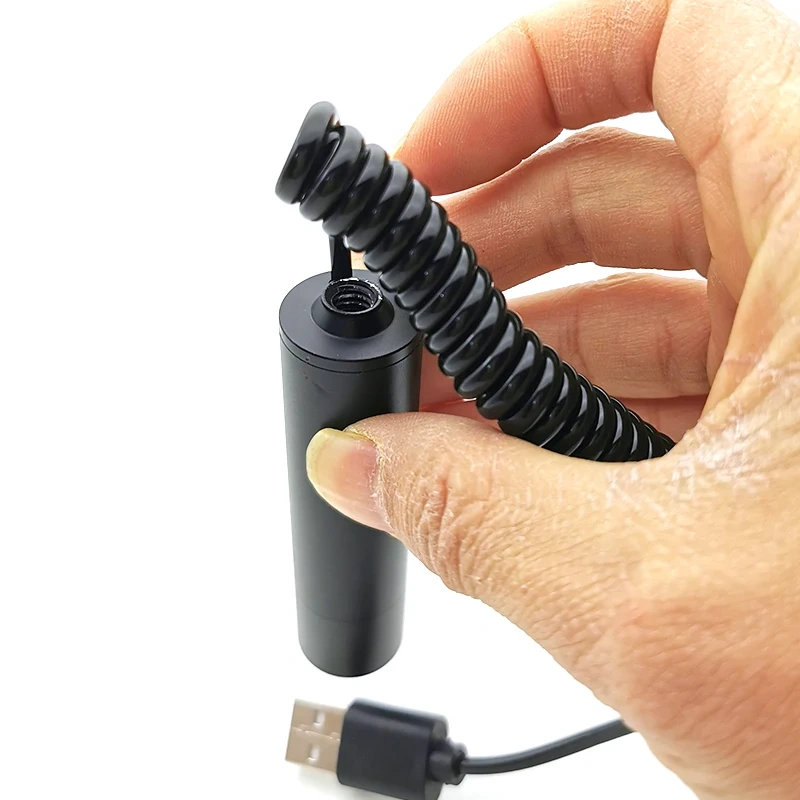

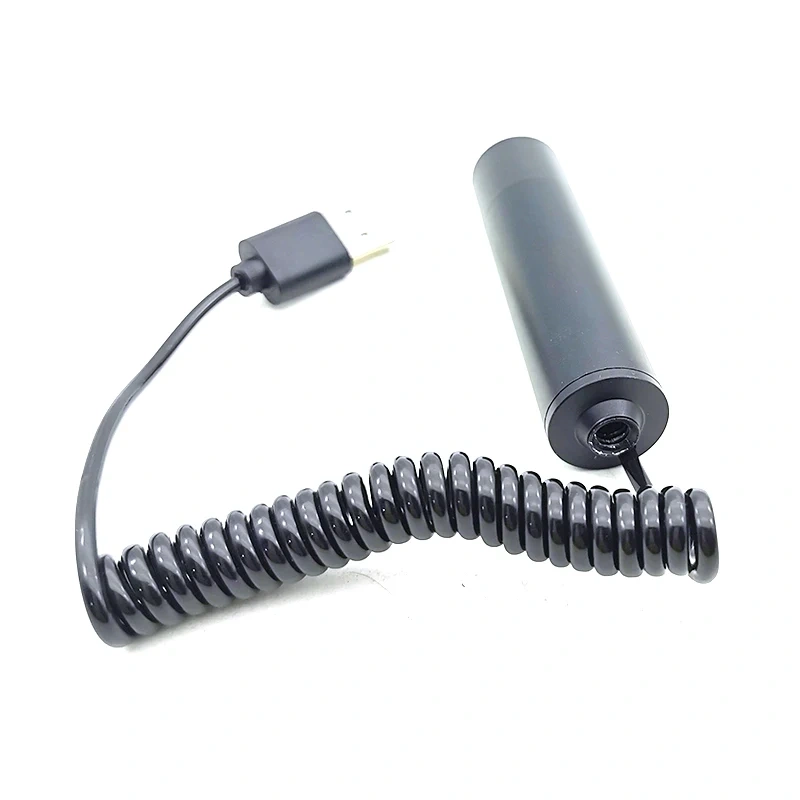

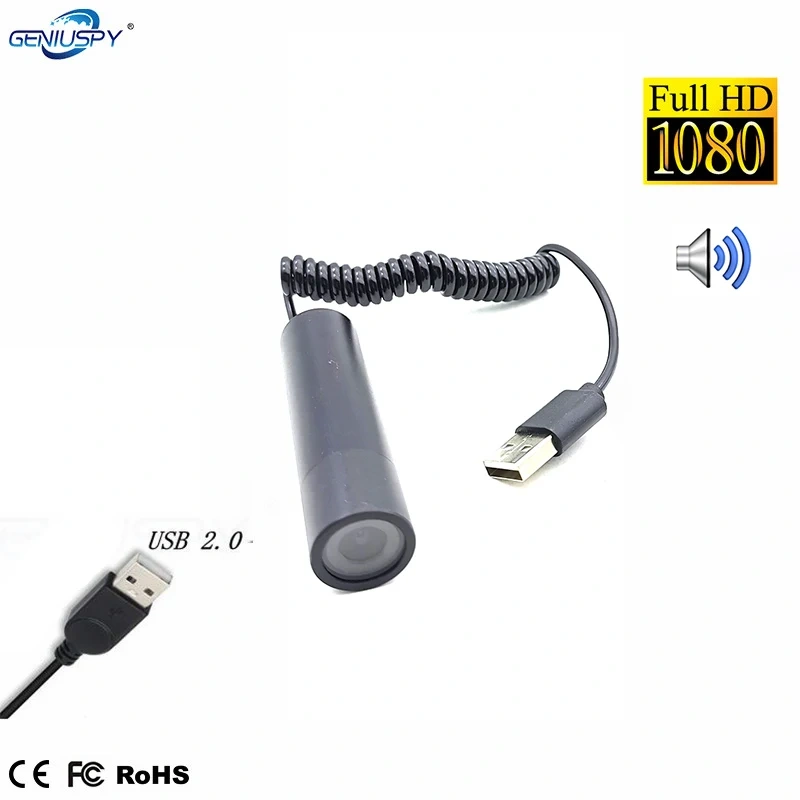

Audio Video USB Mini Bullet Camera 1080P Drive-Free Spring Cable USB 2.0 Camera For Android Device/Computer/Industrial/Sport Use

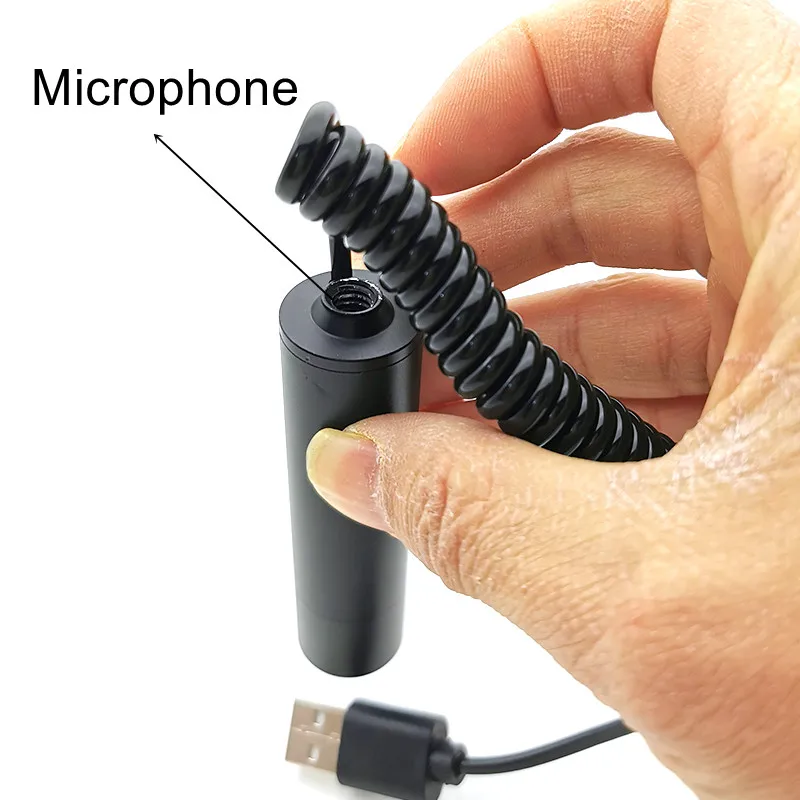

Note: 1080P with audio , microphone build in the back side !
if you need other connector ,pls kindly contact with us for custom made !
USB Mini camera
Introducting:
USB Mini colour camera
Color CMOS CCD sensor
USB Format
Support Linux operation system
Main Features:
Image sensor 1/2.7" CMOS, 0.1Lux, 2.0MP imag
Free Driver USB 2.0 (UVC)
USB2.0 HIGH SPEED, compression USB 1.1
Default setting (30fps@1920*1080p)
Manual focus lens
Angle of view around 90 degrees (without any distortion)
Compression YUY2 & MJPEG
Support Windows 2000; Windows XP; Windows VISTA; Windows 7 and later;
Linux(In 2.6.18 above the kernel version);Mac ps3; Android system
Standard 3m cable,if you need shorter cable ,pls contact with us for custom made
Can be connected through 10 meters USB cable
Dimension: 30mm Diamater
USB Power: 5V±10%DC,50mA
Used:intelligent machine,especially Banks'ATM
Can be customized by your requirements
Detailed Specifications Of The Parameters
Models:GS-TBU620CSPBA
Image sensor | 1/2.7" Color CMOS | |
Effective Pixels | 1920(H)x1080P(v)1280(H)x720(V), 640(H)x480(V), 352(H)x288(V), 320(H)x240(V) resolutions | |
Synchronizing system | Internal | |
Scanning system | Progressive Scan | |
Video output | VGA(640X480), CiF(352X288), SiF(320X240), QSiF(176X144, ),C iF(160x120) | |
S/N ratio | More then 48 dB (AGC Off) | |
Min. Illumination | 0.1 Lux @ F1.2 | |
Exposure | Auto / Manual(Shutter Speed & AGC Control) | |
White Balance | Auto / Fixed / Indoor / Initial / Outdoor | |
Gamma Characteristic | Auto r=0.45 | |
Picture | Brightness / Contrast / Gamma / Saturation | |
Miscellaneous | BW Image / Mirror / Flip / Back Light / Flickerless | |
Power source | 5V DC / 400mA | |
Operating current | 125mA / regulated 5.7VC in | |
Lens | Standard | 3.6mm default around 90degree |
Operating Temperature | 0°C∼ 40°C (Humidity : 0% RH∼ 80% RH) | |
Interface Type | USB format(Complies with USB 2.0) | |
Measurement (mm) | / | |
Weight (Approx. G) | 50g | |
Package contents:
1 x Camera 1 x English User Manual
