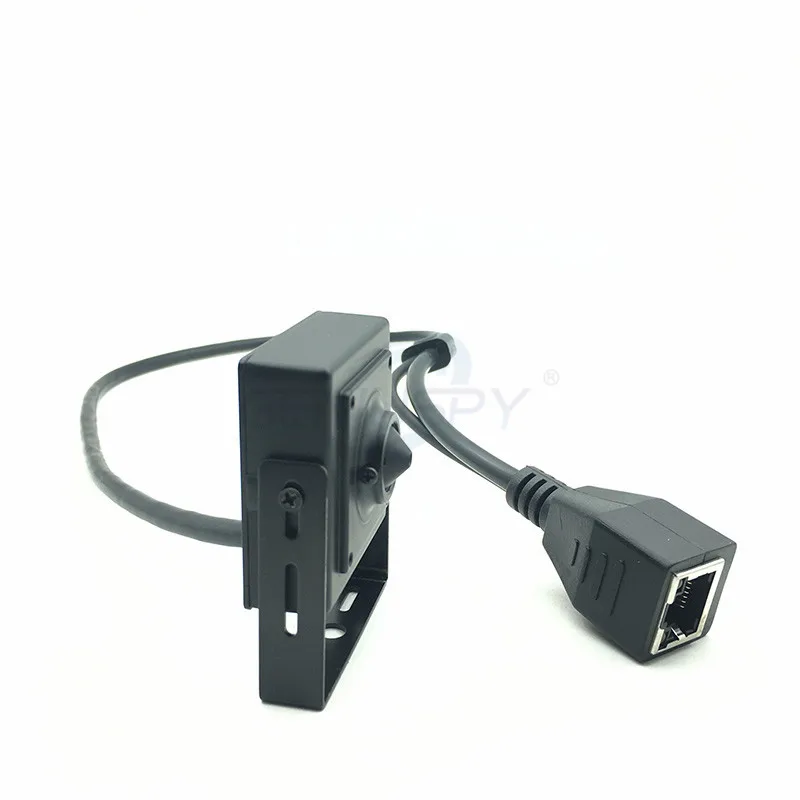

Audio POE 4MP 5MP 8MP 4K P2P Security Indoor Mini IP Camera CCTV Mini Hidden camera Home Surveillance IP Camera Covert Industry

Description

Audio POE 4MP 5MP 8MP 4K P2P Security Indoor Mini IP Camera CCTV Mini camera Home Surveillance IP Camera Covert Industry

Features:

1. H.265/H.264,support dual-stream,AVI;0.1M~8Mpbs variable;1~30f/s variable;

2. Color 0.1Lux; B/W 0.01Lux;

3. 1 RJ45 Ethernet interface, 10/100M automatically adapting;

4. Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc network protocol;

5. Support ON VIF, and mobile monitoring;

7. Metal case.

Specifications:

	GS-NQ140CME /GS-NQ140C3MP/GS-NQ140C4MP/GS-NQ140C5MP/GS-NQ140C8MP
System structure	Embedded RTOS,dual-core 32bit DSP,pure hard compression ,watch dog
Sensor	2MP:1/3" CMOS sensor color 0.01Lux’F1.2,black/white 0.01Lux’F1.2 3MP:1/2.7" SC2235 CMOS sensor color 0.1Lux’F1.2,black/white 0.01Lux’F1.2 4MP:1/2.7" SC5239 CMOS sensor color 0.1Lux’F1.2,black/white 0.01Lux’F1.2 5MP:1/2.8" CMOS sensor color 0.1Lux’F1.2,black/white 0.01Lux’F1.2 8MP:1/2.7 SC8239 Cmos senor cloor 0.1lux F1.2 black and white 0.01lux F1.2
Video compression	H.265/H.264,support dual stream,AVI;0.1M~6Mpbs variable;1~30f/s variable
Image output	2MP:Main stream:19201080(25fps), 3MP:Mail stream:20481536(20fps), 4MP:Mail stream:25601440(20fps), 5MP:Mail stream:25921944(15fps), 8mp:Main Stream:3840*2160p(15fps)
Noise reduction	Support 2D/3D
lens	3.7MM MP lens Default,(2.8mm.6mm optional)
Storage	Via PC/Mobile Phone/NVR With HDD
Light	N/A
Wide dynamic	Support digital
Network interface	1*RJ45 10/100M adaptive Ethernet port;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc
Singal interface	One photo resistance interface,one IR-CUT interface ,support photo resistance signal and IR-CUT links to IR
Auto iris	No
SD Card	NO
Reliability	Comprehensive lightning protection, in line with national and international standards; 7 * 24 hours 65’C high temperature stable and reliable testing (including mounted machine testing)
Other function	NO
ON VIF	Support
Mobile monitoring	Support multiple mobile monitoring(iOS,Android)
Power	DC12V
Dimension	404015mm
Housing material	Metal Housing

8MP Chipset Specification as below:

(Does not include Power Adapter)

Note: "DC 12V" Please use DC12 V 1A power supply, packaging does not include the power supply.

We recommend using our h.265 NVR, other manufacturers of NVR may not be able to run h.265 perfectly, it will run with h.264.

Q & A

1, IP camera default IP address:192.168.1.10

User name:admin,password:empty(null)

If there is a problem with "Can not find the Device", it is the default ip address is not in the same network segment as your router.

Please click "Edit Device" to change the camera's ip address,

For example, if your router's ip address is 192.168.0.1, then you need to change the camera's ip address to 192.168.0.XX.

"DeviceManage" It can find and change the IP address, upgrade the firmware.

2, P2P website: "www.xmeye.net" ,please use IE and install ActiveX,only IE supports Multi Language.Chrome,Safari just support Chinese .

then please input your P2P ID,user name and password to login and preview.

Access to the IPC through the web, only one screen can be displayed.

There are multiple IPC, please use client software to manage(such as: CMS VMS SNVR)

3,The camera's port information.

ON VIF 2.0 Port 8899 ;RTSP Port 554 ;HTTP Port 80;Media Port 34567;E-mail default port 25; SLL protocol Port 465.

4,Does the cameras can be compatible with other manufacturers NVR?

Please confirm whether other manufacturers NVR support on vif protocol.

Our camera's on vif protocol is on vif Profile S, does not support HTTPS protocol;

Auto focus camera, other manufacturers NVR can only zoom, can not focus.

5, The camera all supports Motion Detect,FTP,Email alarm, RTSP.

A,How to set up motion detection?

Access to IPC via IE (or CMS software), device configuration - alarm function - motion detection - on and save.

B, About FTP

FTP upload video and pictures, pictures will always upload, video files larger, after the alarm, the video file will be completed to upload.

We suggest the Sever-U and FileZilla FTP Server to upload the video or image.

C,For the Email alarm,please use Email server which supports SMTP ( Hotmail ,Yahoo not support SMTP ,it not supports Gmail temperately since the server problem ) .

D, RTSP URL for VLC media Player :

RTSP port: 554

rtsp: // (IP): (PORT) / user = (USER) & password = (PWD) & channel = (Channel) & stream = (Stream) .sdp? Real_stream

Example:

rtsp: //10.6.10.25: 554 / user = admin & password = & channel = 1 & stream = 0.sdp? Real_stream (stream = 0 primary stream 1 auxiliary stream)

If it is through the public network need to RTSP port open (default is 554), the port in the network service-RTSP can be set

6, About DDNS

Mapped media TCP port: 34567 and HTTP port: 80 (Note: mapping need to be changed to non-80)

Note: The two ports in the network settings can be viewed, can be modified

What domain names are supported?

- CN99 / DynDns / Oray / NO-IP / MYQ-SEE

Q:When I finish the steps to add the camera to the CMS list,why it notify “ Can’t find the Device “ even I can see the default ip address 192.168.1.10 in the menu .

F: It is the IP Address conflict ,the default ip address is not in the same network segment as your router.

Please click “Edit Device “ to change the camera’s ip address to make them in the same network segment !

For example ,if your router’s ip address is 192.168.0.1 ,then you need to change the camera’s ip address to 192.168.0.XX .

Package contents:

1 x Camera, 1x CD, 1 x Screw, 1 x English User Manual

Notice ：Dear,all customer ,because cd disk is easy damaged by rude transport and Most

of the Customer ‘s Computer Without CD CD-ROM disk drive,it is hard to copy the files

from the CD Disk! In addation ,the CD Disk Polluting the environment after used !

Software will be sent to your emails or leave message in aliexpress when you paid!pls contact with our SALES team if you need !

To Customers :

Thanks for your attention to our products.if you have any question ,pls fell free to contact with us !

we will replyed you within 24hours!!!
