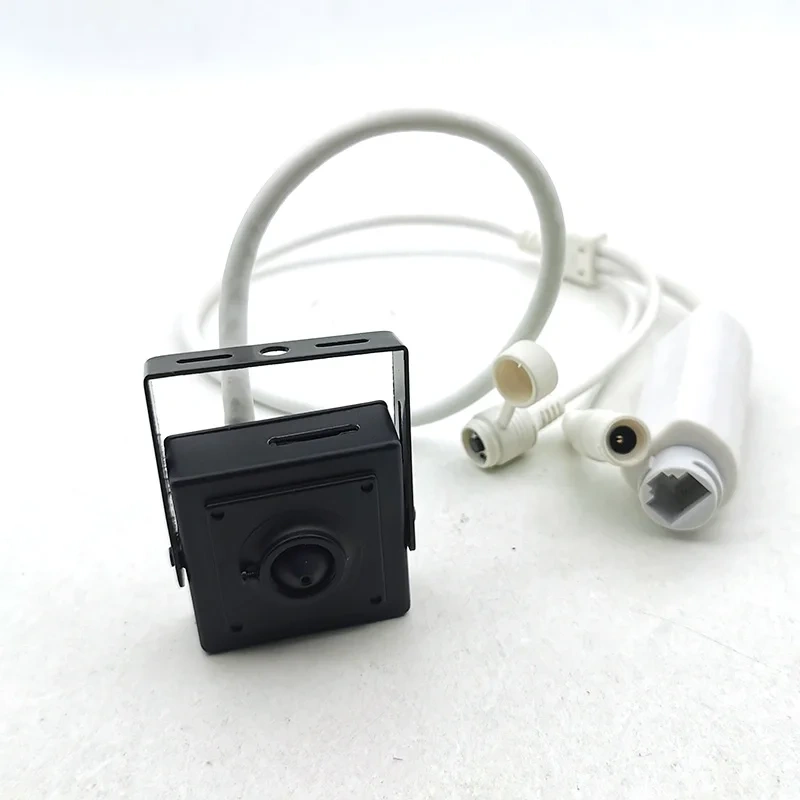

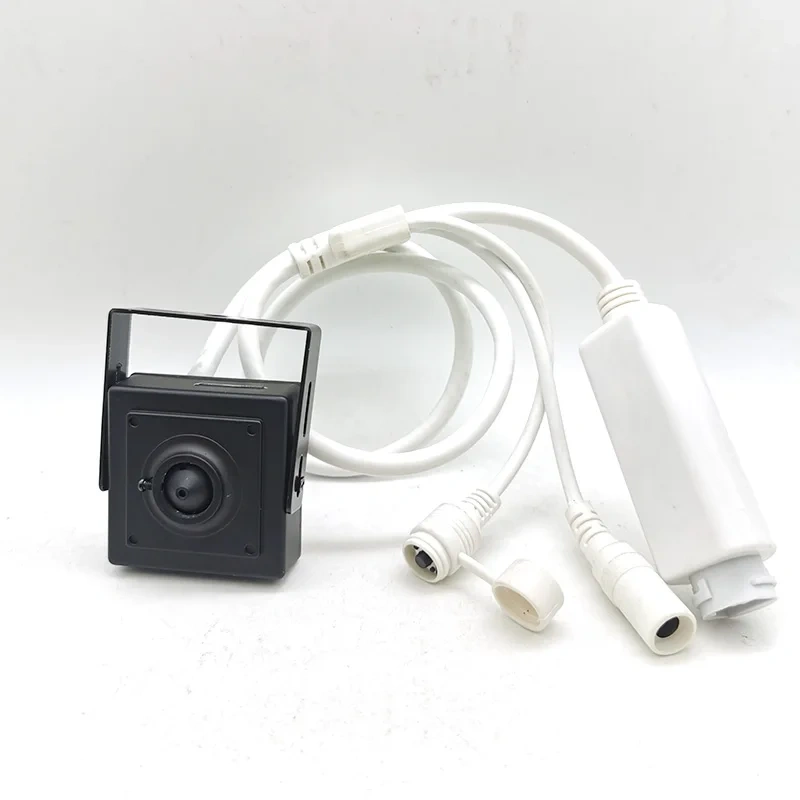

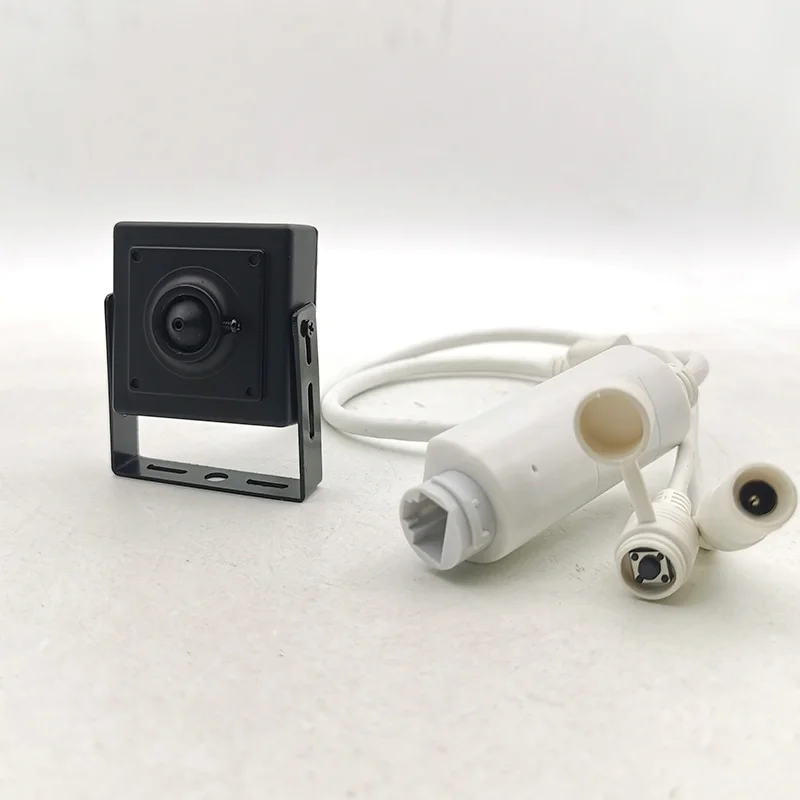

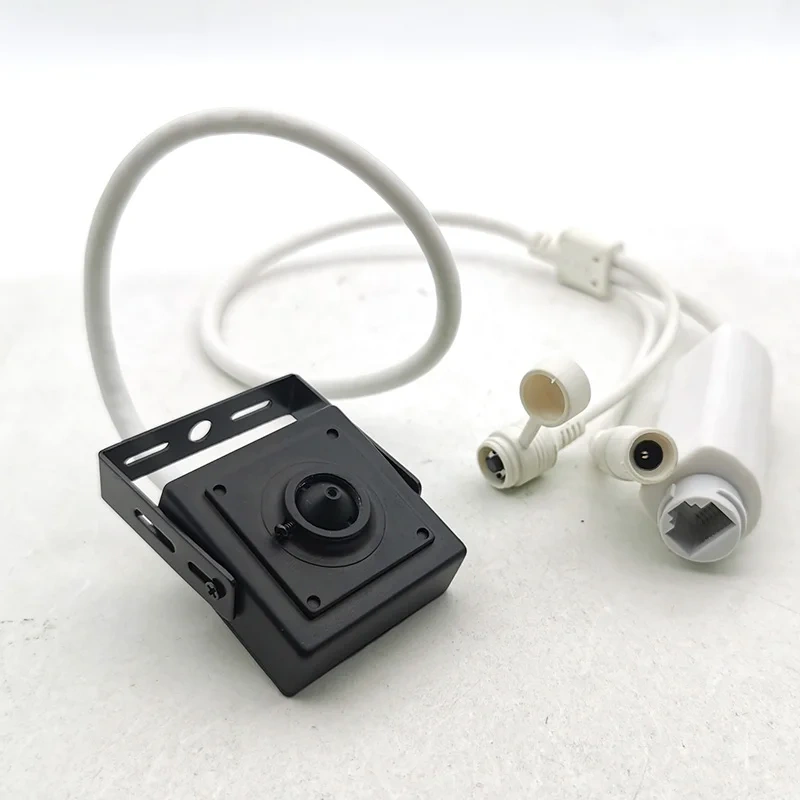

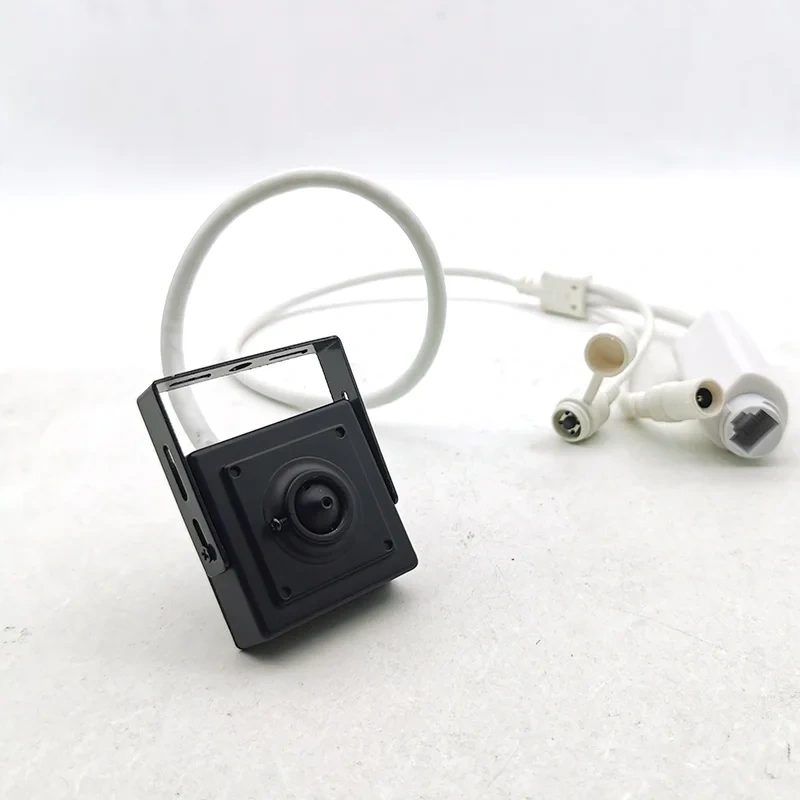

1080P 5MP Video Audio Super HD Security Hidden Mini Network Cctv Camera Covert MINI IP CAMERA POE SD Card Recording IP Camera TF Card Slot
NOTICE:
Regard TF Card support poe mini Pinhole ip camera

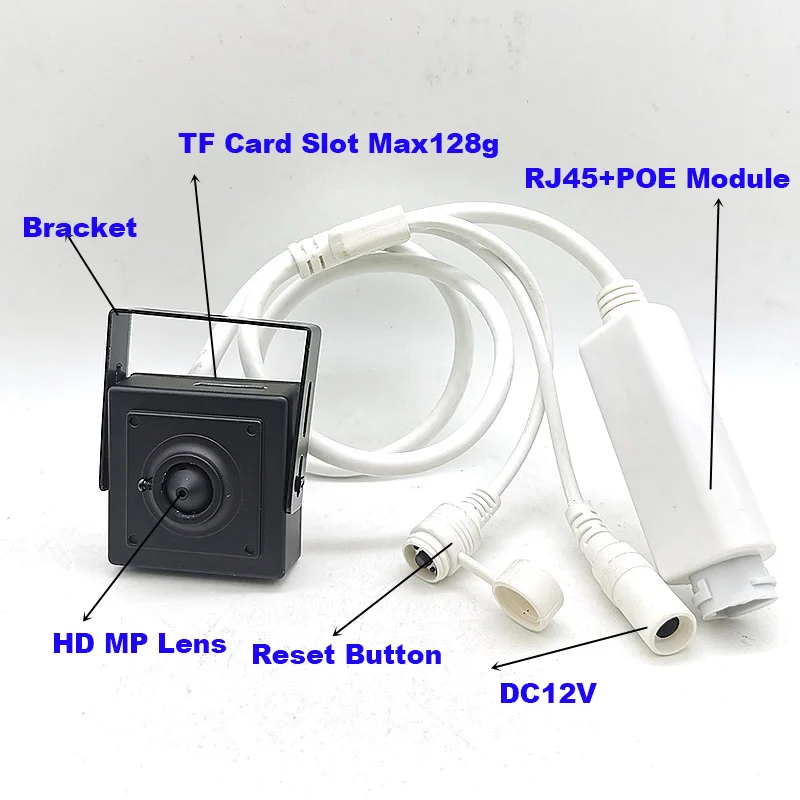

this models have:1xRJ 45 interface ,1x dc12v power+POE Module +Reset Button, build,1x micro sd card slot ! Microphone Build inside
because of mini tf card ip camera , we have different senor&different resoulation !the cost are different all record effect is very good!
H.264 H.265 for 2mp 5mp Megapixels HD resolution
Support both POE connection and wired cable connection
Camera built in memory card slot, Support TF card / micro SD card up to 128G
Support Motion detection Recording and email alarm.
Support send alarm pictures to the e-mail address,
Support upload alarm pictures and videos to the FTP server,
Support record alarm pictures and videos to Micro SD card,
Support alarm mobile phone message push
Support remote view and remote control pan tilt zoom from phone app /PC client at any time and any place
Support playback memory card records from phone app
Built in IR-CUT, Support both day and night vision,
Provide android & ios APP and multi-channel CMS PC client software.
Elegant outline and easy installation.
Phone app :CamHi camhipro
Support QR code login.
Support Plug n Play P2P
Support Onvif 2.0, camera can work with On vif NVR recorder!
Q2: Does it support sd card?
Re: YES, it bulits a sd card slot,you can install a micro SD card to save records.
Q3 Can i watch the camera video from another place remotely? What is the app for phone?
Re: Yes, you can. The phone app named" CamHi". (User ID: admin; Password: admin)
Q4: Can i record the video into SD card or my computer hard disk or i have to use this camera with a recorder NVR?
Re: Yes, you can record video to your Micro sd card / PC hard disk, and you can also use it with a recorder NVR and record it into NVR hard disk. Both are OK!
Q5: Does it support ON VIF?
Re: Yes.
Specifications:
|
Model |
GS-TF240CMP/GS-TF240CP5M |
||||
|
Video |
Sensor |
:2.0megapixel. 1/3CMOS
:5.0megapixel. I1/2.7Low Lux CMOS |
|||
|
Video resolution |
:Main stream: 1920*1080P@20fps, 1280x720@25fps Sub stream: 640x480/640x352@25fps, 320x240/320x176@25fps
Main stream: 2560x1920@20fps, |
||||
|
Video compression |
H.264 OR H.265 |
||||
|
Lens |
3.7MM Lens default , 2.8mm or 4mm or 6mm or 2.5mm optional |
||||
|
View angle |
92degree for 3.7mm |
||||
|
Night vision |
not have |
||||
|
Alarm |
Motion detecting alarm |
Can set 4 independent detection region (1-100 sensitivity can be set) |
|||
|
Alarm linkage |
Alarmsend pictures to the mailbox, |
||||
|
Alarm recording |
Support Micro SD card and PC client linkage alarm recording |
||||
|
Network |
Wireless |
/ |
|||
|
Ethernet |
RJ45 Ethernet+POE Moudle |
||||
|
On vif protocol |
Support ON VIF 2.4(backward compatible) |
||||
|
Storage |
Micro SD card |
Support up to 128G micro SD card |
|||
|
Recording mode |
Alarm record, timing record, |
||||
|
Video playback |
Support APP, IE browser, remote client play and download the video |
||||
|
PTZ |
Audio |
yes, build with mictophone |
|||
|
Horizontal speed |
/ |
||||
|
Vertical speed |
/ |
||||
|
Preset |
/ |
||||
|
General specification |
Power |
DC12V 1A or 48v poe switch |
|||
|
Operating environment |
Environment -20℃~+60℃(-4℉~+140℉), |
||||
|
Shell material |
metal shell |
||||
|
Waterproof level |
not waterproof ,for indoor use |
||||
|
Product size |
40*40*15mm |
||||
|
Product weight |
0.35kg |
||||
|
Package size |
/ |
||||
|
Package weight |
0.5kg |
||||
|
Reset button |
Support |
||||
If the buyer want other size lens please 'Leave Message to Seller' to notify us when bidding.
Simple Instruation:
Thanks for your attention to our products.if you have any question ,pls fell free to contact with us !
we will replyed you within 24hours!!!
Below Lens,some of them can be replaced for different angle view &distance requirement ! pls talk with us whether it is available for the camera !
