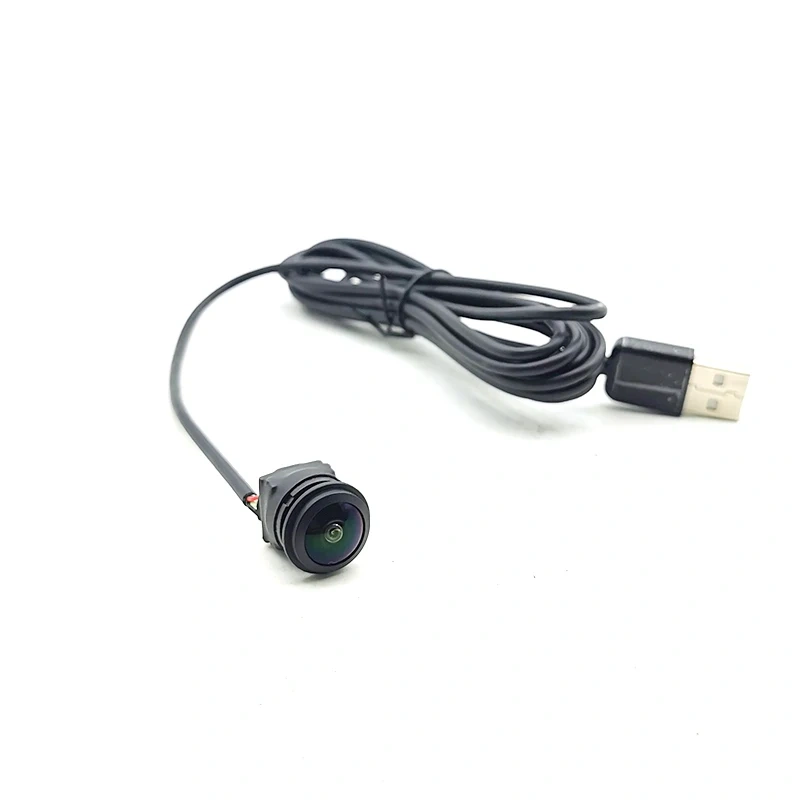

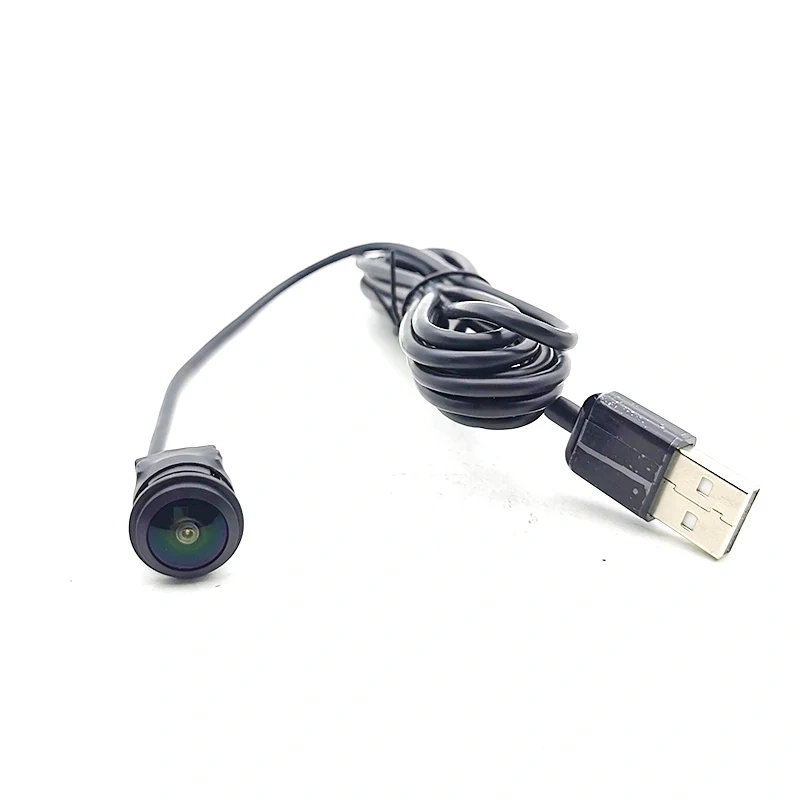

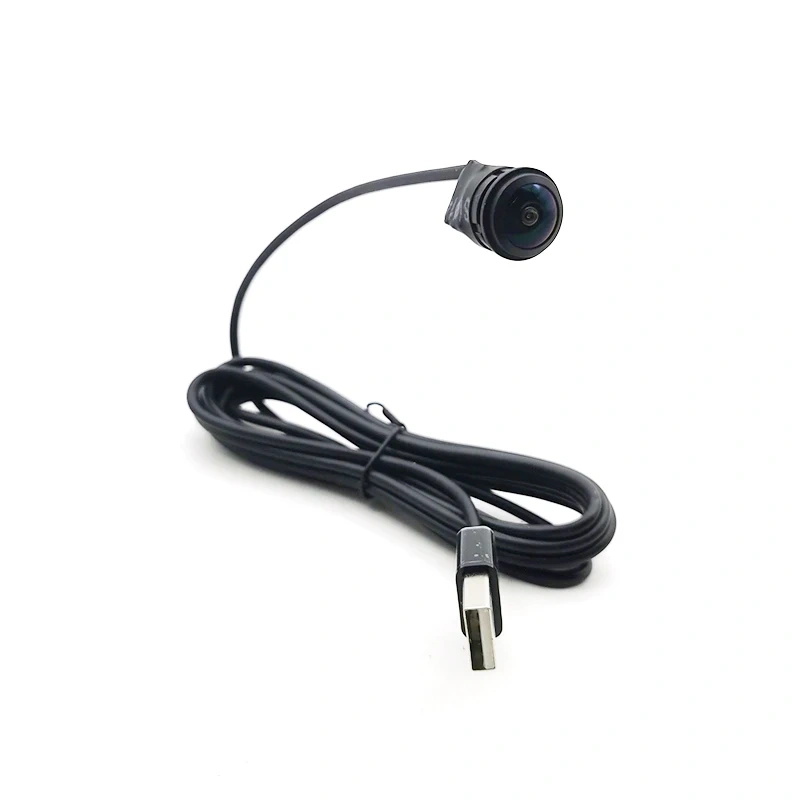

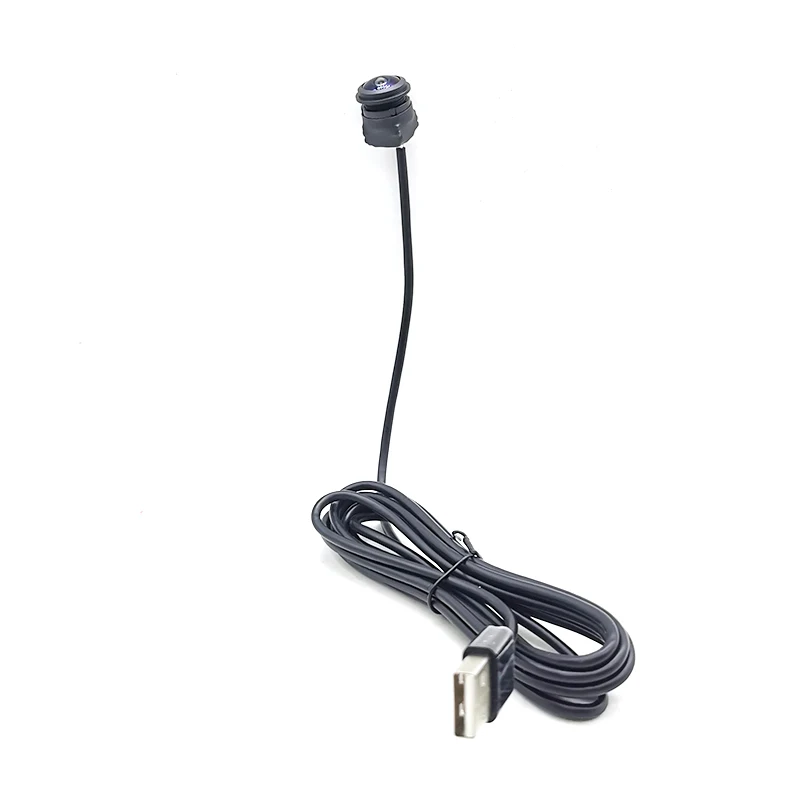

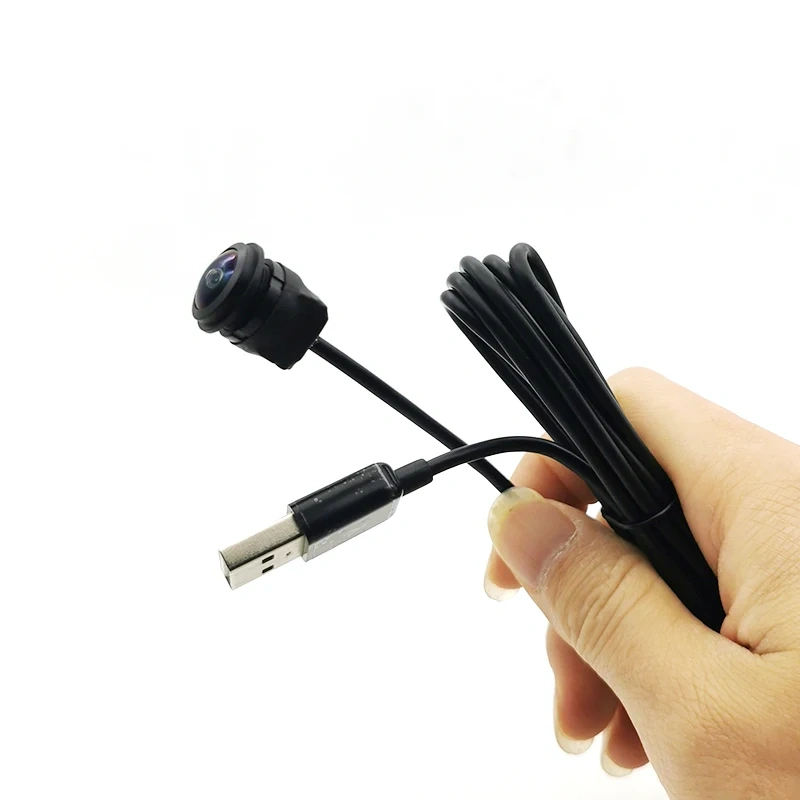

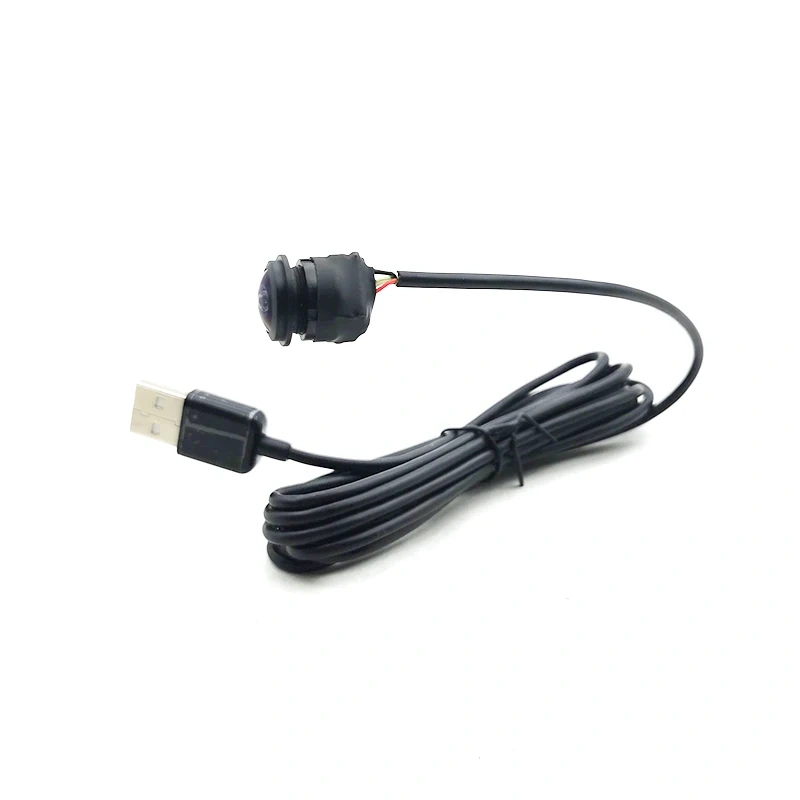

720P 1080P 5MP Super Mini USB Camera Module MJPEG M12 Lens Mount Linux UVC Android Webcam For Machine CCTV Surveillance Diy
Note: 1080P with audio,3M usb cable , the video display in the link is 1.7mm lens 2mp models, 5MP with Audio,720P Without Audio !

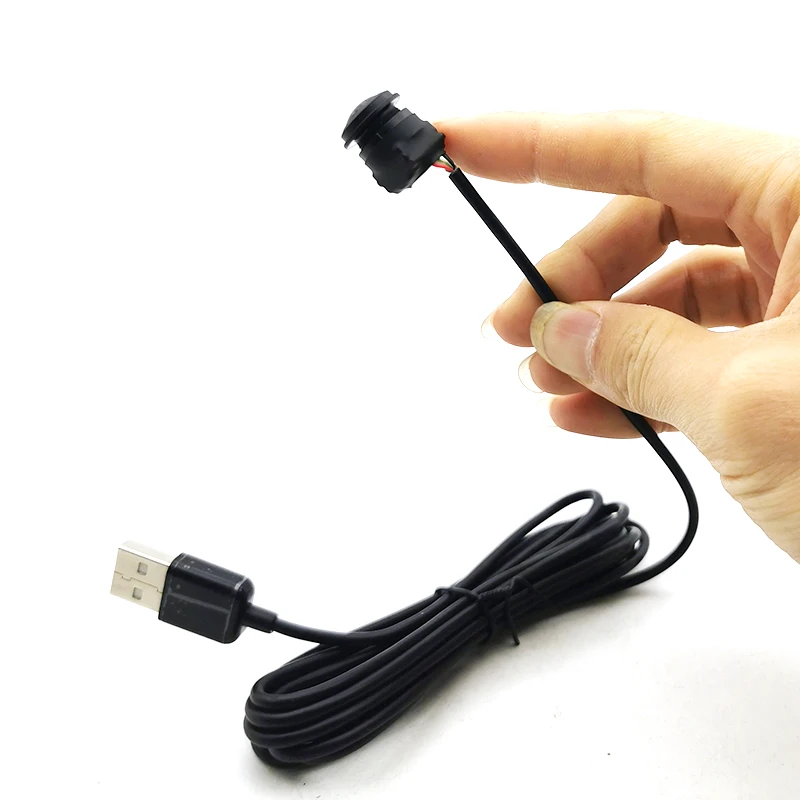

Camera size:14*14*12mm ( not included the Lens Length)

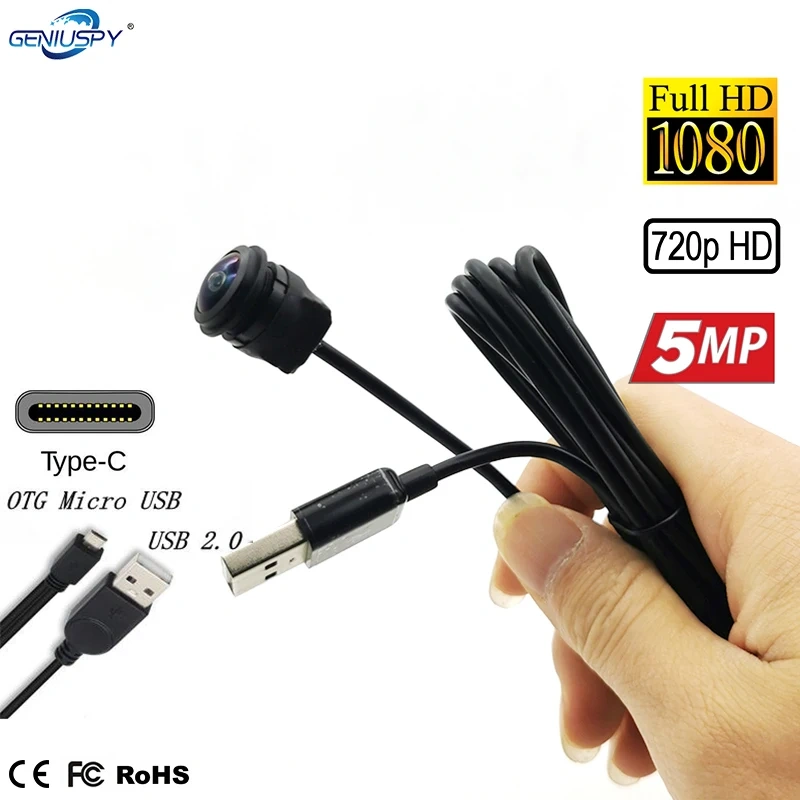

USB2.0 interface default , TYPE-C.OTG Micro Android Interface Optional !
if you need other connector ,pls kindly contact with us for custom made !
These interfaces are optional, please tell me which one you need:
GS-BD14CQB/GS-BD14CMQB/GS-BD14C5MQB
720P Models Specification:GS-BD14CQB
Super mini size
Super light
Different angle lens optional
720P high resolution, image quality is brighter and clearer
No need drive and support Win xp/Win7/Win8/Win10/Android
Where to use
1. Inspecting industrial equipments
2. Assisting medical treatment
3. CCTV
4. Video teaching
5. Vehicle video applications
Detailed Specifications Of The Parameters
Models: GS-BD14CQB
Senor:1/4 hd cmos senor
resoulation:1280*720p
pixel:720P.1.0MP
LUX:0.5LUX
SNR:>=48DB
Gamma:0.45
FPS:30/FPS
White balance:auto
Lens:3.6mm 70degree (depend on lens )
work temperatire:-10-50degree
power dc 5v
amp:80ma
system:windows/Mac/Linux
1080P Models Specification: GS-BD14CMQB
Features:
Small size, Hands free filming
2MP high clearance lens
1080P FULL HD
Free drive
Suitable for multi system equipment
High clearance image
Where to use
1. Inspecting industrial equipments
2. Assisting medical treatment
3. CCTV
4. Video teaching
5. Vehicle video applications
Specification:
Model | GS-BD14CMQB |
Sensor | OV2735 |
Resolution | 1920X1080 |
Lens size | 1/2.7 inch |
Pixel | 1080P |
Line length | 1M/3M |
Formats | MJPG/YUY2 |
Array size | MJPG:1080P 30fps |
Lens Construction | 5G2P |
F/No | F2.1 |
Lens EFL | 3.6mm Around 90° |
Minimum illumination | 0.1LUX |
S/N Ratio | ≥52dB |
Gammar | 0.45 |
Shutter | 30f/s |
White balance | Auto |
Working temperature | -10~+50℃ |
Power | 5V |
AUDIO | Hi-Fi |
Power consumption | 150mA |
Size | 15*15*19mm |
Interface | OTG2.0 MICRO/Type-c/usb 2.0 Interface optional |
operate System | WINXP/WIN7/WIN8/Linux/Android |
Package contents:
1 x Camera, 1 x English User Manual,
5MP Models Specification:GS-BD14C5MQB
