38*39m WIFI 6 3G 4G Module for IP Camera PCB Board Router Wifi AP Cctv AF790 SIM Card Monitoring Mainboard Surveillance

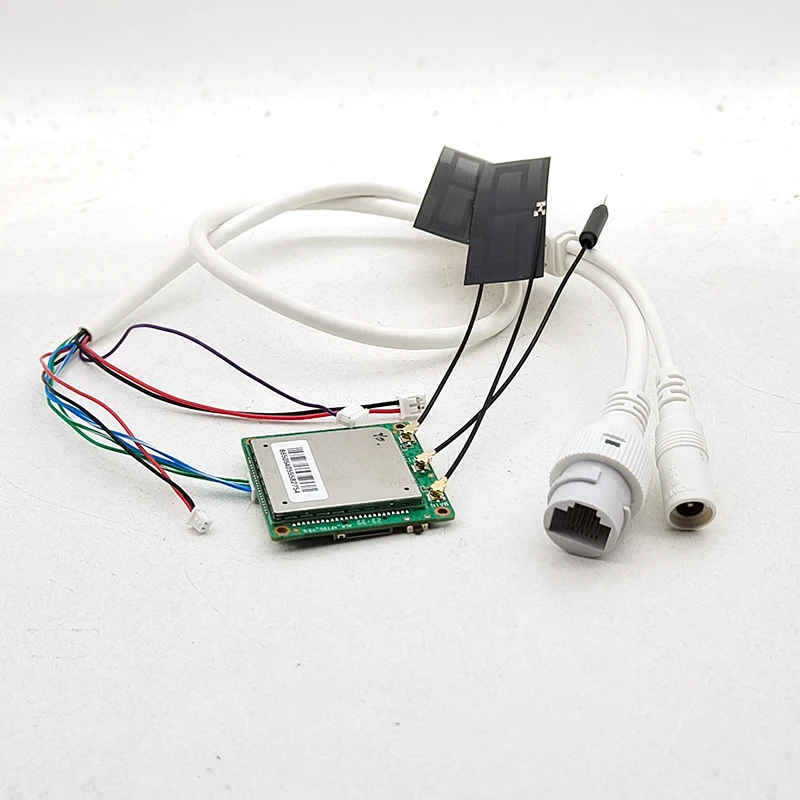

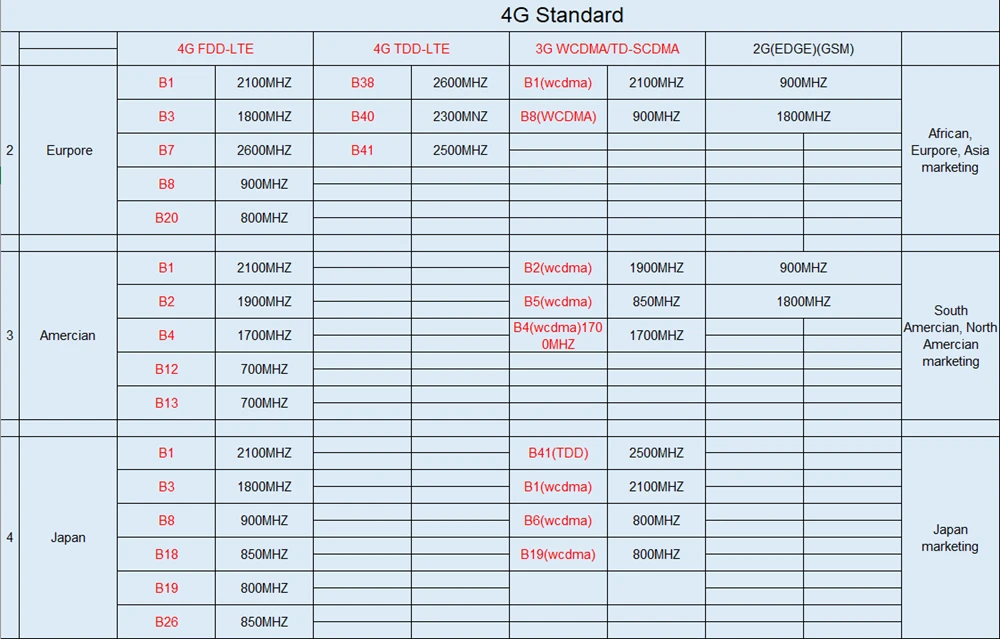

NOTICE: Before purchasing, please know that the sku we listed only the EU version4G Module for camera ,not including camera , just accessory ! Pls select the version according the frequency channel in your country , so it can work your country sim card ! EU Version Module as pictures below:   EU Version Module Add Cable package list included: 1pcs 4g module.3pcs 4g antenna .1pcs network cable (rj45 port+dc12v port) pls check pictures below:

4G module (default)
Gateway IP:192.168.100.1
User name:admin
Password:admin
AP hot name:MIFI_XXXX
Password:1234567890


Matters needing attention:
1. Wear anti-static bracelet or gloves before work
2. Please wiring in order
3. The USB interface is similar to the NIC interface, so please follow the illustration,so as not to burn down the settings
4.12V power interface, positive and negative pole should not connect in a wrong way
5. Chip burn, no warranty

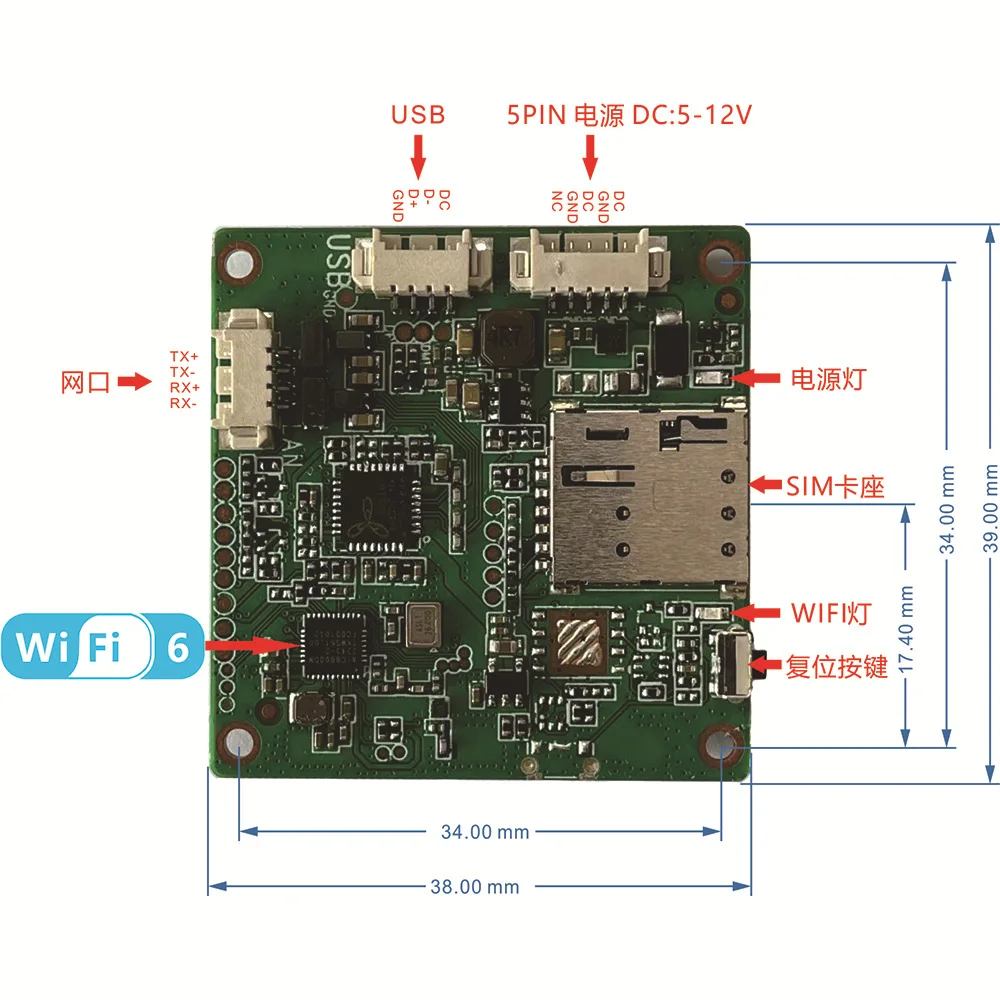

Connection mode:
USB couplet (need drive support)
LAN port couplet
Wireless WIF couplet

Industrial 4G module
Support 4G/3G/2G+Wi-Fi wireless access
4G wireless transmission rate up to 150Mbps
Can support 8 users accessing WIFI hotspots

Application field:
Security industry (video surveillance)
Self-help terminal equipment
Intelligent express cabinet
Public bicycle
 Intelligent Industry Control
Smart Home
Citroen connect
Handheld law enforcement terminal
Acquisition equipment
Industrial router
3C product
Intelligent charging pile
