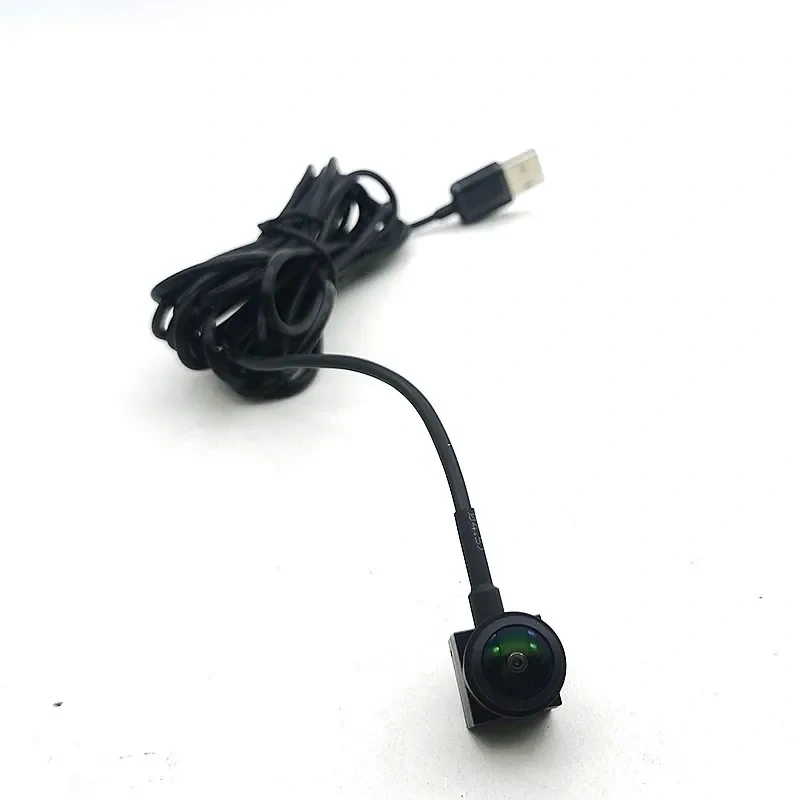

1MP 720P 2MP 1080P 4K 8MP 160Degree Wide Angle Full HD Micro Type-C Camera UVC Mini CCTV OTG Android Webcam Audio for Industry

1MP 720P 2MP 1080P 4K 8MP 160Degree Wide Angle Full HD Micro Type-C Camera UVC Mini CCTV OTG Android Webcam Audio for Industry

Note: 1080P with audio , the video display in the link is 1.7mm lens  2mp ,160DEGREE

1MP OR 8MP angle view less than 160degree ,because senor is 1/4 inch and 1/3.2inch 8mp

if you need other connector ,pls kindly contact with us for custom made !

Note:720P USB Camera without audio! If you need audio ,Please choose 1080P or 8mp!!!

720P /1080P/8MP USB2.0  Cable length  2meters default

720P /1080P/8MP TYPE-C  Cable length  1meters default



NOTE: Before purchasing this camera, please confirm whether your phone supports OTG function to avoid unnecessary losses

(For those who require OTG Micro USB interface, please contact customer service or note in your order,Thank you !)

real effect !!!

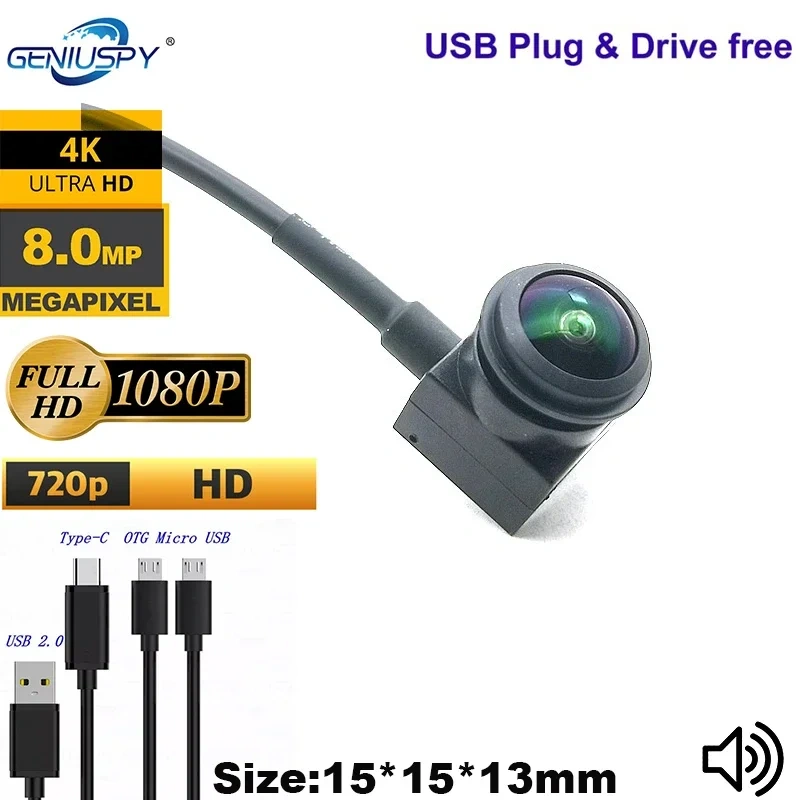

These interfaces are optional, please place orders which one you need:

This camera is a 2.0 megapixel size 1920*1080 pixel 1080P HD USB-2.0-free drive camera module, frame rate up to 30 frames. It can be used for one computer, advertising equipment, video doorbell, can meet the high demands of customers!



Feature:

HD 1080P USB camera module

Synchronization technology

High speed USB 2.0 interface

High quality image

Low power consumption

Small outline for embedded application

UVC compliance for use in OS Windows,Linux,Android,Mac





Typical application

1: ATM,Kiosk,POS,TV box2: advertising cameras3: one camera4: Smart TV built-in camera

5: Construction Equipment6: Banking equipment7: body switch8: Scanner

9: a mobile terminal device10: Medical diagnostic image acquisition11: fingerprints, palm prints image acquisition

12:video door phone13:HD surveillance



Remarks:

1: Use the USB cable wire into the computer, notebooks and other USB interface will be able to use!

2: inserted as computers, laptops can not be used, indicating that there is no drive in accordance with the camera.

3: This product is equipped with a USB cable.



Typical application

1: ATM,Kiosk,POS,TV box          2: advertising cameras        3: one camera         4: Smart TV built-in camera

5: Construction Equipment         6: Banking equipment          7: body switch          8: Scanner

9: a mobile terminal device        10: Medical diagnostic image acquisition            11: fingerprints, palm prints image acquisition

12:video door phone                  13:HD surveillance



Parameter description:

SLens Size:1/2.7 inch

Pixel size: 3um

Maximum effective pixels: 1920 (H) X1080 (V)

Output image format: YUV2 (YUYV) / MJPEG

Frame rate:640X480 @ 30fps MJPEG,1280X720 @ 30fps MJPEG,1920X1080 @ 30fps MJPEG

YUV2,640X480 @ 20fps YUV2,1280X720 @ 5fps YUV2,1920X1080 @ 5fps YUV2

Signal to noise ratio: 60dB

Dynamic range: 69dB

Sensitivity: 3.3V/lux-sec@550nm

Minimum illumination: 0.01LUX

Shutter type: Electronic rolling Frame shutter/ exposure

Interface type: USB2.0 High Speed

Support free flooding protocol: USB Video Class (UVC)

Support OTG protocol: USB2.0 OTG

Automatic exposure control AEC: support

Automatic white balance AEB: support

Automatic gain control AGC: support

Adjustable parameters: brightness contrast color saturation hue resolution

The gamma exposure contrast gain white balance backlighting

Power supply: USB BUS 4P-2.0mm POWER socket

Working voltage: DC5V

Working current: 140mA~220mA

Working temperature: 0 ~ 60

Storage temperature: -20 ~ 70 C

Board size: 15X15mm

Machine weight: 50g

Supported system: WinXP/Vista/Win7/Win8/Linux with UVC (above linux-2.6.26)/MAC-OS X 10.4.8 or later

/Wince with UVC/Android 4 or with above UVC

Lens: 1.7MM

Angle: 160degrees

Line length:2M Cable



Main Features:
Mini web camera, usb plug and play camera
Full hd 720P/ 1080P high quality image mini camera
Wire length: 2 meters
3.6mm prime lens Angle: approximately 90 degrees
3.7mm prime lens Angle: about 90 degrees
Drive: Drive free
USB port: USB 2.0 (type-c and Micro port optional)
1MP frame rate: 30fps
2MP Frame rate: 30fps
8MP frame rate: 15fps
Camera length and width: 15*15mm
Audio: 2MP 8MP Built-in microphone, 1MP does not support microphone

Product Description:

Sensor: So ny IMX179

Lens Size: 1/3.2inch

Pixel size: 1.4um

Image area: 6.18mm x 5.85mm

The most effective pixel: 3264(H) X 2448(V) 800MP pixels

Output image format: MJPEG

Supported resolution and frame rate:

3264X2448 @ 15fps / 2592X1944@ 15fps



1920x1080 @ 30fps / 1600X1200@ 30fps

1280X720 @ 30fps / 960X540@ 30fps

848X480 @ 30fps / 640X480@ 30fps
424X240 @ 30fps / 320X180 @30fps

Signal to noise ratio: 34dB

Dynamic range: 72.5dB

Sensitivity: 0.65V/lux-sec@550nm

Minimum illumination: 0.5lux

Shutter type: Electronic rolling shutter / Frame exposure

Interface type: USB2.0 High Speed

Support free drive protocol: USB Video Class (UVC)

Support OTG protocol: USB2.0 OTG

Automatic exposure control AEC: Support

Automatic white balance AEB: Support

Automatic gain control AGC: support

Button camera: support

Adjustable parameters: brightness, contrast, color saturation, hue, clarity

Lens parameters: with no distortion lens

Power supply mode: USB BUS POWER 4P-2.0mm socket

Working voltage: DC 5V

Working current: 160mA~260mA

Working temperature: -10～70℃

Supported systems:

WinXP/Vista/Win7/Win8

Linux with UVC (above linux-2.6.26)

MAC-OS X 10.4.8 or later

Wince with UVC

Android 4.0 or above with UVC





Real case:
