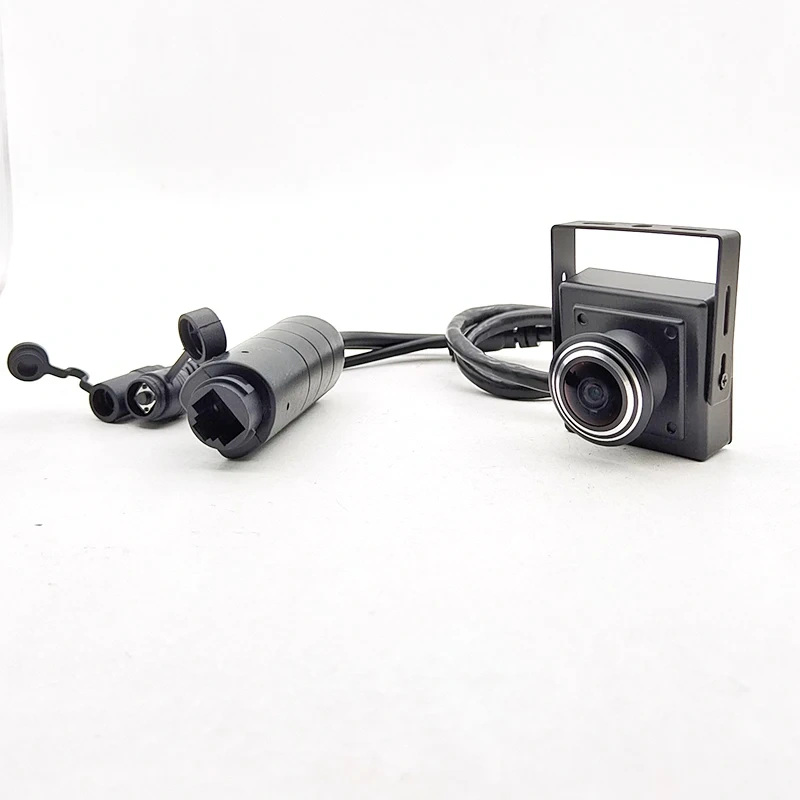

180degree Wide Angle Fisheye 1.66MM 1.78mm Security Micro Camhi RTSP 2MP 4MP 5MP POE Mini IP Wifi Camera TF Card Slot IP Cam Mic
attenation:
Regard TF Card support mini wifi poe ip camera

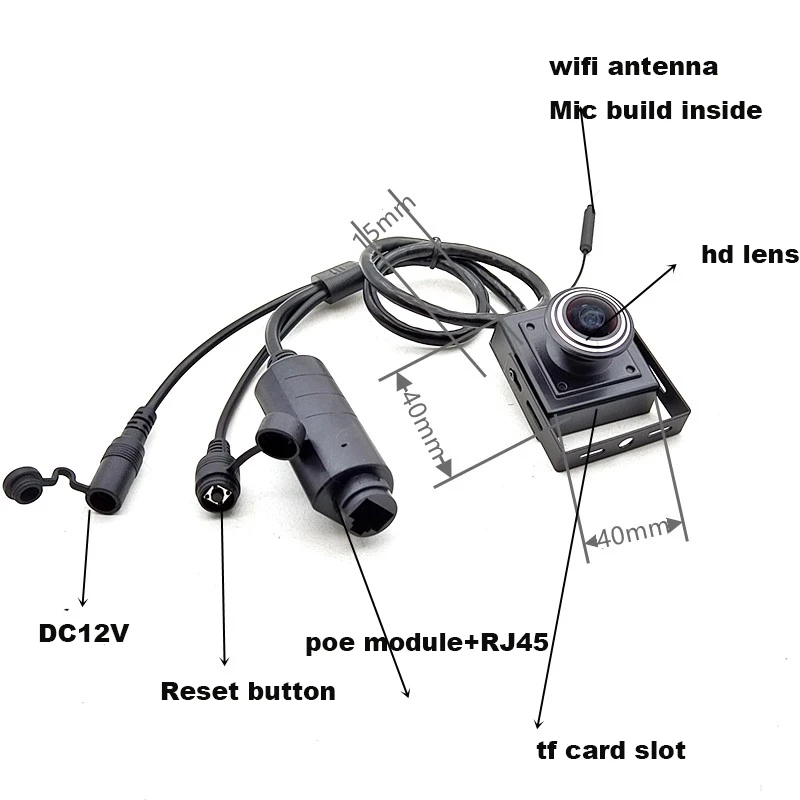

this models have:1xRJ 45 interface+poe module ,1x dc12v ,1x micro sd card slot ,1xreset button
because of mini tf card ip camera , we have different senor&different resoulation !the cost are different all record effect is very good!
NOTICE:
if you have other requirement ,welcome contact with us free !

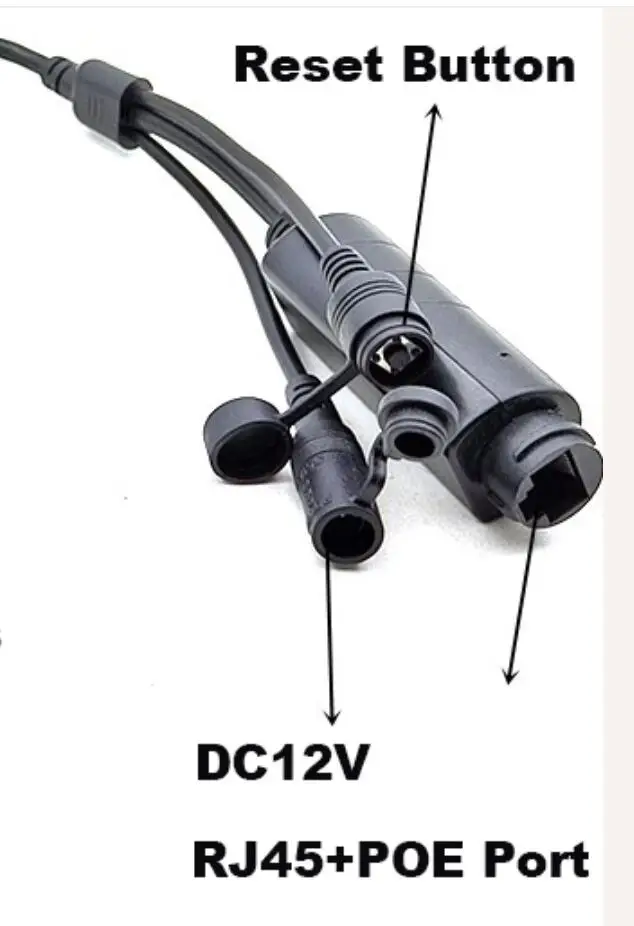

POE Cable pictures as below:
Features:
H.264 H.265 for 2mp 3mp 5mp Megapixels HD resolution
Support both WiFi connection and wired cable POE connection
Support Acess Point (AP WiFi) connection, you can connect camera by AP mode and live view / playback/ control pan tilt zoom even without internet
Camera built in memory card slot, Support TF card / micro SD card up to 128G
Support Motion detection Recording and email alarm.
Support send alarm pictures to the e-mail address,
Support upload alarm pictures and videos to the FTP server,
Support record alarm pictures and videos to Micro SD card,
Support alarm mobile phone message push
Support remote view and remote control pan tilt zoom from phone app /PC client at any time and any place
Support playback memory card records from phone app
Provide android & ios APP and multi-channel CMS PC client software.
Elegant outline and easy installation.
Phone app :CamHi camhipro
Support QR code login.
Support Plug n Play P2P
Support On vif 2.0, camera can work with On vif NVR recorder!
Q1: Is it wifi camera?
Re: Yes, it is wireless ip camera with wifi antenna.
Q2: Does it support sd card?
Re: YES, it bulits a sd card slot,you can install a micro SD card to save records.
Q3 Can i watch the camera video from another place remotely? What is the app for phone?
Re: Yes, you can. The phone app named" CamHi". (User ID: admin; Password: admin)
Q4: Can i record the video into SD card or my computer hard disk or i have to use this camera with a recorder NVR?
Re: Yes, you can record video to your Micro sd card / PC hard disk, and you can also use it with a recorder NVR and record it into NVR hard disk. Both are OK!
Q5: Does it support ON VIF?
Re: Yes.
2. Specifications
Model | GS-TFW240CMFA-POE/GS-TFW240C4MFA-POE/GS-TFW240C5MFA-POE | |
Video | Sensor | GS-TFW240C5MFA-POE :5.0megapixel. Low Lux CMOS. GS-TFW240C4MFA-POE :4.0megapixel GS-TFW240CMFA-POE :2.0 megapixel 1/2.7" CMOS GC2083 |
Video resolution | GS-TFW240C5MFA-POE: Main stream: 2560x1920@15fps, 2560x1440@15fps GS-TFW240CMFA-POE :Main stream: 1920x1080@20fps, 1280x720@25fps Sub stream: 640x352@25fps, 320x176@25fps | |
Video compression | H.264 H.265 | |
Lens | 1.66mm/1.78mm/2,1mm optional | |
View angle | based on lens | |
Audio | Audio compression | G.726/G.711 |
Audio code rate | Rate adaptive | |
Audio input | Not support audio | |
Alarm | Motion detecting alarm | Can set 4 independent detection region (1-100 sensitivity can be set) |
Alarm linkage | Alarm send pictures to the mailbox, | |
Alarm recording | Support Micro SD card and PC client linkage alarm recording | |
Network | Wireless | IEEE 802.11 b/g/n |
Ethernet | RJ45 Ethernet | |
On vif protocol | Support ON VIF 2.4(backward compatible) | |
Storage | Micro SD card | Support up to 128G micro SD card max |
Recording mode | Alarm record, timing record, | |
Video playback | Support APP, IE browser, remote client play and download the video | |
General specification | Power | DC12V 1A/2a |
Operating environment | Environment -20℃~+60℃(-4℉~+140℉), | |
Product size | 40*40 | |
Product weight | 0.35kg | |
IR Night vision | n/a | |
Package weight | 0.5kg | |
Reset button | Support | |
If the buyer want other size lens please 'Leave Message to Seller' to notify us when bidding.
Thanks for your attention to our products.if you have any question ,pls fell free to contact with us !
we will replyed you within 24hours!!!
Below Lens,some of them can be replaced for different angle view &distance requirement ! pls talk with us whether it is available for the camera !
