15*15mm HD 2.0MP 4K 8MP IMX179 UVC CCTV Mini Security Portable Type-C Android Webcam USB Mini Surveillance Camera With Audio
Note:
1080P/8MP USB2.0 Cable length 2meters default
1080P/8MP TYPE-C Cable length 1meters default
1080P/8MP OTG Micro usb Cable length 1meters default
Note:This Camera not apply to all the Android Phone and Computer System.PLS make sure your phone support otg function and UVC ,
The compatible Phone and Computer System please refer to the following list :Please note that your phone must support OTG and UVC camera function, Android system above.
Statement:The Mini product is only used for small space equipment. Forbidden To Be Used For Personal Eavesdropping And Taking Pictures.
Main Features:

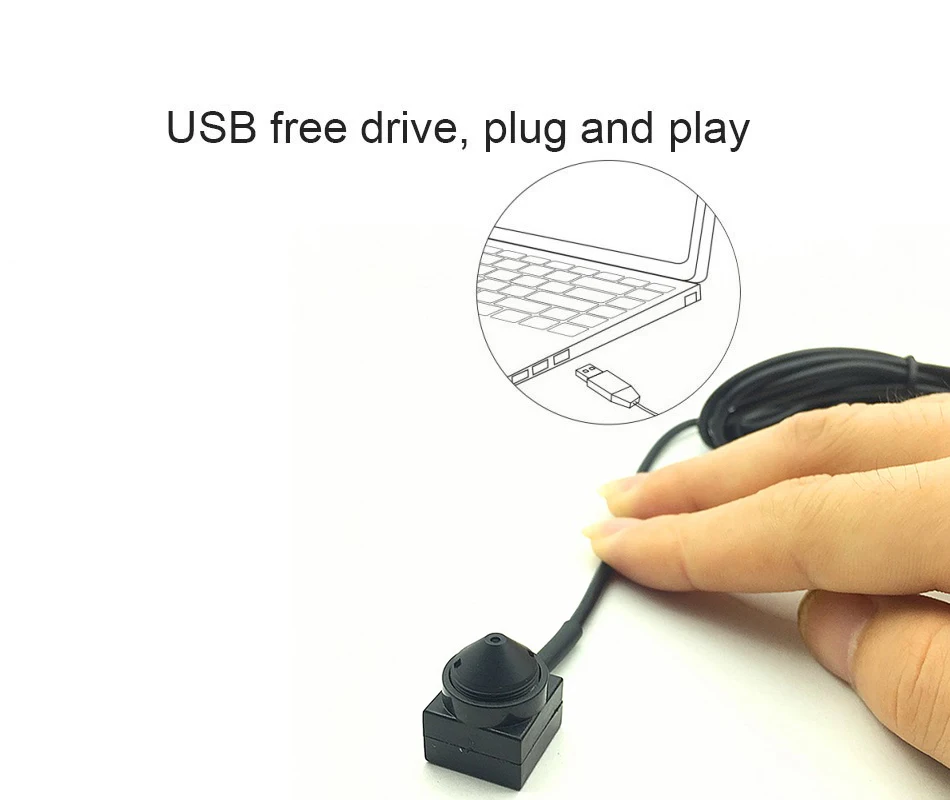

Mini web camera, usb plug and play camera
Full hd 720P/ 1080P high quality image mini camera
Wire length: 2 meters
3.6mm prime lens Angle: approximately 90 degrees
3.7mm prime lens Angle: about 90 degrees
Drive: Drive free
USB port: USB 2.0 (type-c and Micro port optional)
1MP frame rate: 30fps
2MP Frame rate: 30fps
8MP frame rate: 15fps
Camera length and width: 15*15mm
Audio: 2MP 8MP Built-in microphone, 1MP does not support microphone
Product Description:
Sensor: So ny IMX179
Lens Size: 1/3.2inch
Pixel size: 1.4um
Image area: 6.18mm x 5.85mm
The most effective pixel: 3264(H) X 2448(V) 800MP pixels
Output image format: MJPEG
Supported resolution and frame rate:
3264X2448 @ 15fps / 2592X1944@ 15fps
1920x1080 @ 30fps / 1600X1200@ 30fps
1280X720 @ 30fps / 960X540@ 30fps
848X480 @ 30fps / 640X480@ 30fps
424X240 @ 30fps / 320X180 @30fps
Signal to noise ratio: 34dB
Dynamic range: 72.5dB
Sensitivity: 0.65V/lux-sec@550nm
Minimum illumination: 0.5lux
Shutter type: Electronic rolling shutter / Frame exposure
Interface type: USB2.0 High Speed
Support free drive protocol: USB Video Class (UVC)
Support OTG protocol: USB2.0 OTG
Automatic exposure control AEC: Support
Automatic white balance AEB: Support
Automatic gain control AGC: support
Button camera: support
Adjustable parameters: brightness, contrast, color saturation, hue, clarity
Lens parameters: with no distortion lens
Power supply mode: USB BUS POWER 4P-2.0mm socket
Working voltage: DC 5V
Working current: 160mA~260mA
Working temperature: -10～70℃
Supported systems:
WinXP/Vista/Win7/Win8
Linux with UVC (above linux-2.6.26)
MAC-OS X 10.4.8 or later
Wince with UVC
Android 4.0 or above with UVC

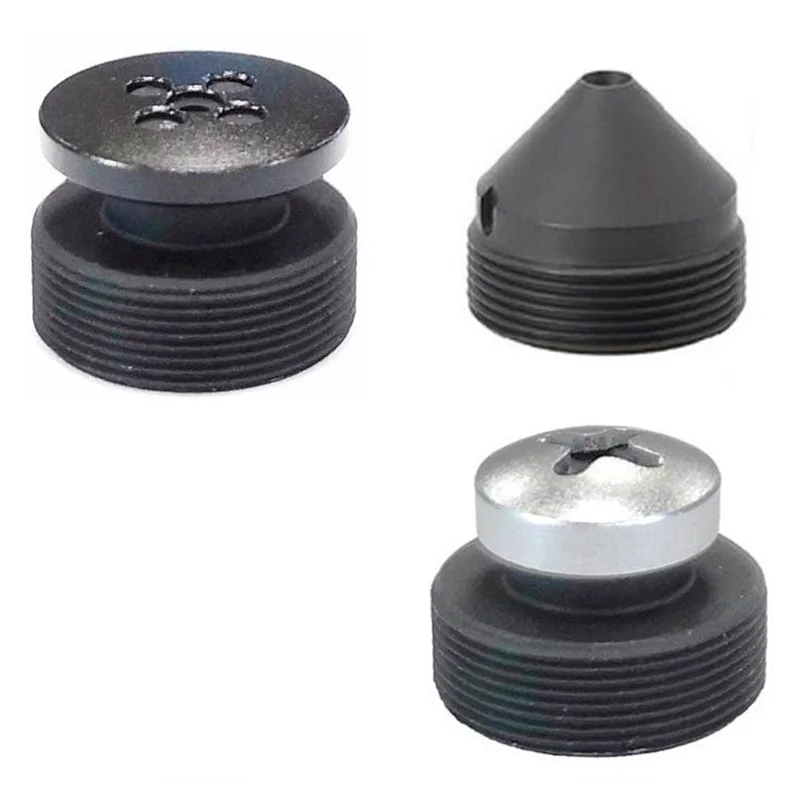

Optional lens is as follows, please write to me if you need it
Package contents:
1 x Camera 1 x English User Manual
Package contents:
1 x Camera 1 x English User Manual
