Name: 12x12*1mm 720P 1MP 2MP 1080P 4MP 2K 8MP 4K Smallest Size UVC Micro Usb Camera Module With PHR-4 Interface For Medical And Industry
Brand: Mini USB Camera Mini Camera IP Camera Camhi Camera Factory
SKU: GS-N12MTC/GS-N12MTCM/GS-N12MTC4M/GS-N12MTC8M
Price: 22.00 USD
Availability: InStock
Rating: 5 (1 reviews)

Description

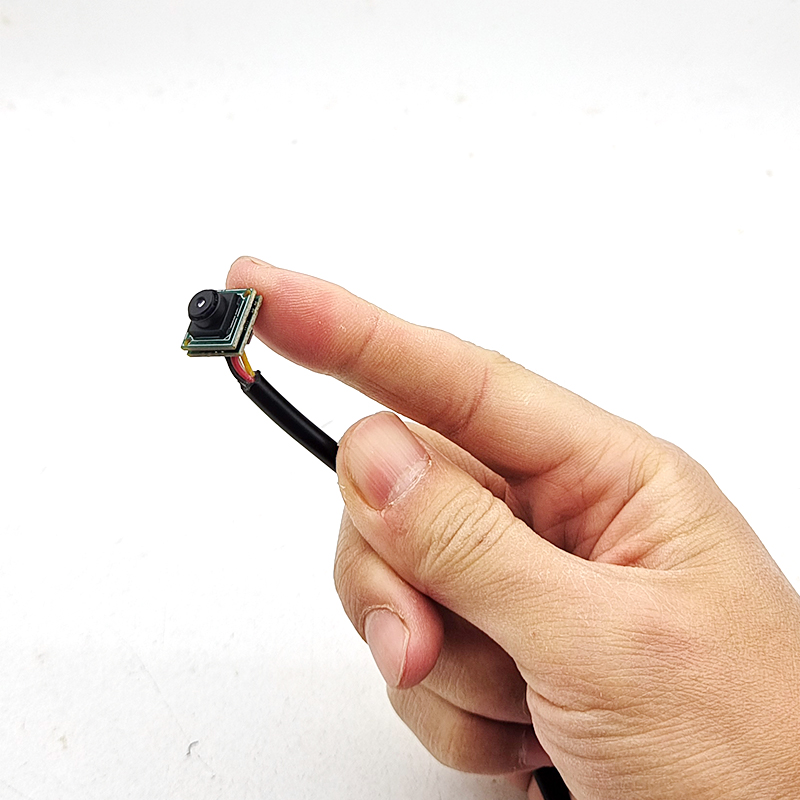

12x12*1mm 720P 1MP 2MP 1080P 4MP 2K 8MP 4K Smallest Size UVC Micro Usb Camera Module With PHR-4 Interface For Medical And Industry

Note:,1MP NOT have audio Camera support all windows ,MAC ,linux , UVC
2mp/4mp/8mp support audio function

Default interface is:PHR-4

for more products infomation ,pls go to our store page !

if you have other requirement ,welcome contact with us free for custom made !

Advantages

Small size, Hands free filming
5MP high clearance lens
Free drive
Suitable for multi system equipment
High clearance image
Non-light night monitoring

Specification:

Model	GS-N12MTC/GS-N12MTCM/GS-N12MTC4M/GS-N12MTC8M
Sensor	1/4/2.9inch
Resolution	720p/2mp/4mp/8mp
Lens size	/1.4 INCH
Pixel	8mp /4mp/2mp/1mp

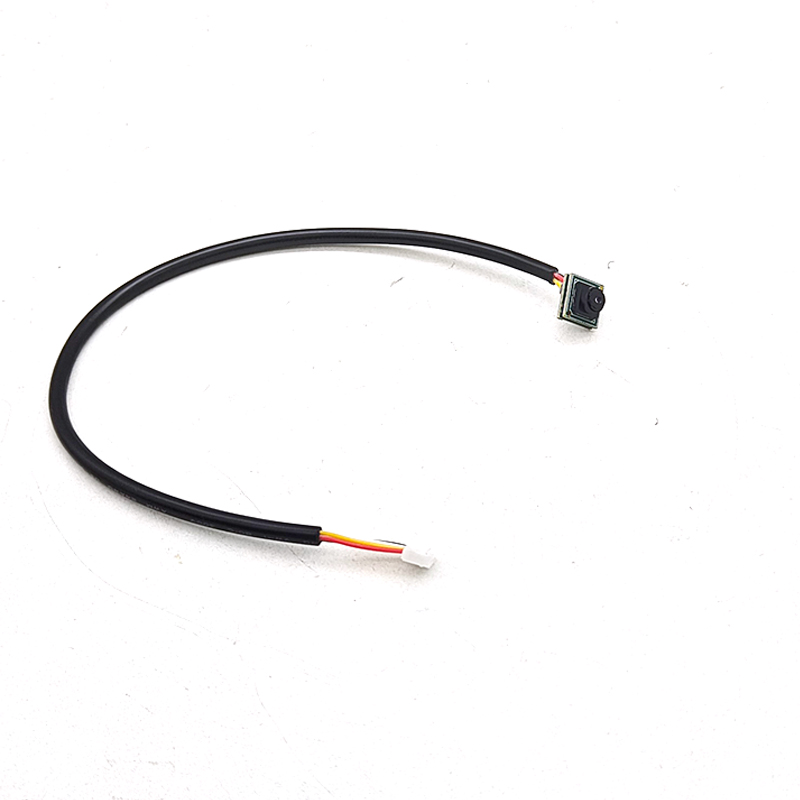

Line length	1M
Formats	MJPEG

Array size	MJPEG:720P 30fps/4mp 30fps , 1080p 30fps , 8mp 15fps
Lens Construction	5G2P
F/No	F2.1
Lens EFL	85
Minimum illumination	0.5LUX
S/N Ratio	≥48dB
Gammar	0.45
Shutter	30f/s
White balance	Auto
Working temperature	-10~+50℃
Power	5V
Power consumption	90mA
Size	12121mm

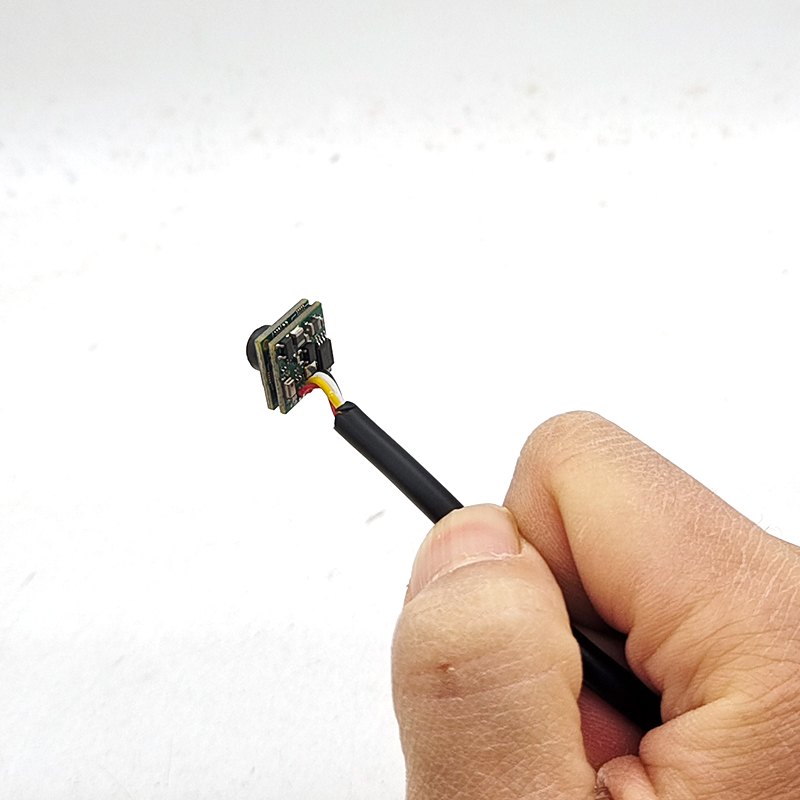

Interface	phr-4 4 pin interface
System	WINXP/WIN7/WIN8/Linux/Android

Package contents:

1 x Camera 1 x English User Manual.1x bracket
