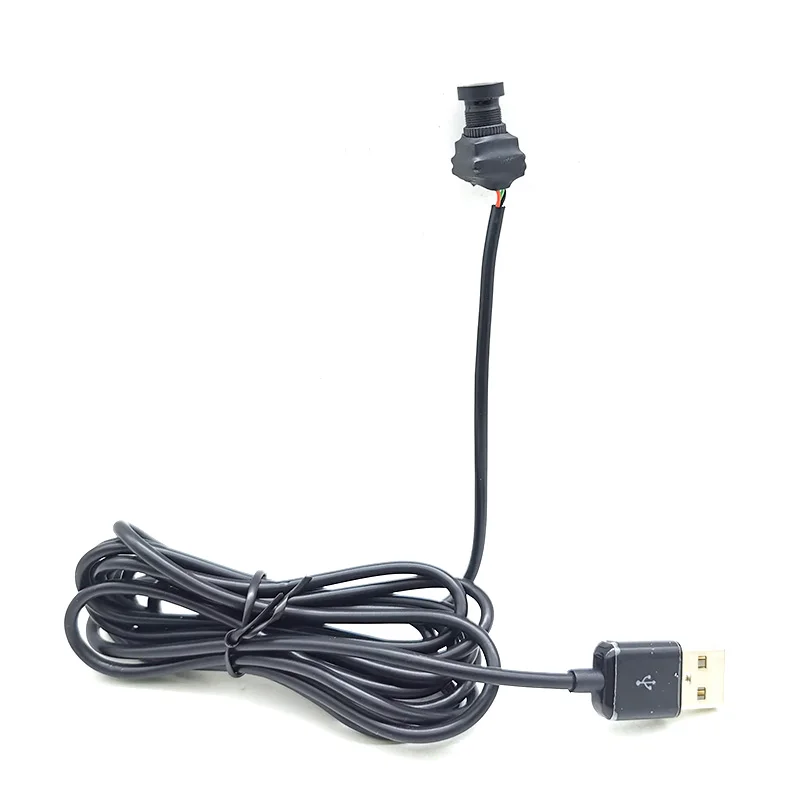

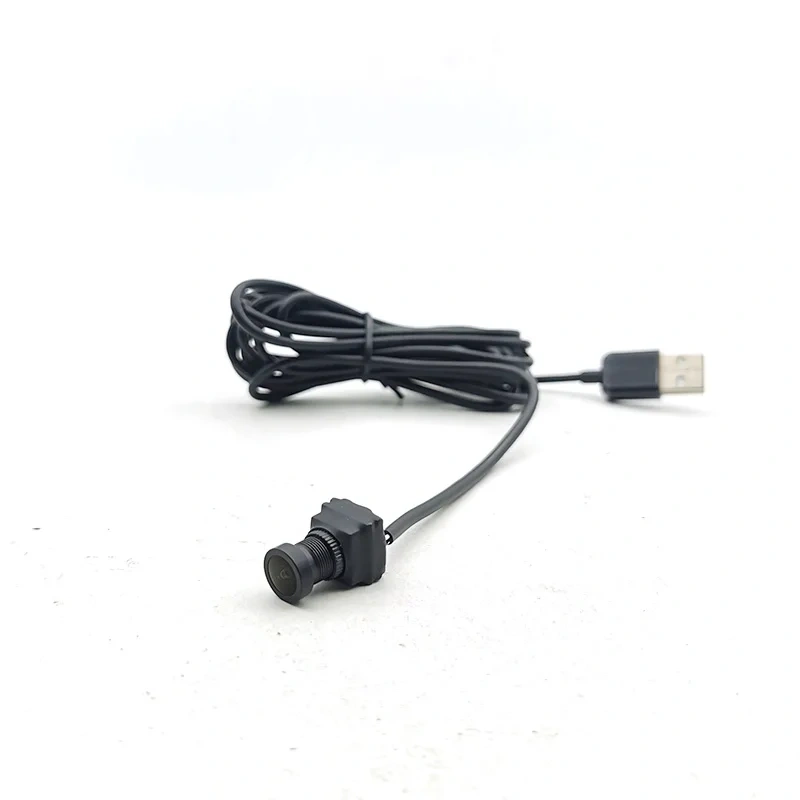

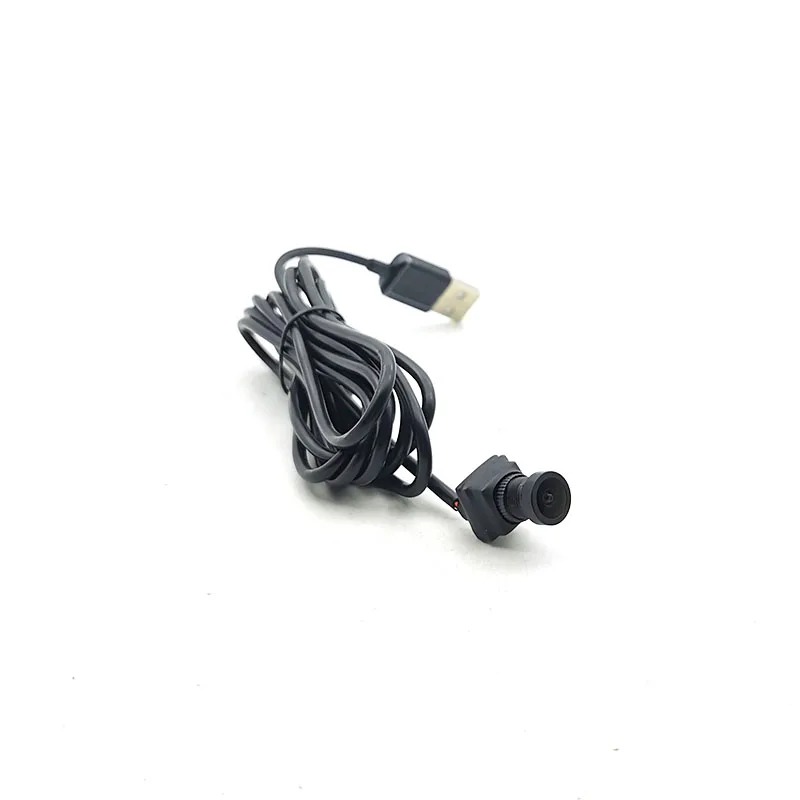

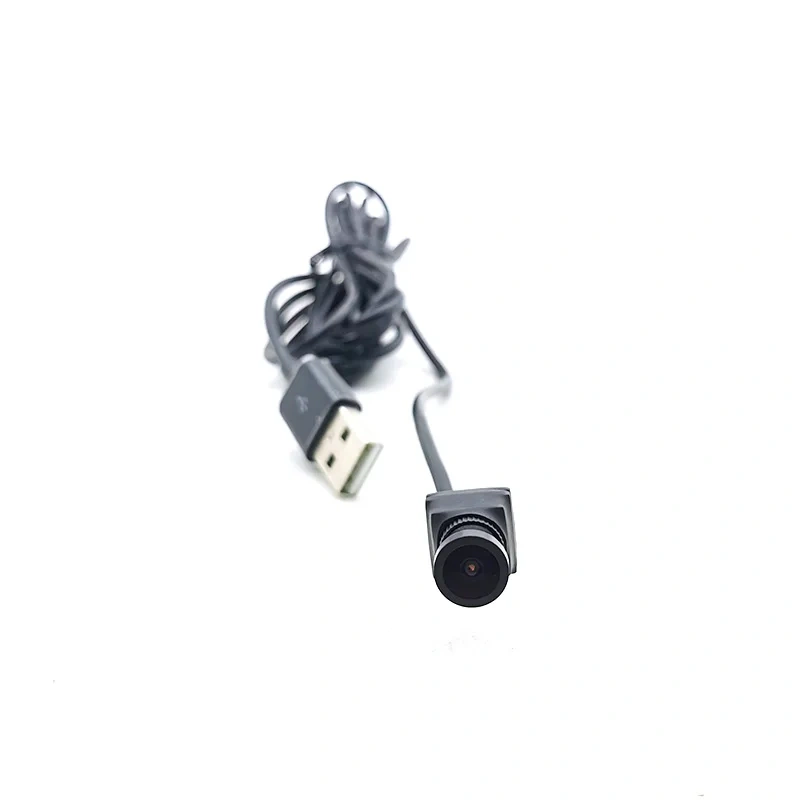

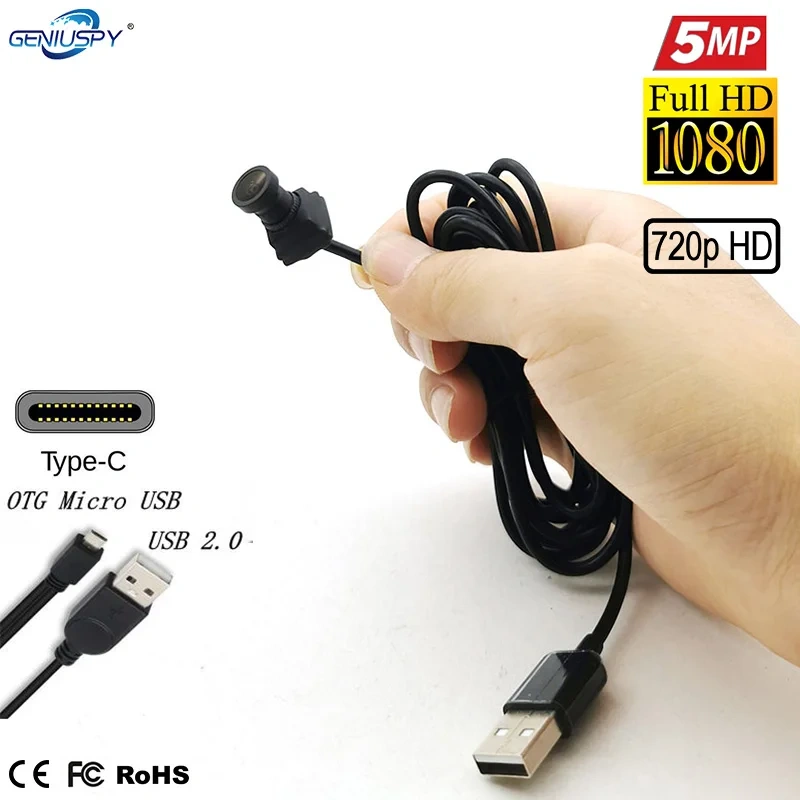

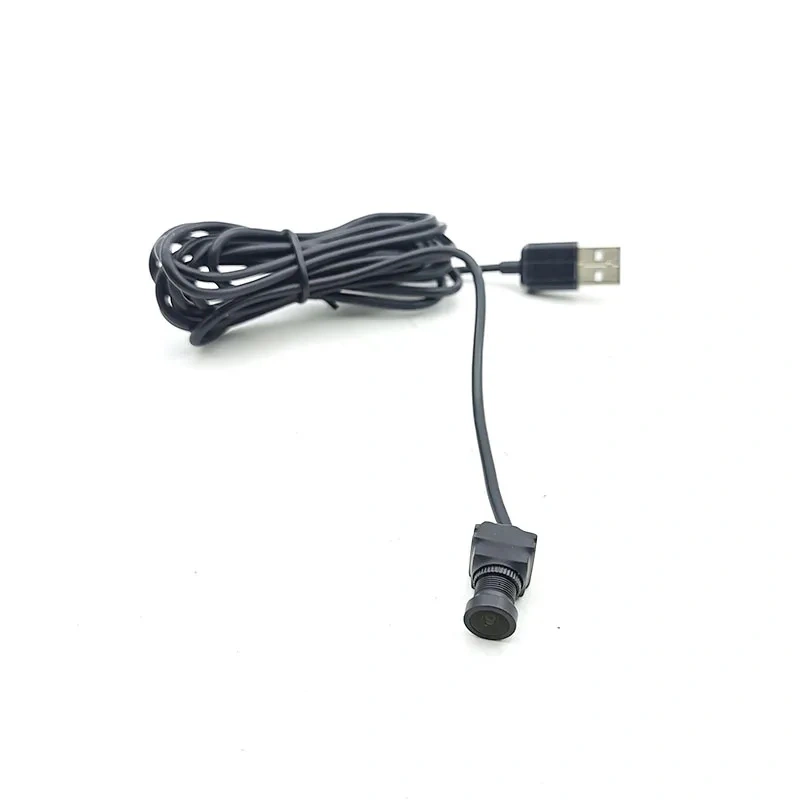

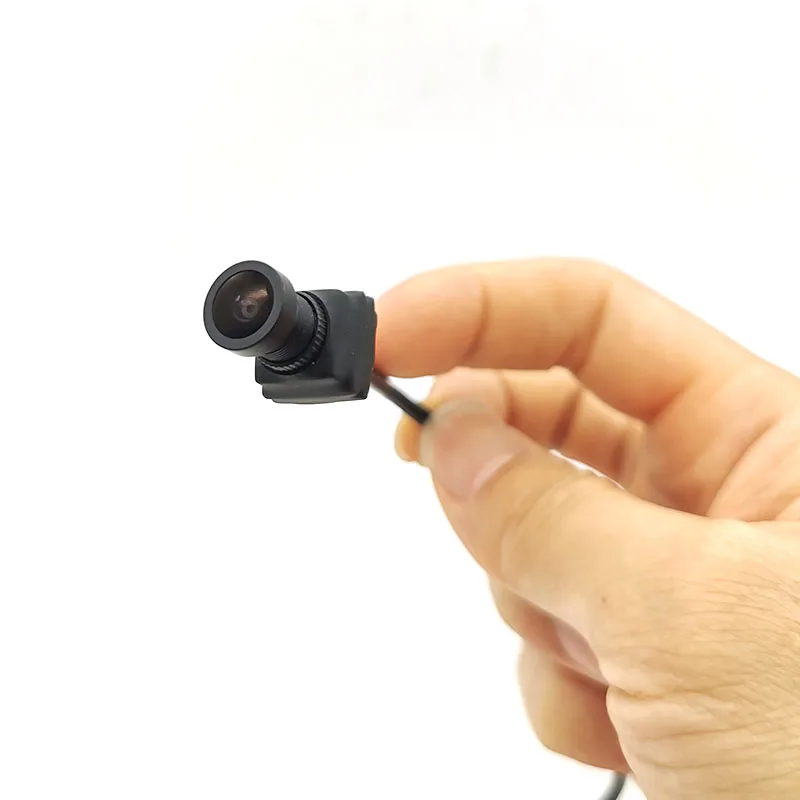

12*12MM 720P 1080P 5MP Smallest Micro Mini USB Camera Module UVC OTG TYPE-C For Bank ATM Machine Kiosk Security CCTV Mini Camera
video in the link is 2mp models record !
Note: 5MP 1080P with audio ,720P without audio,
if you need other connector ,pls kindly contact with us for custom made !
Note:This Camera not apply to all the Android Phone and Computer System.The compatible Phone and Computer System please refer to the following list or some new models.Please note that your phone must support OTG and UVC camera function, Android system above.
Statement: This product is only used for industrial testing. It is mainly used in small space equipment. It is forbidden to be used for personal eavesdropping and taking pictures.
Advantages
Model | GS-12NWDC5MA GS-12NWDCMA or GS-12NWDC |
Sensor | 1/4 INCH 5MP 1/2.7 inch 1080p /1/4 inch 720p |
Resolution | 5MP/1080p /720P |
Lens size | 1/3 inch |
Pixel | 5MP MAX /1920*1080P MAX/1280*720P MAX |
Line length | 1M TYPE-C&android/ USB2.0 3meters for 1mp and 2mp , 5mp is 2meters |
Formats | MJPG/YUY2 |
Array size | MJPEG:1080P 30fps 1080p 30FPS |
Lens Construction | 5G2P |
F/No | F2.1 |
Lens EFL | 85 |
Minimum illumination | 0.5LUX |
S/N Ratio | ≥48dB |
Gammar | 0.45 |
Shutter | 30f/s |
White balance | Auto |
Working temperature | -10~+50℃ |
Power | 5V |
Power consumption | 90mA |

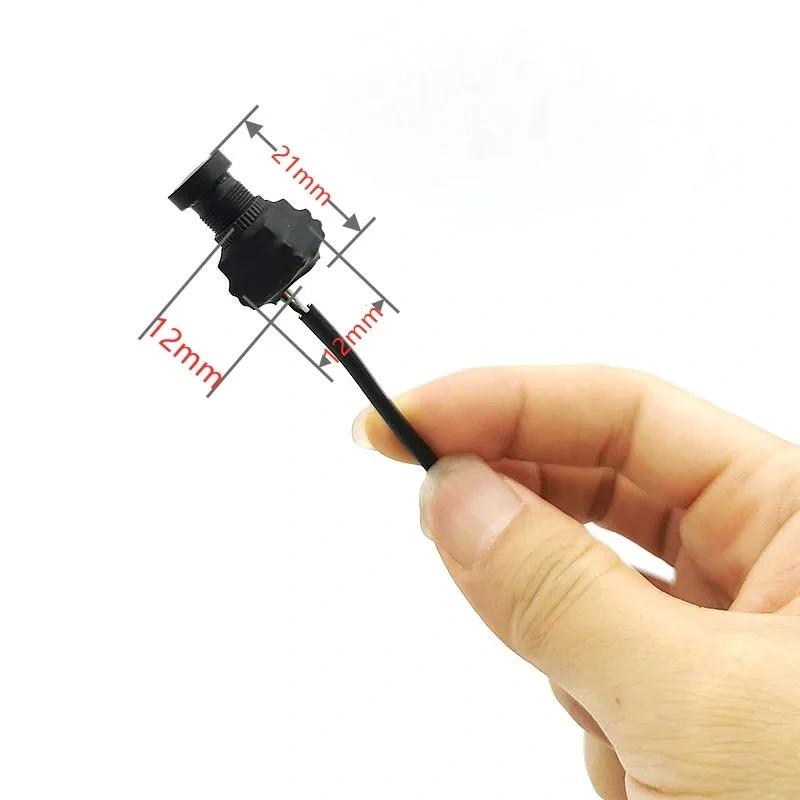

Size | 12*12*12mm |
Interface | OTG2.0 MICRO/type-c /usb2.0 optional |
System | WINXP/WIN7/WIN8/Linux/Android |
Advantages
Parameter
Model |
| ||
Sensor | h62 | ||
Resolution | 1280*720P | ||
Lens size | 1/4 inch | ||
Pixel | 720p | ||
Line length | 1M | ||
Formats | MJPG/YUY2 | ||
Array size | MJPG:720P 30fps | ||
Lens Construction | 5G2P | ||
F/No | F2.1 | ||
Lens EFL | 3.6mm 70° | ||
Minimum illumination | 0.1LUX | ||
S/N Ratio | ≥52dB | ||
Gammar | 0.45 | ||
Shutter | 30f/s | ||
White balance | Auto | ||
Working temperature | -10~+50℃ | ||
Power | 5V | ||
AUDIO | N/A | ||
Power consumption | 150mA | ||
Size | 12*12mm | ||
Interface | OTG2.0 MICRO/type-c/usb2.0 | ||
System | WINXP/WIN7/WIN8/Linux/Android |
Package contents:
1 x Camera 1 x English User Manual
