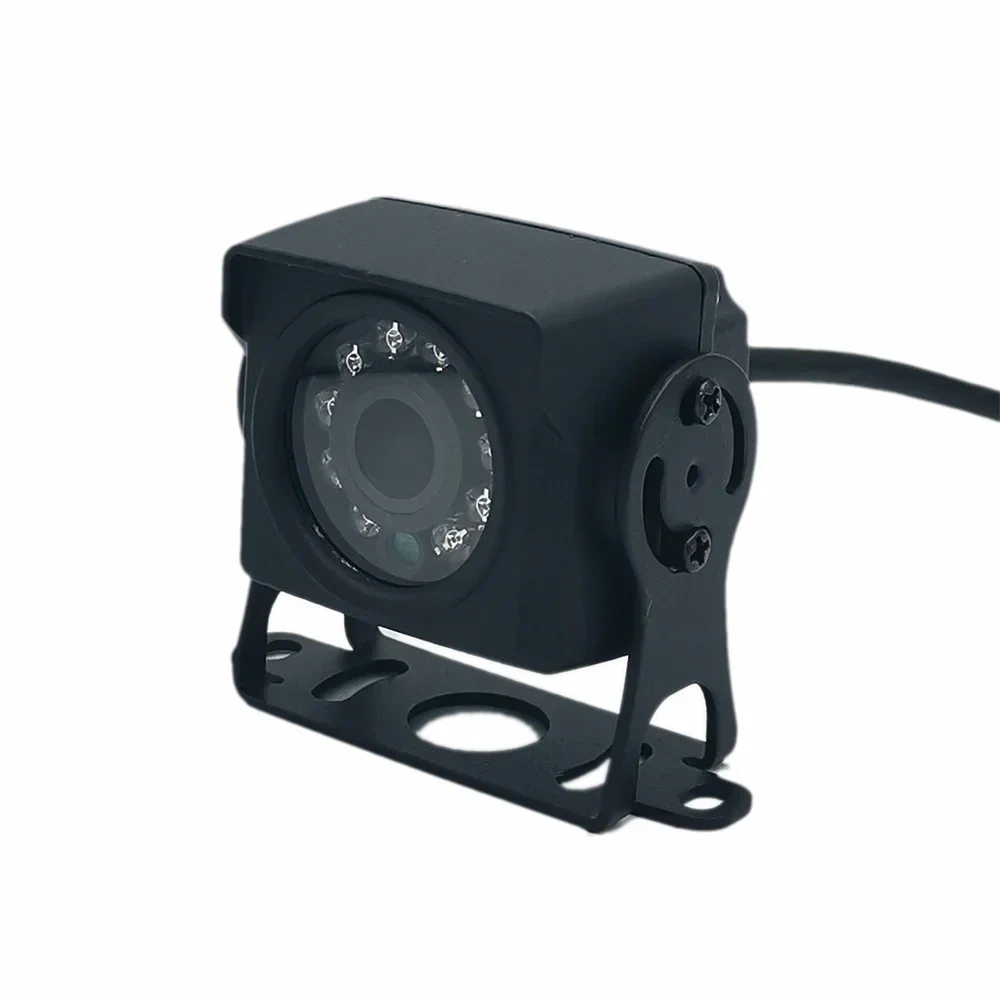

Camera | |
Day and Night Switch | Support day and night switch (IR-CUT) |
White Balance | Support Automatic White Balance |
BLC | Support backlight compensation |
Digital Noise Reduction | Support 3D noise reduction |
WDR | Support digital wide dynamic |
Motion Detection | Support motion detection |
Privacy Mask | Support |
Mirroring | Support mirroring |
OSD | Support OSD setting, support OSD drag freely |
Automatic Maintenance | Support |
Smart Function | |
Humanoid Detection | Support human figure detection function, can detect human shape for intelligent alarm.(Optional) |
Voice Broadcast | Support voice broadcast after human shape is detected.(Optional) |
Light Alarm | Support the linkage light alarm after the human shape is detected.(Optional) |
Video | |
Compression | H.264, H.265 |
Resolution | Main stream: 4MP(2560*1440),3MP(2304*1296),2MP(1920*1080),1MP(1280*720) |
Sub-stream 1: 448P(800*448)/D1(704*576)/360P (640*360)/ CIF (352*288) | |
Sub stream 2: 360P (640*360)/CIF (352*288) | |
Video Frame Rate | 4MP/25fps, 3MP/30fps |
Video Adjustment | Brightness, Saturation, Chroma, contrast, Sharpness Adjustment |
Network | |
Ethernet | RJ-45 10M/100M |
Network Protocol | ON VIF, P2P, CGI, HTTP, TCP/IP, IPv4, RTSP, UDP, NTP, DHCP, DNS, IP Filter |
Access Protocol | ONV IF protocol/private protocol/CGI |
Maximum Users | 4 |
Client Software | iPhone, iPad, Android, Windows IE and VMS |
Audio | |
Audio Format | |
Audio Input | Support(Optional) |
Audio Output | Support(Optional) |
General | |

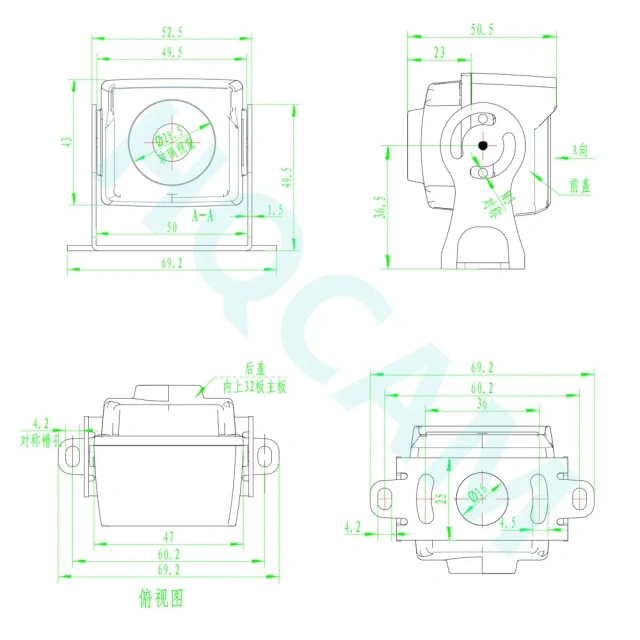

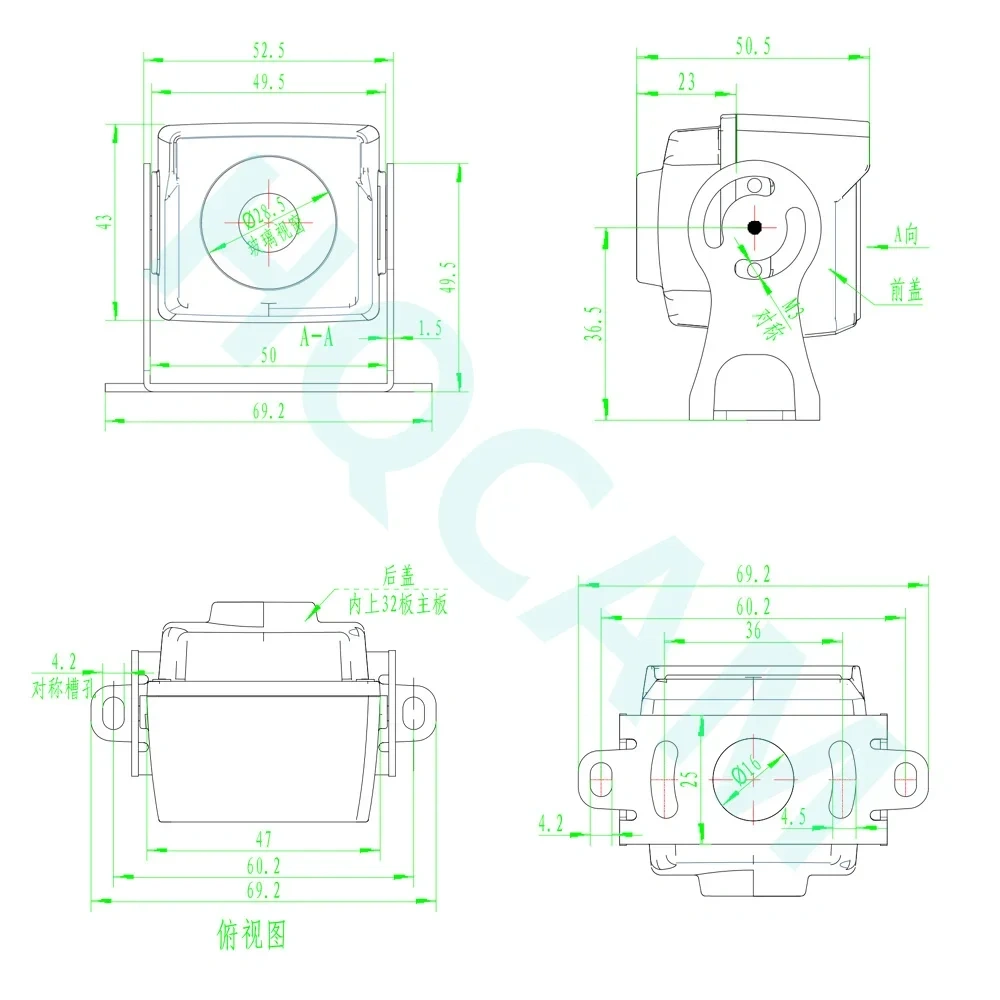

Size | |
Temp. and Hum. | -20℃～+65℃ |
Power Supply | 12V DC ± 25% |
·supports ON VIF
·Can be connected to network video recorder that comply with ON VIF, RTSP standards made by many other major manufacturers, such as HI KVISION, DA HUA, XM, etc.
